1954 Firepower Hemi Industrial Engine.

1970FuryConv

Old Man with a Hat
Joined
Aug 8, 2014
Messages
5,190
Reaction score
4,670
Location
Richmond, VA
My friend Curtis is considering buying a 1954 irrigation machine that is powered by a Firepower hemi engine. He asked me if the bell housing matched any automotive transmissions. I have no answer. Does anyone know if a 1954 industrial V8 motor can be used in an automotive application? What are the obstacles?
Thanks, Ben


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,334
Reaction score
22,298
Location
Marcellus, NY

fury fan

Senior Member
Joined
Mar 30, 2013
Messages
3,025
Reaction score
2,087
Location
Indianapolis
Probably the biggest question - what kind of vehicle would it go in? That might determine what installation options are acceptable.
Meaning, whether a home-built fenderless Deuce coupe or an early 50s sedan - might make a difference.


CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
7,947
Reaction score
5,039
Other than the bellhousing and such, the motor MOUNTS might be different too. Maybe even "reverse rotation"?


1970FuryConv

Old Man with a Hat
Joined
Aug 8, 2014
Messages
5,190
Reaction score
4,670
Location
Richmond, VA
Early Chrysler Hemi, Transmission Adapters, Flywheels, Mopar, Chevy, Ford, Dodge, DeSoto

As I understand it, some of the 1954 Hemi engines have the bellhousing cast with the block and that can make things difficult. I don't know where the industrial engines fit in. A call or email to the company I linked may help. I was looking at options with a flathead 6 and talked to the owner on The HAMB and he was pretty knowledgeable.
Hi Bob,
I texted Curtis the info for Hot Heads.
Ball's in his court now. Thanks, Ben


1970FuryConv

Old Man with a Hat
Joined
Aug 8, 2014
Messages
5,190
Reaction score
4,670
Location
Richmond, VA
Probably the biggest question - what kind of vehicle would it go in? That might determine what installation options are acceptable.
Meaning, whether a home-built fenderless Deuce coupe or an early 50s sedan - might make a difference.
It's some kind of station wagon.
Other than the bellhousing and such, the motor MOUNTS might be different too. Maybe even "reverse rotation"?
I know nothing about industrial, but I think reverse rotation is for a two engine boat where one prop counters the sideways movement created by the 2nd prop. My guess: that's not needed in an irrigation system. I'm sure motor mounts would need to be fabricated.


MONC440

Active Member
Joined
Apr 7, 2021
Messages
354
Reaction score
644
Location
Michigan
My experience is the industrial or I engine blocks are the same as the car. If it is a 331 it will probably have an extended bell housing built into the block. If it is a 354 or 392 it will not have. All gen 1 hemi's have the same trans bolt pattern and 4 of the 6 holes line up with small block Mopar. You can easily get an adapter to bolt to a Mopar manual or automatic trans for less than $500. I have one on the shelf now that I plan to use with a 270 Dodge Hemi going into a Model A Ford. The only opposite rotating engines I have seen are for boats with twin engines but I could be wrong. The tell tail for the revers rotation is it will not have a timing chain it will be gear driven.

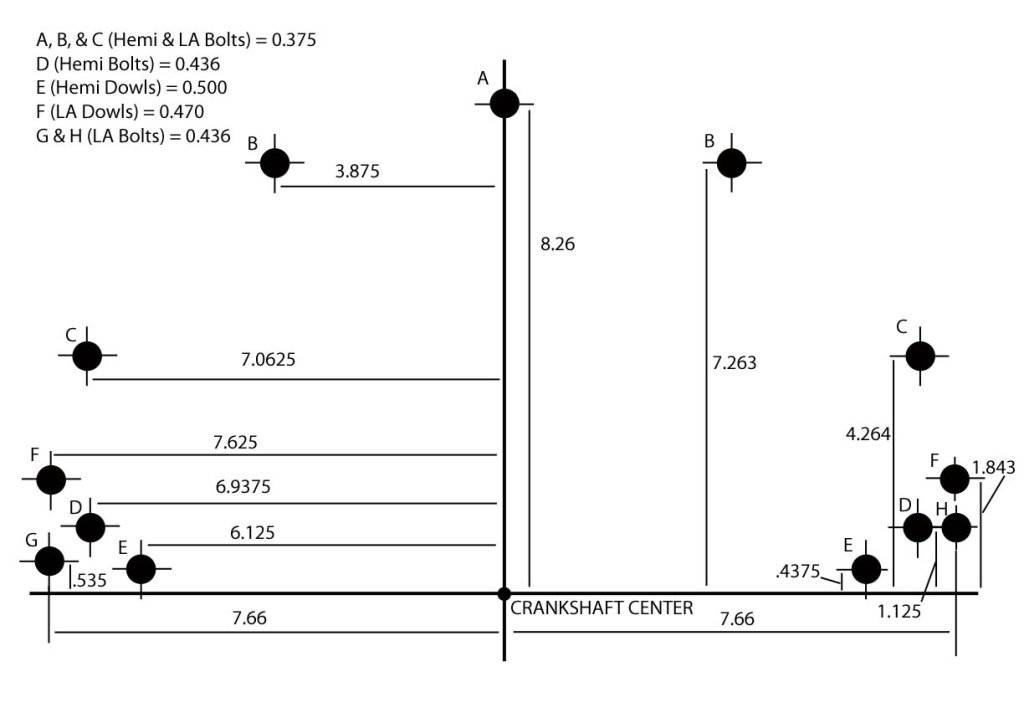

Pic below is the specs for bold measurements from HEMI to LA engine

Links to the HAMB form
Hemi ID
HEMI Tech- Identification

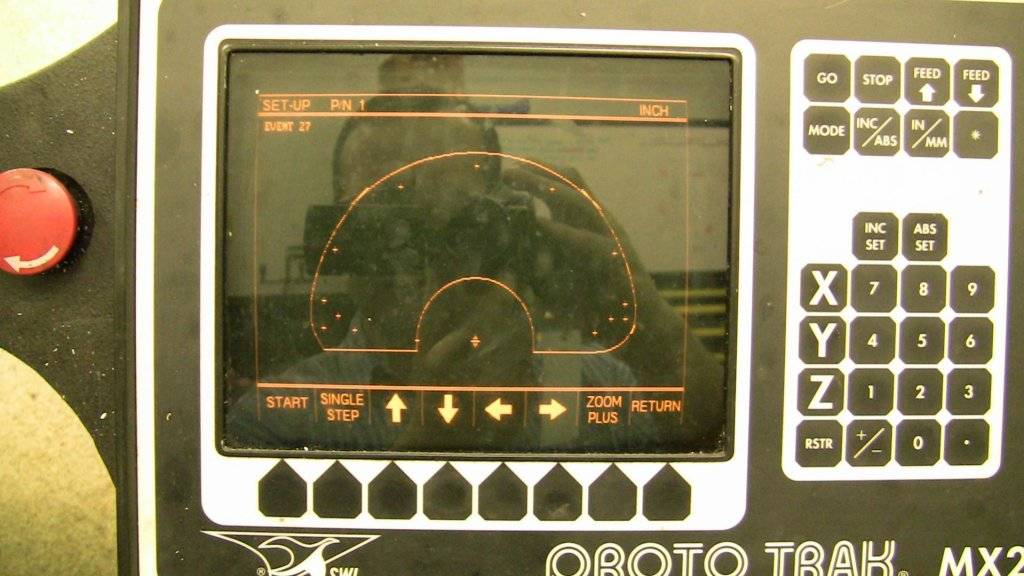

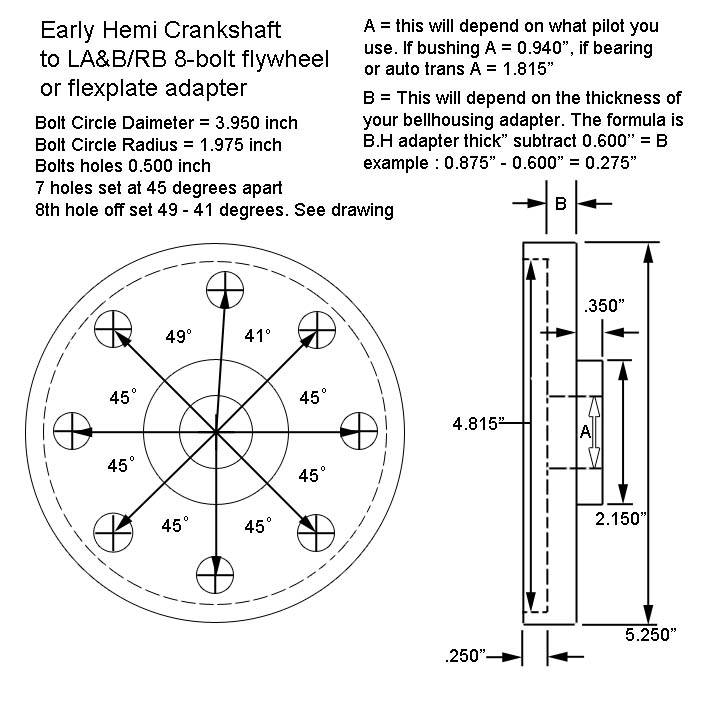

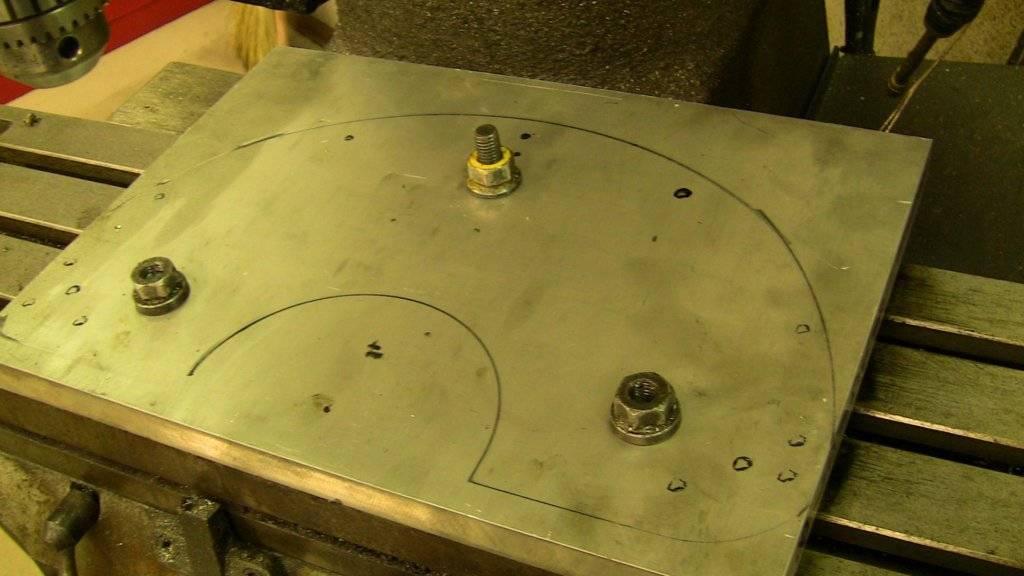

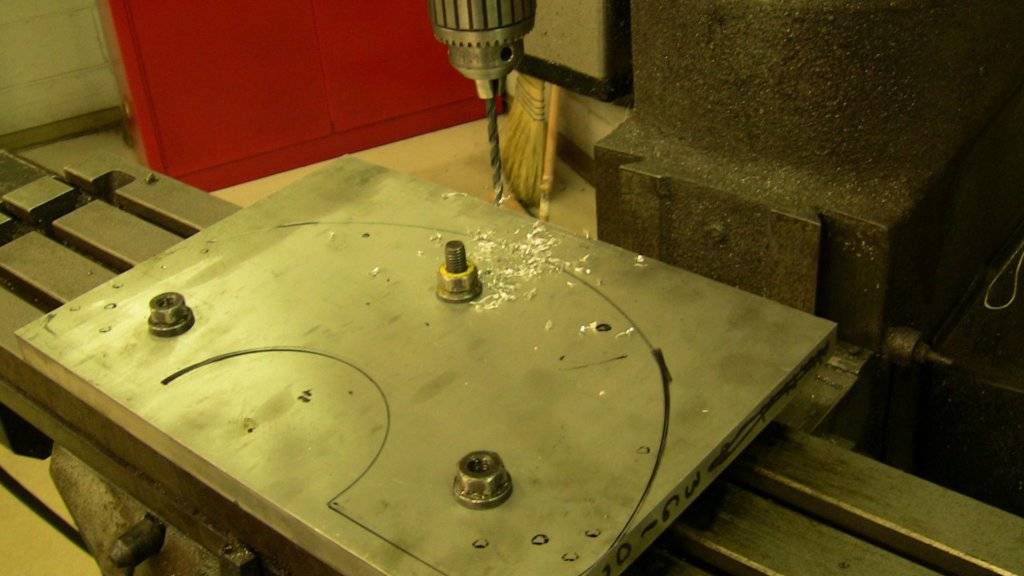

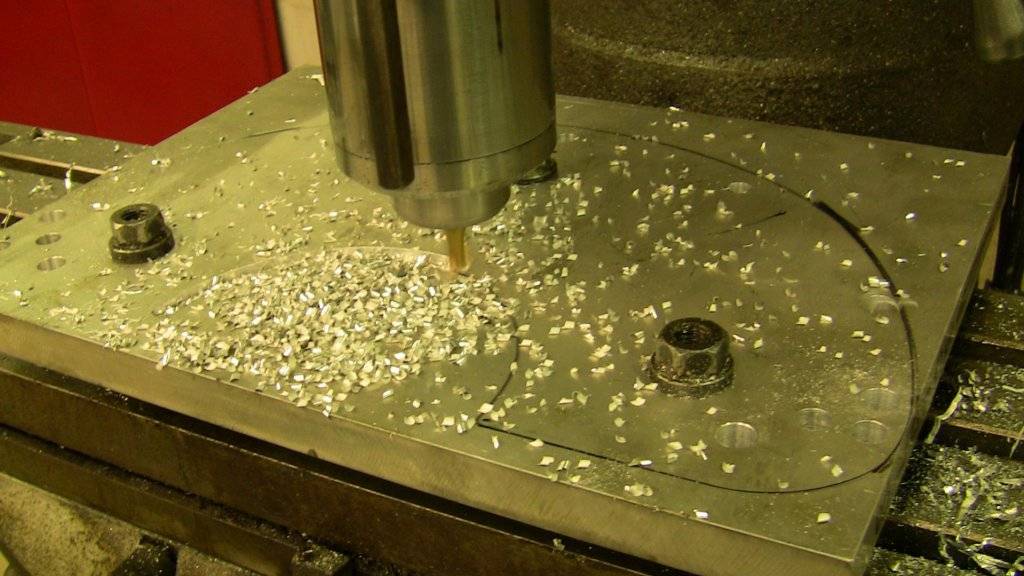

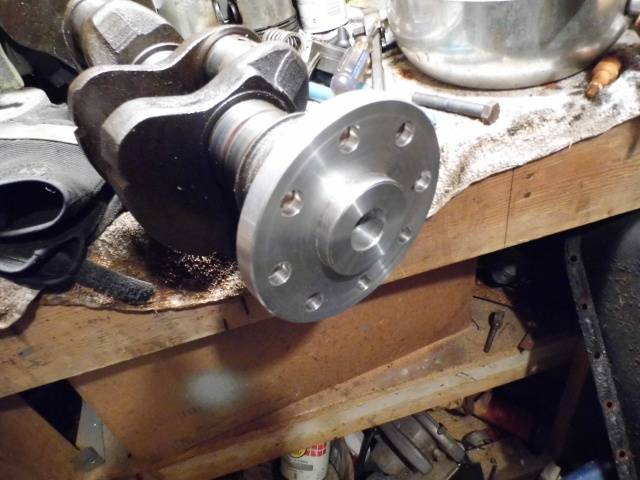

Here is my link to the adapter I made for mine

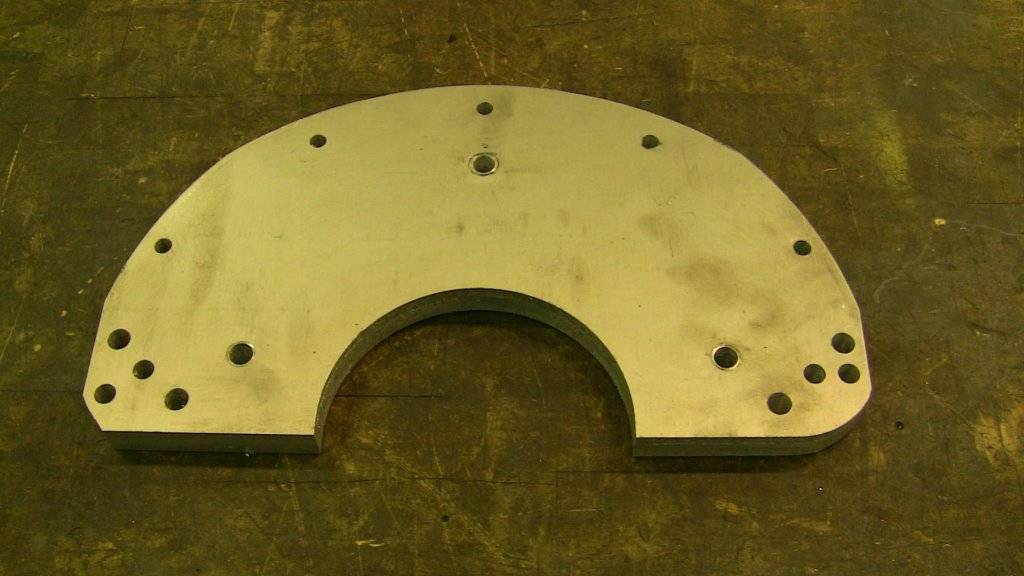

Early Hemi to LA Mopar Bellhousing Adapter

HEMI TO LA copy.jpg


MAXWEDGECHAR

New Member
FCBO Gold Member
Joined
Nov 11, 2015
Messages
49
Reaction score
29
Location
Mt Laurel, NJ
I think they took the block extension off the 331 when they went to PowerFlites? My '52 Imperial had it But my '54 New Yorker Deluxe didn't I think.
