1963 chrysler 300 (rare?)

Early C Bodies - The Slab Side Years

  1. 69monaco

    69monaco Senior Member

    Messages:
    3,322
    Likes Received:
    2876
    Joined:
    Feb 1, 2014
    Location:
    (NL)
    Last edited: Jan 27, 2019
  2. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,380
    Likes Received:
    2014
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    The actual Chrysler 300 J for 1963 is a rare car. I can not tell with the information given and the pictures supplied if this is an actual letter car or not, my first impression is that it is probably not. Closer inspection and a vin number verification would be needed. The cross ram setup could be ordered on other models besides the letter series if the dealer knew what he was doing. The fact that the seller is unwilling to part with the air cleaners is big turn off for me. The car is might be a non letter 300 series with the 390 horse engine. These cars are worth a lot less than the letter series. If the car can be verified as a letter series car, it is probably worth close to the asking price WITH THE AIR CLEANERS!

    Dave

    • Like Like x 1
    • Agree Agree x 1
  3. commando1

    commando1 Old Man With a Hat on the Porch

    Messages:
    35,359
    Likes Received:
    19833
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    I believe the seller may be Ted's Tuna Boats.

    • Agree Agree x 3
  4. 69monaco

    69monaco Senior Member

    Messages:
    3,322
    Likes Received:
    2876
    Joined:
    Feb 1, 2014
    Location:
    (NL)
    Yes he is the seller...…….

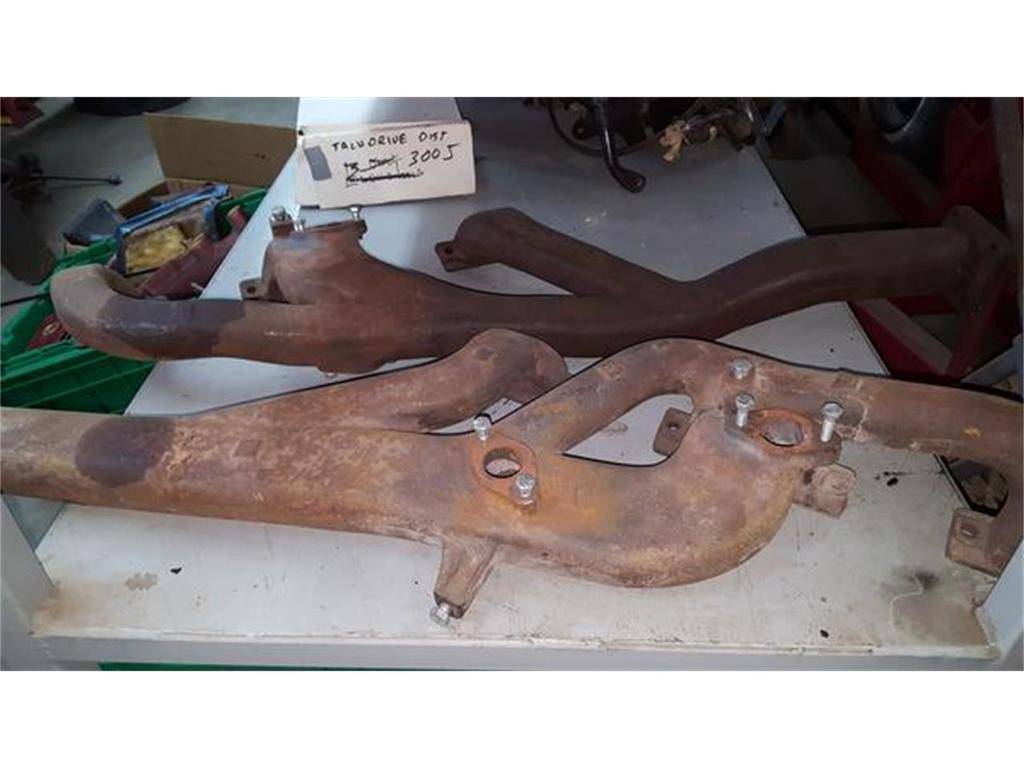

    But what i like to know if anyone ever seen these exhaust parts , of course i,ve seen the crossrams but never these exhaust manifolds……


    Last edited: Jan 27, 2019
  5. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    6,478
    Likes Received:
    5516
    Joined:
    Oct 8, 2011
    Location:
    California

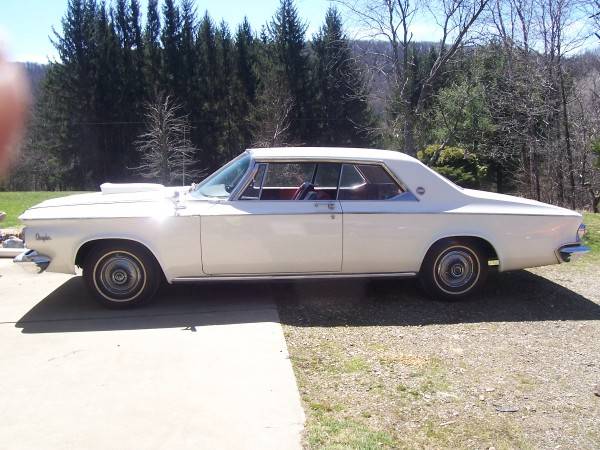

    Actually, this car does appear to be a real letter car to me. The letter cars did not have the stainless molding at the belt line like the non-letter 300s nor did they have the small triangular trim piece at the front intersection of the C pillar to the quarter panel.


    Rather the genuine 300J had dual painted pin stripes at the belt line only and they did not have the triangular trim piece at the front lower edge of the C pillar to give a more sporty, clean appearance:


    It was a subtle, but very effective distinguishing difference in my view. The 300J was also standard with the cross ram 413 engine. It was an excellent car in my opinion. Very well balanced to drive, and was on a shorter wheel base than the 1960 and 1961 models and therefore felt lighter an more nimble in terms of handling and quicker too.

    I don't like that the underhood has been messed with on the car for sale and the a/c parts are missing in action as well. Otherwise, it would be worth the asking price, but when a car has been messed with like that one, it gives me pause.

    • Like Like x 1
    • Agree Agree x 1
  6. jct

    jct Senior Member

    Messages:
    3,730
    Likes Received:
    2682
    Joined:
    Jun 11, 2015
    Location:
    indianapolis
    You can get cross ram cars with a/c‽

  7. ImpJay

    ImpJay The different young

    Messages:
    2,453
    Likes Received:
    1374
    Joined:
    Jun 4, 2018
    Location:
    Vantaa, Finland
    Short Ram Header
    allaboutrams
    Those round pipes seem to be intake manifold heater pipes.

    Last edited: Jan 27, 2019
    • Like Like x 1
    • Thanks! Thanks! x 1
  8. twostick

    twostick Senior Member

    Messages:
    2,297
    Likes Received:
    979
    Joined:
    Dec 13, 2012
    Location:
    Beautiful Downtown Roebuck Ont.
    Yes

    Kevin

    • Agree Agree x 1
  9. 78Brougham

    78Brougham "Chump" FCBO Gold Member

    Messages:
    16,030
    Likes Received:
    17250
    Joined:
    Nov 10, 2013
    Location:
    Wellsboro, PA
    They are.... they went up the the base the carburetor aid in warm-up.
    Steve @saforwardlook would know way more about these than me for sure. I had a long ram setup but never the exhaust manifolds. Tried install them on my '60 Desoto. Was an experiment that didn't work out so i took them off. I was only 17 at the time and was still learning... And I'm still learning....

  10. 69monaco

    69monaco Senior Member

    Messages:
    3,322
    Likes Received:
    2876
    Joined:
    Feb 1, 2014
    Location:
    (NL)
    Last edited: Jan 27, 2019
    • Like Like x 1
  11. 69monaco

    69monaco Senior Member

    Messages:
    3,322
    Likes Received:
    2876
    Joined:
    Feb 1, 2014
    Location:
    (NL)

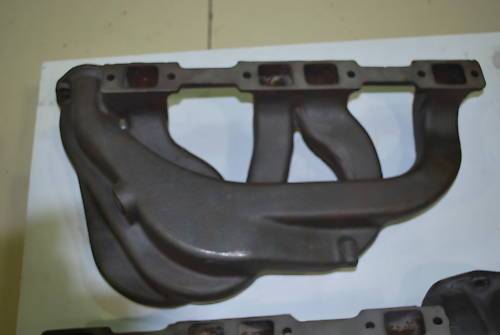

    Reminds me at these max wedge tri-y,s...……


    • Like Like x 1
  12. BIGBARNEYCARS

    BIGBARNEYCARS Senior Member

    Messages:
    4,120
    Likes Received:
    2676
    Joined:
    Dec 10, 2012
    Location:
    SHADOW OF MOTHER'S PROVING GROUNDZ
    My Gawd. The pix are comin' out of the wood work. Seamz I waz talkin' to someone here ah couple weekz ago 'bout the TRI-Yz and the J+K headerz and here they both are in all their beautyfullness, lol. Davea, FWIW. 300 statistics on file say there were 400 300js Produced for the entire run in 1963 and All 400 of them came with the short rams and and those 60lb per side cast iron Beauties

    • Like Like x 2
    • Thanks! Thanks! x 1
  13. BIGBARNEYCARS

    BIGBARNEYCARS Senior Member

    Messages:
    4,120
    Likes Received:
    2676
    Joined:
    Dec 10, 2012
    Location:
    SHADOW OF MOTHER'S PROVING GROUNDZ
    Side Bar Group: I bought an entire Ram 300K with that complete setup(way bad cancer victim) just to have the complete set for the Batwagon Build in the '80s. I won't comment on the set our friend in W.V. haz F/S, or hiz asking price other then to say if I had what he haz I don't think it would F/S 'cuz I'd probably be building another 1 of None. Oh Yeah. and the heat risers for those headers were re-popped shortly after I scored that Ram K and I bought the first set sold of those. Problem with the heat riser set up waz that the exhaust gasses ATE the aluminum on the bottom heat chambers of both ramz. I had plates made with hose connections installed and went Water Heated on my car. Ah couple salt racers including Andy Granatelli plus maybe a hand full of other "Hot Shoes"did the same thing with '62 300 carz. Worked out fine but I think Mother went the heat riser route because of the cost more then any other reason but that's only conjecture on my part? Long time ago and I'm fillin' in ah few blankz, Jer

    • Thanks! Thanks! x 2
  14. mdh157

    mdh157 Senior Member

    Messages:
    3,431
    Likes Received:
    826
    Joined:
    Mar 2, 2011
    Location:
    Carlisle, Pa
    According to the VIN listed in the ad, it is a letter car. Second digit on a 300 in '63 is either a 2 or 4, the latter being a letter car.

    • Thanks! Thanks! x 2
    • Agree Agree x 1
  15. 4spd300J

    4spd300J Member

    Messages:
    128
    Likes Received:
    66
    Joined:
    Jun 7, 2017
    Location:
    Aztec, New Mexico
    The advertised serial number does indicate it is a genuine 300J. The 390 horse short ram engine was the only option. If this car still has the original engine, the stamped engine number will begin with C300J and a build date. The heat cross over tubes were used as they offered the fastest warm up cycle. They did tend to rot the aluminum on the intake manifolds. My car had been stored for several years because it had a serious backfire problem that the previous owners couldn't determine. Pinholes in the intake floor on one bank had been dripping raw gas into the exhaust manifold. That explained one non original muffler and exhaust pipe. I installed freeze plugs in my exhaust manifolds to block off the manifold heat, just left the tubes in place for appearance and intake support. I also went with a water heated system on another car I had with good results. The complete blockoff was just as effective and a lot less work and expense. The price on this one seems pretty high for it's condition. There has been a few for sale in the last year or so in driving condition in the 12-18k range.

    • Like Like x 1
    • Thanks! Thanks! x 1
  16. 68 4spd Fury

    68 4spd Fury Well-Known Member

    Messages:
    974
    Likes Received:
    255
    Joined:
    Aug 17, 2014
    Location:
    Syracuse, NY
    For what it's worth, I remember reading that the 63 300"J" was one of, if not the, lowest run of the letter series. If this one is legit will require some digging and research.

  17. 1978 NYB

    1978 NYB Warfighter FCBO Gold Member

    Messages:
    55,264
    Likes Received:
    24671
    Joined:
    Apr 16, 2011
    Location:
    Classified
    Very nice! Looks complete.

  18. commando1

    commando1 Old Man With a Hat on the Porch

    Messages:
    35,359
    Likes Received:
    19833
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    I love it.

  19. ImpJay

    ImpJay The different young

    Messages:
    2,453
    Likes Received:
    1374
    Joined:
    Jun 4, 2018
    Location:
    Vantaa, Finland
    Actually this is the rarest letter car. It was not produced as convertible at all and only 400 2dr hts were produced.
    http://www.chrysler300club.com/letterhistory/History.htm

    • Agree Agree x 1
  20. Joe Argiro

    Joe Argiro New Member

    Messages:
    2
    Likes Received:
    3
    Joined:
    Oct 17, 2020
    Location:
    Australia
    Yes Dave it is a 1963 300J letter car, which now lives in Australia.
    l am currently restoring it, will post build pics as l go.
