    Hi. Was there a 1965 factory option auto head light dimmer? If anyone can send a pic of one my search will carry on.

    Thanks----Arthur

    Last edited: May 13, 2019
  2. 300C

    300C Member FCBO Gold Member

    Messages:
    101
    Likes Received:
    76
    Joined:
    May 13, 2019
    Location:
    NJ

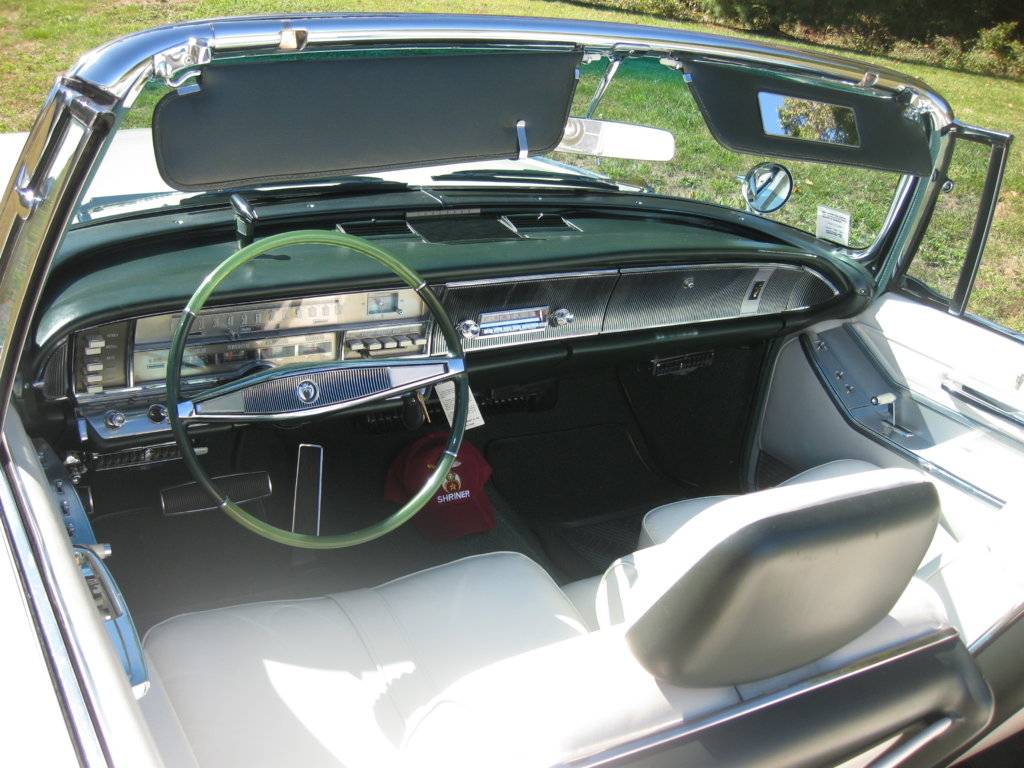

    Here's a pic of the auto dimmer from my '64 Imp....maybe this can help you....

    1964 Imp Auto Dimmer.JPG

    • Like Like x 1
  3. steveh

    steveh New Member

    Messages:
    46
    Likes Received:
    47
    Joined:
    Jan 3, 2019
    Location:
    Calgary
    I dont know exactly when MOPAR started with the option but it was Delco part and was around since 54 i think if my memory is right. Like most MOPAR options there were Delco made (Radios, Power door locks, Vent window motor, auto lighting, etc. I have the dimmer in three of my cars. After a electronic rebuild and upgrade there do work and not to bad.

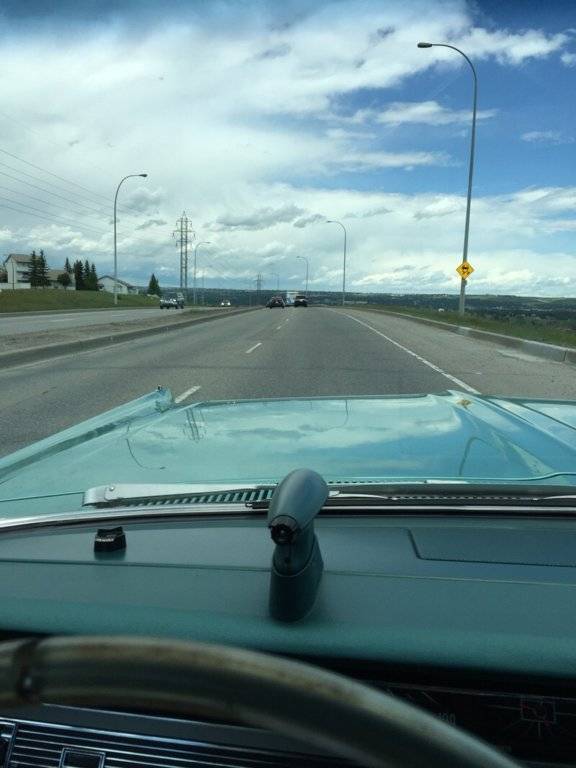

    Here is min in the 67 Newport Custom
    Auto dimmer.JPG

    • Like Like x 2
  4. CBODY67

    CBODY67 Senior Member

    Messages:
    4,116
    Likes Received:
    962
    Joined:
    Mar 27, 2011
    I discovered that the search tune radios were Delco items when I found them in a Delco Radio service manual listing. AM and FM versions, probably as long as Chrysler offered search tune radios, but not sure when it all started. I believe the GM uses started with 1955 models?

    Cadillacs used the Autronic set-up, but I believe their sensor was on the cowl?

    Good thing that Chrysler didn't use Delco speakers!

    CBODY67

  5. Imperialist67

    Imperialist67 Well-Known Member FCBO Gold Member

    Messages:
    819
    Likes Received:
    231
    Joined:
    Jul 16, 2013
    Location:
    Washington, DC
    in '68 the sensor moved out on the hood. up until then it was on the dash.........

  6. detmatt

    detmatt Old Man with a Hat FCBO Gold Member

    Messages:
    23,858
    Likes Received:
    9942
    Joined:
    Nov 14, 2010

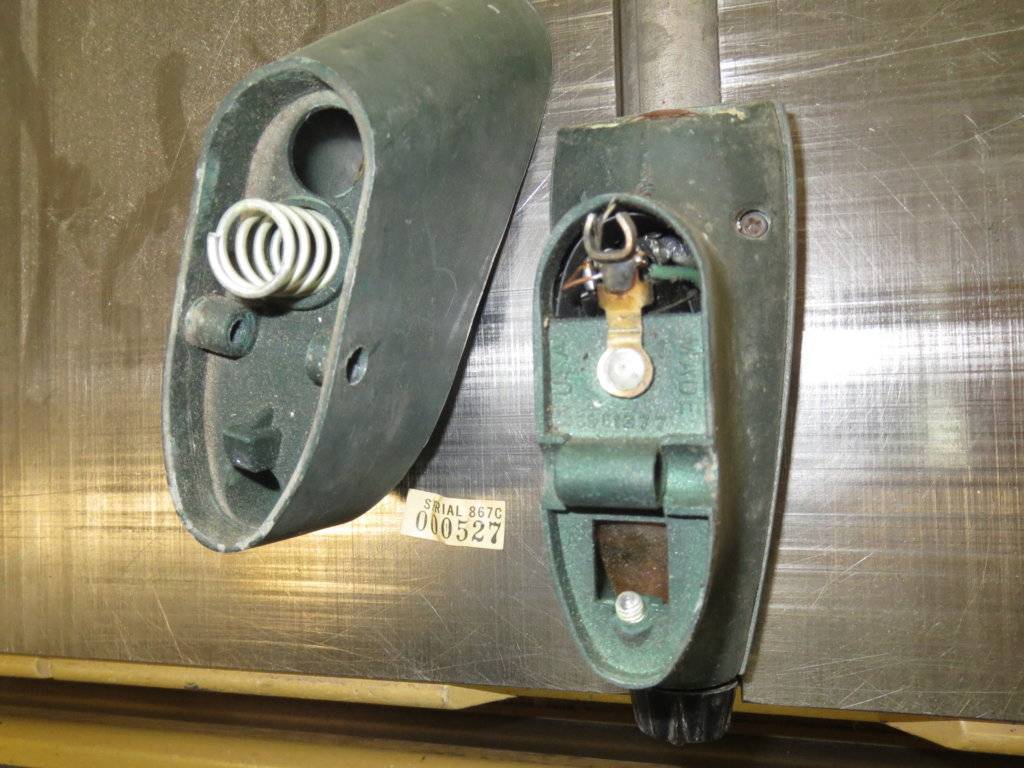

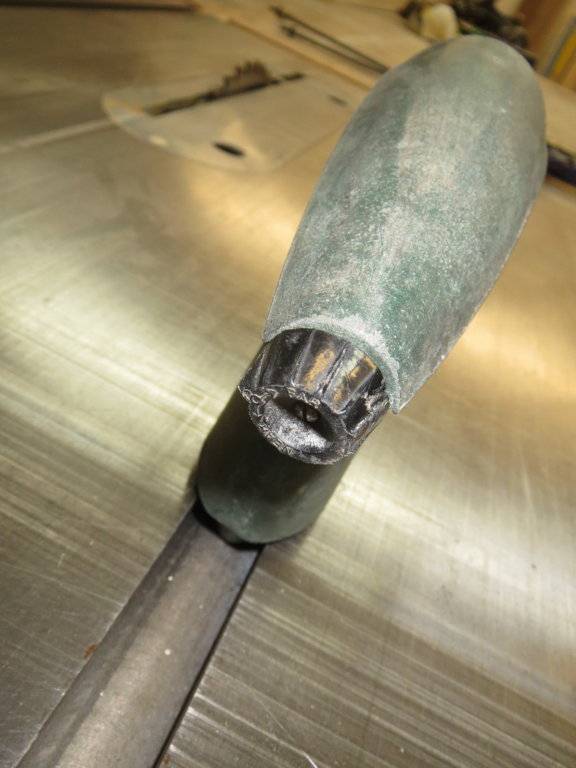

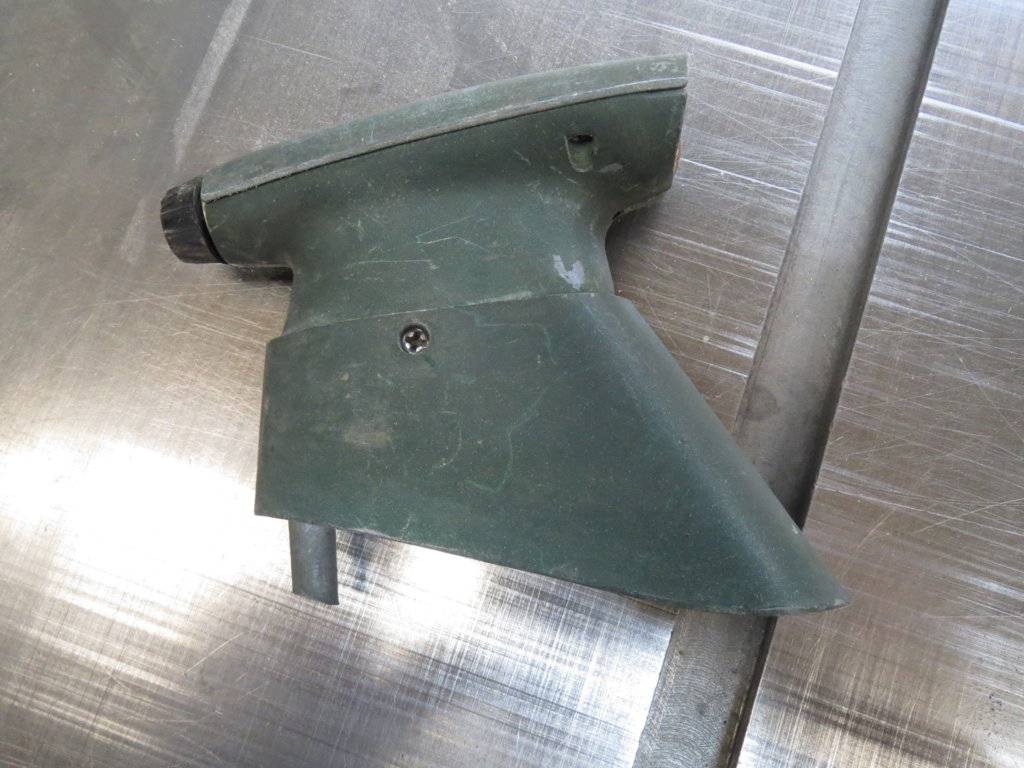

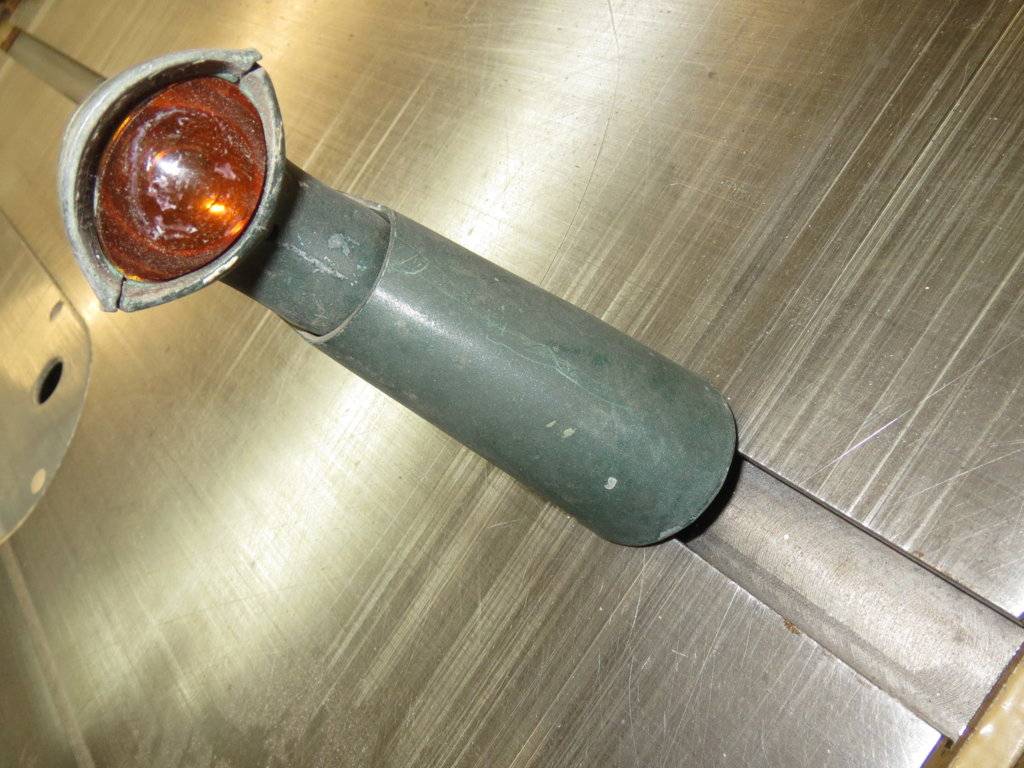

    I have a unit from the dash of a ‘67 Imp in unknown condition and its missing the harness.
    EBD3C385-F93C-4CB4-A0CB-96C6CC4806A7.jpeg EA50F8E3-3FAC-49B8-AF95-8445E6C0C54B.jpeg


    • Like Like x 1
  7. BillGrissom

    BillGrissom Active Member

    Messages:
    367
    Likes Received:
    41
    Joined:
    Apr 23, 2011
    Location:
    Sacramento, CA
    My parent's 1955 Olds had such an "electric eye" on the dash. It used a side-on photomultiplier tube to sense light, which I know from academic research (see Hamamatsu), which became the biggest market for those components. But, the unit shown in the photo looks much different (smaller). Likely by 1965, they were using either a silicon photodiode (still current) or photo-resistor. As 2-lane highways were replaced by interstates, such auto-dimmers lost demand. They appear to be making a comeback since many cars already have the sensors, so just requires software to enable it now.

    • Like Like x 1
  8. cm23uoc

    cm23uoc Old Man with a Hat

    Messages:
    8,380
    Likes Received:
    2437
    Joined:
    Feb 13, 2011
    GM was the first to come out with them in 1952 I think for Oldsmobile and Cadillac, they were called Autronic Eye. They were not that sophisticated as the later ones in the 60s from what I read.

  9. Verse

    Verse Member

    Messages:
    85
    Likes Received:
    34
    Joined:
    Jan 14, 2019
    Location:
    Edmonton Canada
    I have a set up here from a 67 NY that is for sale.

  10. John Kirby

    John Kirby Member

    Messages:
    80
    Likes Received:
    17
    Joined:
    Jun 3, 2016
    Location:
    Minneapolis , Mn
    Buried somewhere around her I have a HiWay Eye that does the same thing. Got it out of a 65 Chrysler. Don't think it was a factory option, probably an aftermarket item. Isn't in my 66 parts manual.

    I'm looking for the headlight sentinel setup. One of the last options I'm looking for my 66 New Yorker. It's in the service manual and parts manual. A few pieces are on parts voice but not the complete setup. Need to know where the light sensor is mounted too.

  11. detmatt

    detmatt Old Man with a Hat FCBO Gold Member

    Messages:
    23,858
    Likes Received:
    9942
    Joined:
    Nov 14, 2010
    Right on top of the dash in front of the steering column about halfway between the edge of the dashpad and the windshield or at least that’s where the are on ‘67 Imperials.
