1966 Chrysler 300 Side Trim Well Nuts

traintech55 · Jun 9, 2019

Oh fellow 1966 300 lovers, I need help in a big way. I need to replace the well nuts and screws that hold the trim to the fender and front door. Does anyone know the size, I believe it to be a #4x32 screw size. Either the correct size, or the part number will be a big help so I can reinstall my trim. The old ones did not hold up well after 53 years. Thanks in advance.

rexus31 · Jun 9, 2019

Do you have pics of the clips?

@Zymurgy has reproduced most of the trim clips for '65/'66 Chryslers.

barnfind · Jun 9, 2019

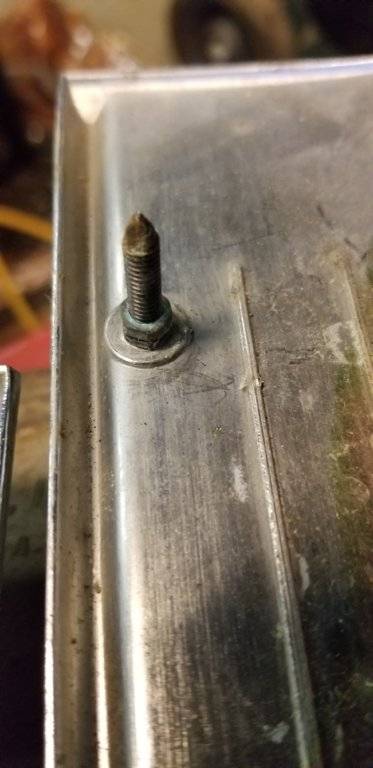

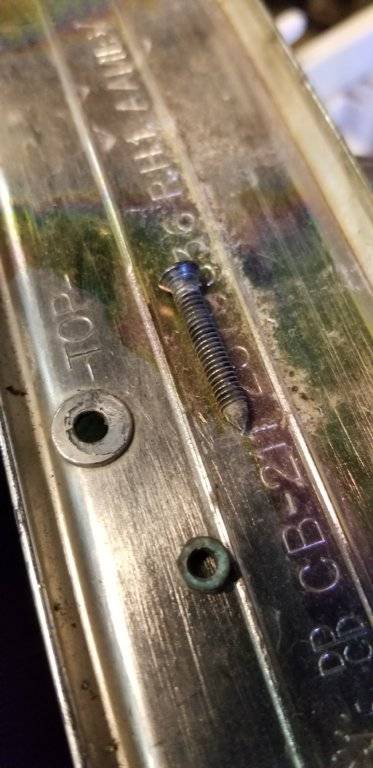

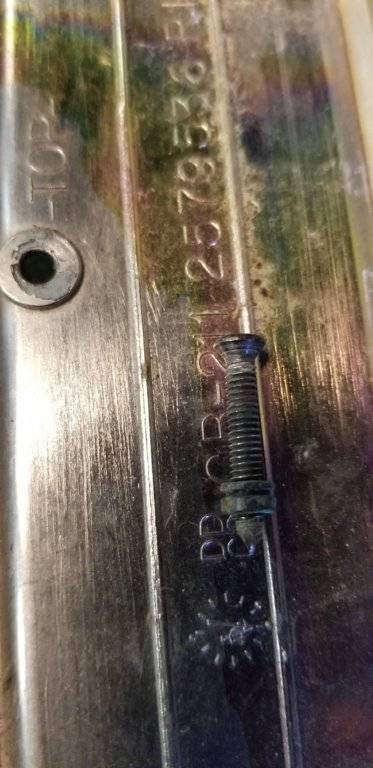

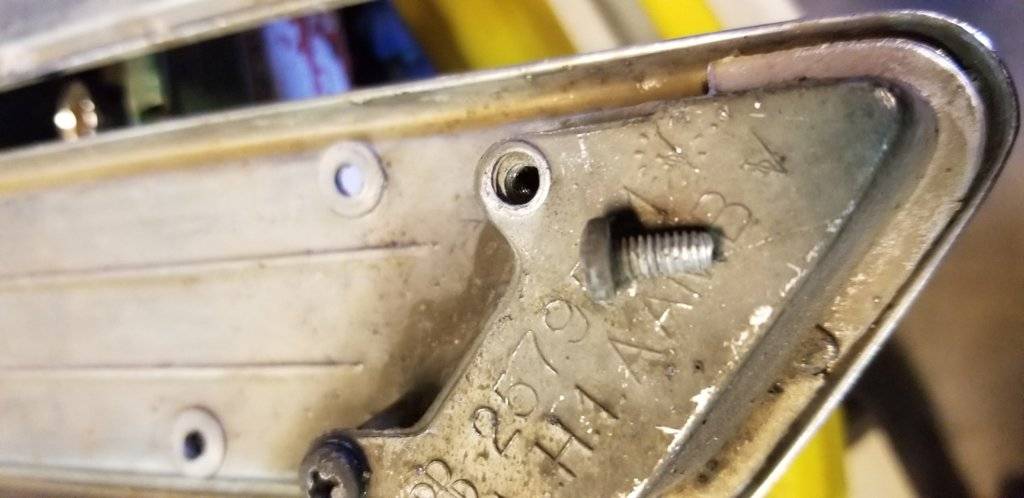

Heres what's left on my trim Bill, hope it helps, no clips.

traintech55 · Jun 9, 2019

barnfind said:
Heres what's left on my trim Bill, hope it helps, no clips.View attachment 292839 View attachment 292840 View attachment 292841 View attachment 292842

Yep, you know what I am looking for. Yours looks better than the ones on my car. going to be fun as there are 13 per side.

stubs300 · Jun 9, 2019

What is it you need? The rubber expanding plugs or the screws, or both?

traintech55 · Jun 9, 2019

stubs300 said:
What is it you need? The rubber expanding plugs or the screws, or both?

The rubber expanding plugs, but both would be great.

Zymurgy · Jun 9, 2019

I can't help you on that one. Interesting is that trim from the somewhere on the hardtop. I don't have anything like that on my convertible and I removed all the trim when I painted it.

traintech55 · Jun 9, 2019

Zymurgy said:
I can't help you on that one. Interesting is that trim from the somewhere on the hardtop. I don't have anything like that on my convertible and I removed all the trim when I painted it.

They are the retainers for the side spears that go on the front fender and door on each side.

Zymurgy · Jun 9, 2019

Sorry I now know what you are taking about. For some reason it just didn't hit me.

First you can't find the screws I looked, nothing available has a small enough head. I got a few extras, which I needed from Murray Park. The retainers are available new, they worked perfectly I will see if I can find my source for them this evening

traintech55 · Jun 9, 2019

Zymurgy said:
Sorry I now know what you are taking about. For some reason it just didn't hit me.

First you can't find the screws I looked, nothing available has a small enough head. I got a few extras, which I needed from Murray Park. The retainers are available new, they worked perfectly I will see if I can find my source for them this evening

Thanks.

stubs300 · Jun 9, 2019

I forget who I got mine from, it was sooooooo long ago? You may have to thumb through the "Mr. G's" catalog to find something, that's the best lead I can give you. Good Luck

Zymurgy · Jun 9, 2019

I can't find the source for the well nuts, which actually should be a good thing because I probably got them from my local hardware or from Amazon. I would take a bolt into a hardware store to find the correct size. I really think it was a Hillman well nut.

traintech55 · Jun 9, 2019

Zymurgy said:
I can't find the source for the well nuts, which actually should be a good thing because I probably got them from my local hardware or from Amazon. I would take a bolt into a hardware store to find the correct size. I really think it was a Hillman well nut.

Thanks, I am going to do that tomorrow, unfortunately the Ace hardware stores around here are closed on Sundays.

Zymurgy · Jun 9, 2019

Hopefully it is 6-32 I see plenty of them offered, I have not seen a #4

traintech55 · Jun 10, 2019

Zymurgy said:
Hopefully it is 6-32 I see plenty of them offered, I have not seen a #4

Well guys a great way to start off the day. went down to the local Ace hardware and they had them in stock. Size is 8/32". Cost was a whole $0.95 so the thirteen cost me $13.56. Ready to go for another 53 years.

Zymurgy · Jun 10, 2019

Great news, I remembered hunting for the screws but not the well nuts, so I figured it wasn't a big deal to find.

For once there is a replacement item you can buy off the shelf, unfortunately I know you will need to track down some original screws to replace those which you can't use. I cleaned mine up with a wire wheel on my grinder, but I still need a few that were rusted solid to the old well nuts.

traintech55 · Jun 10, 2019

Zymurgy said:
Great news, I remembered hunting for the screws but not the well nuts, so I figured it wasn't a big deal to find.

For once there is a replacement item you can buy off the shelf, unfortunately I know you will need to track down some original screws to replace those which you can't use. I cleaned mine up with a wire wheel on my grinder, but I still need a few that were rusted solid to the old well nuts.

OK Guys, you have all heard me complain about pictures, time I posted some to help others out.

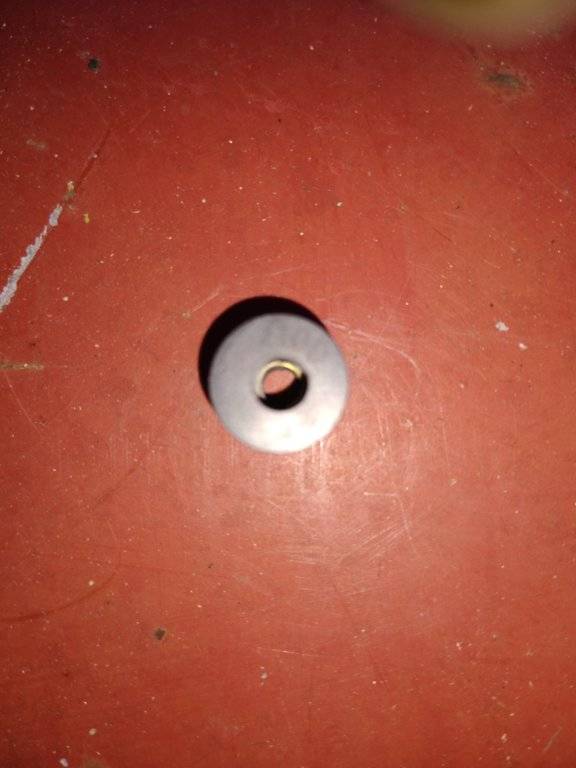

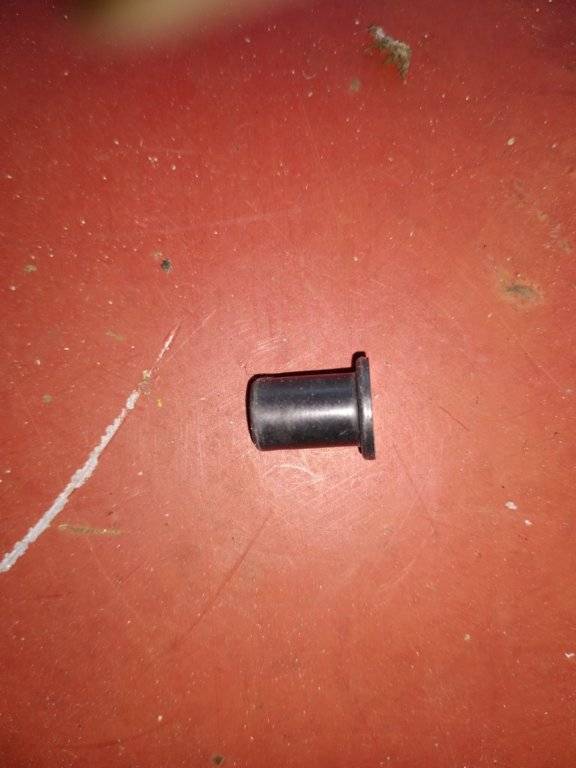

Pictures 1+2 are of the well nut you will need, size is 8/32".

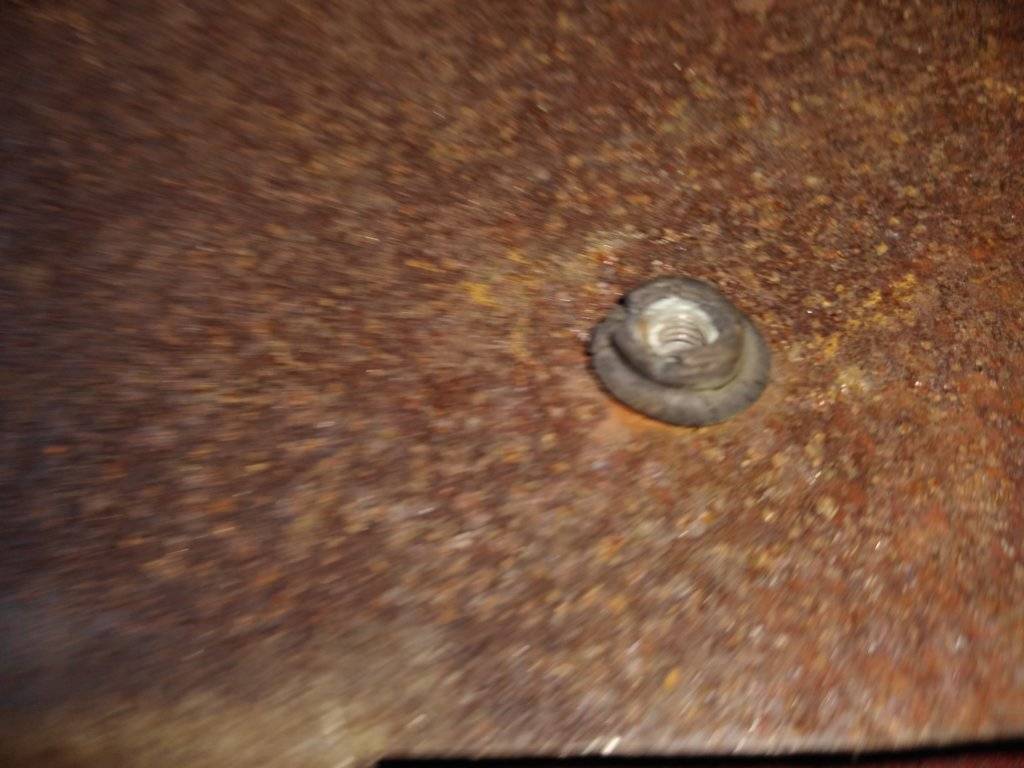

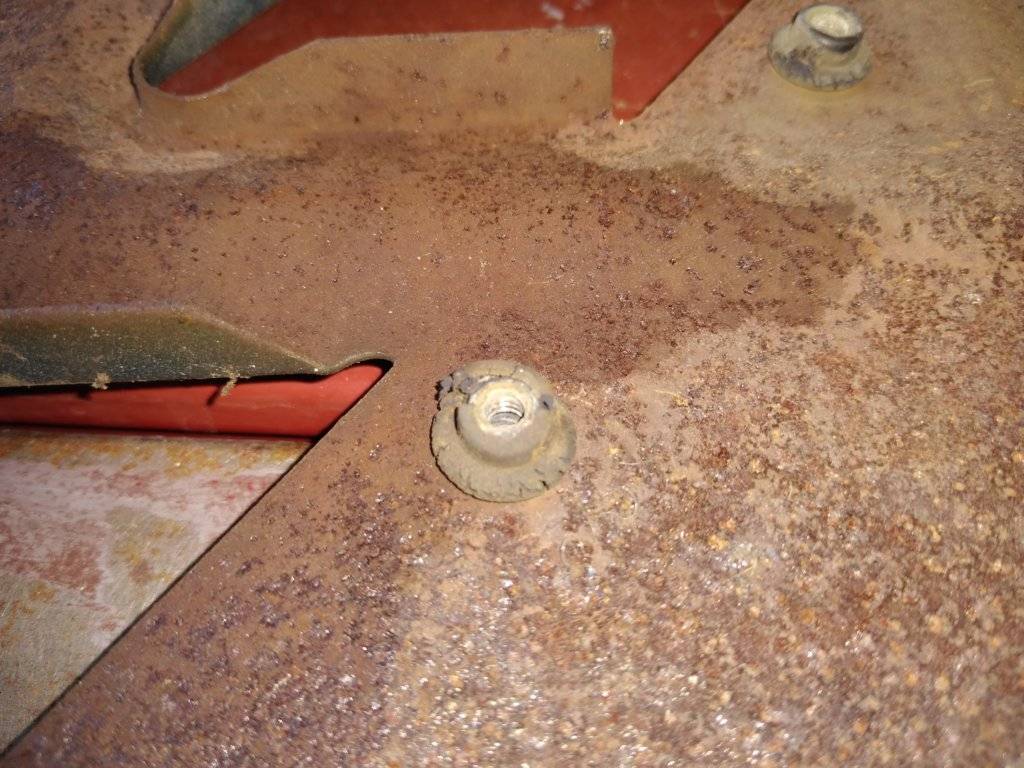

Pictures 3+4 are of the old nuts, impossible to get them out and reuse them.

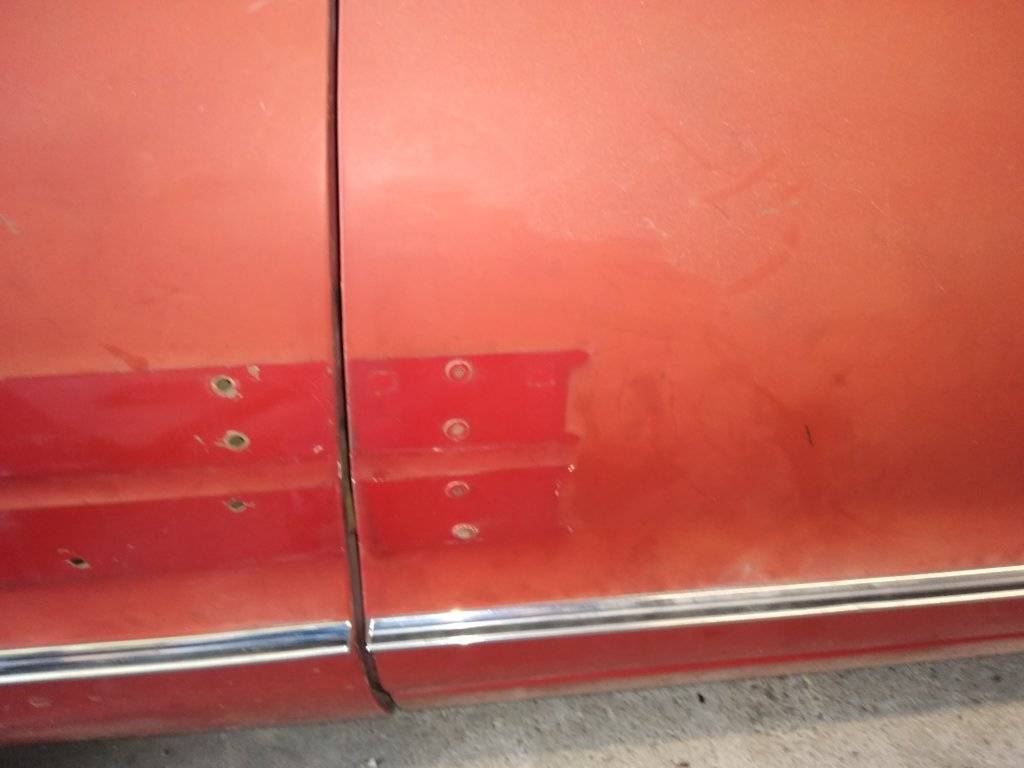

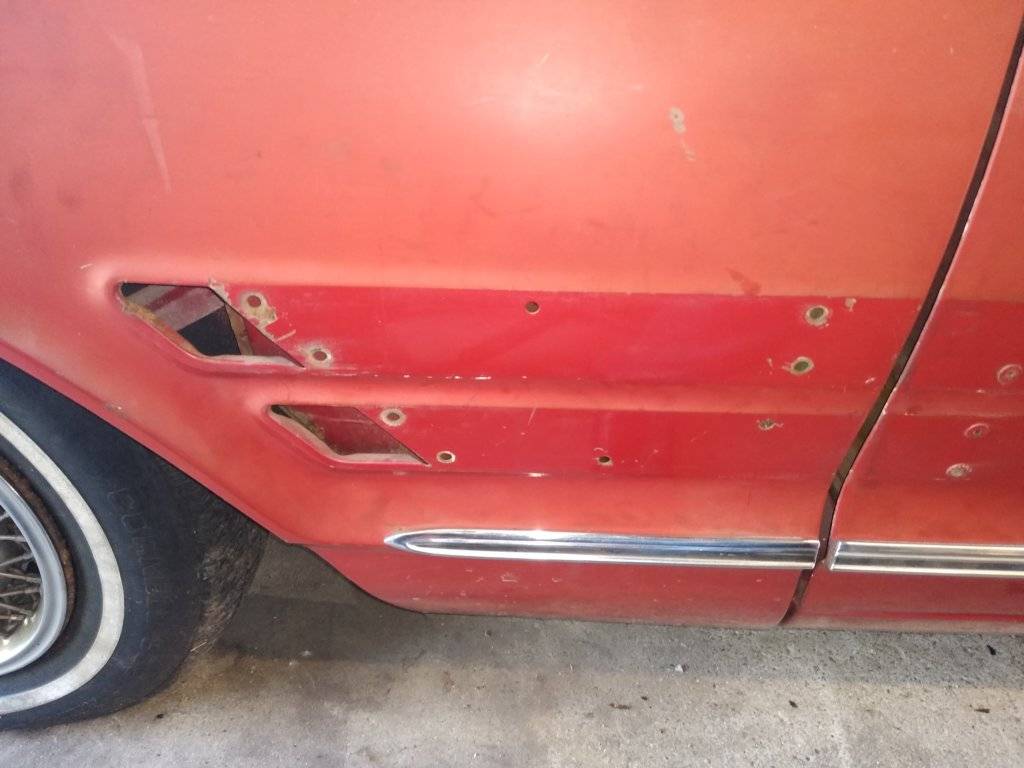

Pictures 5+6 are of the fender and door with the mouldings removed, (now you know why a 300 fender is different from a Newport, New Yorker).

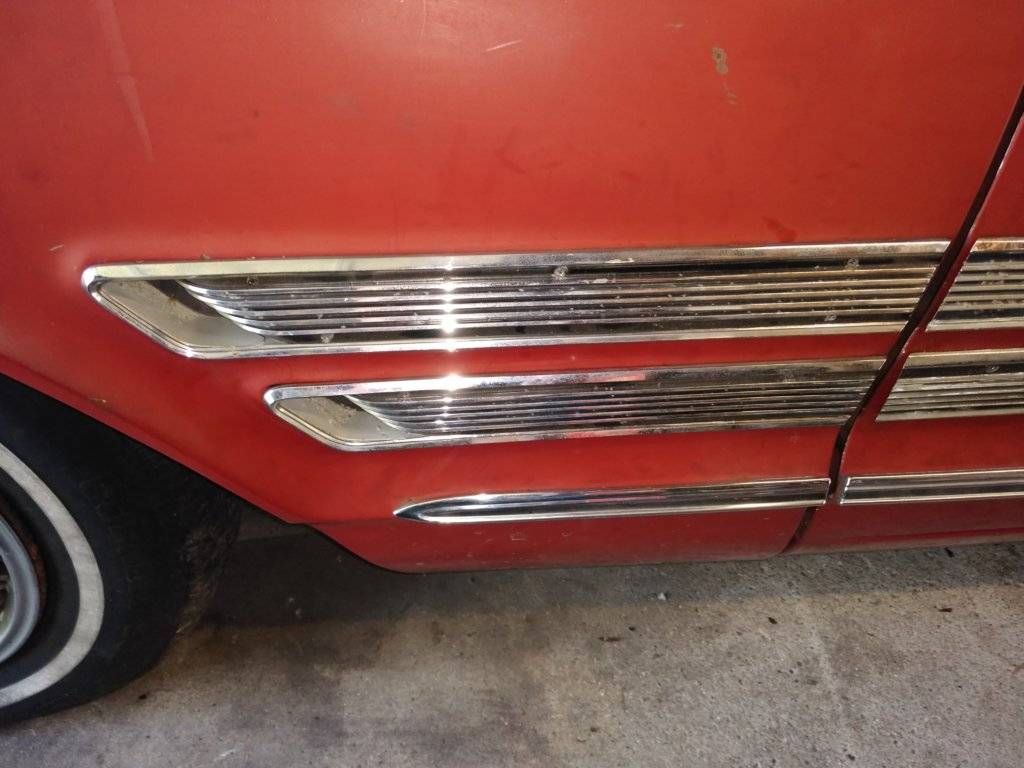

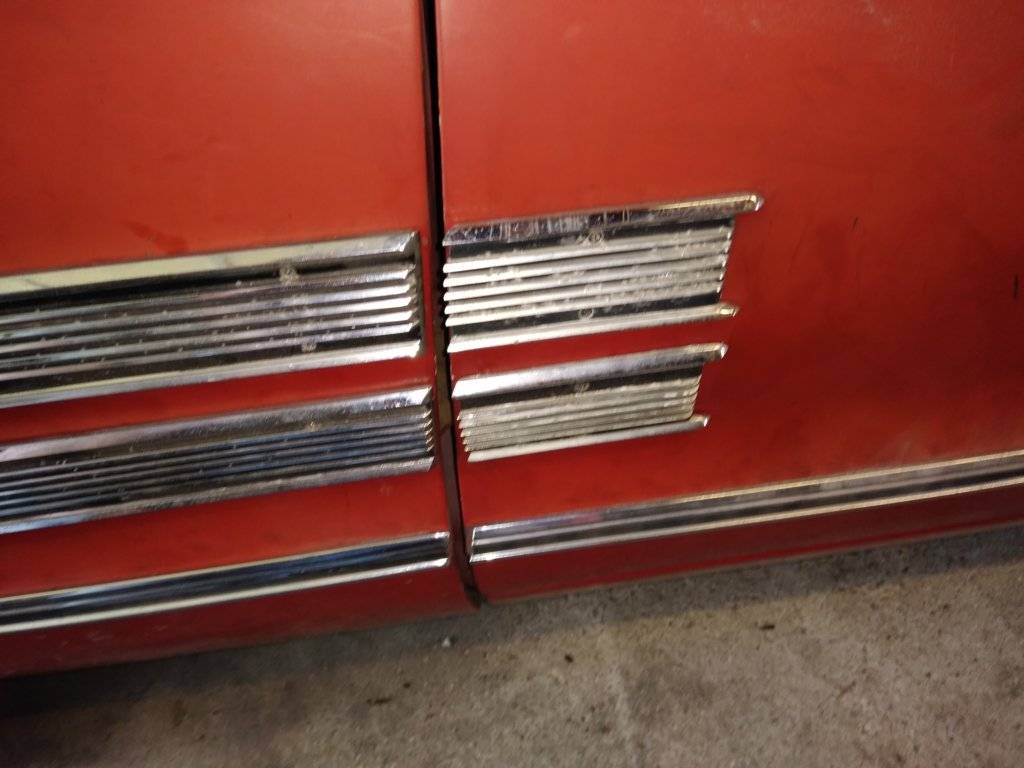

Pictures 7+8 are of the mouldings reinstalled.
