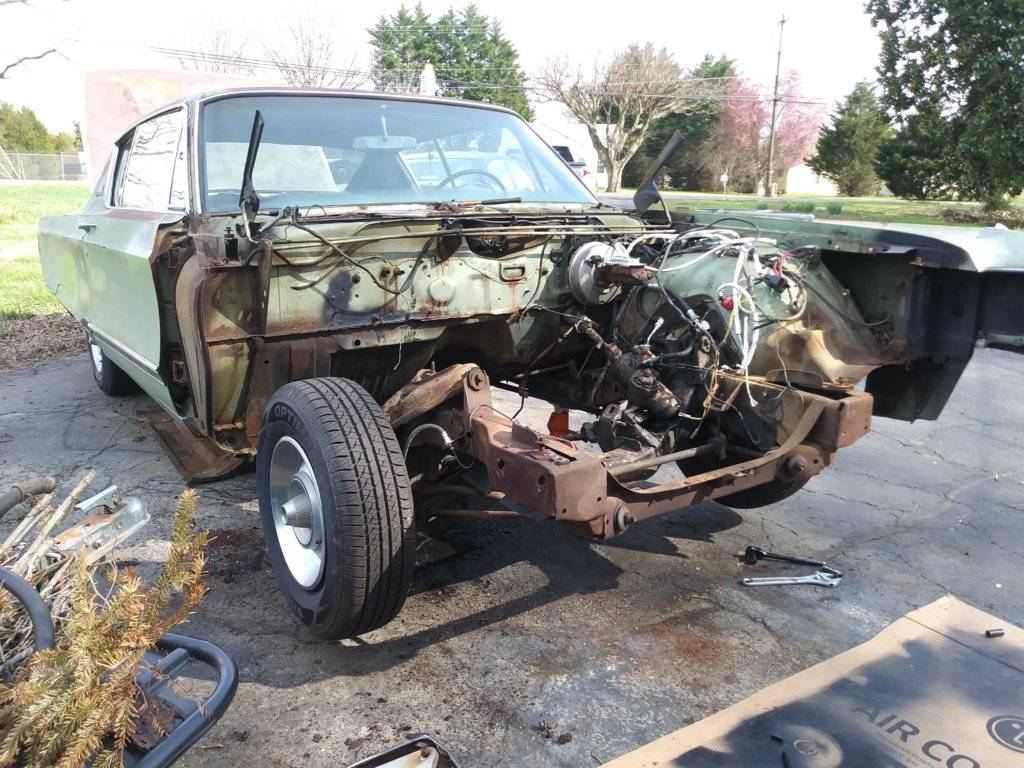

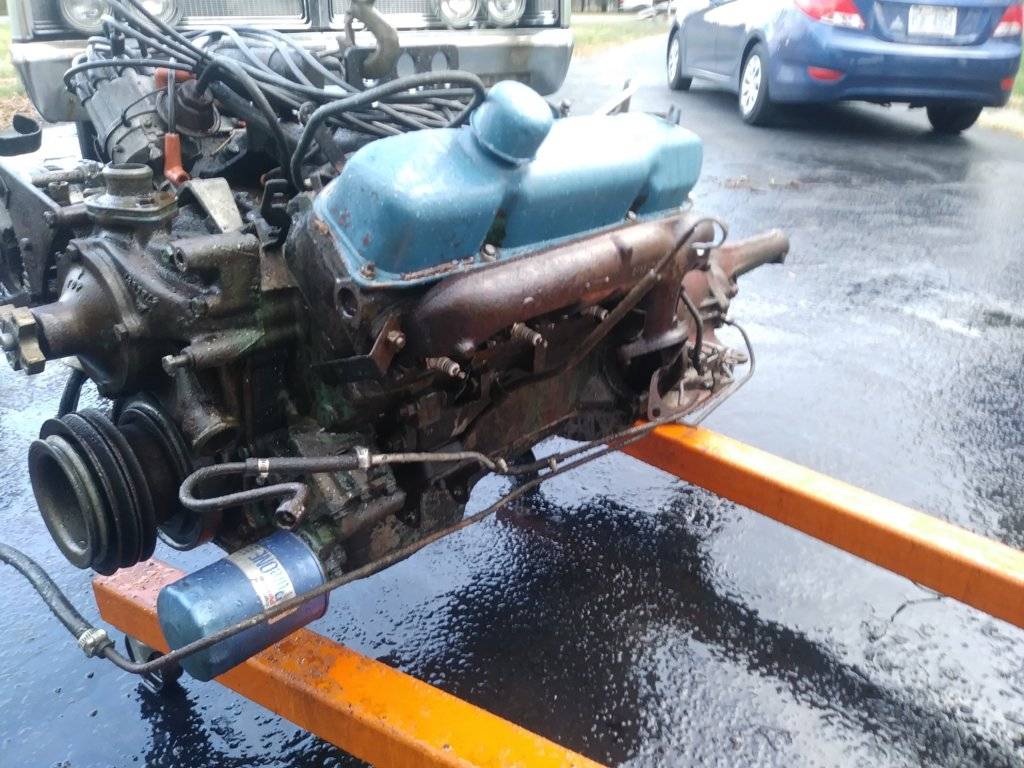

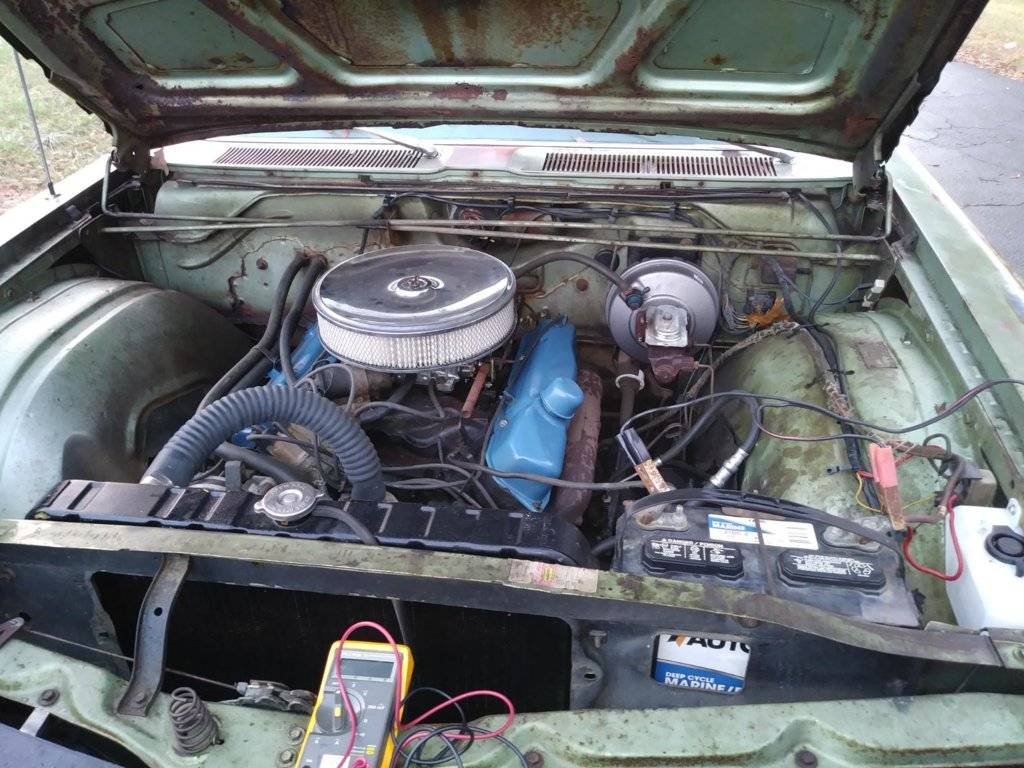

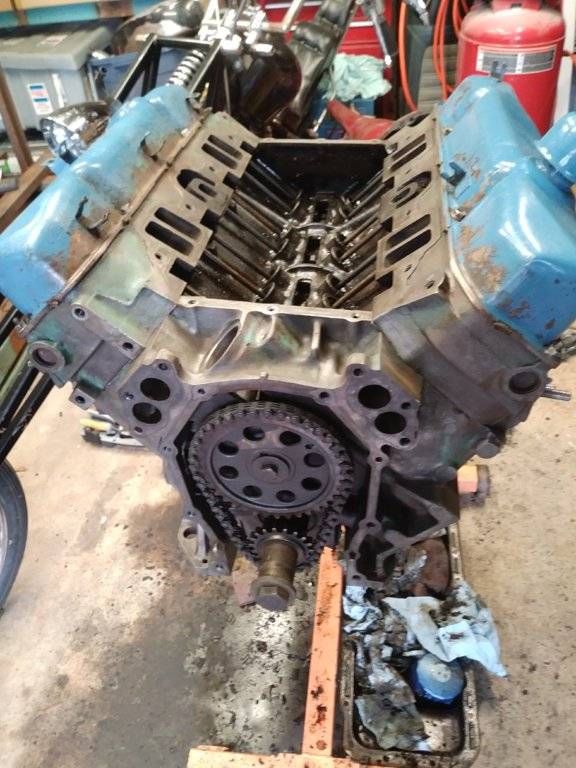

    Im setting this page up to drop all my picks on my progress of restoring the engine, engine bay and stub frame on my 1967 Chrysler Newport Custom. These pics are all in progress and for notes...not necessarily for display. This is from the start...pulling the engine.

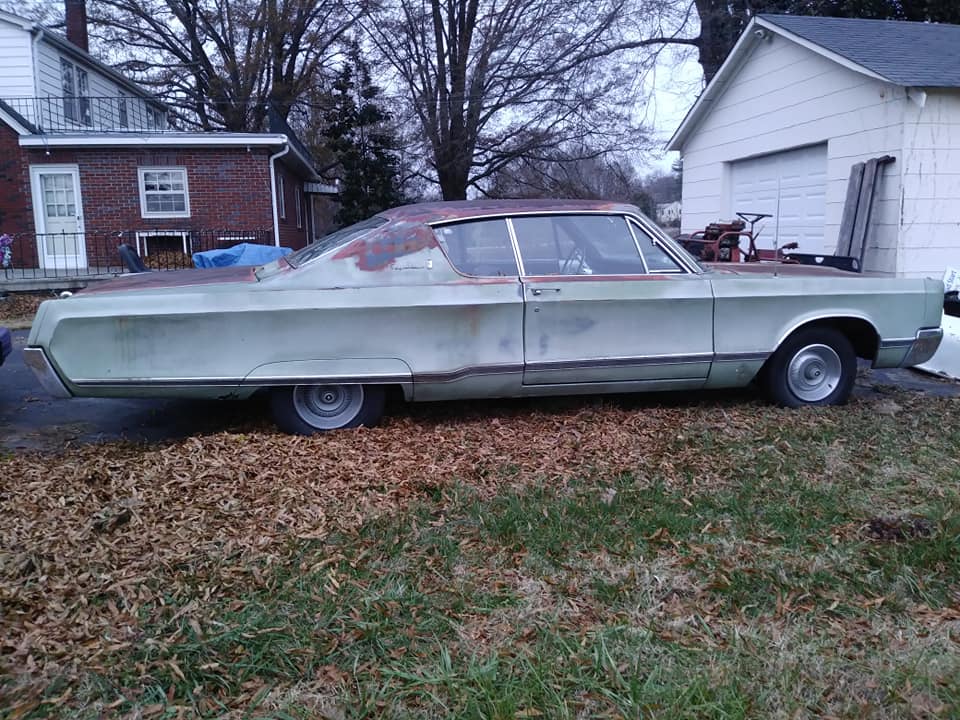

    67 newport.jpg

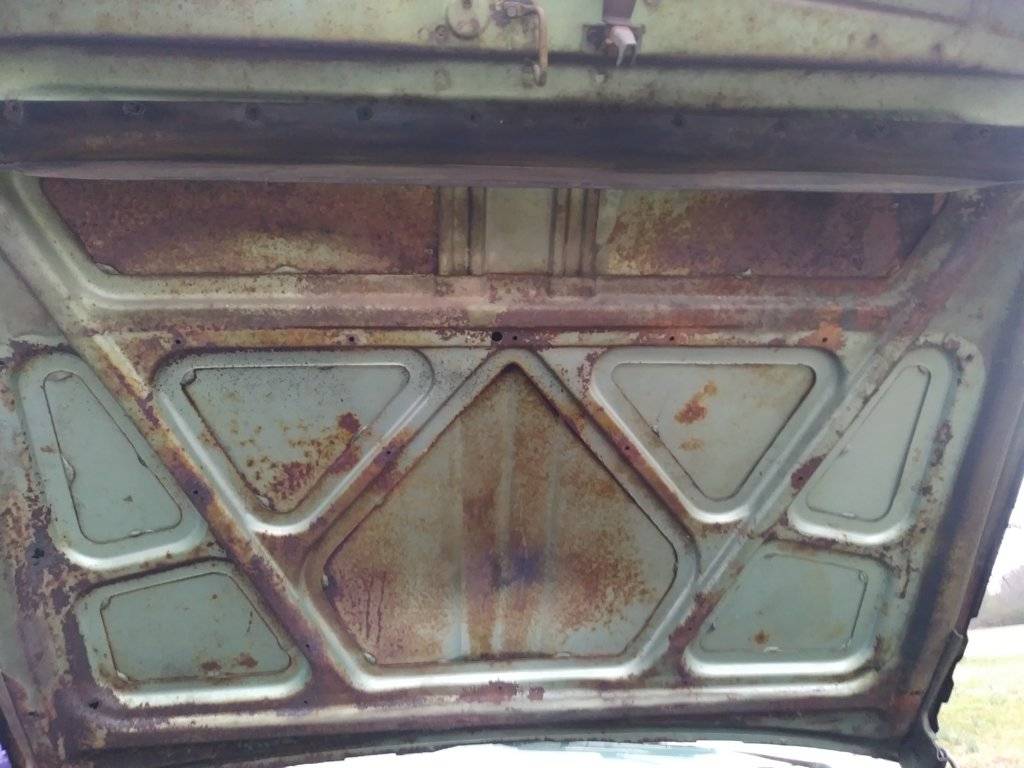

    • Like Like x 5
  2. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc

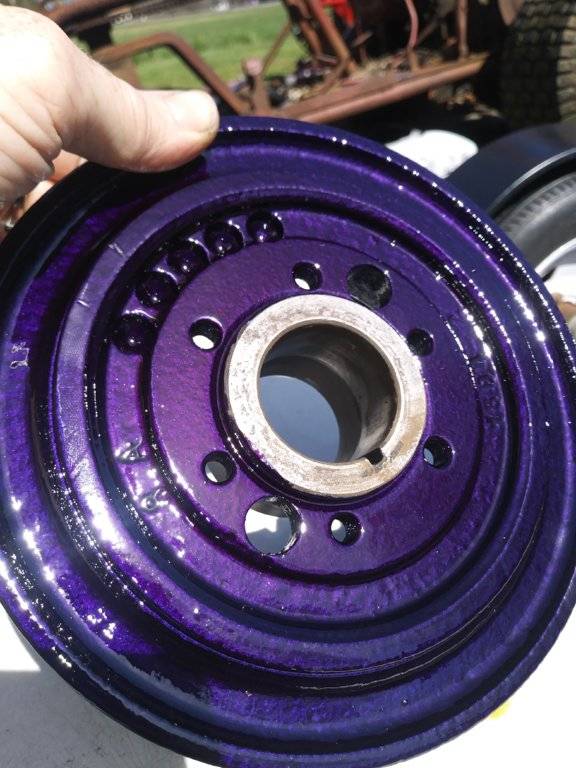

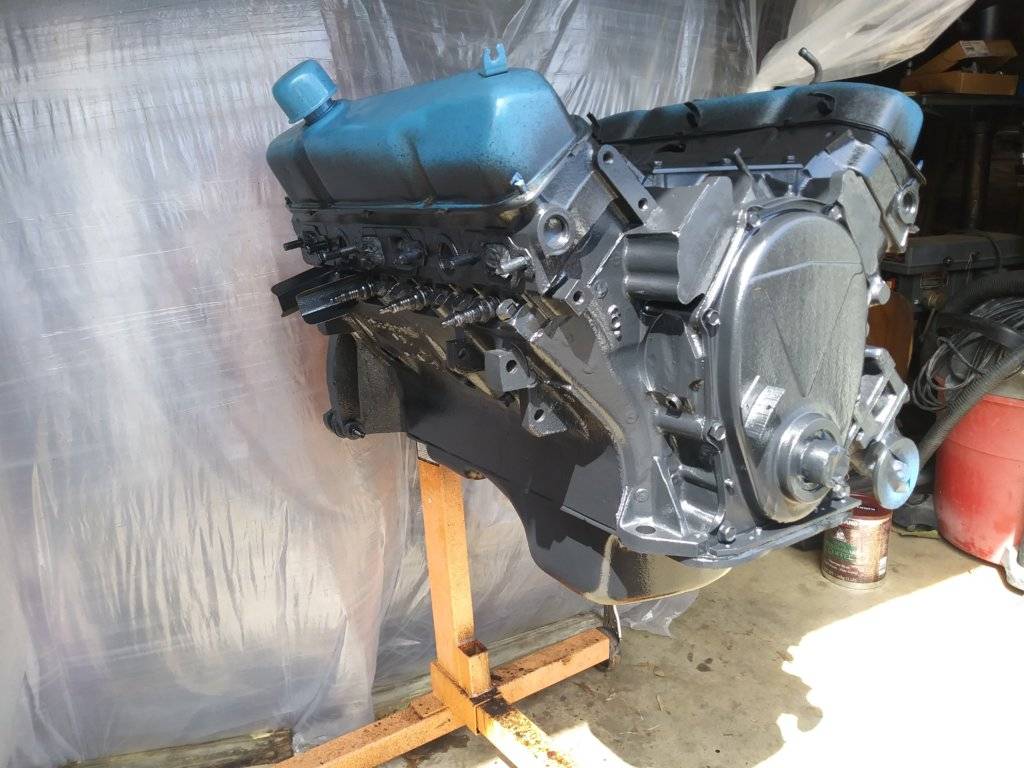

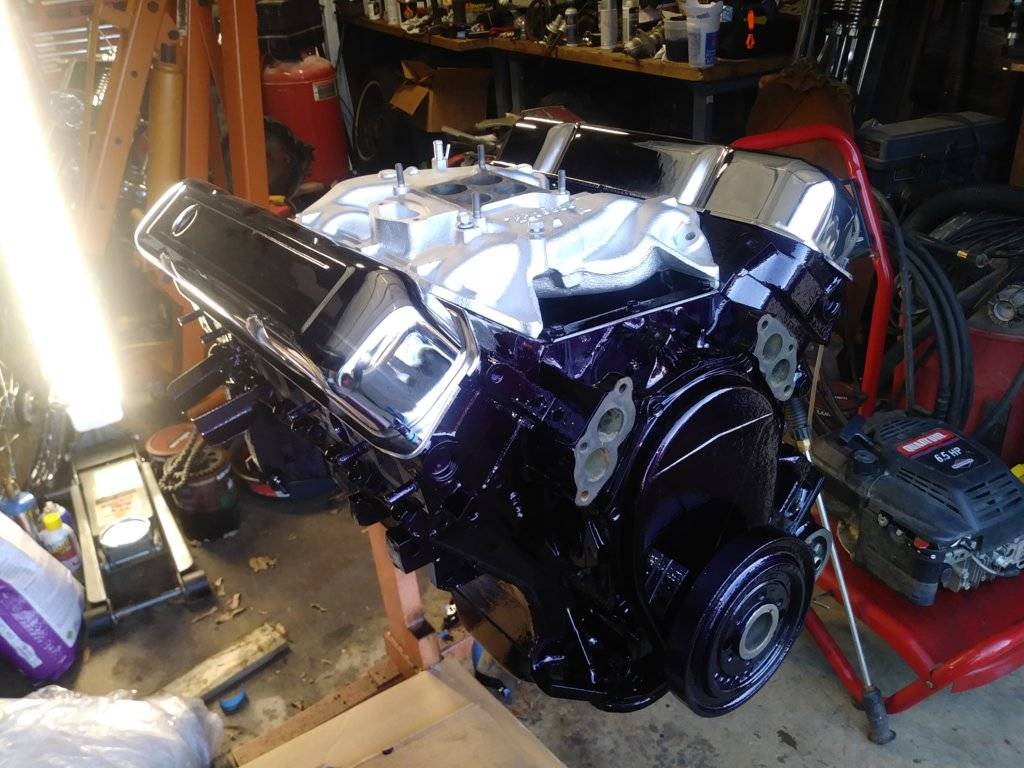

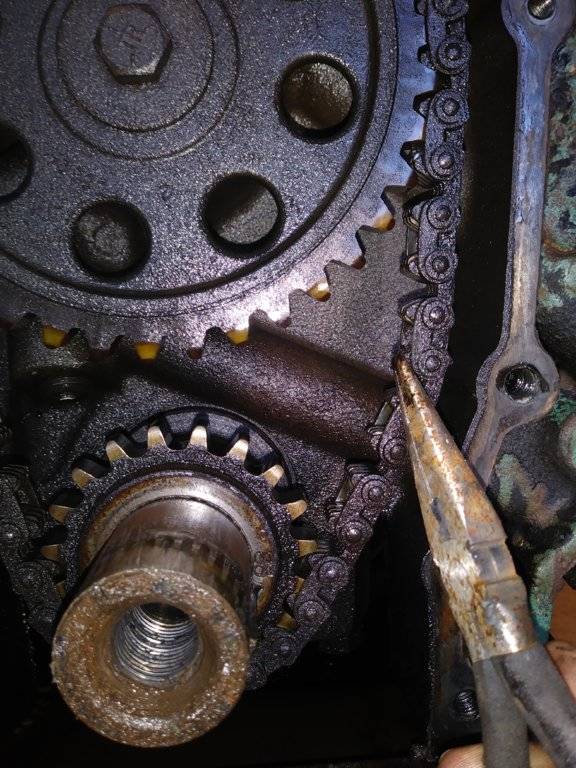

    Cleaning and replacing some items in the engine. I replaced all the gaskets, oil pan, fuel pump, valve seals, timing chain and gears and repainted it HOK purple candy...the car will be the same color.








    • Like Like x 1
  3. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    more..









    • Like Like x 3
  4. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    btw...this is over the past 3 or 4 weeks I think.

    • Like Like x 1
  5. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    more this weekend...



    • Like Like x 1
  6. 1978 NYB

    1978 NYB Warfighter FCBO Gold Member

    Messages:
    41,279
    Likes Received:
    12184
    Joined:
    Apr 16, 2011
    Location:
    Classified
    I didn't hear you say anything about replacing the rear main seal while you have it out.

    • Like Like x 1
  7. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    rear main seal would mean breaking into the bottom end of the engine. decided against it for the moment. its not leaking, but I will be doing the front and rear trans seals. The motor had good compression and no slop in the bearings, so I decided to leave it for now until it needs a rebuild...then i will worry about it.

    • Like Like x 1
    • Thanks! Thanks! x 1
  8. 65sporty

    65sporty Old Man with a Hat

    Messages:
    6,363
    Likes Received:
    1481
    Joined:
    Aug 24, 2013
    Location:
    Marlette,Mi

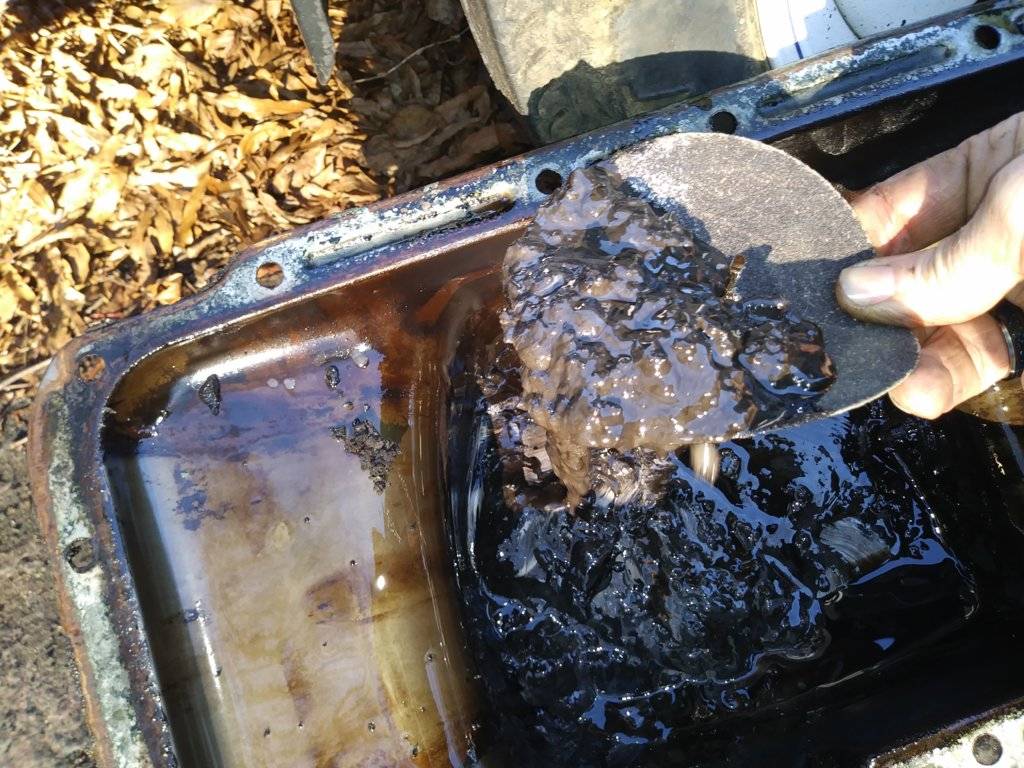

    That's some serious sludge in the oil pan

    • Agree Agree x 1
  9. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    And it's off



    • Like Like x 2
  10. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    Yeah...the old pan had a Jack run through it...dented so bad the oil wouldn't drain entirely...and it sat for 30yrs

    Last edited: Mar 31, 2019
    • Like Like x 1
  11. live4theking

    live4theking Old Man with a Hat

    Messages:
    7,668
    Likes Received:
    1678
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania

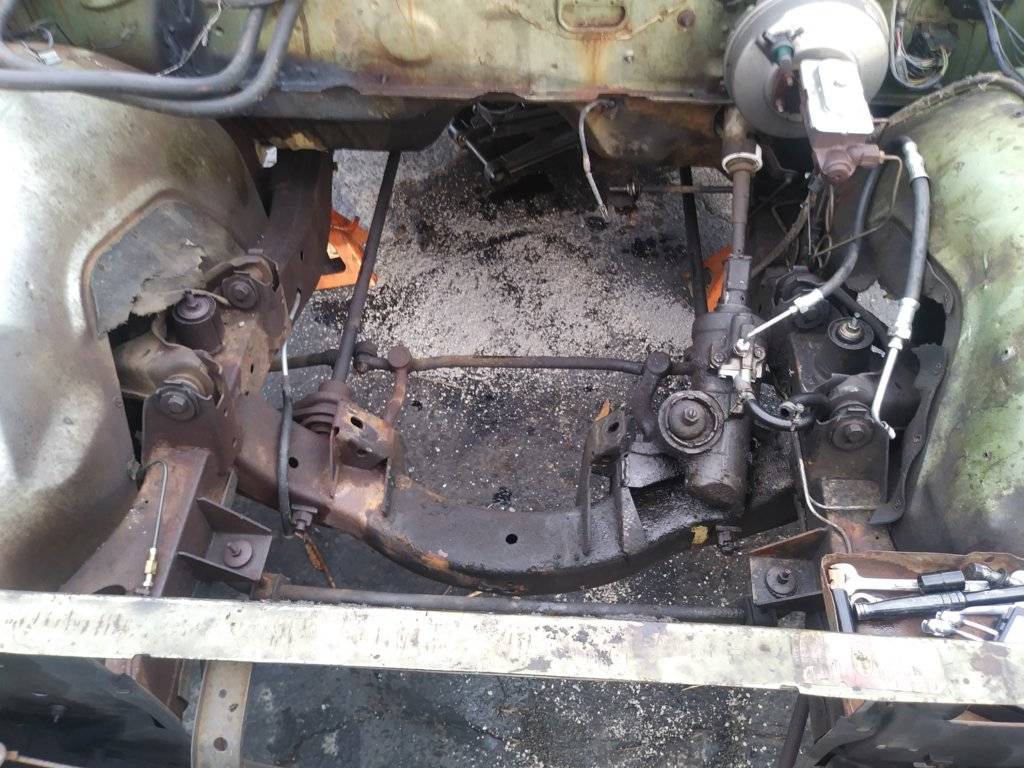

    You are in deep. Threads lie this are great for how they go together references. It's amazing how simply the sub frame drops off.

    • Like Like x 1
  12. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    If I can just remember how to put it back together.....

    • Like Like x 2
  13. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    4,100
    Likes Received:
    1023
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Be sure to tie down the shims on either side of the stub mounts so they get back into the car in the same spot. That will save you much grief. With that amount of crap in the oil pan, it would also be a good idea to plasti-gauge the mains and rods.

    Dave

  14. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    I never intended to take the bottom end apart. It ran good and had good compression. The inside was actually clean. The sludge was under a hard cap. Eventually it will be rebuilt but not for quite awhile. I will also make sure the shims go back in the right spot. I took pictures of all the body shims as I took it apart.

  15. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc

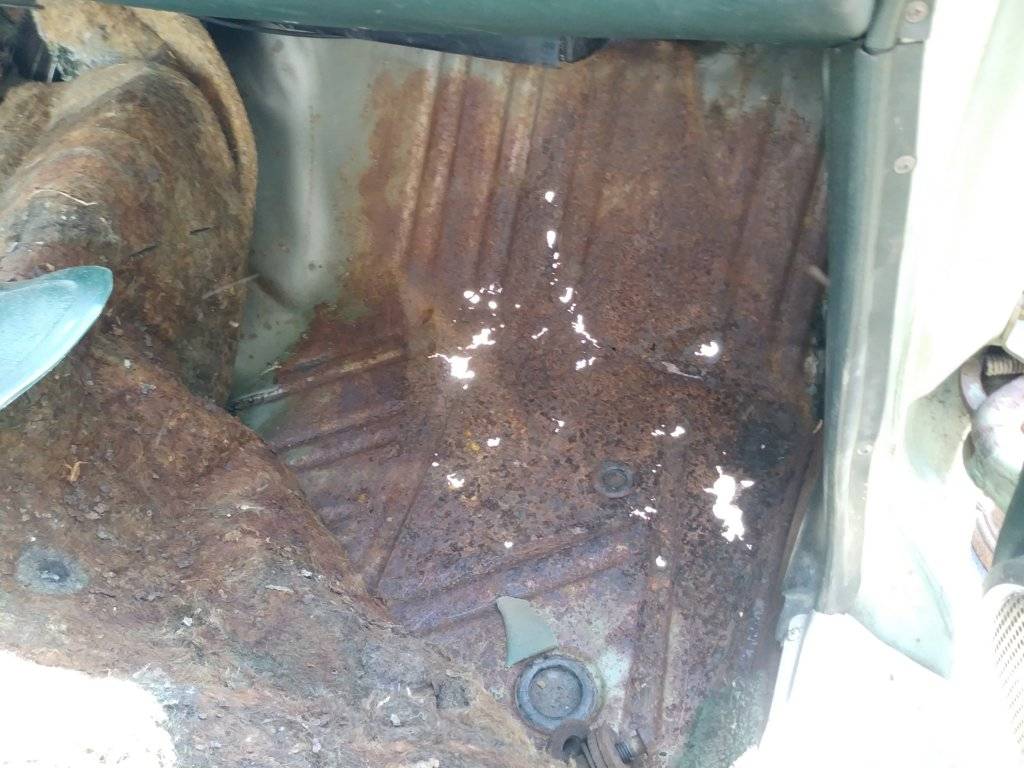

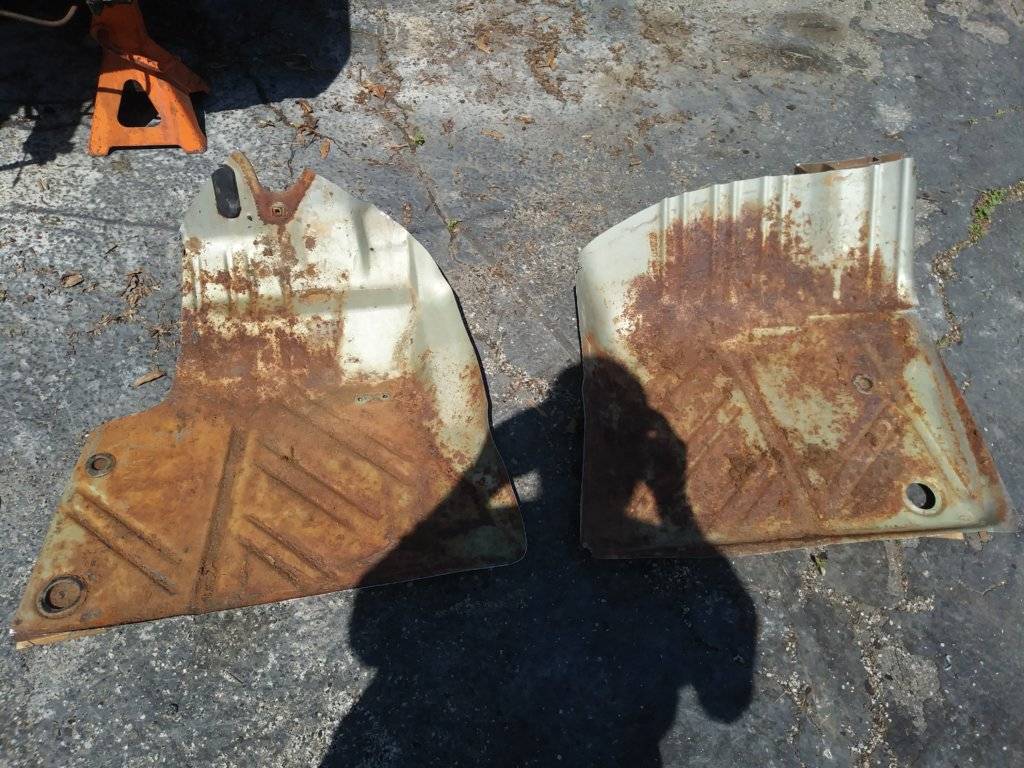

    Ok....so in taking my stub frame out I found rust through my front floor boards....junk yard! $40ea only surface rust...no holes or thinning.



    • Like Like x 2
  16. twostick

    twostick Senior Member

    Messages:
    1,690
    Likes Received:
    738
    Joined:
    Dec 13, 2012
    Location:
    Beautiful Downtown Roebuck Ont.
    And so it begins... lol

    Kevin

    • Like Like x 1
  17. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    Almsot done fitting the first pan.



    • Like Like x 4
  18. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    Its actually not that difficult once you get past the spot welds on the frame mount.

  19. RGORHAM29

    RGORHAM29 New Member

    Messages:
    46
    Likes Received:
    50
    Joined:
    Feb 4, 2019
    Location:
    Massachusetts
    Thx for the pics! Worth a 1000 words

  20. swisherred

    swisherred Well-Known Member

    Messages:
    648
    Likes Received:
    376
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc

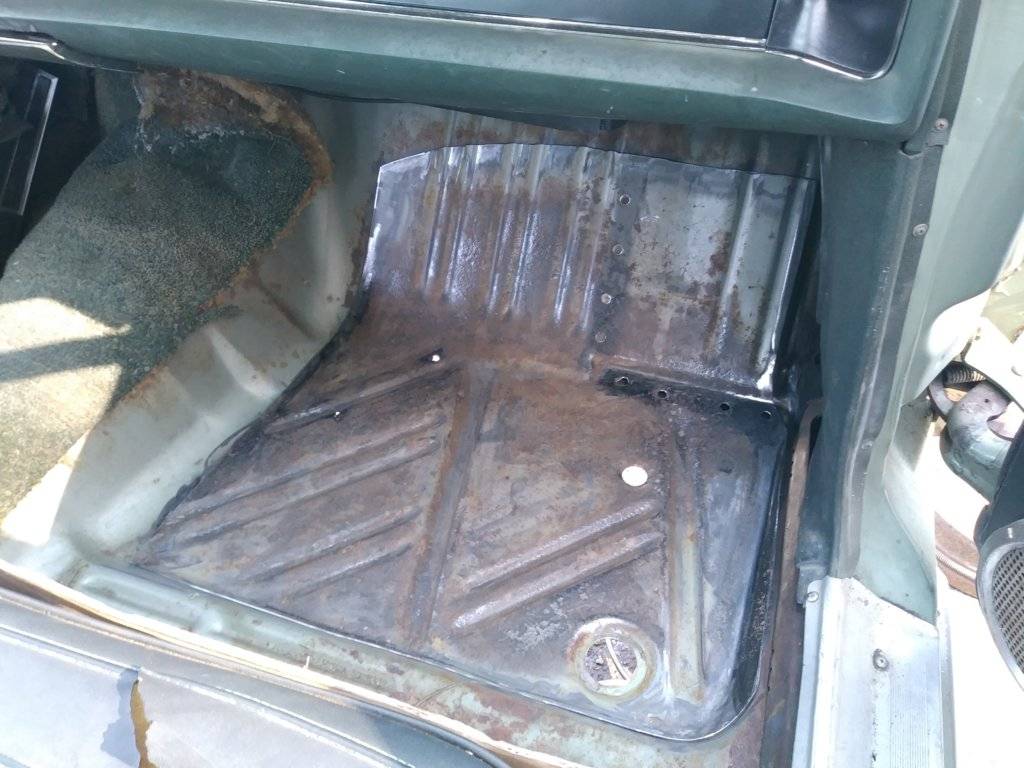

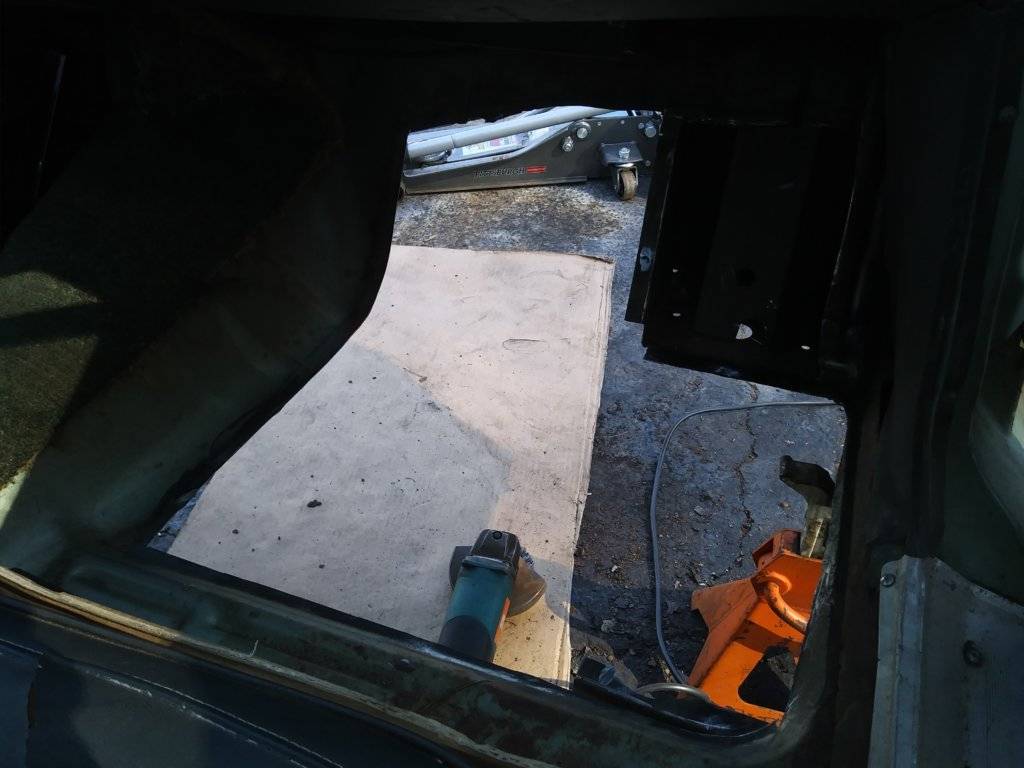

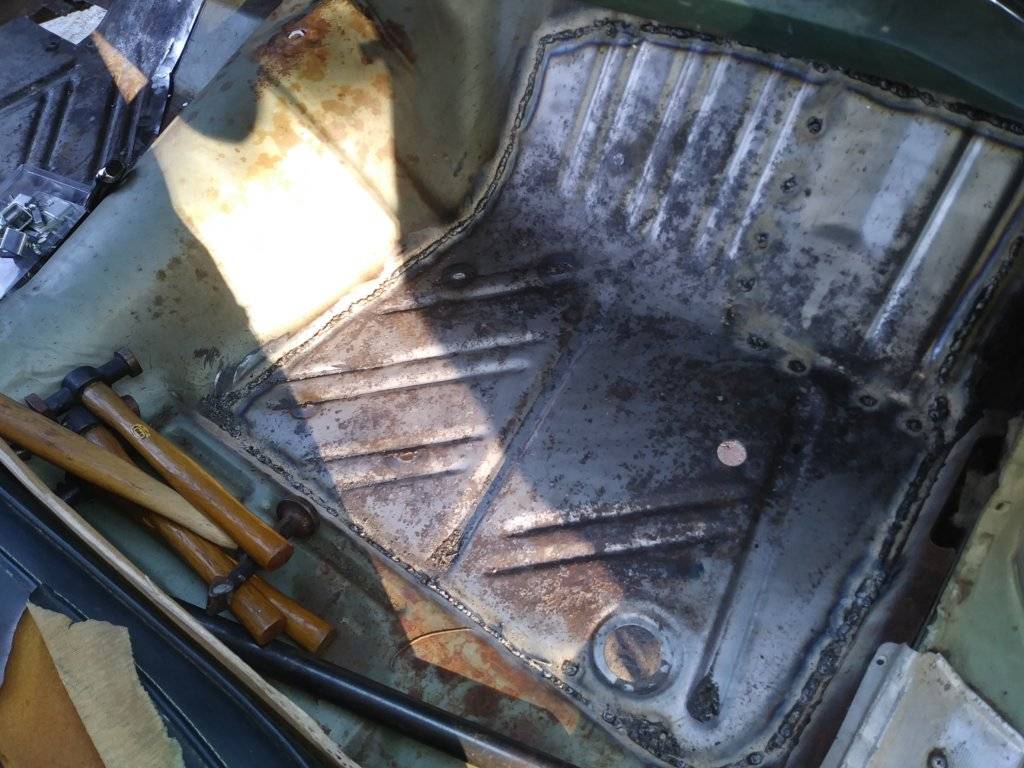

    One floor board replaced...still needs cleanup but its getting there.


    • Like Like x 3
