1968 Plymouth Sport Suburban project

The Goose

Senior Member
Joined
Nov 21, 2016
Messages
2,452
Reaction score
4,360
Location
Santa Clarita ca
Thank you.
I just put 12v to the starter solenoid and ballast resistor for now.
Condition was pretty much what i expected..
Yeah i got the dash and everything.
Now ill have to get the brakes working so i can move it..

Still the best deal of 2018 that I’ve seen. You gonna go back to blue or keep it white ? Actually now that I think of it I’m not sure if blue is even its original color I just saw some under the white. Oh well now that it’s home safe and sound you have all the time in the world.


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland
Still the best deal of 2018 that I’ve seen. You gonna go back to blue or keep it white ? Actually now that I think of it I’m not sure if blue is even its original color I just saw some under the white. Oh well now that it’s home safe and sound you have all the time in the world.
It´s a WW1 car so original color is "Sable White" im going to respray it that.
I got the brakes working today and i drove the car.. Seems to move nicely.
Interior colour was originally blue, but im going to make it black.


The Goose

Senior Member
Joined
Nov 21, 2016
Messages
2,452
Reaction score
4,360
Location
Santa Clarita ca
It´s a WW1 car so original color is "Sable White" im going to respray it that.
I got the brakes working today and i drove the car.. Seems to move nicely.
Interior colour was originally blue, but im going to make it black.
That’s cool. I had an AAR that was white & black. It works. Just keep sending us pics as you make progress. Hey did you ever find the steering wheel in that mountain of stuff. If you did sure hope it was a woodgrain !!!


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland

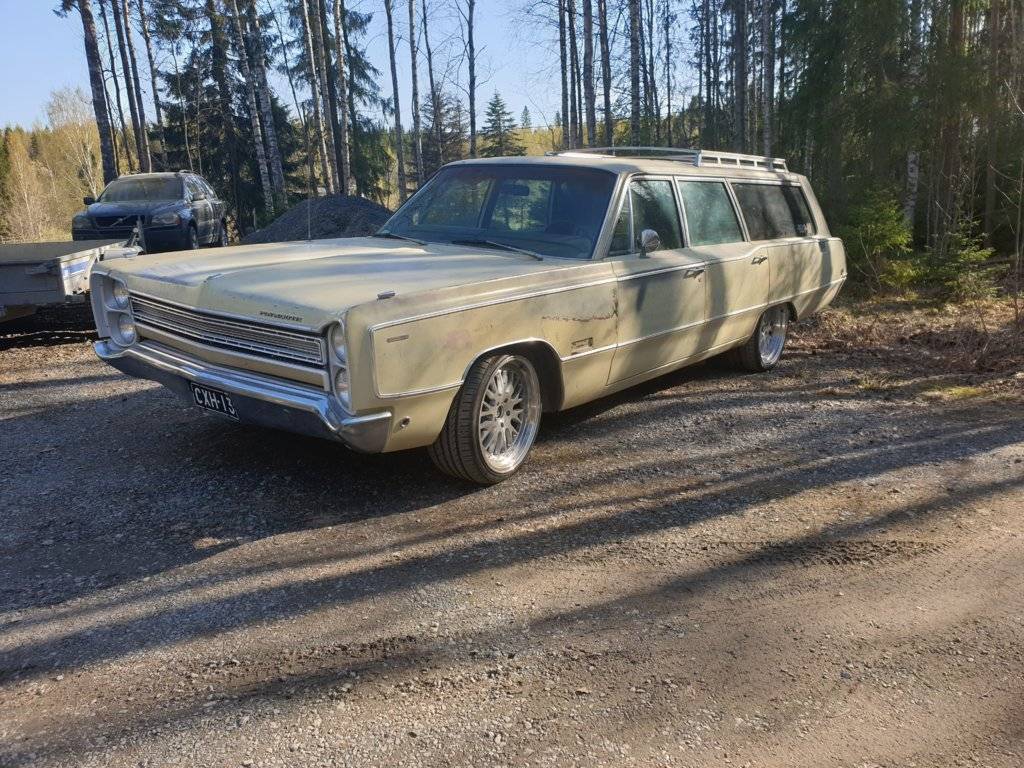

New wheels and tyres to wagon.
Also i rebuid steering box and pump.. Every seal was leaking.



Now im installing new brakes.

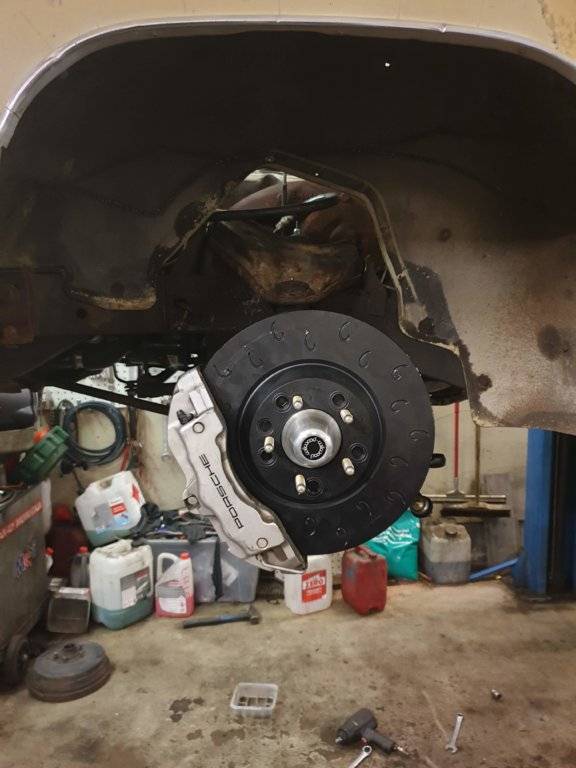

350mm discs and porsche 6-piston calibers for front and Right Stuff Detailing Disc Brake Conversion Kit to back.


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland
Brakes are working fine but something is wrong with the steering box.. power steering is not working and the pump is okay.. got the new wheels on the car..


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland
I got the powersteering issue figured out, but the steering box has excessive play on it.
Have to source new and probably close ratio one. Please tell me if there is bolt-on solution for this.

I removed the roof rack becouse i think its cleaner look without it.

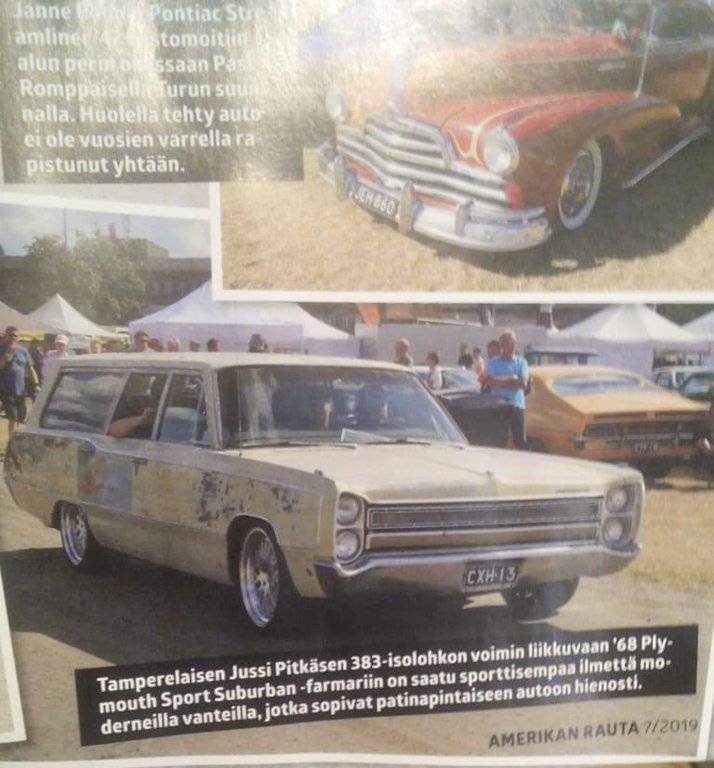

Didint drive the car much this summer, but still somehow managed to get it in finnish hot rod magazine called American Rauta.


HWYCRZR

Senior Member
FCBO Gold Member
Joined
May 13, 2015
Messages
4,524
Reaction score
6,027
Location
Fargo, ND
You can adjust some of the free play out of the steering box. The service manual has the procedure. Remember it is true power steering, so it will always be very responsive and may feel over responsive compared to modern cars.


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland
You can adjust some of the free play out of the steering box. The service manual has the procedure. Remember it is true power steering, so it will always be very responsive and may feel over responsive compared to modern cars.
Yeah i know, but it still has almost half a turn play on it. ill have to look into some close ratio boxes..


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland

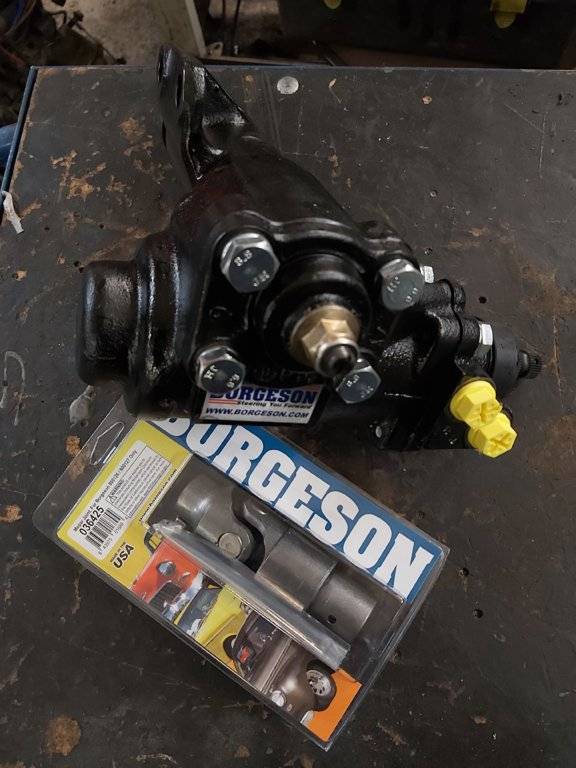

I hope this will solve the steering issues..


After that i need to install wilwood adjustable brake balance valve and linelock.. Also barking brake cables are currently missing.


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland

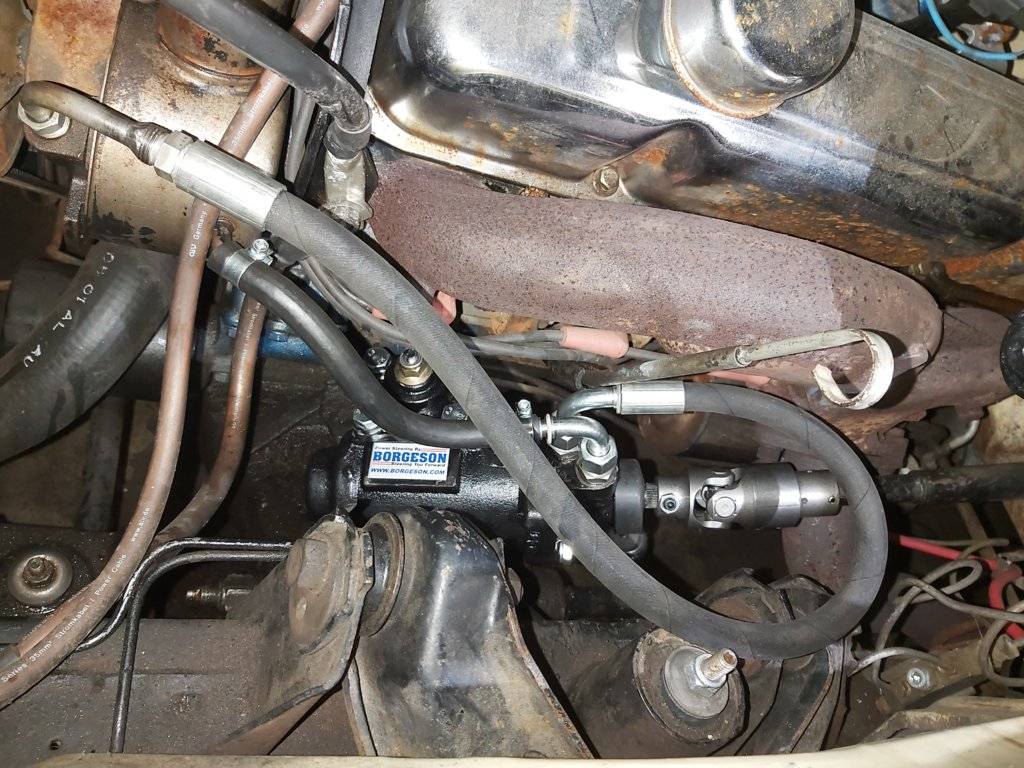

Well its in now.. had to Make my own lines..
test drive has to wait becouse there is snow outside and i still have some work to do with brakes


crazyboutwagons

Well-Known Member
Joined
Dec 7, 2011
Messages
617
Reaction score
526
Location
Pittsburgh,Pa
How much modifications did you have to make to the factory steering setup to use the borgeson setup.From what I have read when using their coupler you have to cut the steering shaft is that correct. details would be appreciated.


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland
How much modifications did you have to make to the factory steering setup to use the borgeson setup.From what I have read when using their coupler you have to cut the steering shaft is that correct. details would be appreciated.
Yeah i had to cut about 1" off the steering shaft.
Also i dont think they sell the high pressure line which will go to old style steering pump so i tig welded that to work.
Small washers was also required to the mounting bolts becouse they where too long otherwise.


crazyboutwagons

Well-Known Member
Joined
Dec 7, 2011
Messages
617
Reaction score
526
Location
Pittsburgh,Pa
I switched my power steering pump & lines to a Bouchillon Performance Saginaw pump kit a couple years ago wondering if ill have problem with the lines as their kit came with custom made lines for pump to box. I also read were you could buy a coupler from another company (recommended by Borgeson) that you did not need to cut the shaft.Did you reuse your pitman arm.


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland
I switched my power steering pump & lines to a Bouchillon Performance Saginaw pump kit a couple years ago wondering if ill have problem with the lines as their kit came with custom made lines for pump to box. I also read were you could buy a coupler from another company (recommended by Borgeson) that you did not need to cut the shaft.Did you reuse your pitman arm.
I think the yoke type coupler is just much better anyways..
i diding even remove the steering shaft, just used angle grinder to cut it in place.
Yes i have stock pitman arm and this had the bigger 1-1/4” pitman.


crazyboutwagons

Well-Known Member
Joined
Dec 7, 2011
Messages
617
Reaction score
526
Location
Pittsburgh,Pa
thanks for all info. will be looking for feedback when you do some driving the car when finished. did the kit come with the bigger pitman arm or did you have to purchase separately.


65sporty

Old Man with a Hat
Joined
Aug 24, 2013
Messages
8,813
Reaction score
5,339
Location
Kingston, Mi
I will be looking forward to what you have to say about the steering box. We are thinking about this swap in my father in laws 65 sport fury


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland
So the steering feels awesome now.
Just a small problem, when car is stationary and i try to steer it kinda jerks the steering wheel..
I think stock pump does not have enought pressure on idle for the steeringbox and i have 255 front tyres.

Does anybody know where i can get drop spindles for c-body or do i have to make them?


Juzi

New Member
Joined
May 24, 2018
Messages
48
Reaction score
63
Location
Finland

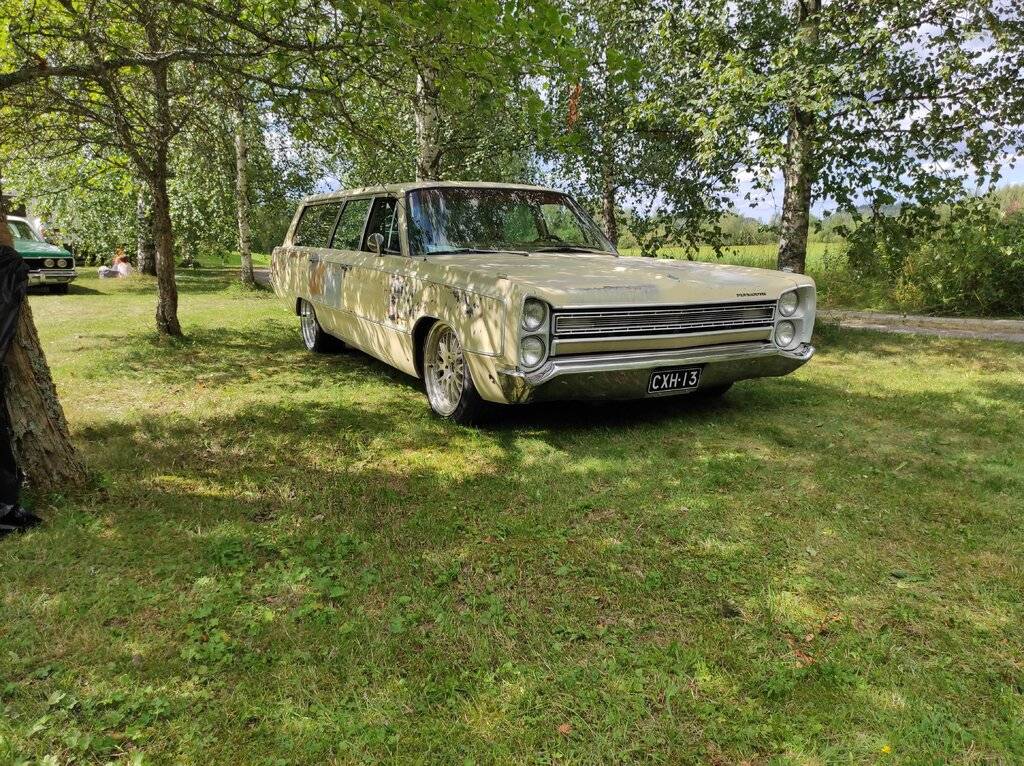

Not much has happened to the car. i have just been enjoying it..
I was thinkin that 871 blower would look cool on this and i already have the blower, but im having difficult time finding blower intake manifold to 383.
I could also modify dual quad intake to fit the blower, but those are also difficult to find..
