I run though some gauge and wiring details here on my ‘70 300:

Resurrection of my 1970 Chrysler 300 Convertible

I agree, there are many experts here that have been through the same process, I doubt I could have gotten as far as I did with my build without this site, but it also helps to have a parts car for reference.



[Fireguyfire]

Great thread; thanks!

I’ve roughly reinstalled the dash harness and will now start playing with reconnecting everything.
In the wiring harness is the head light door relay on a long bracket with a screw hole in the end.
This obviously mounts somewhere specifically under the dash; can anyone help me out with where?



[Big_John]

Great thread; thanks!

I’ve roughly reinstalled the dash harness and will now start playing with reconnecting everything.
In the wiring harness is the head light door relay on a long bracket with a screw hole in the end.
This obviously mounts somewhere specifically under the dash; can anyone help me out with where?

View attachment 482429

It's kind of screwy where it fastens.

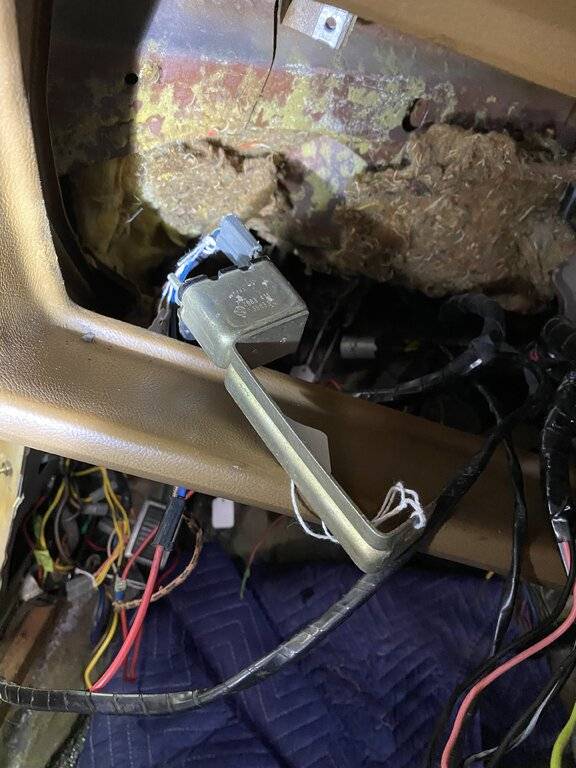

The front lower corner of the dash with the relay up and the bracket vertical. Let's say it gets the relay close to the switches.

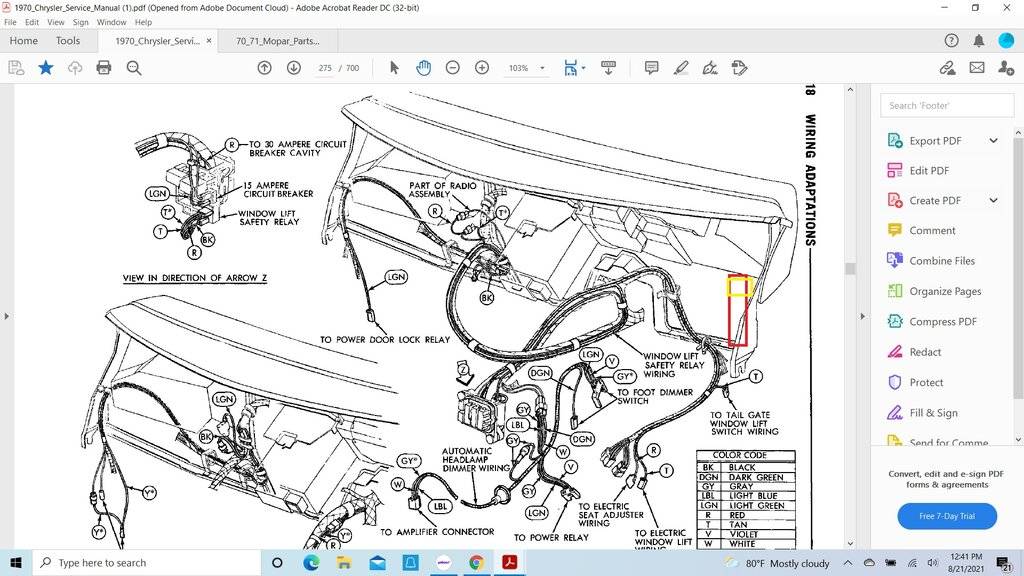

Yellow is the relay and red is the bracket.



[Fireguyfire]

Bizarre; I never would have figured that one out on my own



[Fireguyfire]

So I’ve got the dash harness back in and I’m playing with figuring out all of the connections using the shop manual.

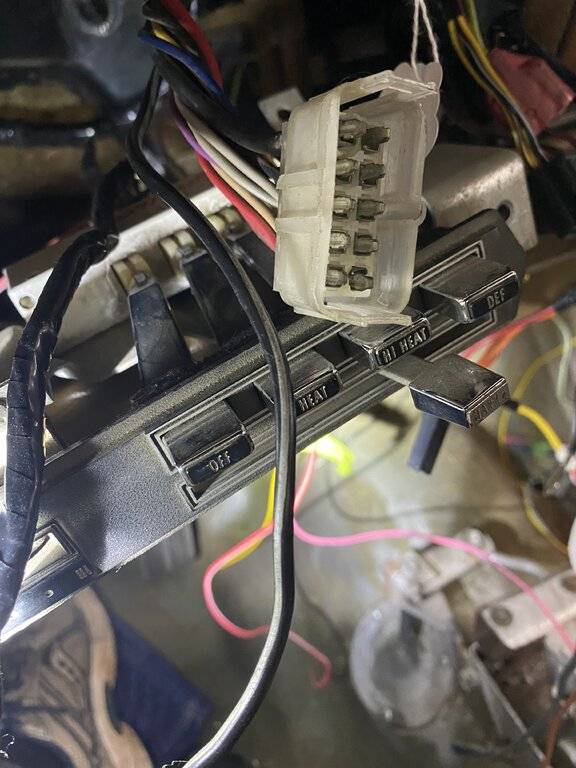

I must be missing something obvious, but in the middle of the dash harness in behind the radio area is this large white multi pin connector, with a single black wire with a factory single connector coming out of the harness beside it.
I can’t seem to figure out where this should connect to.
Can anyone enlighten me?



[Big_John]

I think that's part of the A/C harness. I assume you have a FSM (if not, download one at Service Manuals – MyMopar )

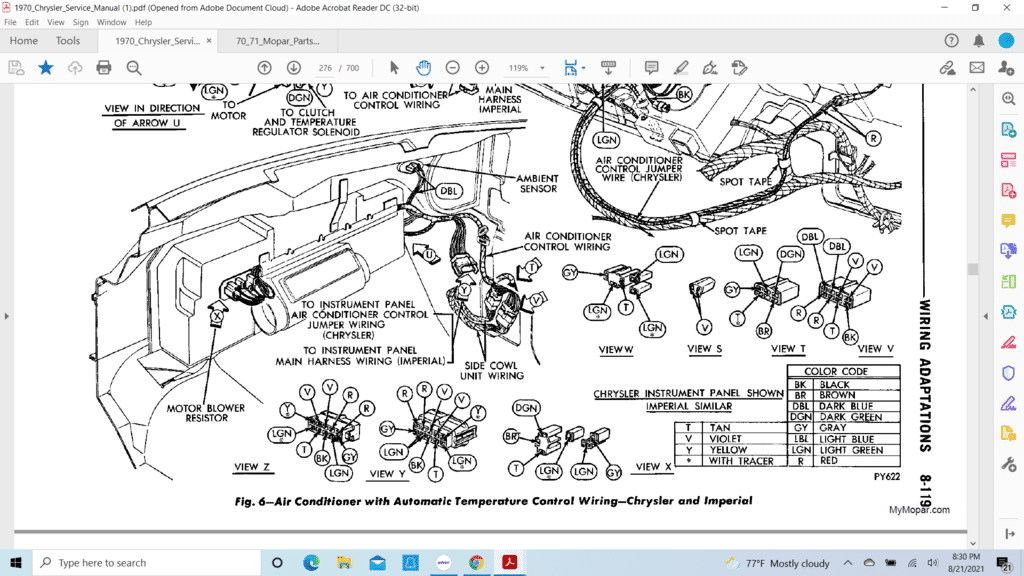

Go to page 8-119 and I think it is view Y and plugs into Z. Check the wire colors going into the plug and I'll bet they match.



[Big_John]

Not wanting to spend your money, but I noticed this the other day and can't help but wonder if this could help you. I had a '69 B-Body body/chassis assembly manual like this and it was pretty good. I have no idea how good this is, but if it were me, I'd be willing to throw $40 at it in the chance it is.

1969-1970 Chrysler Electrical Assembly Manual 300 Newport New Yorker Imperial | eBay



[Fireguyfire]

I do have a FSM which is what I am using to decipher the original harness. I have a colour wiring diagram on order that should be here any day. I’ve used them with all of the vehicles I have restored over the years and they are fantastic.
Right now I am making due staring at the black and white FSM diagrams.

my car is a non AC car; I wonder if they installed the same dash harness in all cars, and then didn’t use the AC connection in non AC cars?



[Big_John]

my car is a non AC car; I wonder if they installed the same dash harness in all cars, and then didn’t use the AC connection in non AC cars?

Very possible. I've seen a lot of that type of stuff.

But if so, still match the wire colors to the plug in view Y to be sure.



[Fireguyfire]

Turns out that connector is for the mini harness for all of the bulbs for the back of the gauge cluster.
I’m slowly working my way through and figuring things out.
