1970 Fury Headlight Delay

[MONC440]

So I have been doing some work on my 70 Sport Fury and I got around to hooking up the headlight switch. I turned the switch on and the high and low work as they should, then I turn the lights off and they stayed on for about 60 seconds and turned off. I didn't know it had a delay, so that's cool. The buzzer also works if the lights are on and the key is off. I then was doing some other electrical work and had to turn the ignition on and when I turned the key off the headlights came on for a delay and turned off. The headlight switch was off at the time so I want to know if this is normal? Seems a little odd that the lights would come on for a delay anytime the key was turned off.

I also hooked the high and dim lights to work with relays but that should have nothing to do with the delay function. All I did was wire the relays to be triggered by the original high and low wire and the power to the lights comes straight from the battery.

Any thoughts?



[CBODY67]

The only time delay I knew of on my '70 Monaco was for the light that shines on the ignition key. Might check the "Library" at www.hamtramck-historical.com for the 1970 Plymouth Data Book "features" section?

Does the car have "Twilight Sentinel" automatic hi-beam dimming?

Just some thoughts,
CBODY67



[MONC440]

The only time delay I knew of on my '70 Monaco was for the light that shines on the ignition key. Might check the "Library" at www.hamtramck-historical.com for the 1970 Plymouth Data Book "features" section?

Does the car have "Twilight Sentinel" automatic hi-beam dimming?

Just some thoughts,
CBODY67

Ok thanks I will check it out. I don’t know what Twilight Sentinel is or if this car had it. I know it is a high option car but the fender tag as well as the built sheet is missing.



[MONC440]

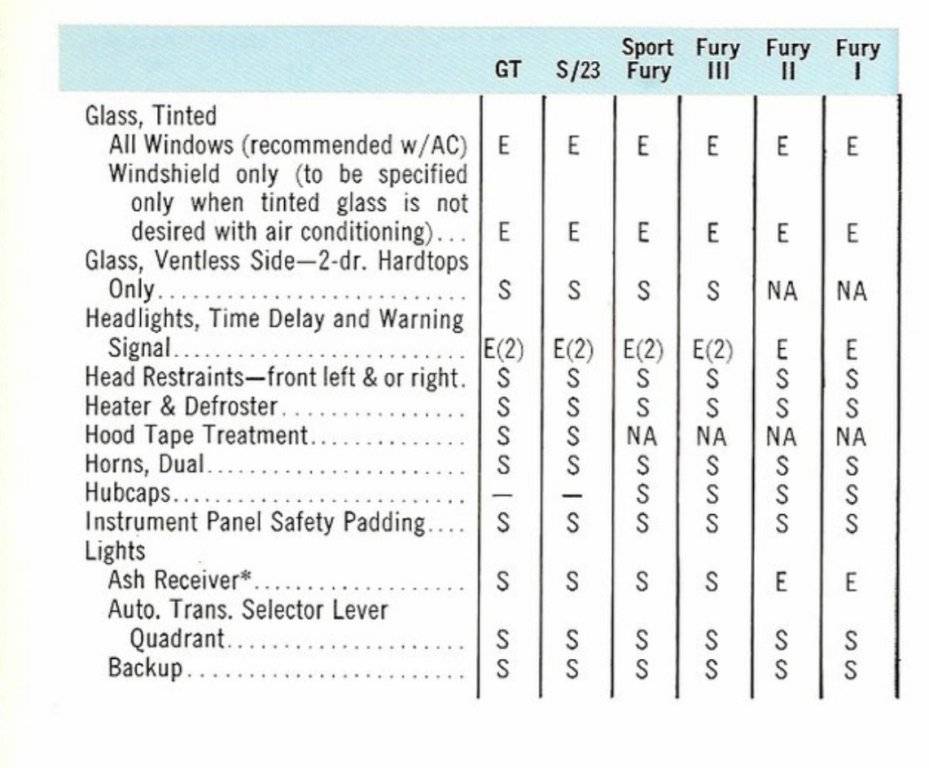

So from hamtramck historical site dealership data book for 1970 Fury shows headlight delay as an option with the light package for Sport Fury. I’m still perplexed by the headlights coming on delay when I turn ignition switch off and the headlight switch is off. I hope someone can tell me if that is normal before I start looking for a wire back feeding the delay relay. I guess I could just unhook the delay relay if it bothers me enough.



[Big_John]

So I have been doing some work on my 70 Sport Fury and I got around to hooking up the headlight switch. I turned the switch on and the high and low work as they should, then I turn the lights off and they stayed on for about 60 seconds and turned off. I didn't know it had a delay, so that's cool. The buzzer also works if the lights are on and the key is off. I then was doing some other electrical work and had to turn the ignition on and when I turned the key off the headlights came on for a delay and turned off. The headlight switch was off at the time so I want to know if this is normal? Seems a little odd that the lights would come on for a delay anytime the key was turned off.

I also hooked the high and dim lights to work with relays but that should have nothing to do with the delay function. All I did was wire the relays to be triggered by the original high and low wire and the power to the lights comes straight from the battery.

Any thoughts?

Since it's a '70 Sport Fury, the headlight doors come into play and will make the lights do some odd things.

What happens is the relay under the dash for the doors gets its ground through the headlight filaments. It's kind of a nice feature because with a burnt out headlight, the doors won't close. When I added relays to my headlights, this took a bit to figure out. The delay timer is missing from my car, so I didn't get into that at all.

I changed the the headlight door relay for a Tyco unit and a little wiring change. Post #3 on this thread has what I did. Headlight Relays with Hidden Headlights



[MONC440]

@Big_John if I want to bypass the headlight delay can I just unhook it. From the wiring diagram it looks like it get its signal from the power feed side of the dimmer switch. I don't really care to have a headlight delay. Sometimes when I'm out late at night and the cops are chasing me I think the headlight delay would not be beneficial. LOL



[Big_John]

@Big_John if I want to bypass the headlight delay can I just unhook it. From the wiring diagram it looks like it get its signal from the power feed side of the dimmer switch. I don't really care to have a headlight delay. Sometimes when I'm out late at night and the cops are chasing me I think the headlight delay would not be beneficial. LOL

I think you can. Mine is just missing.
