1970 headlight switch replacement

Electrical & Ignition

  1. C Sickness

    C Sickness Member

    Messages:
    61
    Likes Received:
    6
    Joined:
    May 16, 2020
    Location:
    Palm Beach, Florida
    The headlight, dimmer, and flasher switches on my 300 are all acting up. How do I get them out, I assume pull the lower dash trim, and do all work from behind? Looks like switches are attached with screws?

  2. david hill

    david hill Well-Known Member FCBO Gold Member

    Messages:
    677
    Likes Received:
    763
    Joined:
    Jul 17, 2017
    Location:
    indianapolis 46226
    You will need to pull the dash cluster as a unit. The switches are install from behind the cluster. Don't do w/ the cluster installed, its too easy to break something there is no room in there. Disconnect the battery. Remove the lower steering column cover and drop the column down for easier access. Not as bad as it sounds. Be very careful around the printed circuit board not to break off the connecting pins. If you need a highly detailed description on how to do this PM me.

    Last edited: Oct 13, 2020
    • Agree Agree x 1
  3. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,409
    Likes Received:
    804
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Having David Hill volunteering to help you is like having your heart surgeon volunteering to come over and help to trim your hedges! :D

    I'll add that our dashboard plastics are OLD and BRITTLE, so be gentle. And by now, it's likely that various screws weren't replaced back in 1979 when switches and bulbs were replaced, and some screw tabs are already cracked from overtightening (if they're not already broken off :mad: )......so I guess I've already said it: Go slow, wiggle and jiggle, but be gentle. Oh, the backs of your hands will look as though you've been trying to pet your neighbor's vicious, sharp-clawed cat, but it will all be worth it when your switches and bulbs are all working like it's 1970 again. :thumbsup:


    Last edited: Oct 14, 2020
    • Like Like x 1
  4. 1970FuryConv

    1970FuryConv Senior Member

    Messages:
    2,055
    Likes Received:
    1721
    Joined:
    Aug 8, 2014
    Location:
    Richmond, VA

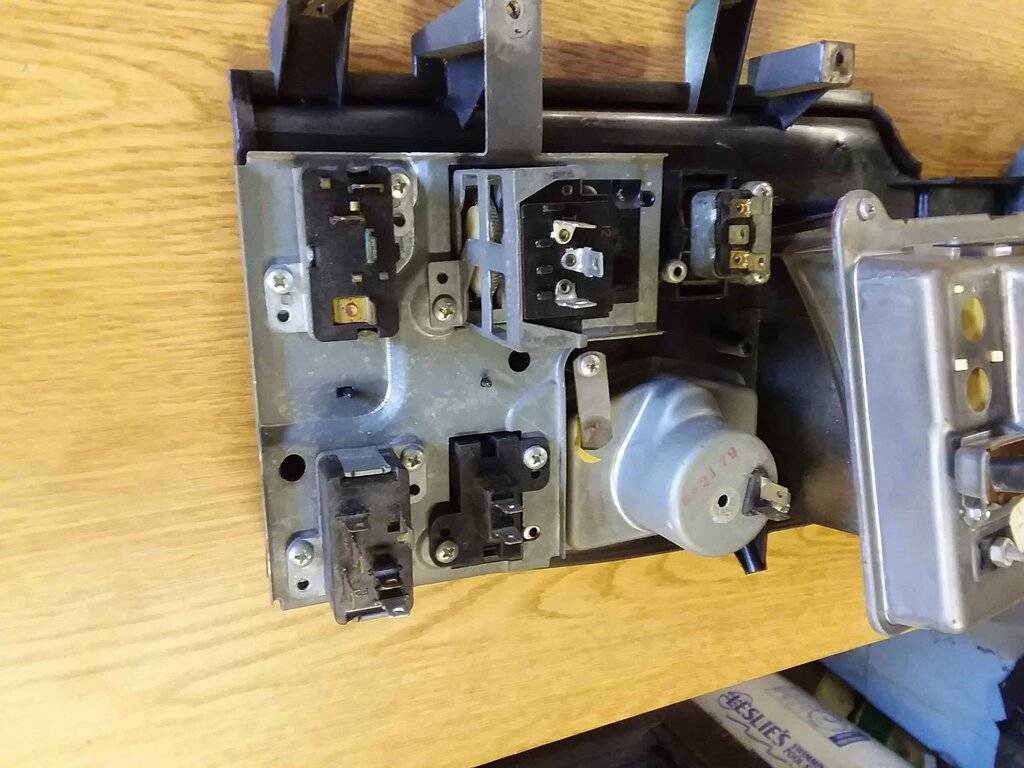

    This is the back of a 1970 Fury Dash. With that car, instrument cluster has to come out as a unit. HL switch and dimmer in top row 1st pic.

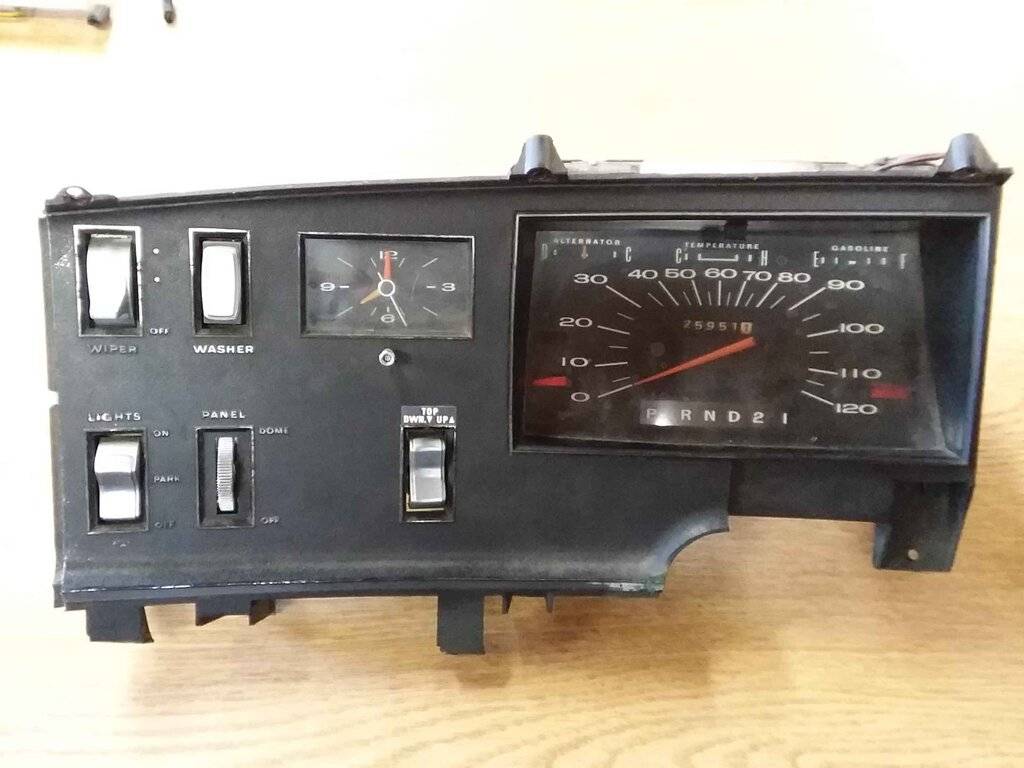

    As pulled, before clean up and lens/speedo replace

  5. C Sickness

    C Sickness Member

    Messages:
    61
    Likes Received:
    6
    Joined:
    May 16, 2020
    Location:
    Palm Beach, Florida
    Thanks for all the help. I might have seen a cluster removal procedure in the FSM. What you're showing looks like there are tabs in the bottom, and screws at the top. Pull the screws, rotate the top towards you, and lift up and away. I have a new headlight switch, the rear half of the car doesn't have tails or side markers. Dimmer is spotty, depending on position. Hope to clean it with Deoxit, or similar. I see there is someone who rebuilds these on the auction site. Flasher, i don't know yet, must be dirty. Sometimes both sides flash, sometimes only one side. Depends on how you mash the button. I don't know how the little seesaws, buttons, and springs go inside. I do know they will jump to freedom if I open the switch.

    I have to change the steering box, which means dropping the column. A good time to do both jobs. I'll PM if i get really stuck.

  6. 1970FuryConv

    1970FuryConv Senior Member

    Messages:
    2,055
    Likes Received:
    1721
    Joined:
    Aug 8, 2014
    Location:
    Richmond, VA

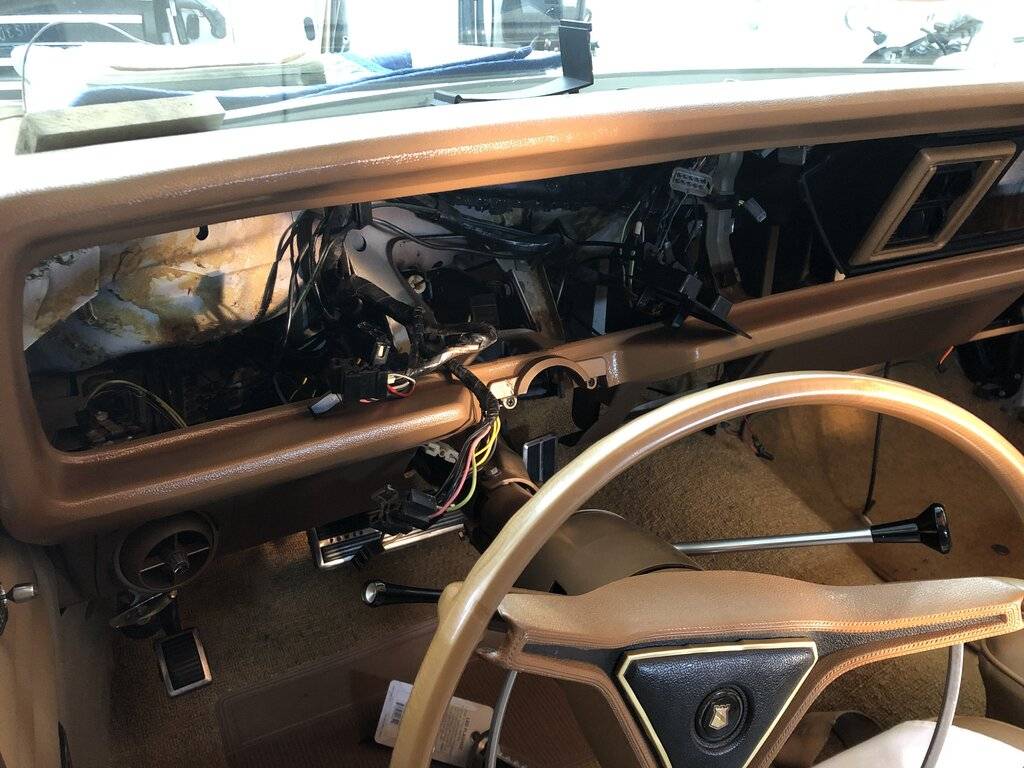

    I removed the column. Makes removing the dash much easier.

  7. C Sickness

    C Sickness Member

    Messages:
    61
    Likes Received:
    6
    Joined:
    May 16, 2020
    Location:
    Palm Beach, Florida
    I was scared of it, but I think I see now that both the input and output shafts have a master spline in the serrations. With that, there should be no way to do it wrong. Hopefully, the Pitman arm will pop off without too much of a fight.

    • Agree Agree x 1
  8. david hill

    david hill Well-Known Member FCBO Gold Member

    Messages:
    677
    Likes Received:
    763
    Joined:
    Jul 17, 2017
    Location:
    indianapolis 46226
    You will need a real puller to take it off.


  9. C Sickness

    C Sickness Member

    Messages:
    61
    Likes Received:
    6
    Joined:
    May 16, 2020
    Location:
    Palm Beach, Florida
    What is that, an OTC or something? The Harbor Freight one won't do ;) ?

  10. C Sickness

    C Sickness Member

    Messages:
    61
    Likes Received:
    6
    Joined:
    May 16, 2020
    Location:
    Palm Beach, Florida
    I wasn't far off. The OTC 6497 looks like that.

  11. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    3,228
    Likes Received:
    1417
    Joined:
    Dec 10, 2012
    Location:
    central ny
    a member here by the name of devinism rebuilds the dash dimmers.

  12. ALLAN

    ALLAN Member

    Messages:
    56
    Likes Received:
    46
    Joined:
    May 31, 2017
    Location:
    Grimsby.UK

  13. ALLAN

    ALLAN Member

    Messages:
    56
    Likes Received:
    46
    Joined:
    May 31, 2017
    Location:
    Grimsby.UK

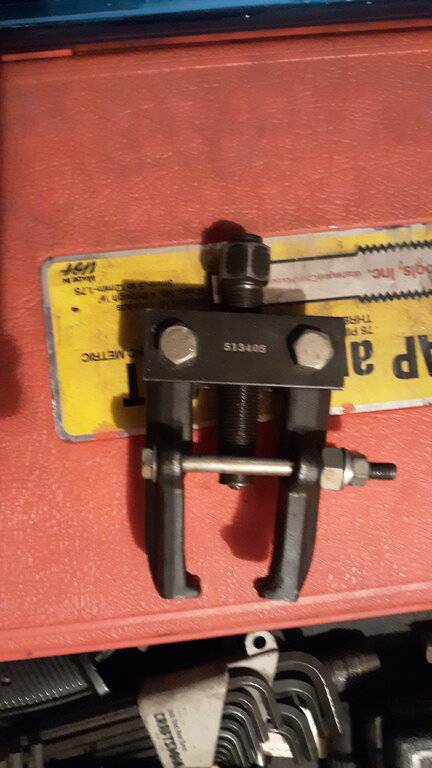

    My puller weighs about 2kg with a stubby handle

  14. david hill

    david hill Well-Known Member FCBO Gold Member

    Messages:
    677
    Likes Received:
    763
    Joined:
    Jul 17, 2017
    Location:
    indianapolis 46226
    Yes it is made by OTC.
