1973 Dodge Monaco 2-Speed Wiper Motor

1970FuryConv · Aug 16, 2021

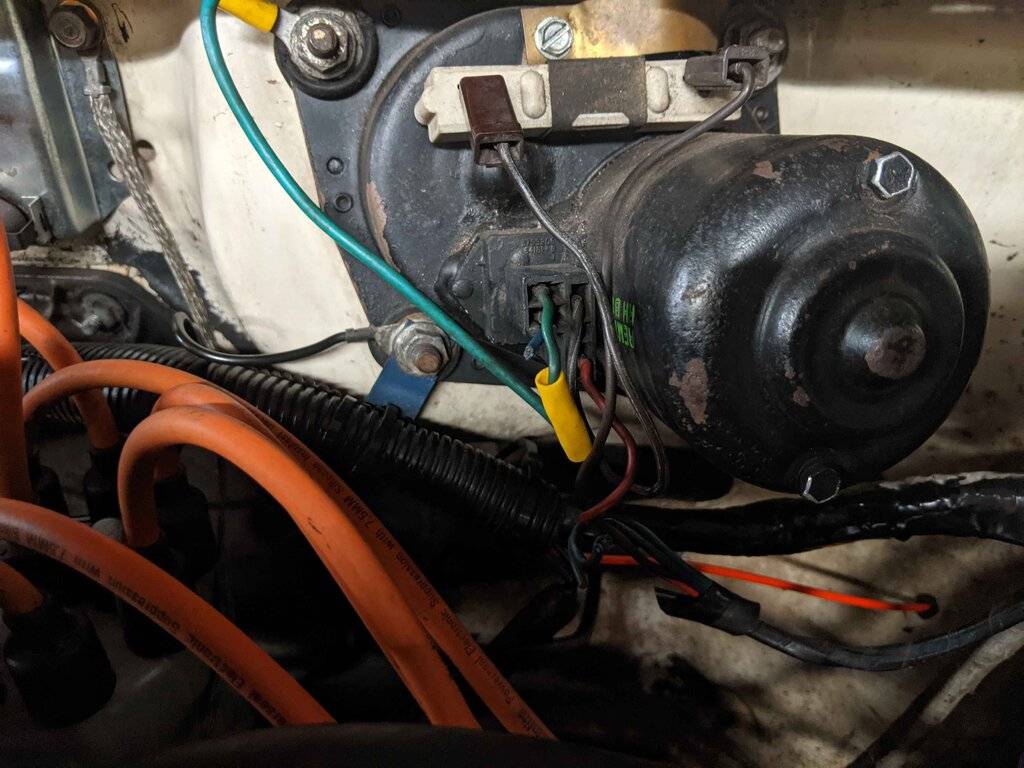

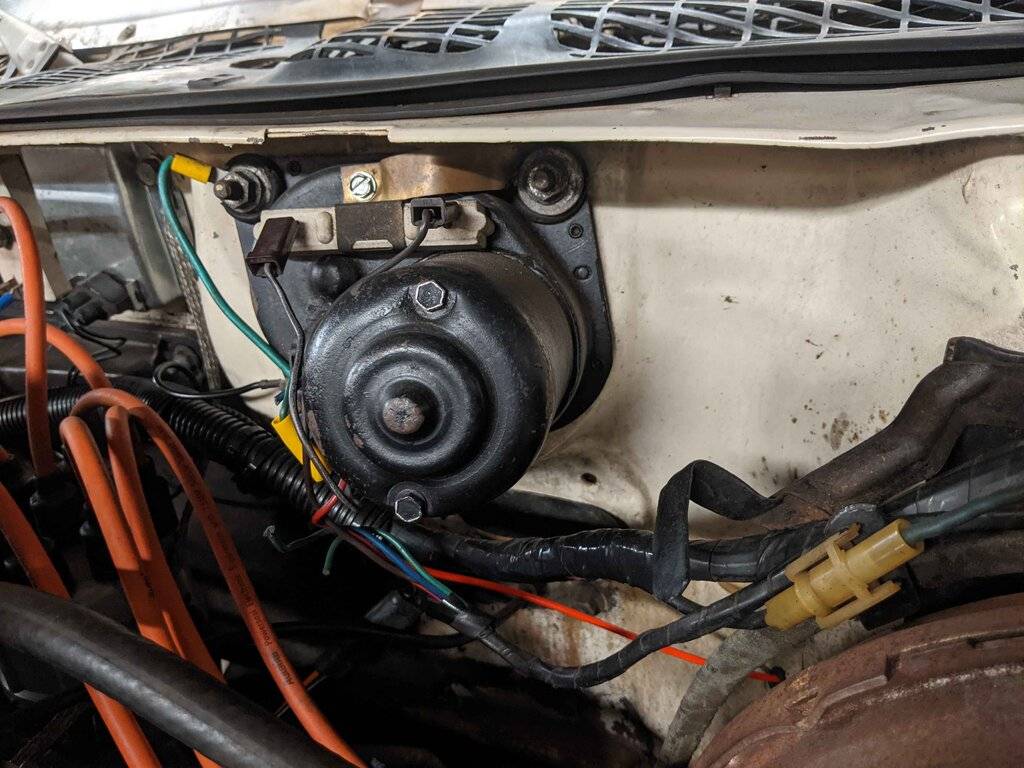

My windshield wipers don’t work. 1st I would like to test the 2 speed wiper motor and assure that it works. The motor is pictured below. I haven’t gotten into the wiring. I just want to know if the motor works. I read the factory shop manual and it seemed that testing in the car was done with Chrysler equipment that I don’t have. Does anyone have a way that I can run jumper wires such that I could test to see whether the motor works? Thanks!

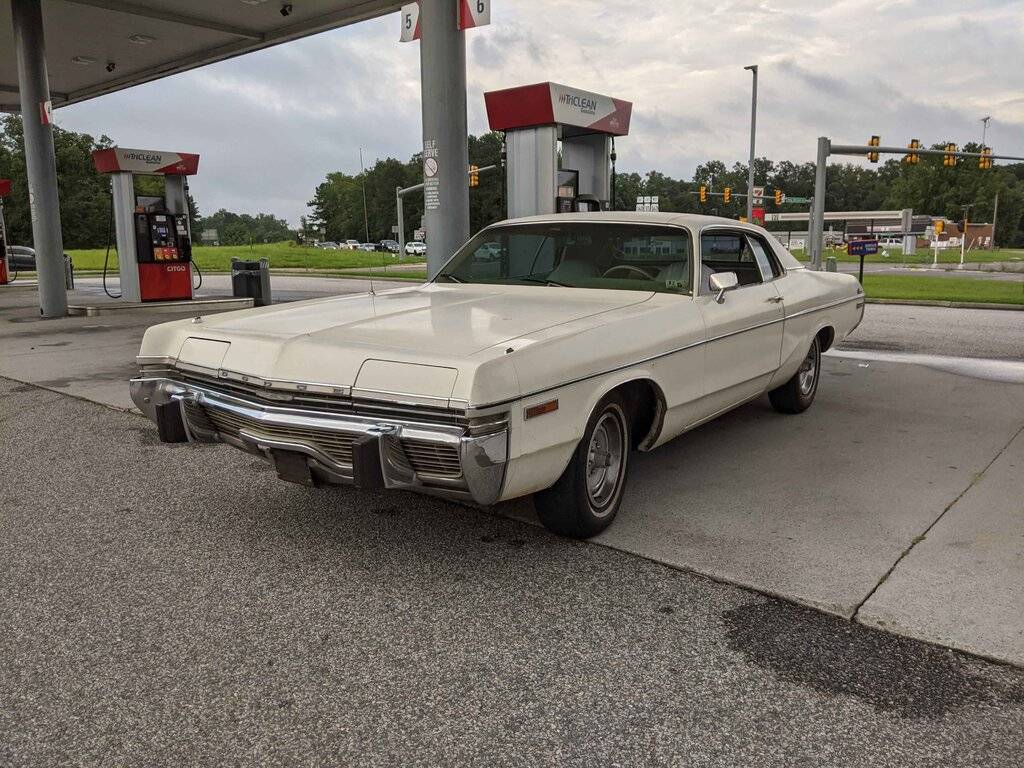

The car you are helping. Drove to gas station today. Still chasing repair gremlins, but it was awfully nice to drive it and have it perform normally.

70NEWYORKER · Aug 16, 2021

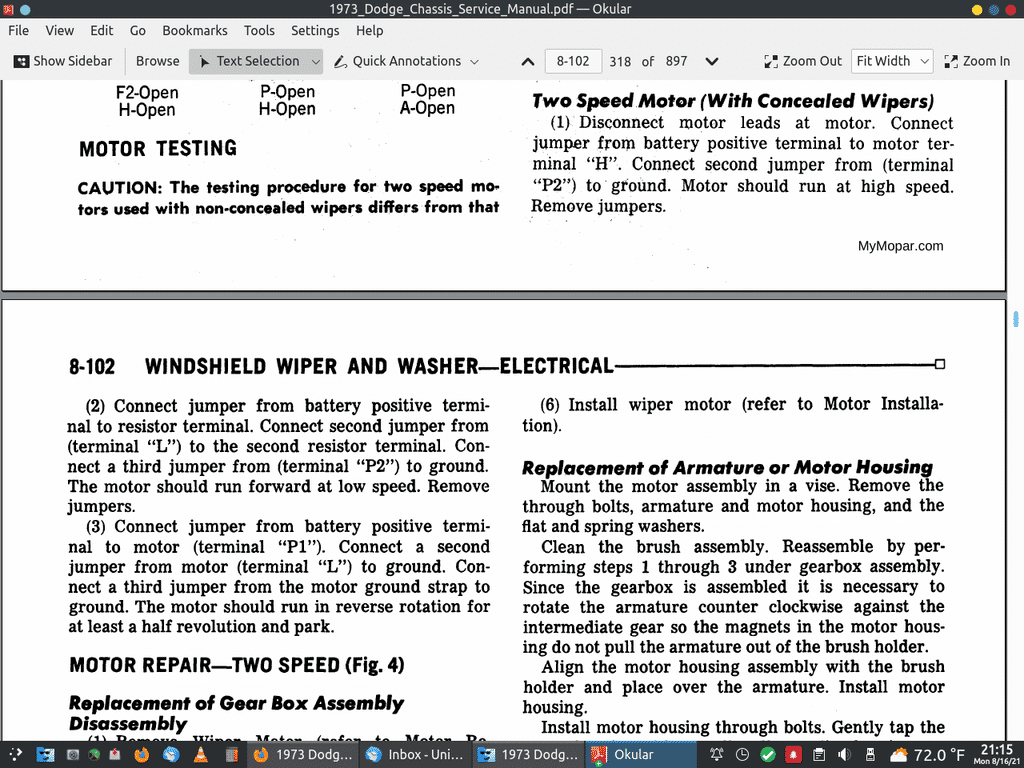

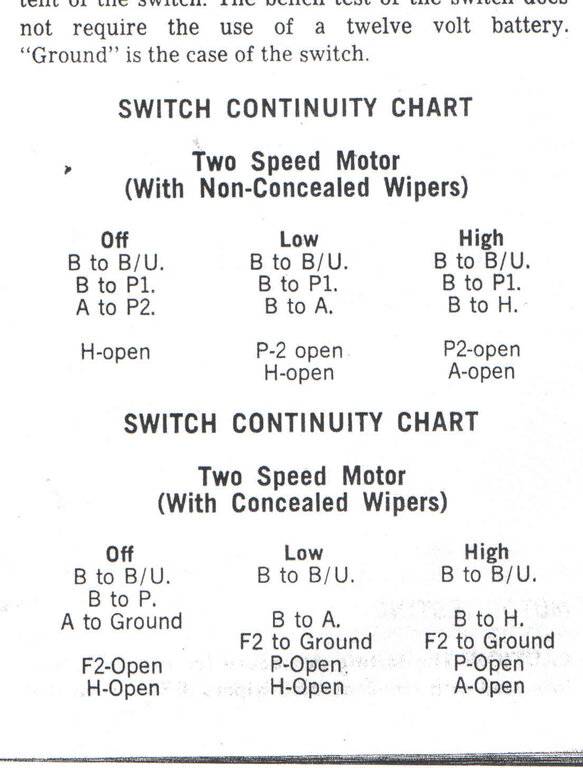

See 73 Dodge Chassis manual Section 8 page 101- Two Speed Concealed motor testing. Service manual you have should give you the connector pin-outs.

saforwardlook · Aug 17, 2021

1970FuryConv said:
My windshield wipers don’t work. 1st I would like to test the 2 speed wiper motor and assure that it works. The motor is pictured below. I haven’t gotten into the wiring. I just want to know if the motor works. I read the factory shop manual and it seemed that testing in the car was done with Chrysler equipment that I don’t have. Does anyone have a way that I can run jumper wires such that I could test to see whether the motor works? Thanks!
View attachment 481603
View attachment 481604
The car you are helping. Drove to gas station today. Still chasing repair gremlins, but it was awfully nice to drive it and have it perform normally.
View attachment 481605

That is the most beautiful model fuselage Chrysler made in 1973. They almost never show up anymore. It would be great if you could share some more photos of it with us. What power plant does it have?

1970FuryConv · Aug 17, 2021

70NEWYORKER said:
See 73 Dodge Chassis manual Section 8 page 101- Two Speed Concealed motor testing. Service manual you have should give you the connector pin-outs.
View attachment 481616

Thanks, I found out the same thing. I was reading the Voltage testing section 2 pages ahead and didn't see the motor testing section. I believe mine is concealed. P2 has to be grounded, then spade L jumped so current crosses resistor to get low speed and H spade jumped to get high. Motor works in both speeds. Didn't get a chance to park the motor, but have some rewiring to do.

1970FuryConv · Aug 17, 2021

saforwardlook said:
That is the most beautiful model fuselage Chrysler made in 1973. They almost never show up anymore. It would be great if you could share some more photos of it with us. What power plant does it have?

360V8 original, 727 not original, 8.25 rear.
Engine had 2 barrel. Installed Demon 1900 with Weiand 8007. Car has been a lot of work over the past 5 months. I'll take some photos and post them. I've been concentrating on making it roadworthy.

saforwardlook · Aug 18, 2021

Was you Monaco a recent find and if so, where did it show up? Very rare to even find one anymore..............................in any condition.

1970FuryConv · Aug 18, 2021

saforwardlook said:
Was you Monaco a recent find and if so, where did it show up? Very rare to even find one anymore..............................in any condition.

I bought it on Facebook in January. $6000. Had been sitting. Flew to Stockbridge, GA. Paid owner. Spent 2.5 days getting it to run enough to drive on a car trailer. Watched it drive on the trailer, flew home. Fixing problems since delivery. Driven maybe 70 miles since purchase.

saforwardlook · Aug 18, 2021

Thank you for the followup. Hope you can share some photos in the near future. Given you have to fix a lot of things yet, does it have pretty high miles?

1970FuryConv · Aug 18, 2021

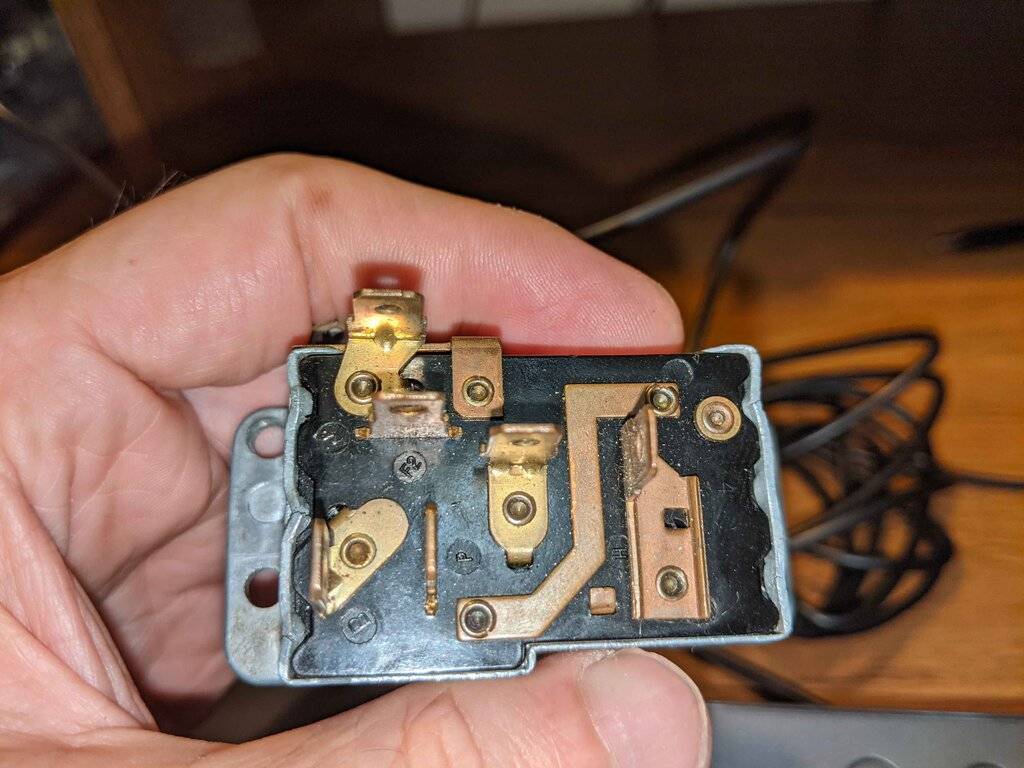

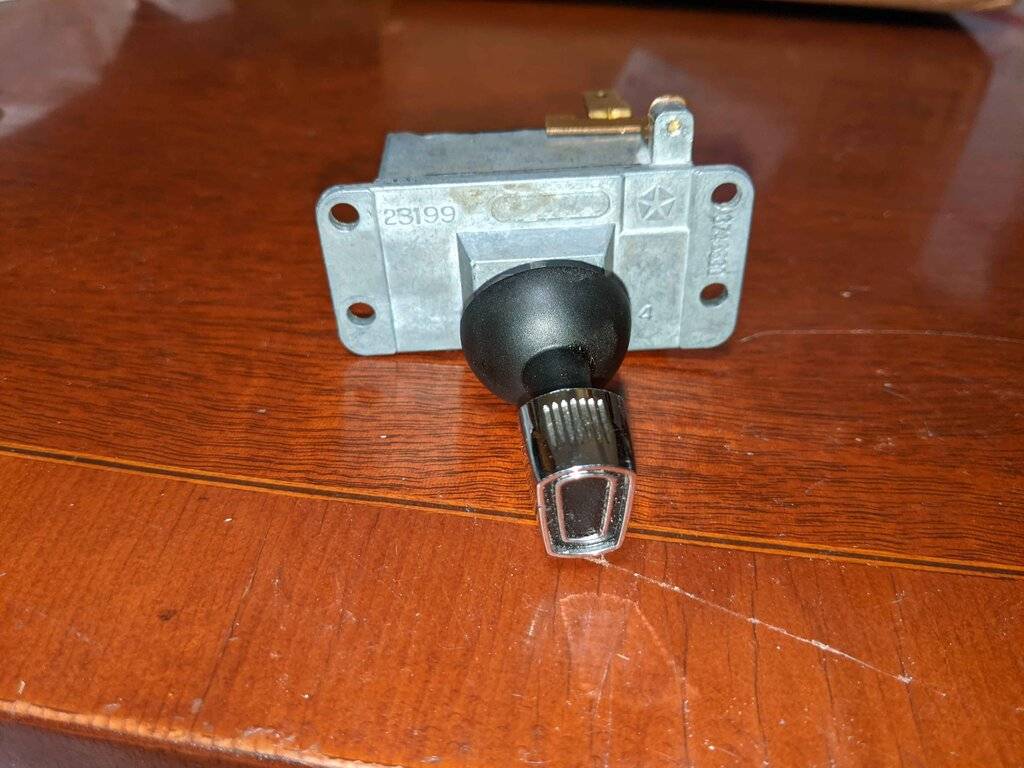

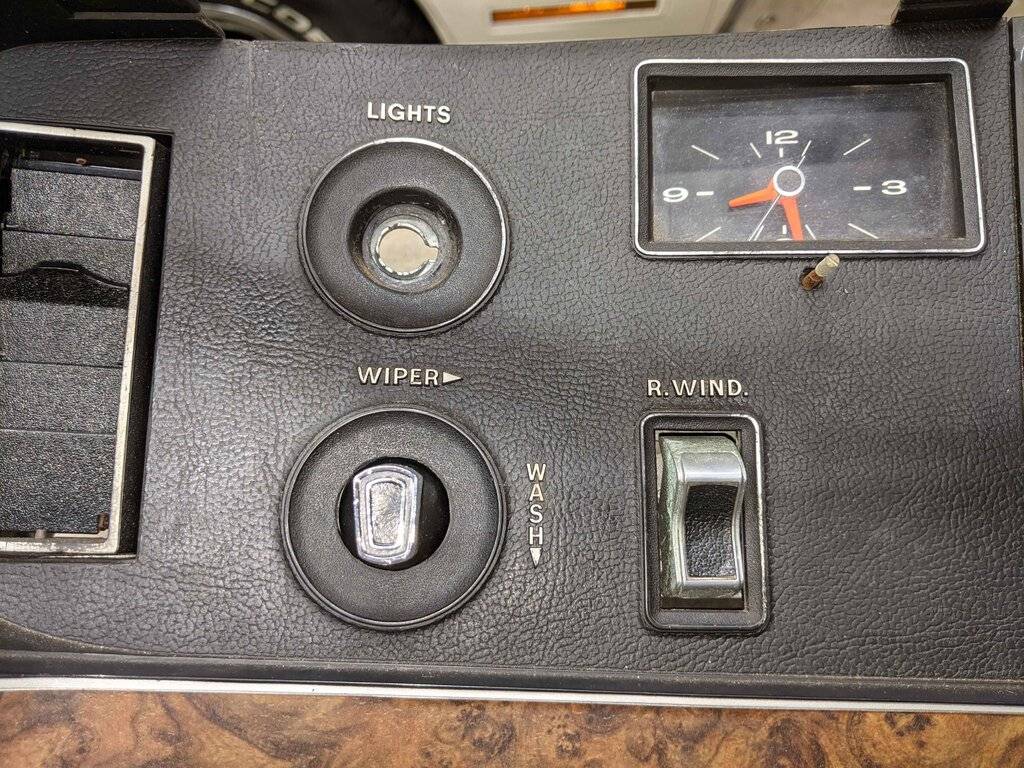

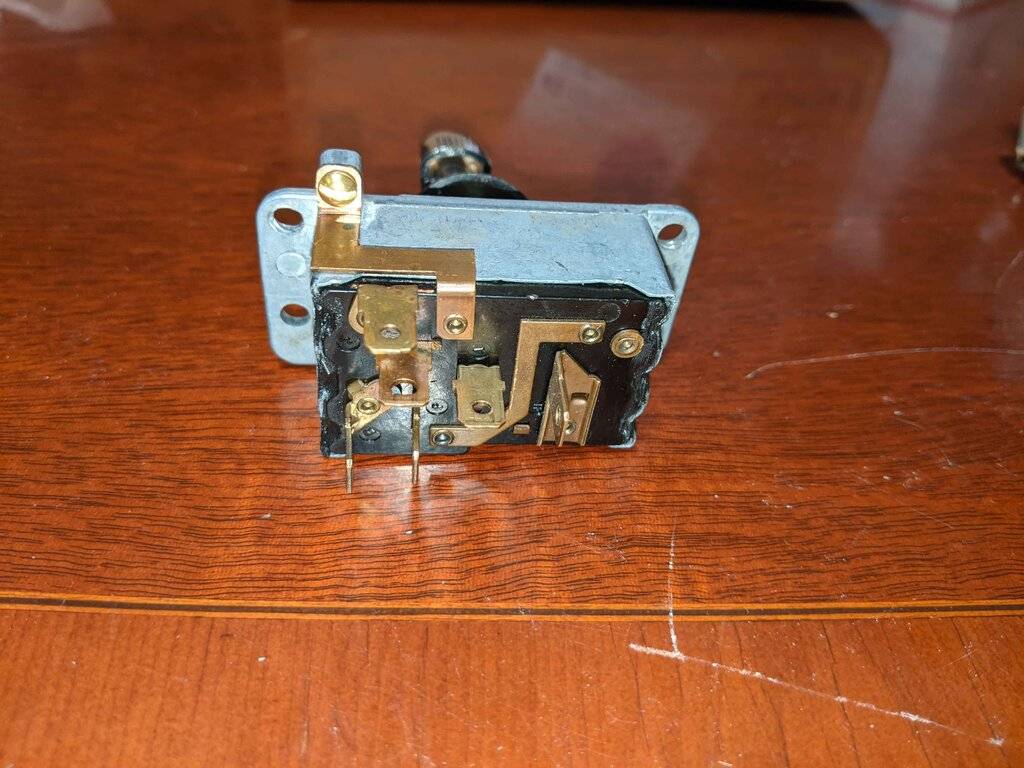

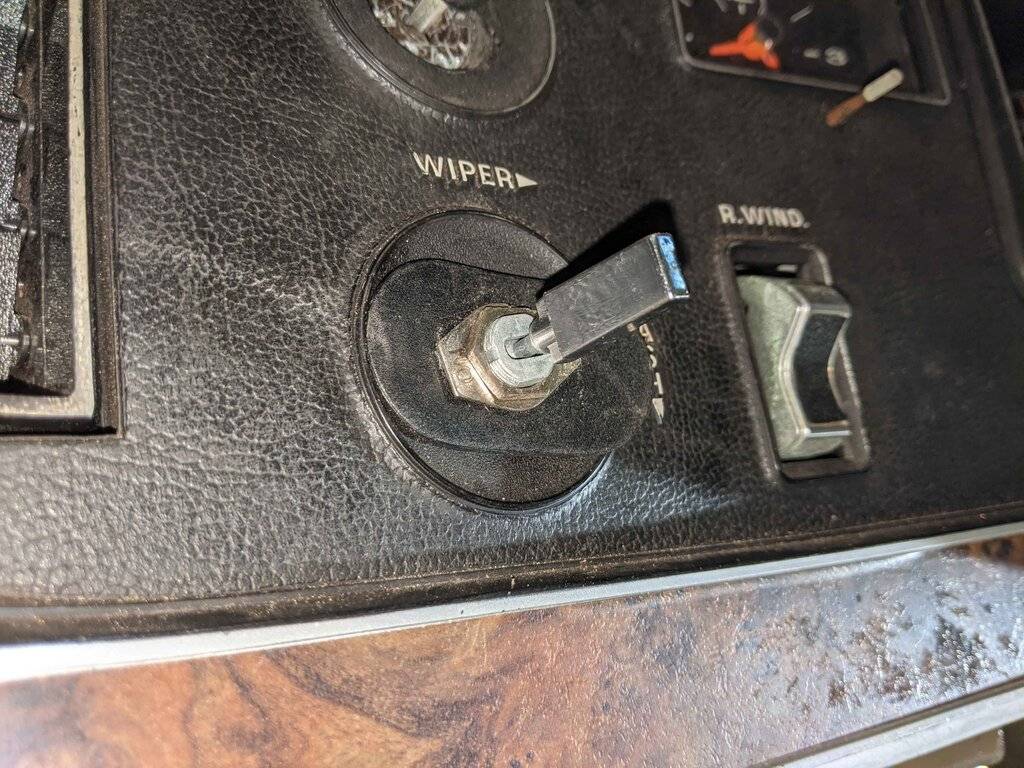

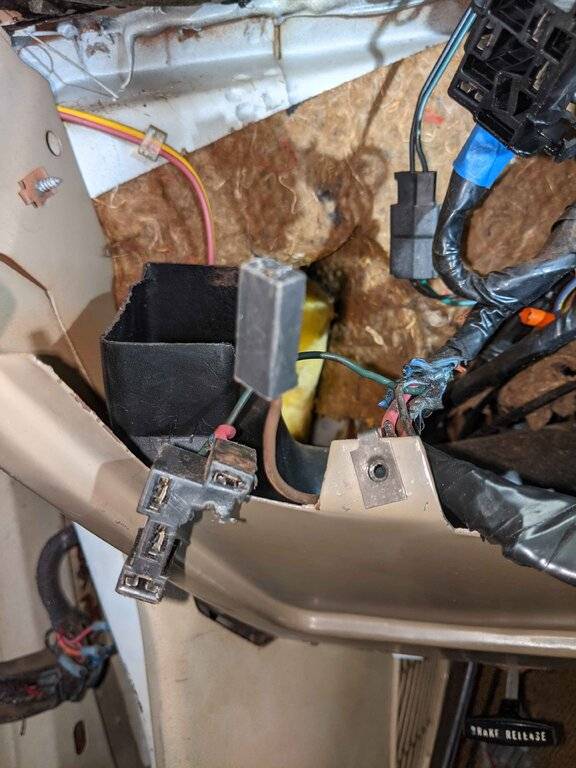

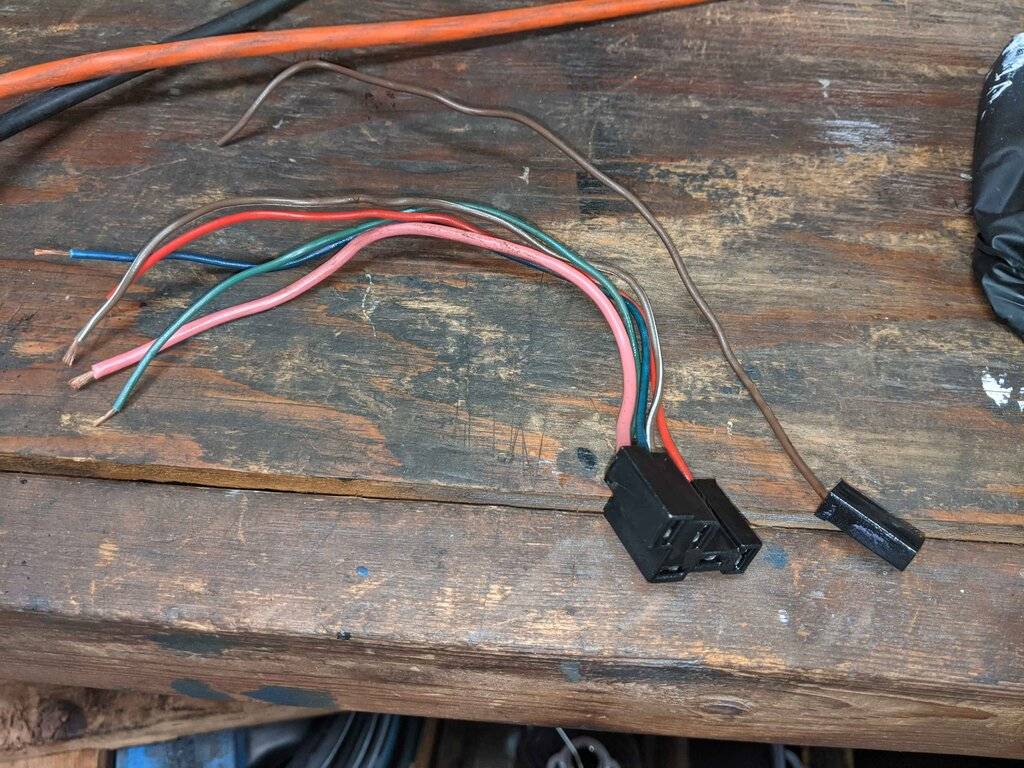

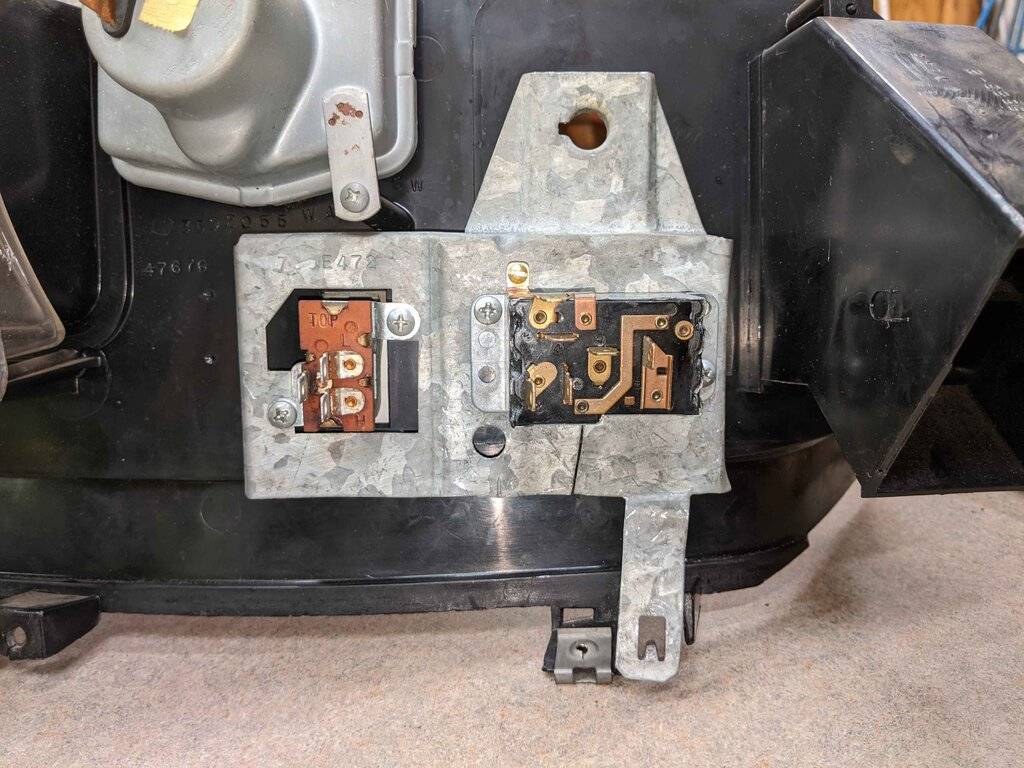

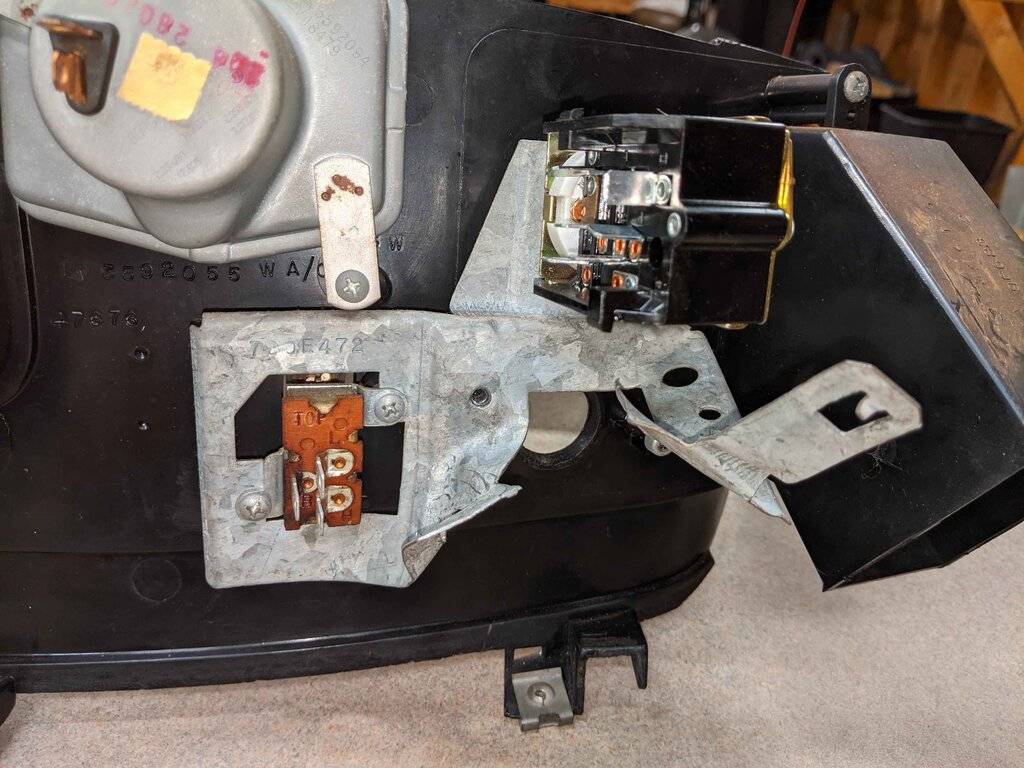

Windshield wiper switch has no continuity from Battery to any other spade, regardless of lever position. Switch passed rest of continuity test. Sent the switch and Hidden Headlight motor off for rebuild today.
B spade, lower left corner.

1970FuryConv · Aug 18, 2021

saforwardlook said:
Thank you for the followup. Hope you can share some photos in the near future. Given you have to fix a lot of things yet, does it have pretty high miles?

Probably 127000.
A lot of the work is undoing other people's short cuts/screw ups/ignorance. It doesn't take many miles for those to pile up. 5 months of work have gotten it close to roadworthy. That's a lot faster than some cars. I also have job, so that's not working all day, everyday.

bigmoparjeff · Aug 19, 2021

Can't believe that car has a 2 speed wiper motor. That means it was ordered without the "basic" group, which most dealers put on just about every car on the lot.

What's essentially a triple white car, or at least as close to it as you could get on a non-Imperial in '73 is quite unusual too. We've only seen a few over the years.

Definitely a neat car. Would look good parked next to Steve's triple black '72 Polara.

Jeff
