WANTED 1973 Imperial Sentinel wiring under dash extension/jumper/ pig tail

Status
Not open for further replies.

Boydsdodge

Well-Known Member
FCBO Gold Member
Feedback: 0 / 0 / 0
Joined
May 26, 2020
Messages
782
Reaction score
1,024
Location
Toronto Canada
Contact seller
Hello, I am looking for this three wire jumper extension for my sentinel lighting system. It is located just under the fuse panel, plugs into the power relay then it looks like it goes to headlight switch via another plug a few inches away.
Here are a few pics of the jumper and the power relay. Mine has melted and I would like to replace with the original part. I have looked for a part number in the parts book without success, it looks like it was included in the main dash harness.
So if anyone has one, feel free to pass along.
Thanks.











Boydsdodge

Well-Known Member
FCBO Gold Member
Feedback: 0 / 0 / 0
Joined
May 26, 2020
Messages
782
Reaction score
1,024
Location
Toronto Canada
I found a part number for the female end. 2857754.
looks like it was used up through the 90s on AC connections.
If anyone has knowledge of where it was used on the vehicle, I can go hunting.

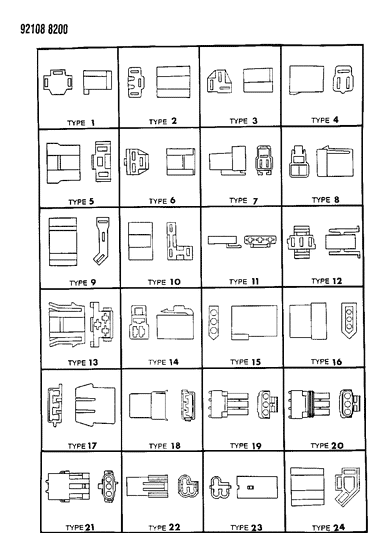

Number two on this Chrysler parts illustration.
Thanks.


Boydsdodge

Well-Known Member
FCBO Gold Member
Feedback: 0 / 0 / 0
Joined
May 26, 2020
Messages
782
Reaction score
1,024
Location
Toronto Canada
Thanks, but not the same. This insulator is narrower then foot, I have a few here I tried. From what I have found through my parts book, is that this insulator was used in AC connector some where. 60s to early 90s.


Boydsdodge

Well-Known Member
FCBO Gold Member
Feedback: 0 / 0 / 0
Joined
May 26, 2020
Messages
782
Reaction score
1,024
Location
Toronto Canada
Thanks, that is an option. I will pull the trigger on an insulator if not able to get the complete jumper from any of our/my sources.
