2bbl to 4bbl pictorial

Engine, Transmission & Driveline

  1. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA
    As someone once said, “ Some people have a way with words. Other people,,not, have way, I guess.”

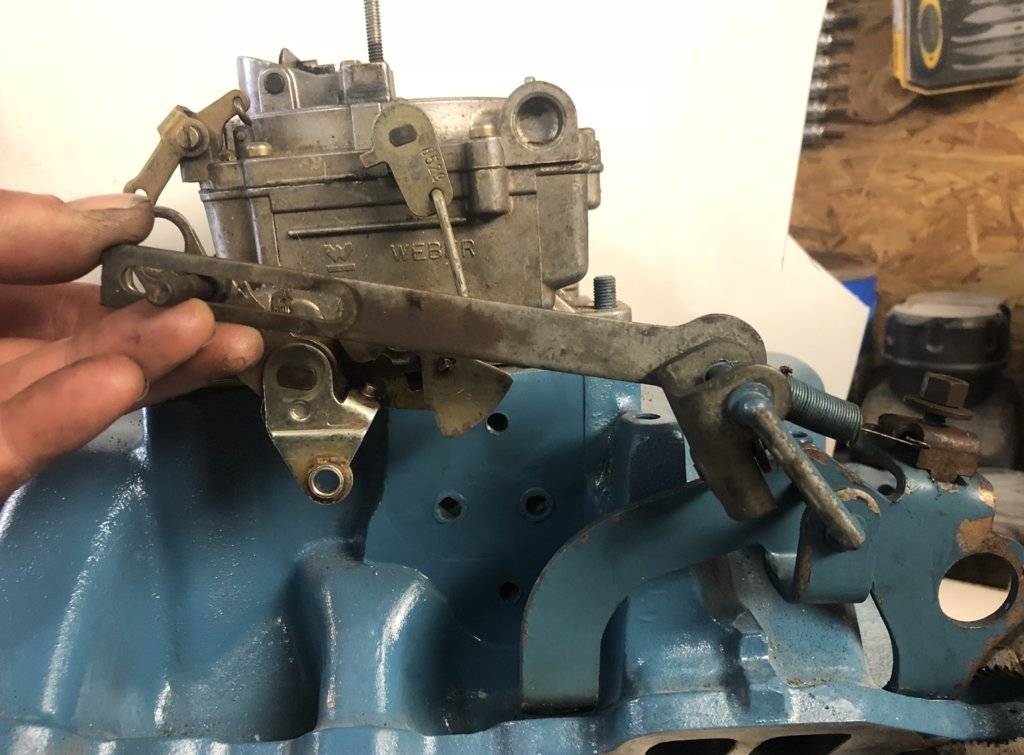

    Here’s what I hope is a self explanatory pictorial of how I deal with throttle/kickdown issues by modifying the factory bracket when replacing a 2bbl with an aftermarket intake and 4bbl.

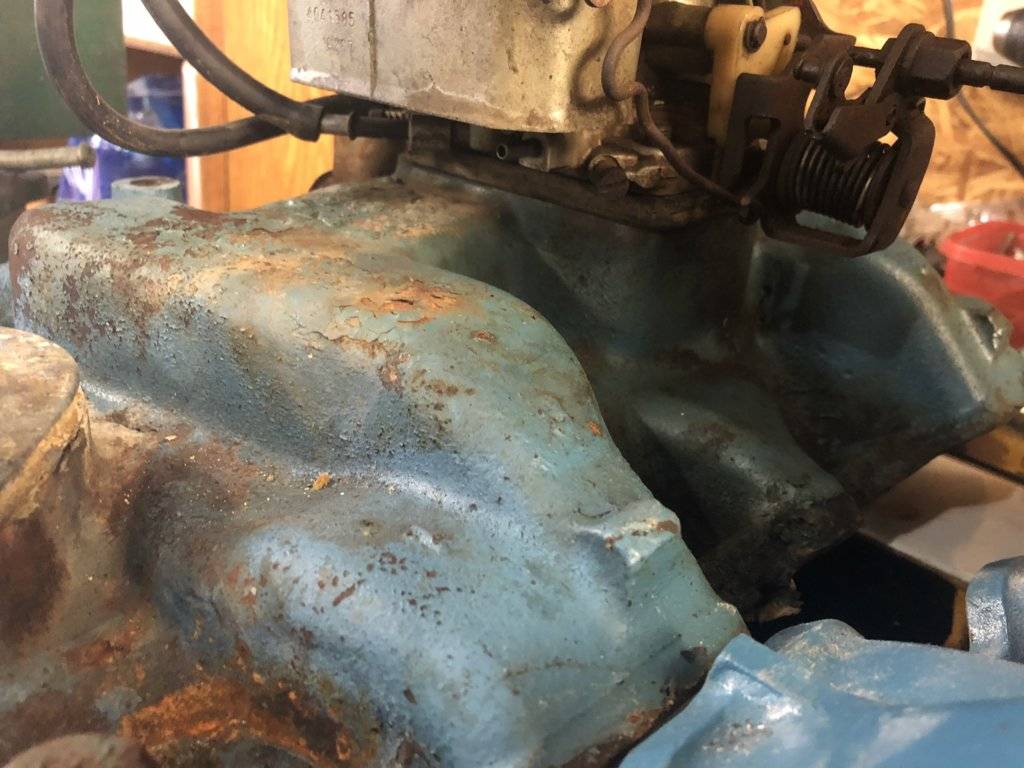

    As we see, the height difference is where the heartache begins....also note how much higher the thermostat is on the aftermarket intake.
    This is a 360 2bbl intake and a aluminum Wieand 2p 180 intake side by side comparison. Accessories such as AC compressors may be affected by such modifications as well.





    Last edited: Mar 14, 2019
    • Like Like x 1
    • Thanks! Thanks! x 1
  2. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA

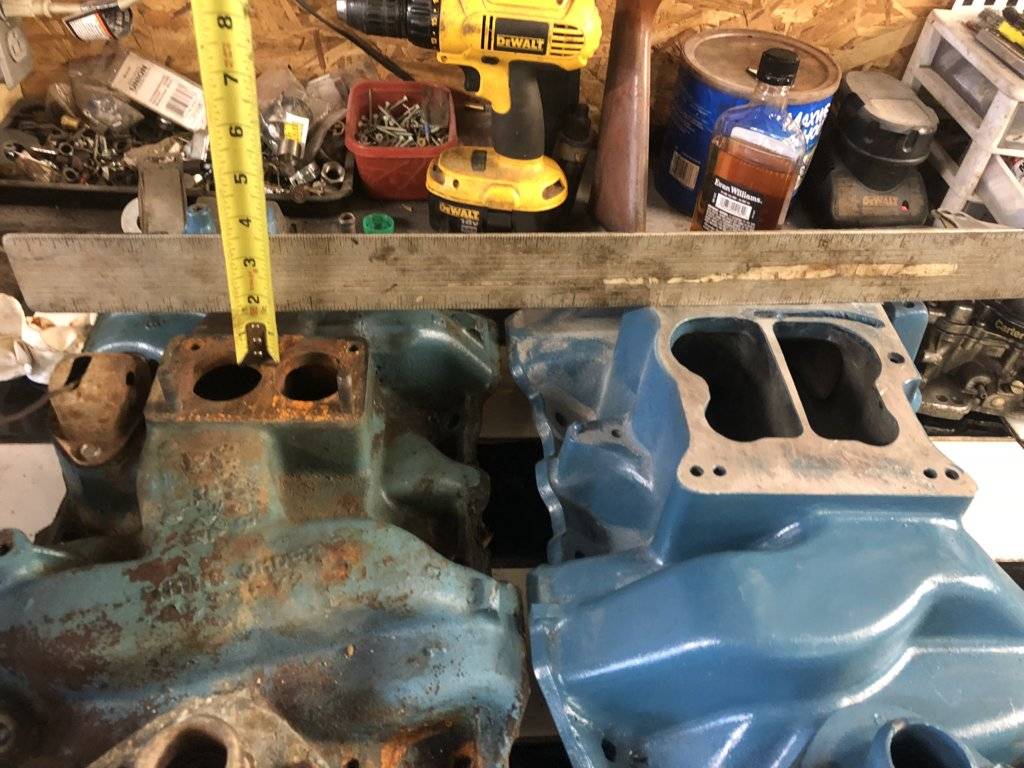

    Intakes sitting on a flat surface, measure the difference.,,



    • Like Like x 1
    • Thanks! Thanks! x 1
  3. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA

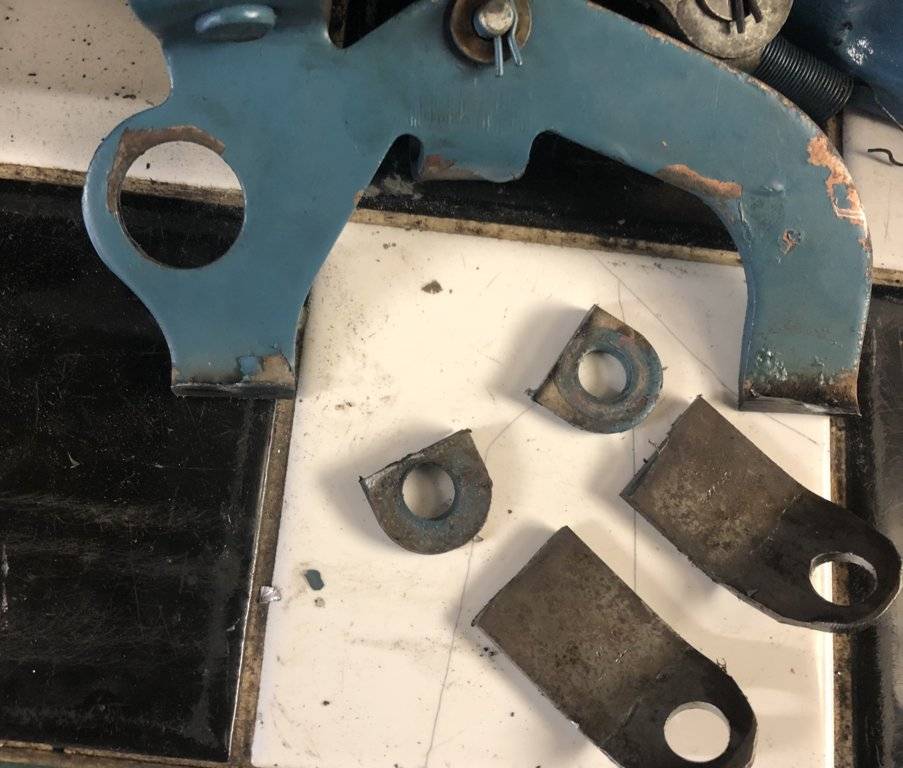

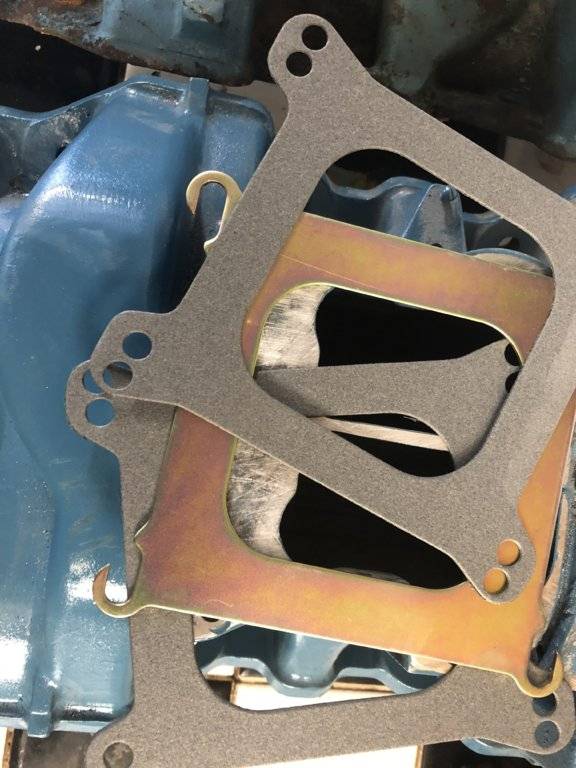

    This mess will not work. This is a Carter AFB. Different carbs, different issues. Check the carb you’ll be using for different measurements.



    • Like Like x 2
    • Thanks! Thanks! x 1
  4. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA

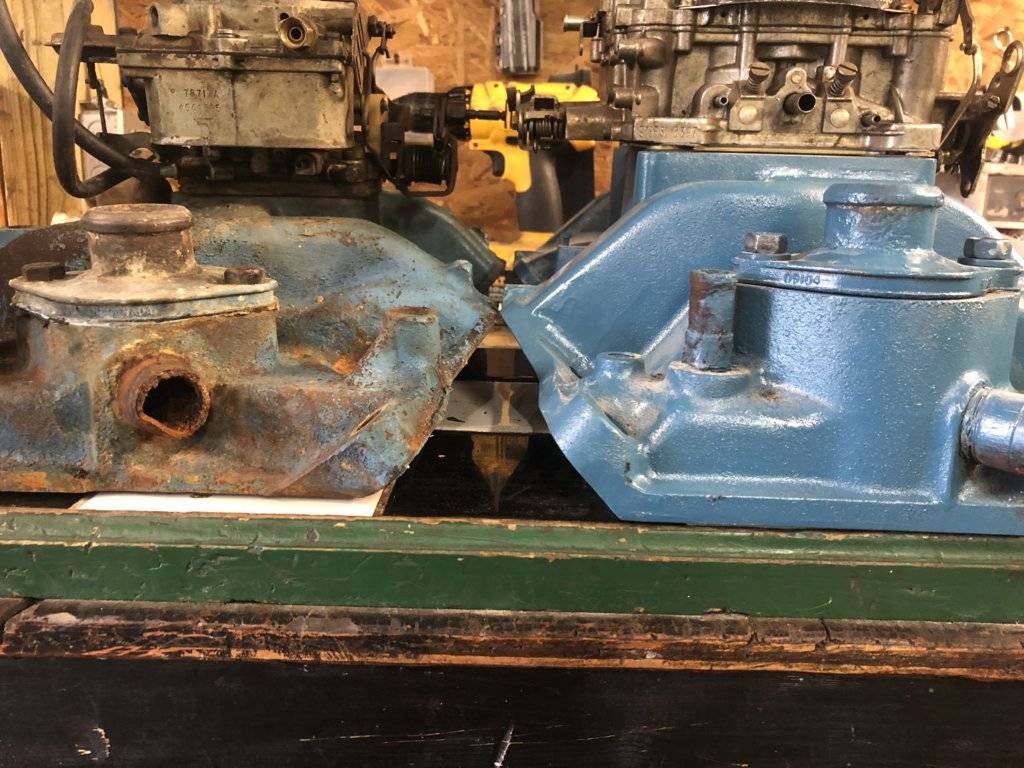

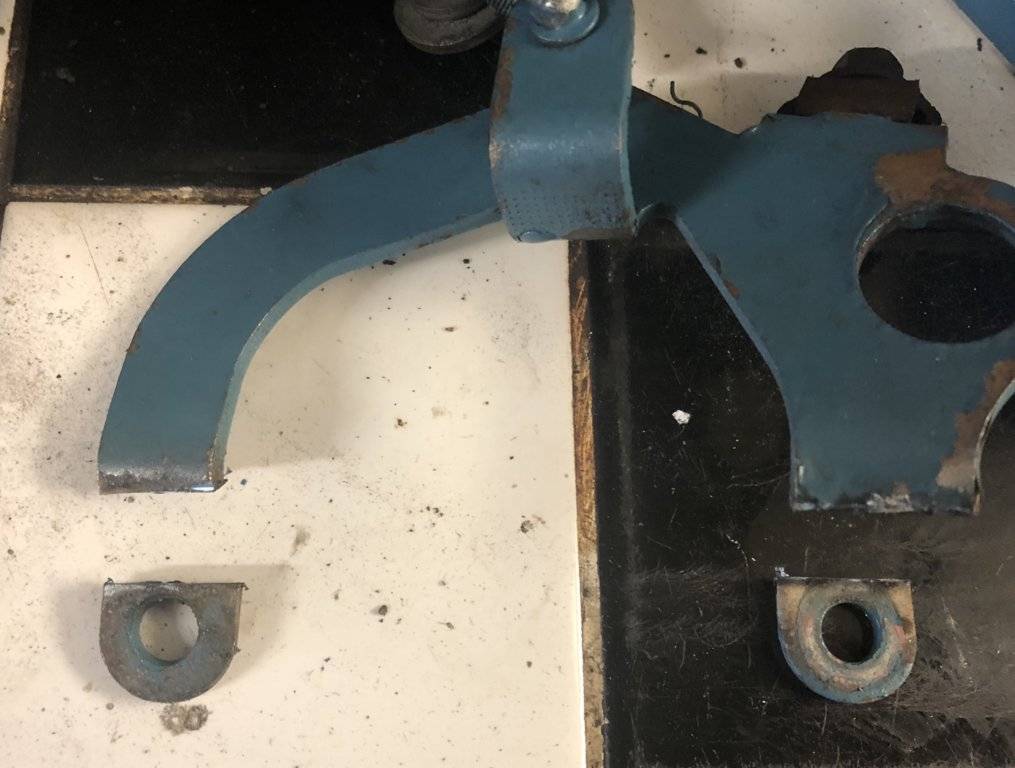

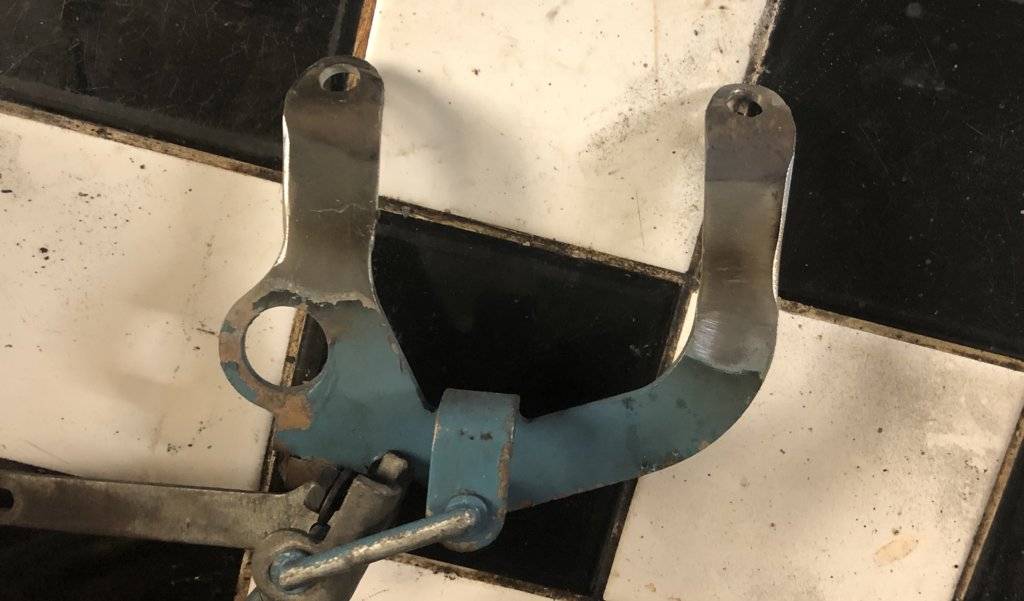

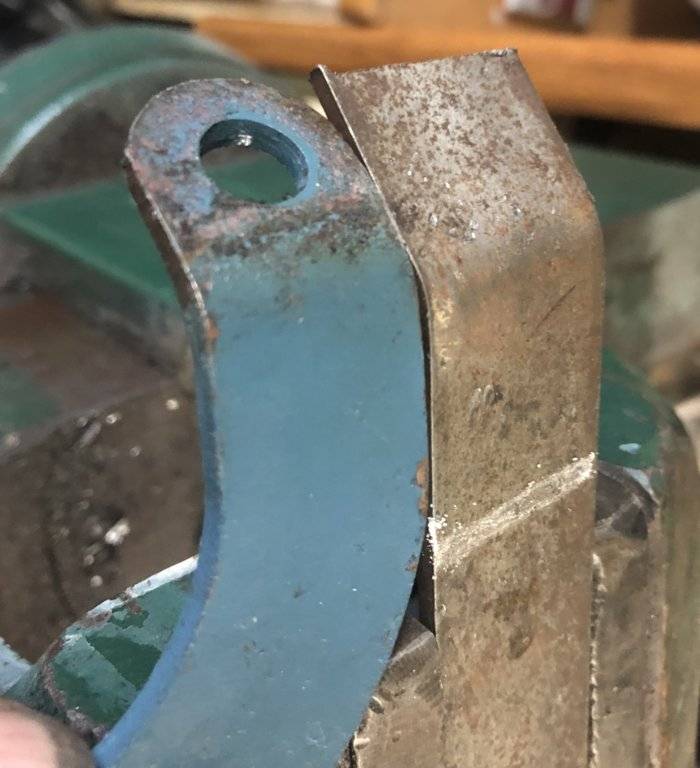

    Cut the part of the bracket where in bends. Use flat bar of similar dimensions to add the heights you need. In this case it was 1.25”






    • Like Like x 2
    • Thanks! Thanks! x 1
  5. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA

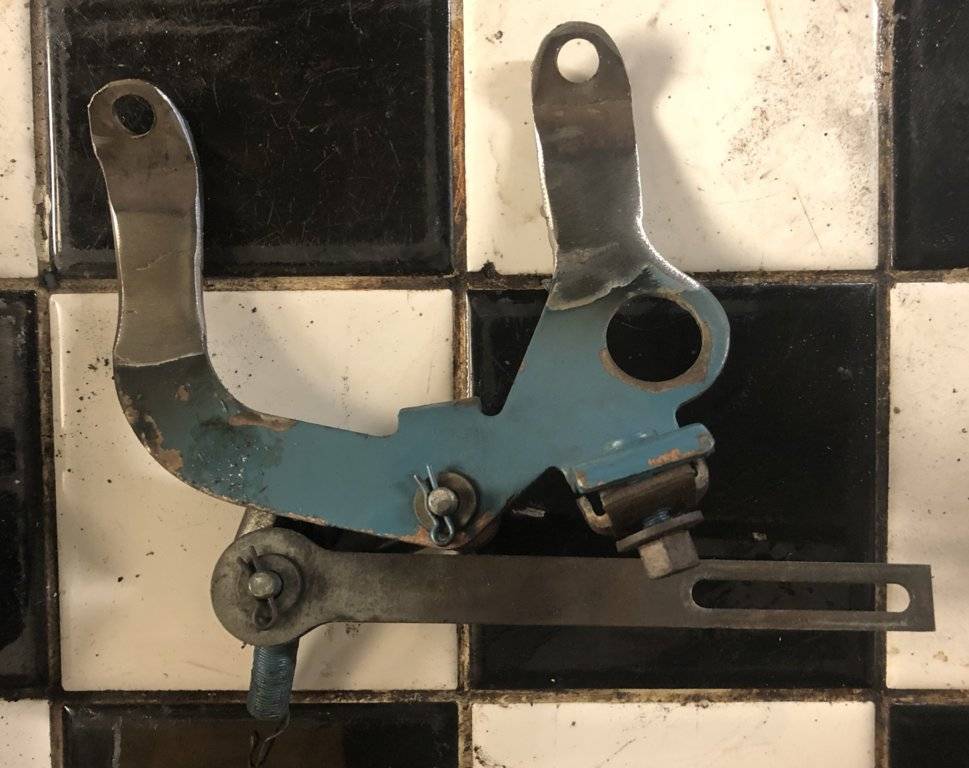

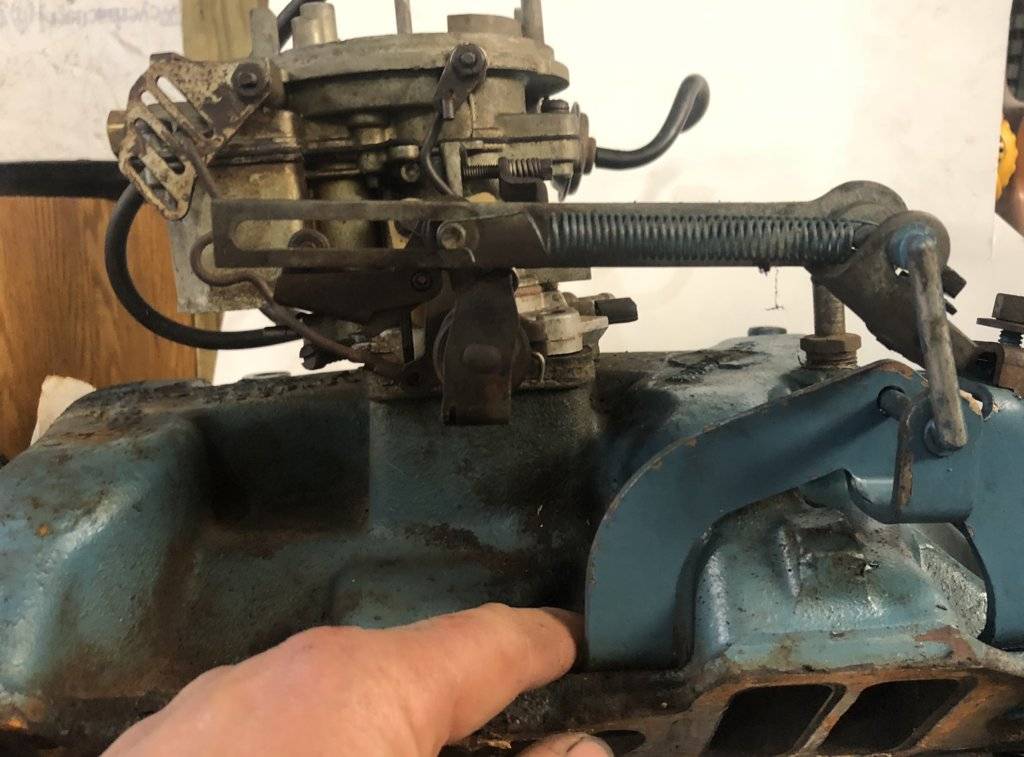

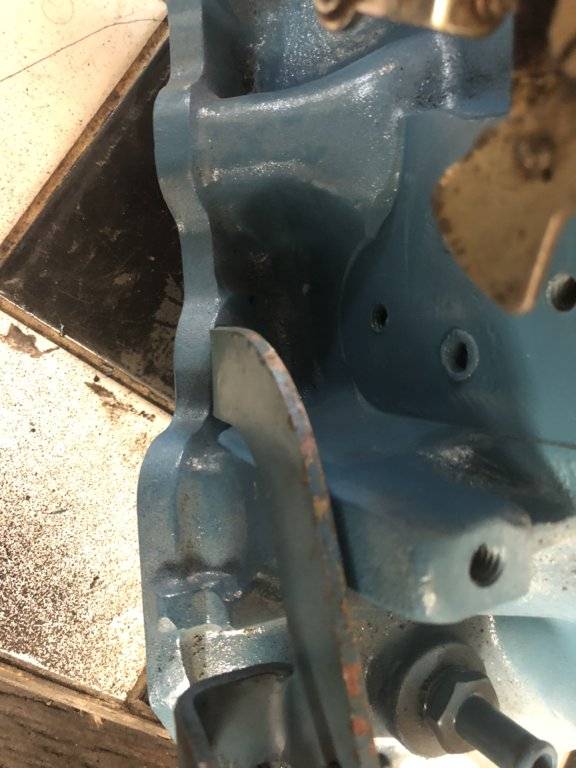

    Using the old intake for a fixture, bolt your new tabs down through the holes where the original bracket bolted. Then clamp the bracket to them and tack weld. Check to see if it lines up with the carb before final welding.





    Last edited: Mar 14, 2019
    • Like Like x 2
    • Thanks! Thanks! x 1
  6. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA

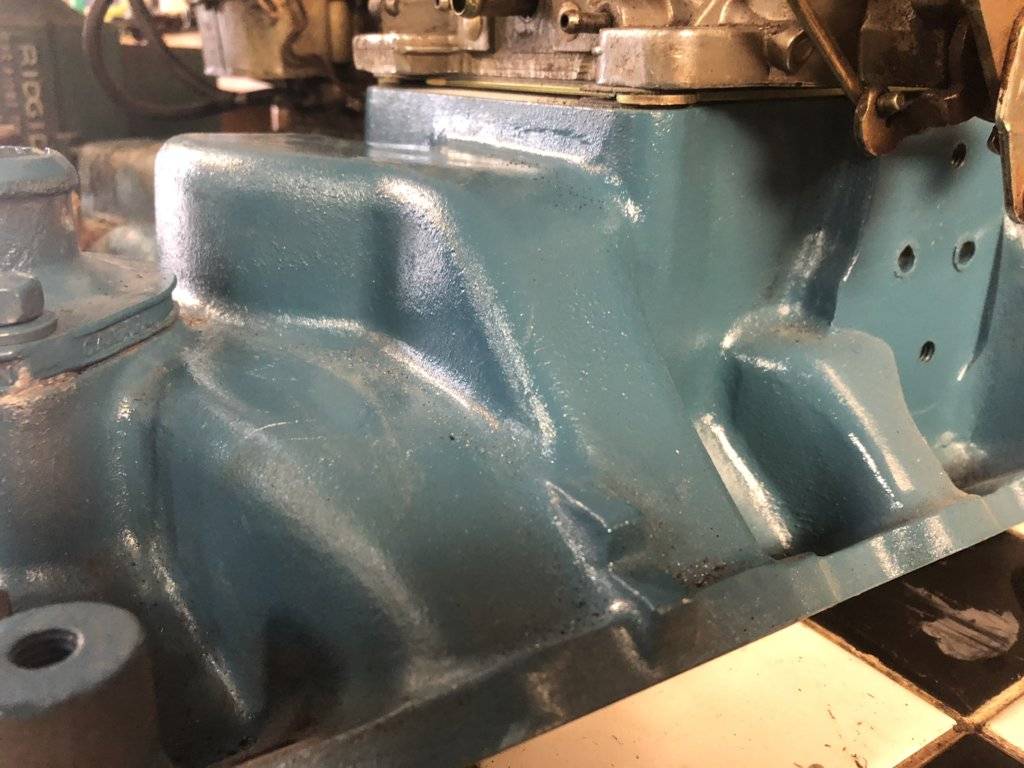

    Beat to fit, paint to match!

    • Thanks! Thanks! x 2
  7. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA
    Also, you’ll have to extend your kickdown rod that goes under the car to the transmission. This is important if you want your transmission to last.
    IMPORTANT: ALWAYS MAKE SURE YOUR THROTTLE LINKAGE WORKS FREE AND RETURNS TO IDLE POSITION. Spend more time checking that than anything else in this pictorial!!!

    • Thanks! Thanks! x 1
  8. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    3,400
    Likes Received:
    851
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Nice clean job.

    Dave

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  9. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA

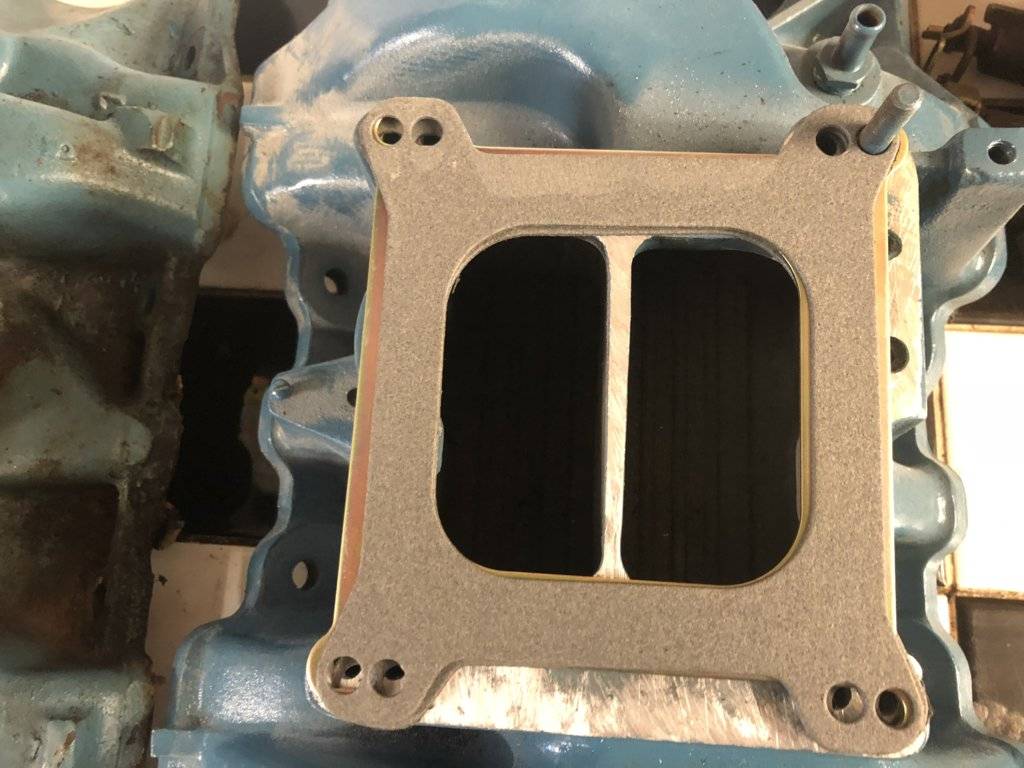

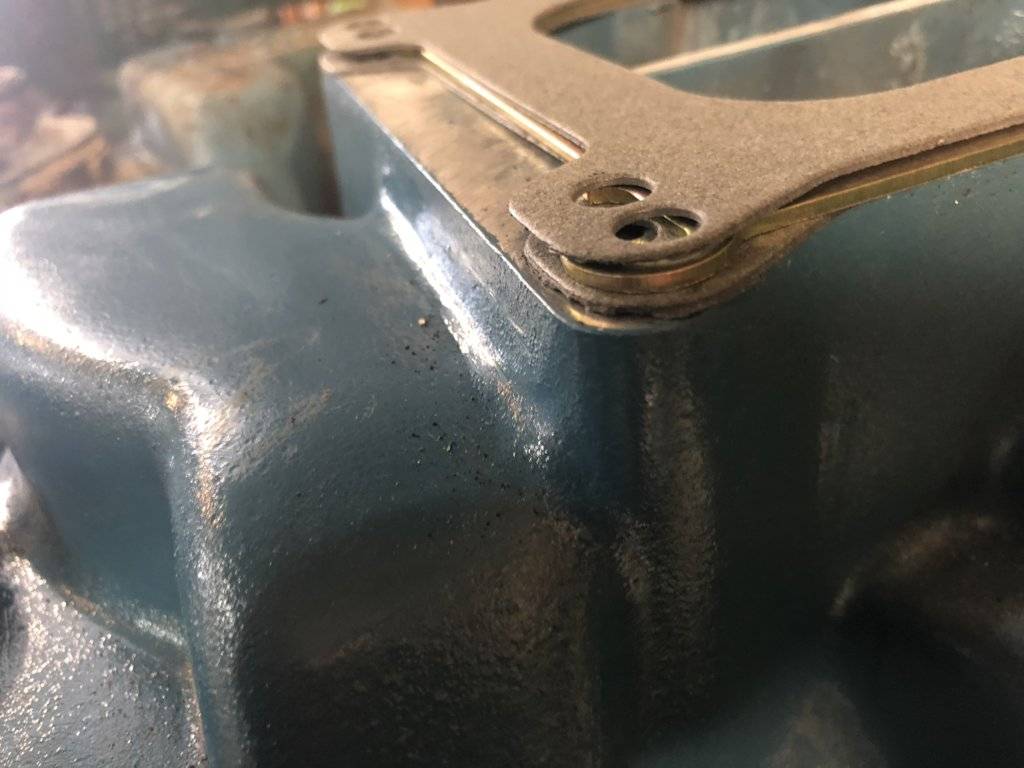

    Square carb to spread “universal intake” helper.




    • Like Like x 1
    • Thanks! Thanks! x 1
  10. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA
    Thank you, sir. In my short time on this forum I’ve grown to appreciate your knowledge, experience,and patience.

    • Like Like x 1
  11. thrashingcows

    thrashingcows Senior Member

    Messages:
    2,442
    Likes Received:
    890
    Joined:
    May 15, 2012
    Location:
    British Columbia
    Nice custom work there....that will get you where you need to be on the swap. ;)

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  12. 413

    413 Member

    Messages:
    184
    Likes Received:
    65
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    Good photos and step by step, thanks for doing this post!

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  13. CBODY67

    CBODY67 Senior Member

    Messages:
    3,435
    Likes Received:
    734
    Joined:
    Mar 27, 2011
    Thanks for the pictures and graphic instructions. Any particular reason you selected the manifold you did? Just curious. It appears to be a "high rise" rather than OEM replacement. The manifolds which have the thermostat housing as the one you have is for the RV-2 OEM compressor as the later Denso compressors have the mounting flange rotated a bit for compressor mount clearance. Or have the dual locations as the Edelbrock Performer LA intakes do.

    Thanks,
    CBODY67

  14. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    525
    Likes Received:
    237
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL

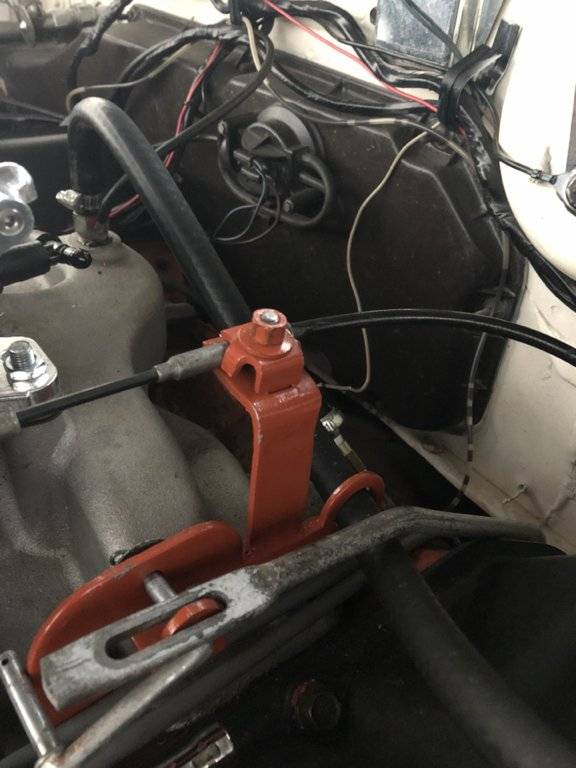

    Similar situation regarding my Performer 440 intake. The carb flange height is about 1 3/4 inch higher than OEM, which necessitated raising the throttle cable mount the same distance. Otherwise, the cable and carb linkage clashed and didn't operate in "harmony".

    Kickdown actuation was generally unaffected, but must be carefully studied for correct movement and adjusted accordingly.

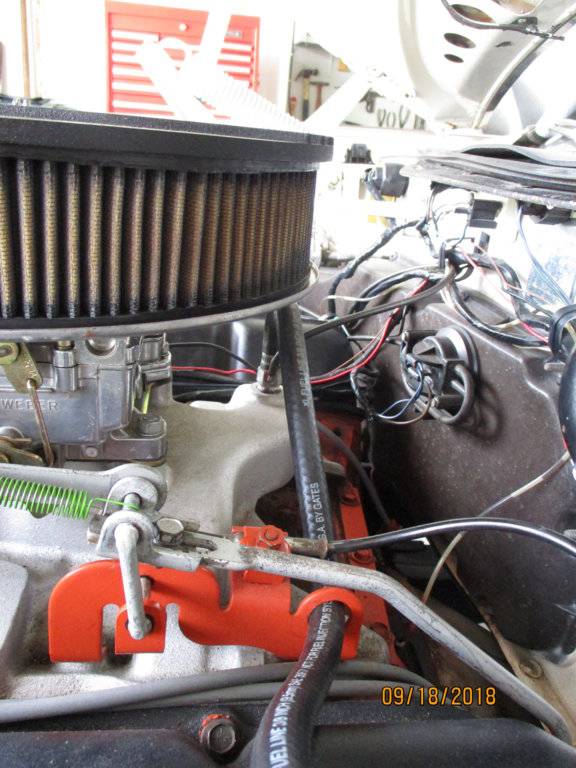

    OEM bracket height:

    Raised, welded bracket height for Eddy 440 Performer intake:

    • Thanks! Thanks! x 1
  15. Triple Pickle

    Triple Pickle Well-Known Member FCBO Gold Member

    Messages:
    771
    Likes Received:
    917
    Joined:
    Jan 29, 2019
    Location:
    USA
    I already had this intake on a parts vehicle. I wouldn’t call it “high rise” at only 1.25” over a stock 2bbl. I consider a high rise to be a single plane that is 3 or more inches over stock.
    I reckon an OEM replacement wouldn’t require the butchery shown here.
