3 serial numbers on 440 block?

Engine, Transmission & Driveline

  1. slippery

    slippery New Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    Feb 12, 2020
    Location:
    british colombia

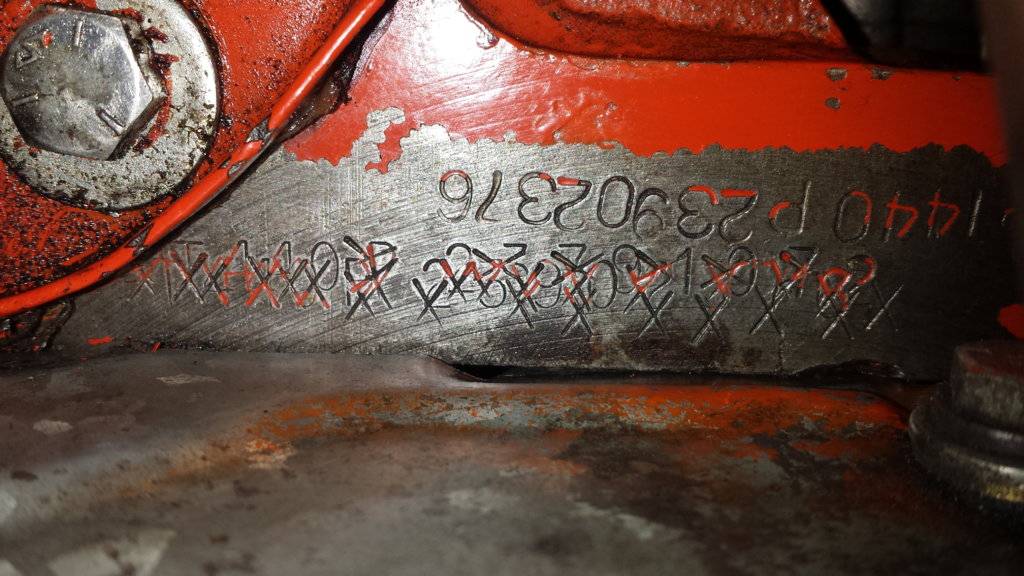

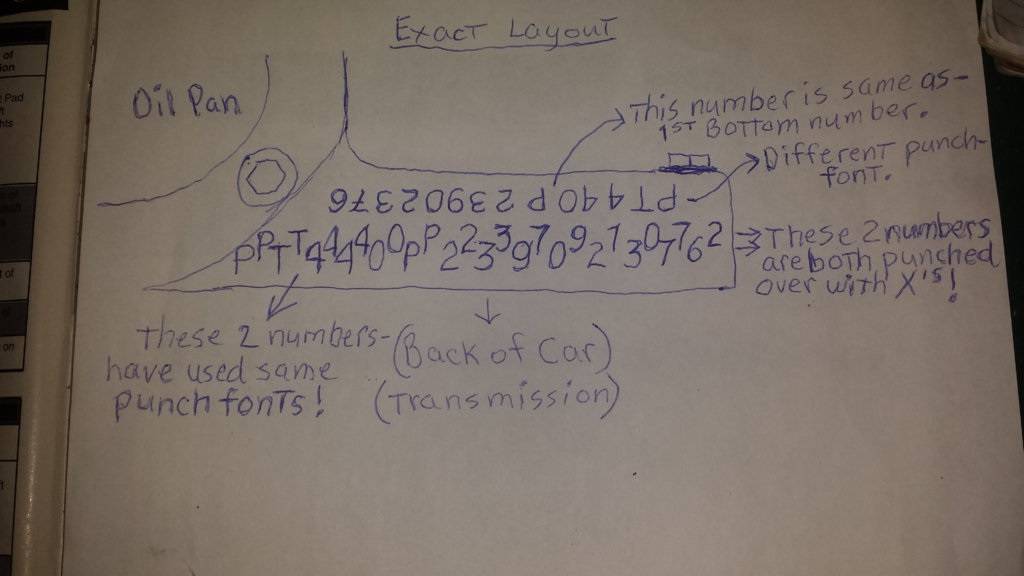

    Hi all . im new here. And i'd like any advice on this? Im looking at buying a 68 440 block . But it has a bit of a mess on id pad at the starter opening. 1 picture is my drawing of what cant be well read on actual block. 2 numbers are the same. The one is X'd out. the other is not X'd out but in different font style of punch. These 2 same numbers are (2390) one day before the date that is stamped on the top engine id pad , next to distributor D 440 (1968)

    2 13 (february 13)

    The second X'd out number is february 1st
    2379.

    I got dates from maxwedge.com converter.

    I have a few theories. Lol. Stupid criminal.?

    An apprentice at factory screwed up 1st number and tried to " squeeze" in the correct number afterwards? Cause it seems the same punch size and font? Or,

    Later one guy decided to make it very clear which of the 2 originals was correct.?

    What do you guys think? What could have happened here? Would any of you buy a block like this?



    • Disagree Disagree x 1
  2. detmatt

    detmatt Old Man with a Hat FCBO Gold Member

    Messages:
    24,601
    Likes Received:
    10712
    Joined:
    Nov 14, 2010
    More importantly, what’s the overall condition of it? Standard bore? What’s been done to it in the past? Rotate freely with a breaker bar?

    • Agree Agree x 1
  3. 69monaco

    69monaco Senior Member

    Messages:
    2,858
    Likes Received:
    2420
    Joined:
    Feb 1, 2014
    Location:
    (NL)

    • Thanks! Thanks! x 2
  4. commando1

    commando1 Old Man With a Hat on the Porch FCBO Gold Member

    Messages:
    33,884
    Likes Received:
    18826
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    Weird.

    • Like Like x 1
    • Agree Agree x 1
  5. Samplingman

    Samplingman Senior Member

    Messages:
    4,621
    Likes Received:
    2562
    Joined:
    Apr 18, 2012
    Location:
    South Jersey
    I think VINs didn’t start appearing on blocks until ‘69. It looks like some attempt was made to stamp the VIN. But as @detmatt implies, the condition is more important as a block that you will use in an apparently non-numbers matching car. My ‘70 vert project has a freshly rebuilt ‘69 motor, seems a lot of C’s are restored that way.

    • Like Like x 1
    • Agree Agree x 1
  6. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    3,309
    Likes Received:
    3713
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    I would be more concerned about overall condition of the motor to hell with the numbers.
    But If you want to play the gumbers natching game;

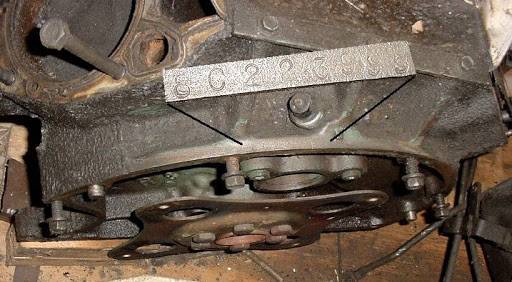

    A February build would have had a VON stamped on the back of the motor right below the oil pressure sender or the rim of the bell housing.That will tell you what car it came out of.
    Eai6bWXeqyZx1JF03aBC7lf-Q3Wv6p8qZ8Dl9Z9ZP2WzVSF-i1B2fRMG5Fzsx7vfBct0pYfdGamy4Gtgwxr5jrJsjrDDgdvF.jpg

    Last edited: Feb 12, 2020
  7. BIGBARNEYCARS

    BIGBARNEYCARS Senior Member FCBO Gold Member

    Messages:
    3,831
    Likes Received:
    2532
    Joined:
    Dec 10, 2012
    Location:
    SHADOW OF MOTHER'S PROVING GROUNDZ
    How does all this Punching and Stamping go together with the casting date on the right side if the block? Who really cares 'cept G.G. and only he enjoys Peein' into the wind. Ah '69 block will get you a Thick Wall and a Forged Crank. What else you need to know? If it 's not a Daytona what difference does it make? Just sayin', Jer

    • Like Like x 2
    • Agree Agree x 1
  8. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    3,309
    Likes Received:
    3713
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    Nothing,actually.
    Being mass produced,the unwritten rule of thumb is from casting date to assembly and then put into a vehicle is 3 months.
    Engine plants may or may not be in the same building or town as the assembly plant,so to speak.
    BUT
    It has been seen before where short blocks sat for over a year before assembly and at last minute then given a VON (vehicle order number) or VIN
    Also seen engines for example a 72 340 Demon # matching but has a 71 cast date block,71 crank but has '72 lo-compression pistons.
    The assembled date stampings and VIN concurs with the build date of the car.
    Not uncommon for them to use up leftover parts.
    Ditto late build cars have newer parts for next model year.
    My buddy has a late build 74 Charger..So late in fact it has a 75 gas tank.

    In this hobby never say never unless you are Galen Govier.

    Last edited: Feb 12, 2020
    • Like Like x 1
    • Thanks! Thanks! x 1
    • Agree Agree x 1
  9. kyle340

    kyle340 Active Member

    Messages:
    328
    Likes Received:
    86
    Joined:
    May 24, 2018
    Location:
    shepherdsville kentucky
    I agree with cbarge, these were mass produced throw away cars so anything is possible when it comes to these cars and parts .I had a 69 340 engine out of a dart gts, had the full Vin on the pad, but on the front of the block where the engine size is stamped it had 318 stamped into it, I guess someone caught it cause 340 was stamped over it.

  10. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,776
    Likes Received:
    1795
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    www.moparts.org has a tech archive that explains mopar engine serial numbers, starting with '68 production:
    Sample: PT 440 2865 0001, next to starter opening.
    PT is the code for the Trenton engine plant, 2865 is the Julian date basted on the 10,000 day calendar, 0001 is the first engine produced on that day. None of these numbers directly relate to the type car the engine was installed in.

    Except as noted in the previous post, most of the engines that have partial VIN numbers have them located on the pan rail on the opposite side of the engine, example VIN: PH23TOD100001,
    P=Plymouth
    H=Hard Top
    2= 2dr
    3= Price Class
    T= 440, 350HP
    0= Year of Production, 1970
    D= Production Plant (Belvidere)
    100001= Sequence number starting at 100k.

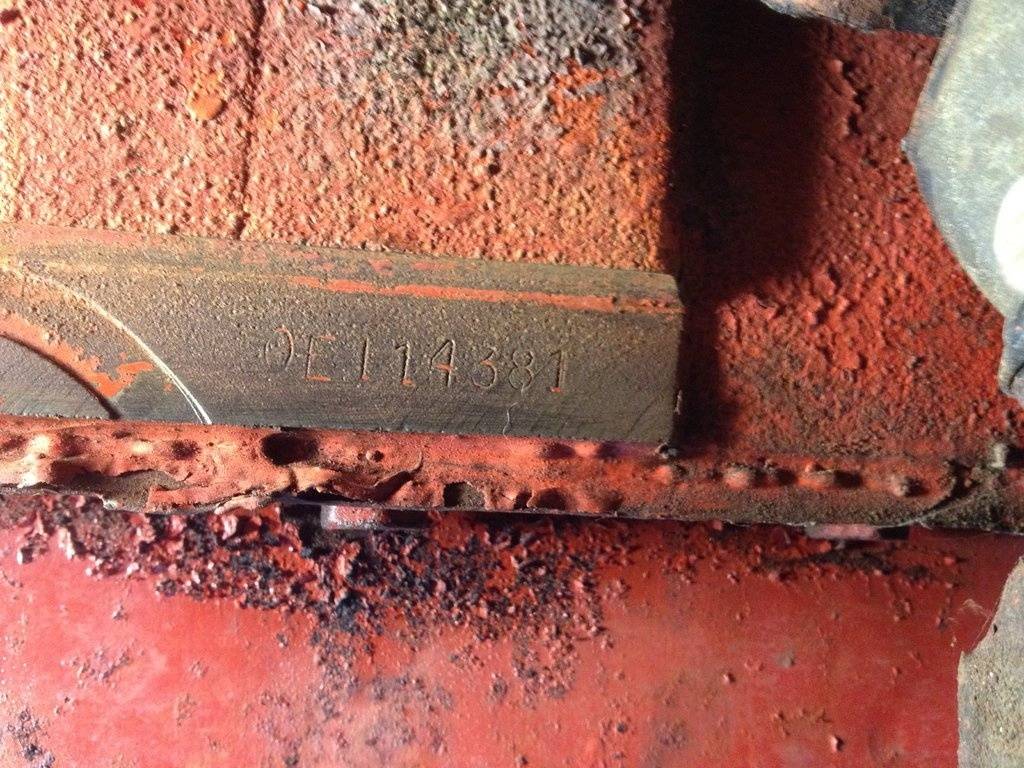

    The last 8 digits will normally appear on the pan rail 0D100001. The last 8 digits should match the last 8 digits of the VIN. Sample attached.
    Warranty engines are known to have the full VIN stamped on the block by the dealer, but policy varied from dealer to dealer. As far as the serial number on your '68 engine is concerned, I have never seen one stamped and re-stamped like that. Check the casting date for the engine to be sure it actually is a '68 engine, check the assembly date on the machined pad opposite the distributor. Also check the casting number to be sure the engine is a 440, not someone's fake. I am suspicious of this engine.

    Dave

    VIN Engine.JPG

    • Like Like x 1
  11. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    12,066
    Likes Received:
    5058
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    69 engine will have complete VIN.

    I learned that on Graveyard cars!

    My only 69 engine has whole VIN.

  12. 69CoronetRT

    69CoronetRT Senior Member

    Messages:
    1,845
    Likes Received:
    1107
    Joined:
    Feb 3, 2013
    I’d say no big deal. Someone could have forgotten to reset the stamping machine. Interesting but meaningless.

  13. 69CoronetRT

    69CoronetRT Senior Member

    Messages:
    1,845
    Likes Received:
    1107
    Joined:
    Feb 3, 2013
    VINs can be found on 68s. I have one example of a 8G103 VIN meaning they started at the beginning of the year. Not all plants stamped the VINs all year. Variations exist.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  14. 69CoronetRT

    69CoronetRT Senior Member

    Messages:
    1,845
    Likes Received:
    1107
    Joined:
    Feb 3, 2013
    that’s a partial VIN , not the VON.

    • Like Like x 1
    • Agree Agree x 1
  15. 69CoronetRT

    69CoronetRT Senior Member

    Messages:
    1,845
    Likes Received:
    1107
    Joined:
    Feb 3, 2013
    Blocks don’t get stamped with VONs....

    Your example would be totally correct. One should expect to see a 71 block and crank with low compression pistons in a 72 model car if the car was built from August to January ish......

    Last edited: Feb 12, 2020
    • Like Like x 1
    • Agree Agree x 1
  16. 69CoronetRT

    69CoronetRT Senior Member

    Messages:
    1,845
    Likes Received:
    1107
    Joined:
    Feb 3, 2013
    Early cars will. You start to see plants going from all 13 characters in the VIN to 8 in about mid January. That’s one way to tell if a block has been restamped. Dummies put the full VIN on a late built car..

    • Thanks! Thanks! x 2
    • Like Like x 1
  17. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    12,066
    Likes Received:
    5058
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Now I learned more, Thanks.

    • Thanks! Thanks! x 1
  18. The Goose

    The Goose Senior Member

    Messages:
    1,832
    Likes Received:
    2552
    Joined:
    Nov 21, 2016
    Location:
    Santa Clarita ca
    Non issue if it’s a good block and internals I just see some grinding in your future.

    PS after it’s blank leave it blank.

    • Like Like x 1
  19. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    3,309
    Likes Received:
    3713
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?

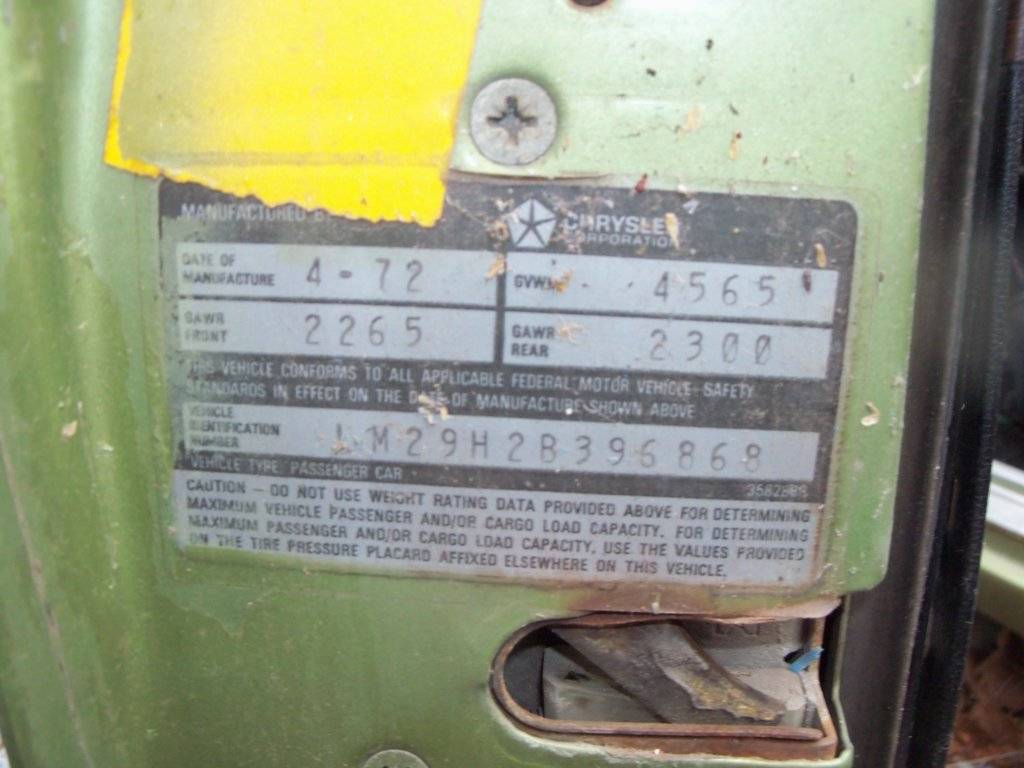

    My example is real. 1972 Demon 340. April 1972 build date. Engine is April 1971..

    340Demon 011.JPG
    4779499_6804386394924908544_o.jpg?_nc_cat=101&_nc_ohc=4T4DvLL61zUAX-VAQI_&_nc_ht=scontent-yyz1-1.jpg

    • Like Like x 1
  20. slippery

    slippery New Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    Feb 12, 2020
    Location:
    british colombia
    Yes from my searching, in 69 it was fully implemented but in early 68 there are few and later 68 there were sporadic and in different locations. But that is all about v.i.n. numbers being stamped on engines. This engine has no v.i.n. stamped anywhere.
    What is shown in picture here, are the engine serial numbers. Not v.i.n. numbers Which i assume go further back than 1968 even. Info from these numbers are plant it was made. then cubic inches.then one letter for low or high compression or premium fuel. Then next 4 numbers are 10,000 day julian calendar, that show date of engine assembly. The last 4 numbers are the sequence number. Or which number of your engine was made that day.
    On 68 blocks ive seen, there isnt even a raised i.d. pad on passenger side center, just above oil pan rail. Which seems to be where most 69 , 70,71 etc. Are located on a raised pad. One person said his 68 had it on back top next to oil pressure sending unit along the flange edge that meets tranny bell housing.
