383 Exhaust Manifold Question

Engine, Transmission & Driveline

  1. BLUPORT

    BLUPORT Carpe Diem Cras FCBO Gold Member

    Messages:
    1,359
    Likes Received:
    1039
    Joined:
    Dec 10, 2018
    Location:
    Eastern NC
    On the passenger side manifold, it looks like there are 1 or 2 nipples on the manifold. I'm assuming this is for some type of pre-heating equipment that is no longer on my car? Are these actually holes going into the manifold? I'm asking because I hear a muffled fart noise that sounds a lot like an exhaust leak over there, and every time I drive the car, I smell like exhaust- even more so if I have the fresh air vents open.

    So, if these ARE open ports into the manifold, can I just have them welded closed while my exhaust guy checks over for other leaks?

    68 Newport 383/727, for those who don't know already.

    Last edited: Apr 8, 2019
  2. 413

    413 Active Member

    Messages:
    288
    Likes Received:
    97
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    Help us by telling us the year of your car or engine, and better yet the casting number from the manifold. Looks like a 68 but let’s not guess.

    Last edited: Apr 8, 2019
  3. live4theking

    live4theking Old Man with a Hat

    Messages:
    7,990
    Likes Received:
    1747
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    How about a picture?

    • Agree Agree x 3
  4. BLUPORT

    BLUPORT Carpe Diem Cras FCBO Gold Member

    Messages:
    1,359
    Likes Received:
    1039
    Joined:
    Dec 10, 2018
    Location:
    Eastern NC
    Updated my OP. 68 is correct. I don't have the casting number on hand.

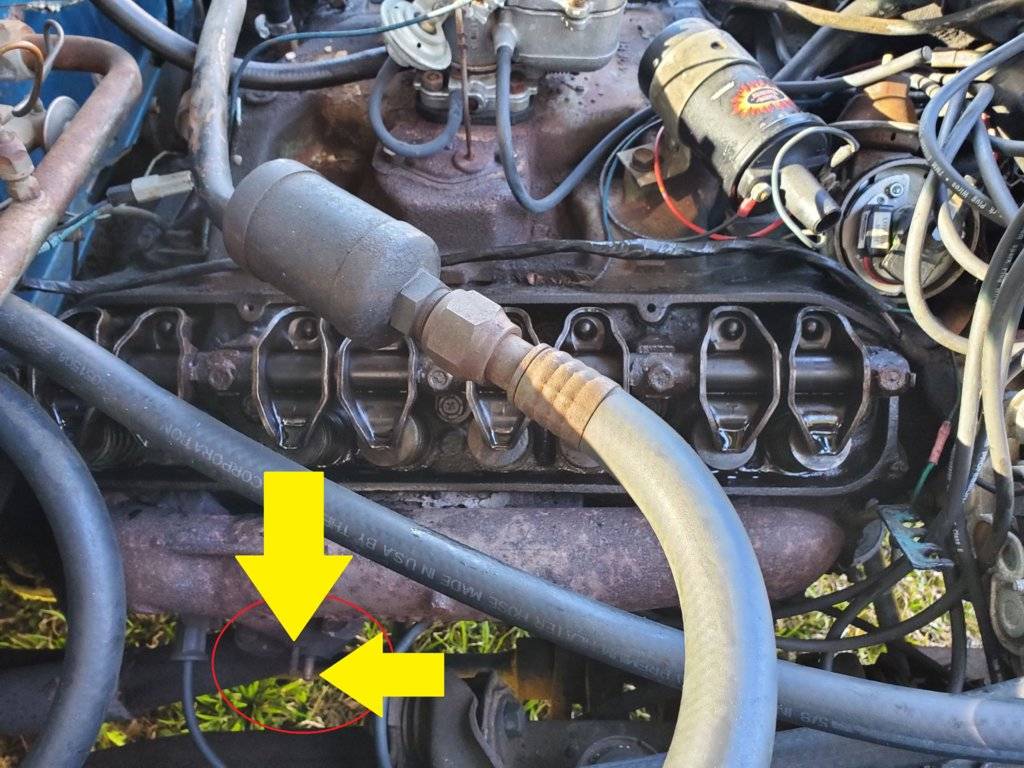

    As requested. Circled in red, with yellow arrows pointing to the two nipples... Everyone always wants pictures when I mention nipples...

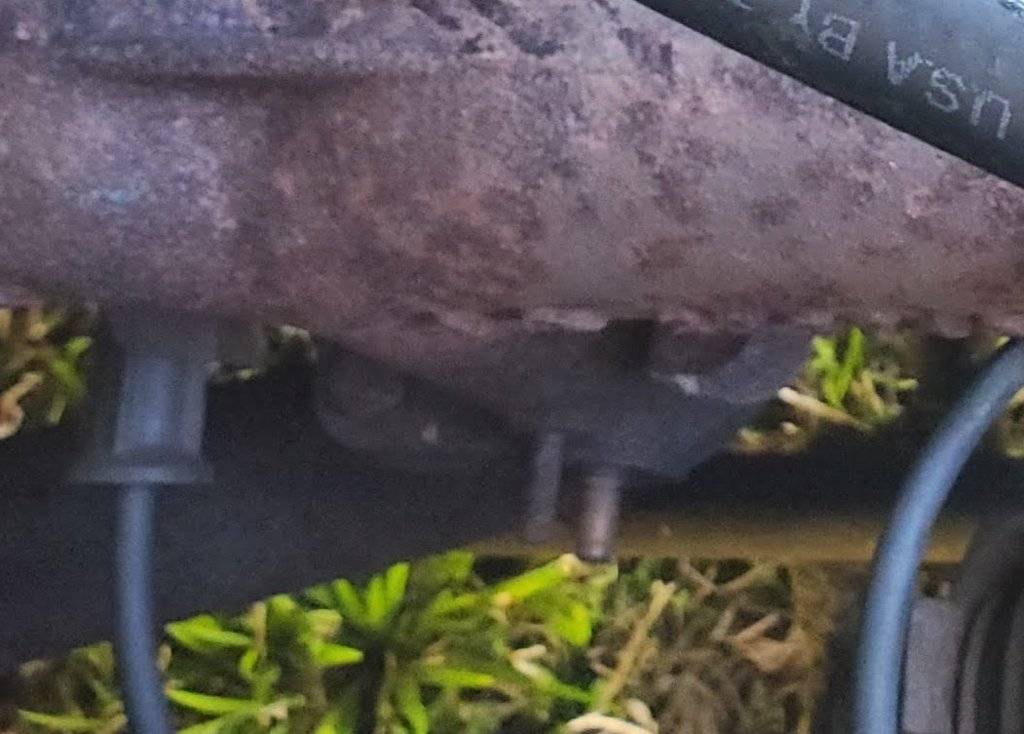

    Zoomed


    • Like Like x 1
  5. 413

    413 Active Member

    Messages:
    288
    Likes Received:
    97
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    One is the stop for the travel. One is the pivot shaft for the heat riser. It can leak there, it is a shaft and bushings with no seals.

    Move it up and down and see if it’s loose, or rattling. Carefully feel around it with a cold engine running to see if you can feel exhaust leaking out. Don’t burn your hand exhaust system heats up real fast. Don’t do this on a hot engine.


    • Agree Agree x 3
  6. JDX

    JDX New Member

    Messages:
    39
    Likes Received:
    2
    Joined:
    Mar 13, 2019
    Location:
    wilton wi
    I believe that is part of the heat riser system, its missing the cast wheel and spring. It closes a flapper valve to direct heat up into the intake manifold for faster warm up.

    • Agree Agree x 1
  7. live4theking

    live4theking Old Man with a Hat

    Messages:
    7,990
    Likes Received:
    1747
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    Agreed, is the mount and stop for the heat riser.

  8. 413

    413 Active Member

    Messages:
    288
    Likes Received:
    97
    Joined:
    Jan 28, 2019
    Location:
    NW USA

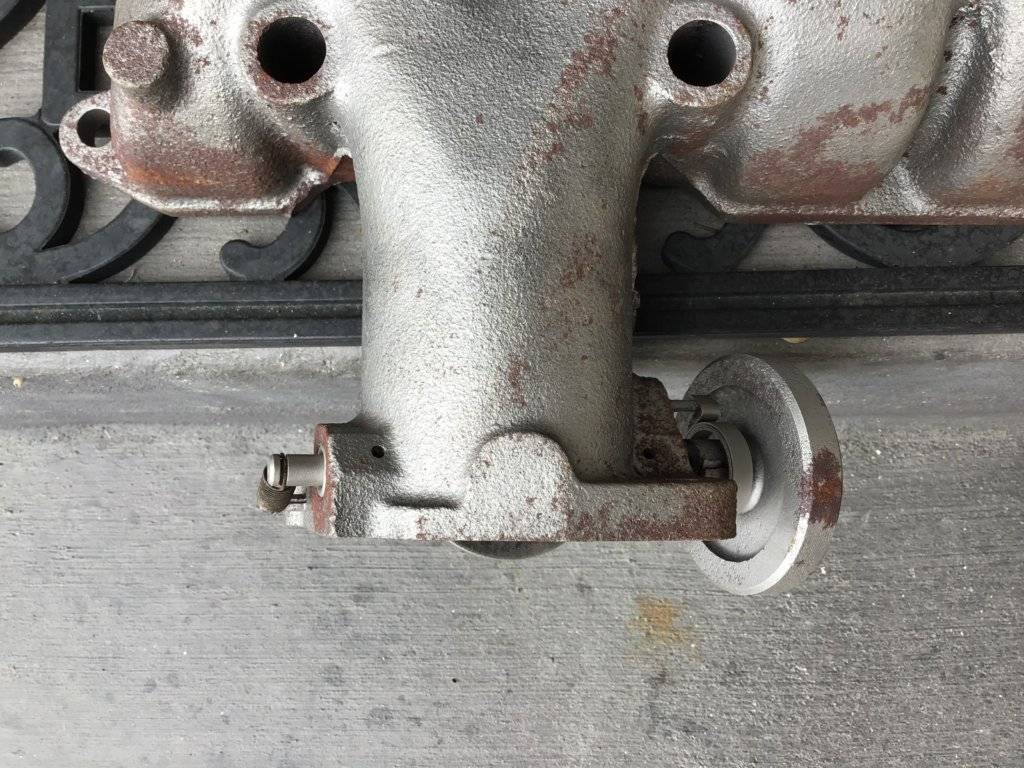

    JDX, 1970 and newer had a cast “wheel”. The shaft went front to back in the manifold. Top photo

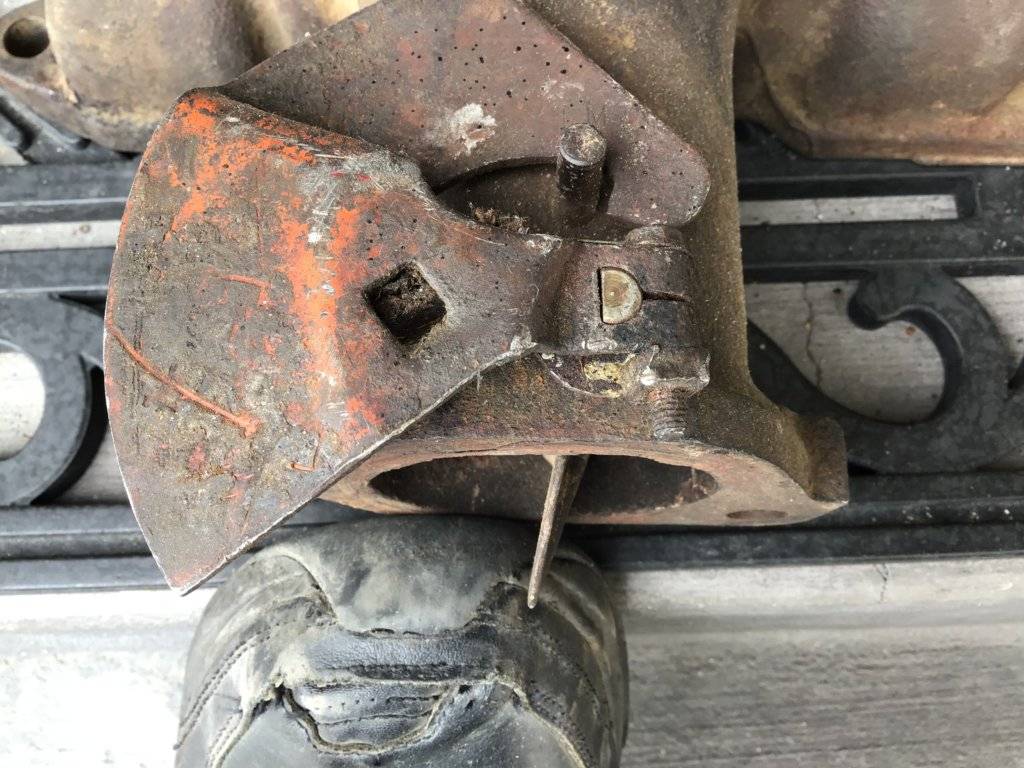

    1968 had a stamped sheet metal piece. Blue ports is missing, but that doesn’t make it leak. 1969 and older has the shaft going side to side like this picture. Bottom photo

    If a car is missing the cast “wheel” or the stamped piece missing it won’t make the exhaust leak.



    Last edited: Apr 8, 2019
  9. BLUPORT

    BLUPORT Carpe Diem Cras FCBO Gold Member

    Messages:
    1,359
    Likes Received:
    1039
    Joined:
    Dec 10, 2018
    Location:
    Eastern NC
    Then I must have a leak elsewhere, and it's gotta go!

  10. MarPar

    MarPar Meat Man with a Hat FCBO Gold Member

    Messages:
    5,269
    Likes Received:
    5314
    Joined:
    Apr 22, 2015
    Location:
    Still in Dry Dock

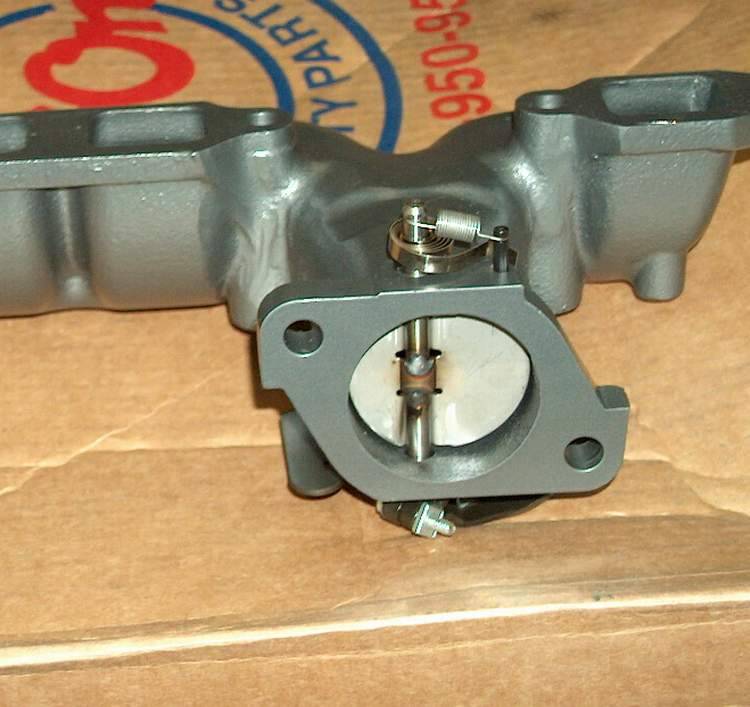

    For reference this is what it should look like...

    Exh. manifold heat riser.JPG

    • Thanks! Thanks! x 4
    • Like Like x 3
  11. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    2,362
    Likes Received:
    667
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
  12. 69_topless

    69_topless Member

    Messages:
    52
    Likes Received:
    66
    Joined:
    Feb 4, 2016
    Location:
    Czech Republic, Europe

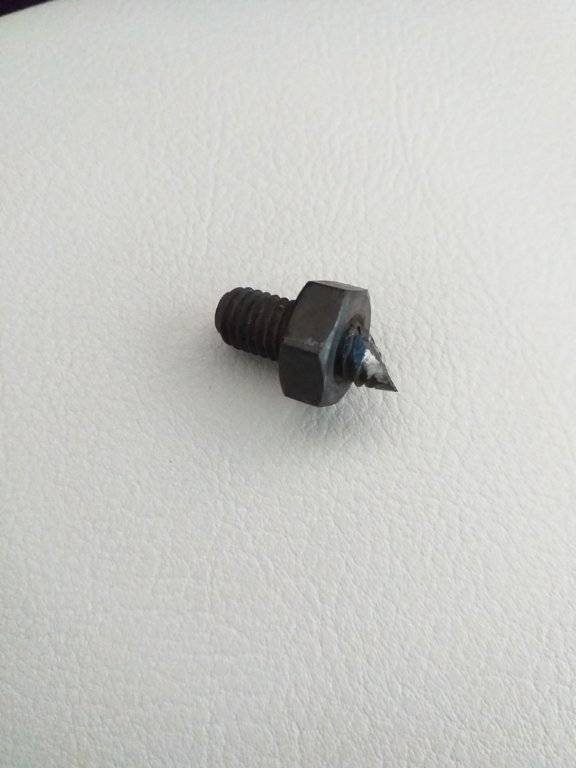

    Apologize to use your thread, but since its about the 383 exhaust manifolds, I will jump in. I snap in half one bolt on the passenger side, all the way on the left side next to oil dipstick holder. There is not much of space, so I will probably end up with the fender removal to gain some access to get the rest of the stud out.

    But first, I need to buy a new sets of the studs and just want to make sure, I choose the correct one. I have a standard exhaust manifold, the drivers side is PN 2463107 and the passenger side is PN 2532464.

    Are these the correct studs? Or can you recommend any better package?
    12 New Exhaust Manifold Studs BIG Block Mopar 361 383 400 440 3/8" Set Dodge BB | eBay

    20190415_194526 (2).jpg

  13. DJAstral

    DJAstral Member

    Messages:
    87
    Likes Received:
    28
    Joined:
    Jun 25, 2018
    Location:
    Scotland
    Hi there,
    I'm experiencing very similar concerns as you on my '67 Monaco 383 Wagon.
    I ordered these - Chrysler MOPAR V8 Exhaust Manifold Header Bolts 3/8 x 1.1/4 inch Cap Head Kit | eBay
    ... not sure if studs you've found & 3/8" x 1 1/4" hex bolts I've found are interchangeable though....? and if the length is right, also come in shorter 1"? (My passenger side exhaust manifold is blowing badly along the top & wish to replace the gasket, but need the right bolts/studs first)
    Also, my heat riser appears complete & working but leaking gasses out of the shaft holes - Help?

    Any help and advice would be much appreciated as always...

  14. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    2,362
    Likes Received:
    667
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    @DJAstral

    1) Leaking gasses out of the shaft holes is common - there are bushings available (likely from www.dynamicrenovation.com) that take care of that issue. There is a special lubricant that is supposed to be applied periodically to prevent the bushings from wearing out. Not sure where to get that anymore...

    2) While the bolt kit you ordered might work, they're definitely not correct for exhaust manifolds. The manifolds never originally had gaskets under them FYI, and you may be able to get by having someone dress/plane the manifold to remove any high or low spots if there are any. However, good quality gaskets can take care of that issue temporarily too.

    @69_topless - this is the correct kit for your car: Fits 68-74 383 400 440 Exhaust Manifold Fastener Hardware Bolts Nuts Studs | eBay

    @DJAstral - for what it's worth, that kit will do it for your car too, although some of the studs may be longer than you need.... I would re-use anything I could salvage from the originals if there's a difference.

  15. Snotty

    Snotty Senior Member FCBO Gold Member

    Messages:
    3,079
    Likes Received:
    1056
    Joined:
    Aug 18, 2015
    Location:
    Chico, California
    Unless you live in country that gets REALLY cold, you won't need or miss the heat riser if you have it cut off and the holes welded closed. I've done so on my Newport, and the two previous cars I owned. However, I live in a place where I can drive all-year-round, with weather rarely getting below 40*.

  16. bluefury361

    bluefury361 Old Man with a Hat

    Messages:
    11,522
    Likes Received:
    7403
    Joined:
    Mar 9, 2011
    Location:
    Alabama Gulf Coast
    If the valve shaft in the manifold is worn it will leak exhaust like you describe, minor but annoying.

    Also, be carefull "resurfacing" your manifolds. I took a set of HP manifolds to a machine shop for truing up and they removed .080 from the right side manifold. It barely fit back on and I could not access the bottom valve cover bolds with it in place.

    Last edited: Jun 2, 2019
  17. 68Newport512

    68Newport512 New Member

    Messages:
    18
    Likes Received:
    2
    Joined:
    Mar 26, 2019
    Location:
    78251
    I freed my heat riser with penetrate. How do I know if it works properly?
    Sorry to jump on your post.

  18. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    1,592
    Likes Received:
    2252
    Joined:
    May 13, 2015
    Location:
    Fargo, ND

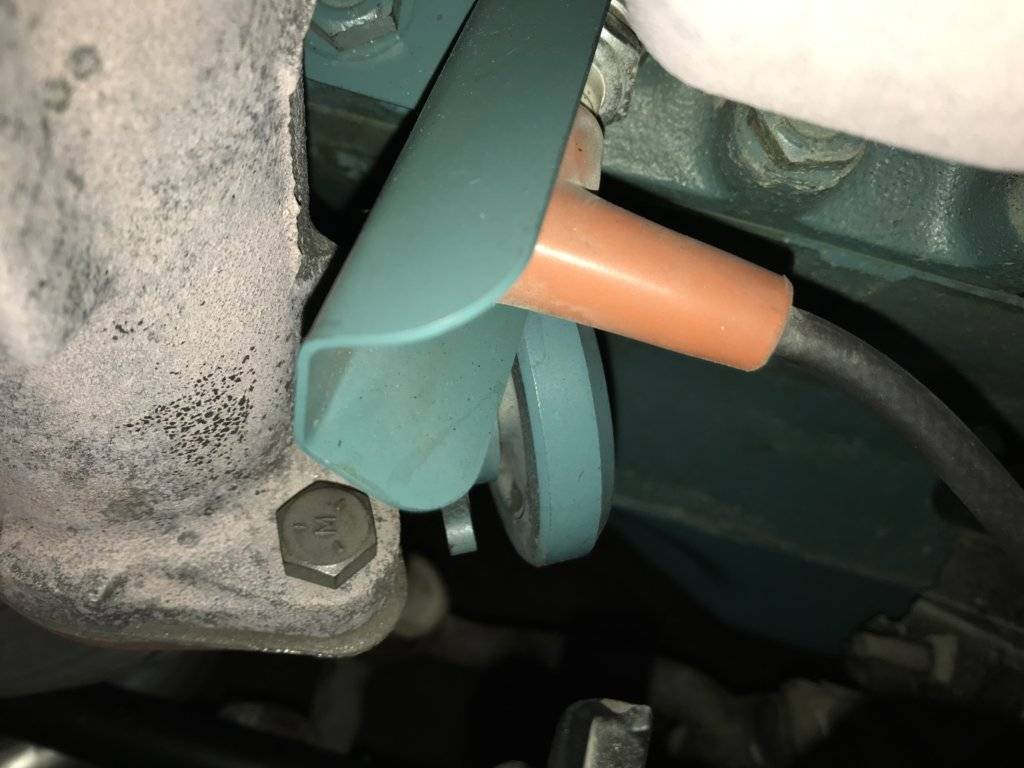

    That’s interesting, my ‘68 Polara 383 2bbl has the cast flapper, I am not sure of when the exhaust manifold would have ever been replaced. To my knowledge the first time the exhaust manifolds came off was in ‘85 when I re built the heads in high school shop class.

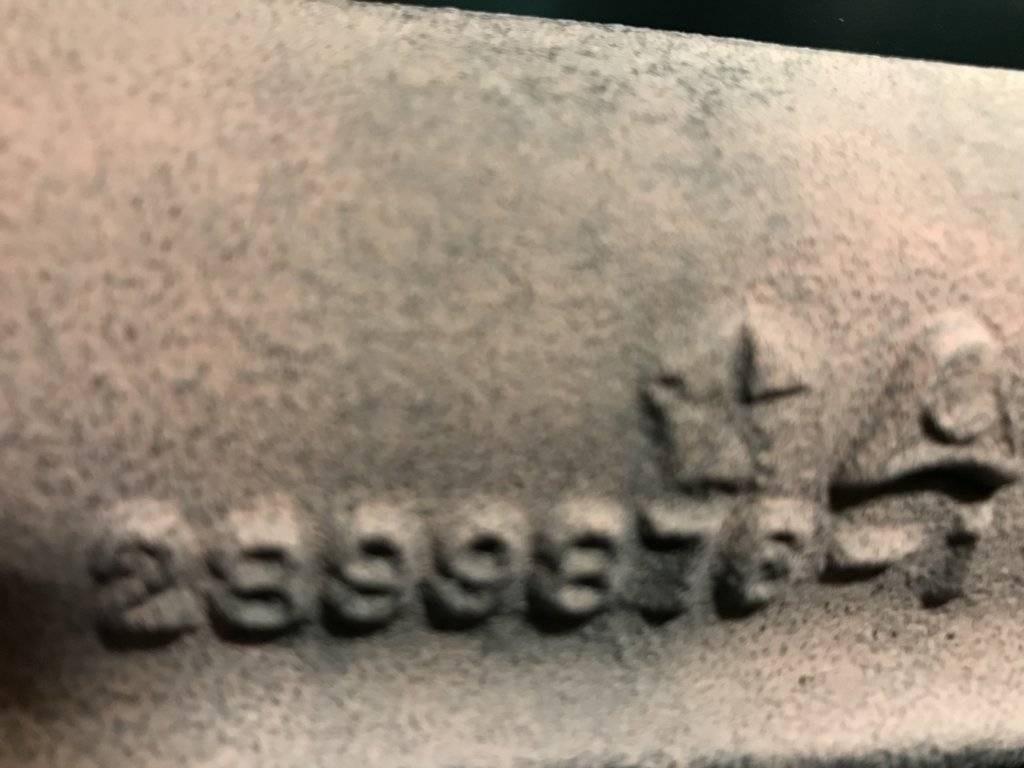

    Cast in number is 2399876-1
    Block is original with the correct date.

  19. 413

    413 Active Member

    Messages:
    288
    Likes Received:
    97
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    2532464 is for 68 383 2 bbl RH.

    2998XXX exhaust manifolds start in 1970. I don’t see your exact number

  20. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    1,592
    Likes Received:
    2252
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    From the TTI website, manifold casting numbers, I misread the 8 as a 3, so mine is 2899876 (somewhere between 65 & 73)
    Is there any list that ties the casting number back to the P/N in the parts book as the casting numbers are not the same as the part numbers.
