4 way flasher info

Electrical & Ignition

  1. rkrochen

    rkrochen Active Member

    Messages:
    411
    Likes Received:
    270
    Joined:
    Jun 29, 2015
    Location:
    Teulon, Manitoba

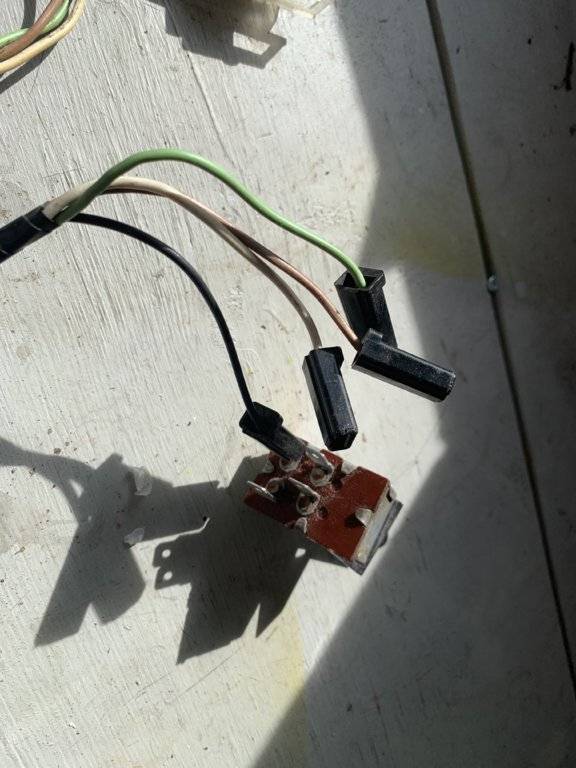

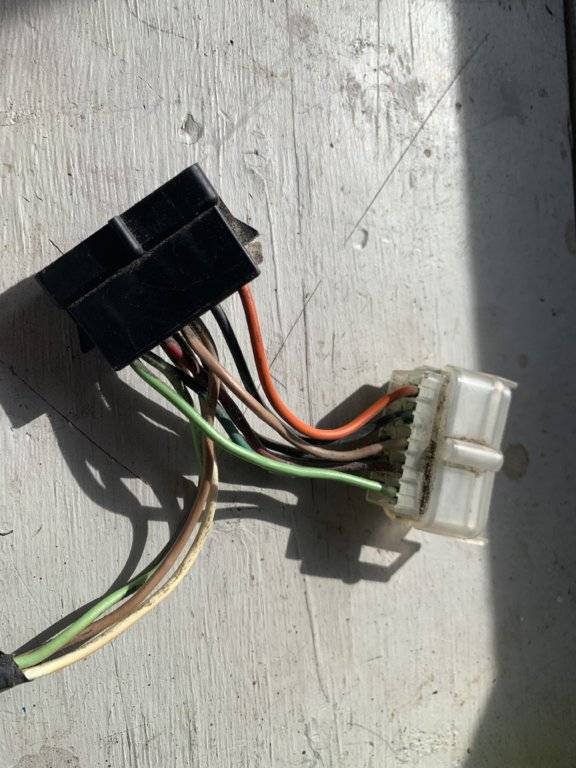

    I need help with this one. My 66 sport fury is equipped with 4 way flashers which appears to be OEM. During disassembly it wasn’t properly documented and as a result I never reinstalled it. It does not show on any schematics in the FSM so I was wondering if someone has something they can share on this. I need to now the wire placement and whether or not it requires a second flasher. The bulk heads just spliced into the existing turn signal switch.
    Thanks.




  2. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    11,531
    Likes Received:
    6553
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    I believe that some states required the 4 way flasher to be installed on cars sold there, but for the most part, it was a dealer installed accessory.

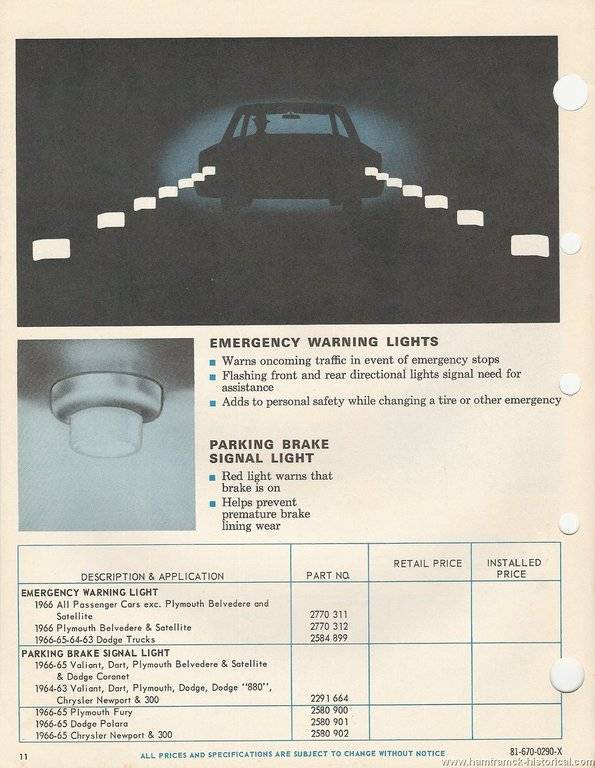

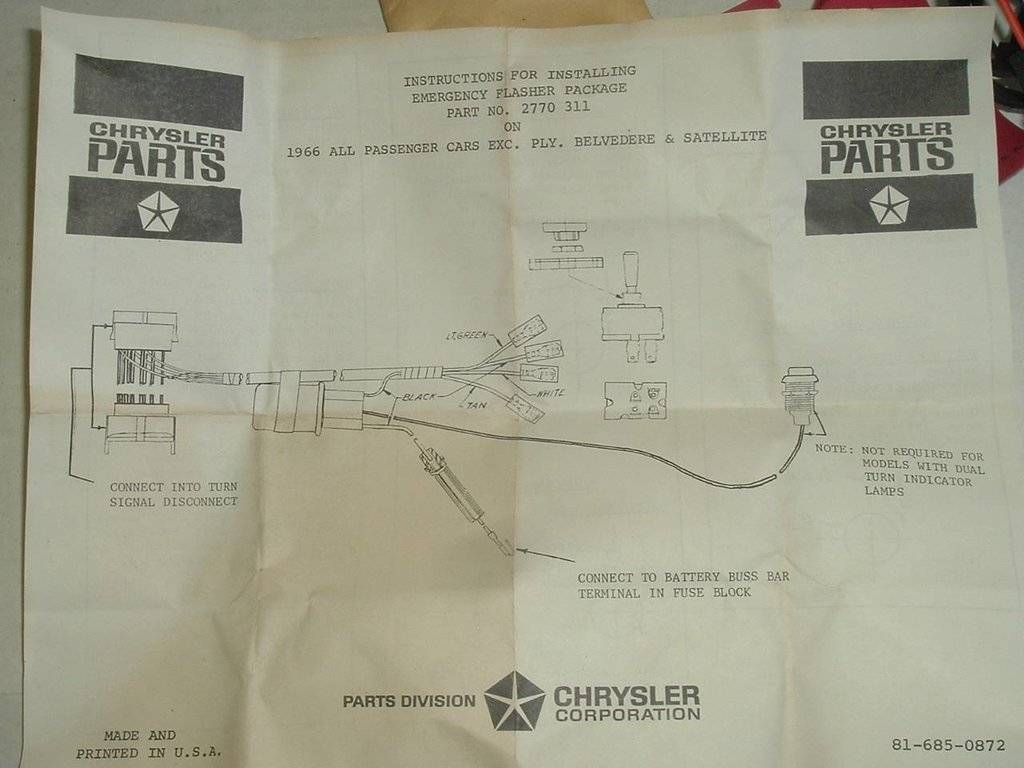

    And here's a copy of the instructions for that kit.



    • Like Like x 1
    • Thanks! Thanks! x 1
  3. rkrochen

    rkrochen Active Member

    Messages:
    411
    Likes Received:
    270
    Joined:
    Jun 29, 2015
    Location:
    Teulon, Manitoba
    That is exactly what I Needed. Was t sure how to tie the 4 way flasher in.
    Very much appreciated.

  4. rkrochen

    rkrochen Active Member

    Messages:
    411
    Likes Received:
    270
    Joined:
    Jun 29, 2015
    Location:
    Teulon, Manitoba

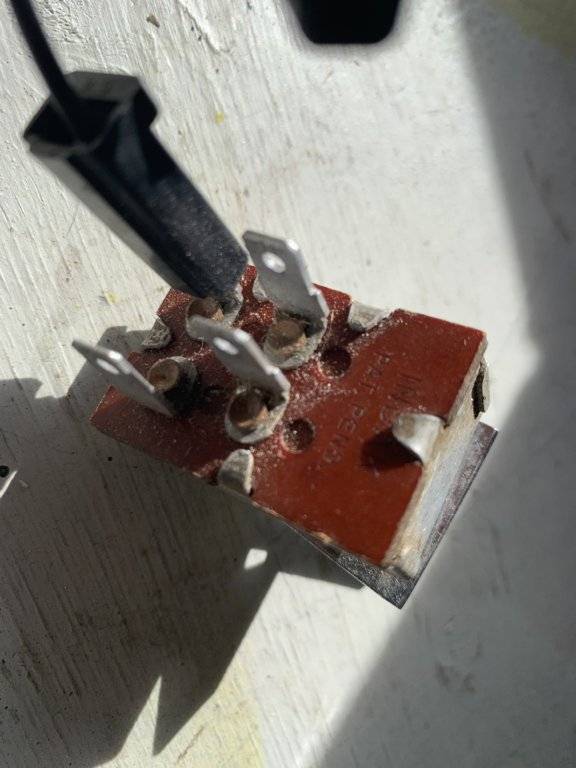

    Wired a flasher into the black wire and that did the trick, all is working now. The wires at the switch can be put on in any manner. In the off position there is no continuity between any of the terminals. In the in position all 4 terminals are interconnected.

    • Agree Agree x 1
