    Looking for input on where to find the copper piece at the bottom of the steering column. Not sure what it’s called and not certain how important it is however, as we are replacing the gear box we noticed it was broken. Any insight is appreciated.

  2. mikedrini

    mikedrini Active Member FCBO Gold Member

    Messages:
    497
    Likes Received:
    260
    Joined:
    Oct 9, 2017
    Location:
    Center Barnstead, NH
    Hi Brent,

    Without seeing it, I am assuming it is the ground contact for the horn. I found that on my 64 recently as well. Here is a post from FABO, but it still pertains to our C bodies (note Post #10):

    horn issue

    I believe it is needed to complete the horn circuit for a stock steering wheel/horn setup.

    • Like Like x 1
    • Agree Agree x 1
  3. Brent Scherzinger

    Brent Scherzinger New Member

    Messages:
    41
    Likes Received:
    4
    Joined:
    Oct 28, 2019
    Location:
    Utah

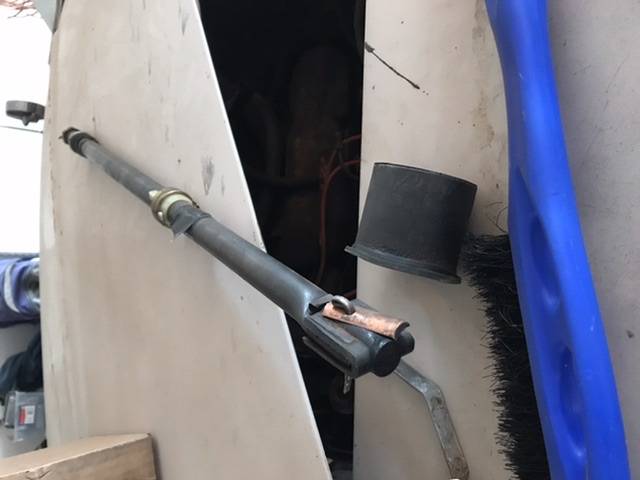

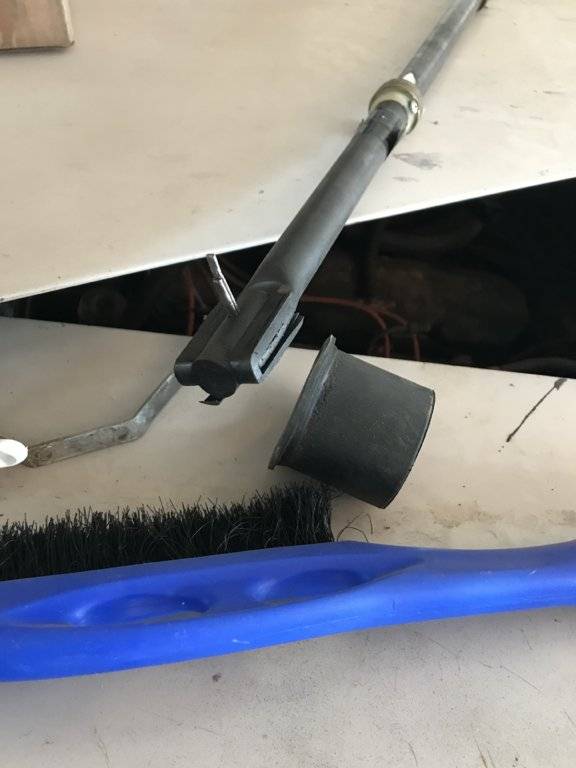

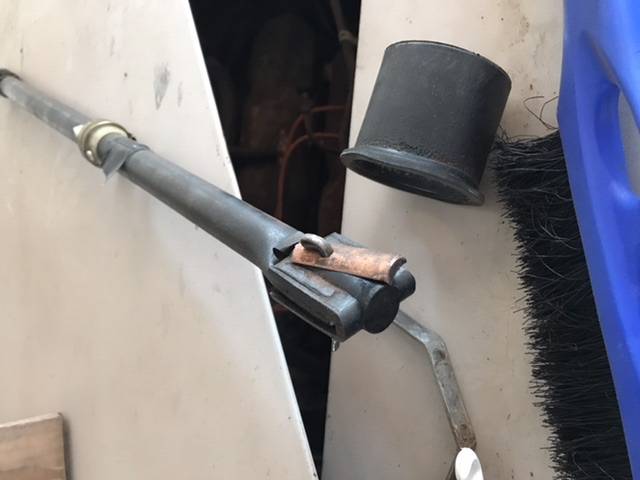

    Thank you your help. I am sending a couple of picture ( which I should have done to start). I think this is different from the horn. Thoughts... 99879389-AE4C-47A3-B74B-3AE6A6484FED.jpeg D8233D9E-49F2-45AE-AF8C-01595740A907.jpeg 71D46809-698B-4845-99DC-D7B7360CCF1A.jpeg

  4. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,419
    Likes Received:
    1067
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    If it's copper, solder the break.

  5. Brent Scherzinger

    Brent Scherzinger New Member

    Messages:
    41
    Likes Received:
    4
    Joined:
    Oct 28, 2019
    Location:
    Utah
    Thank you for your help great advice....unfortunately I don’t have the other part. Maybe I can make one...but is it needed...or do you by chance know what the part is called.

  6. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,419
    Likes Received:
    1067
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    I don't know what it's called or what its function is, and I assumed you had all the bits, sorry. Good luck.

  7. Brent Scherzinger

    Brent Scherzinger New Member

    Messages:
    41
    Likes Received:
    4
    Joined:
    Oct 28, 2019
    Location:
    Utah
    Thank you

  8. 413

    413 Well-Known Member

    Messages:
    738
    Likes Received:
    236
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    It is Absolutely for the horn to function. Nothing else. Make one, nobody will see it as everything is enclosed on these cars.

    • Thanks! Thanks! x 1
  9. Dan Scully

    Dan Scully Active Member

    Messages:
    425
    Likes Received:
    469
    Joined:
    Jan 10, 2014
    Location:
    Apple Valley Ca

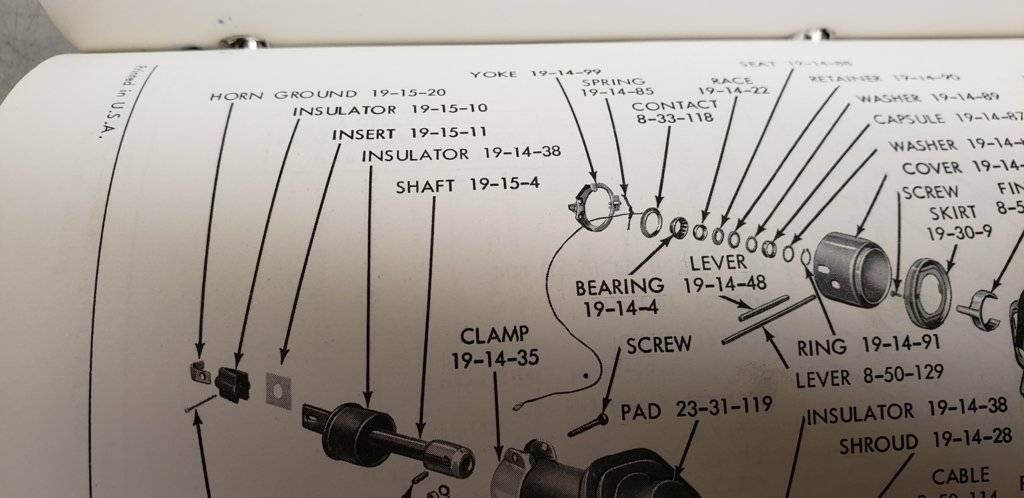

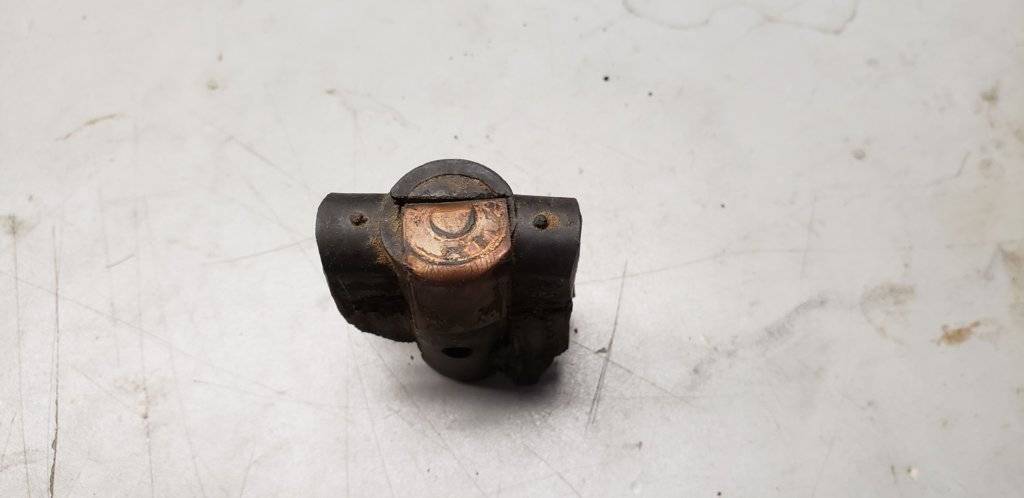

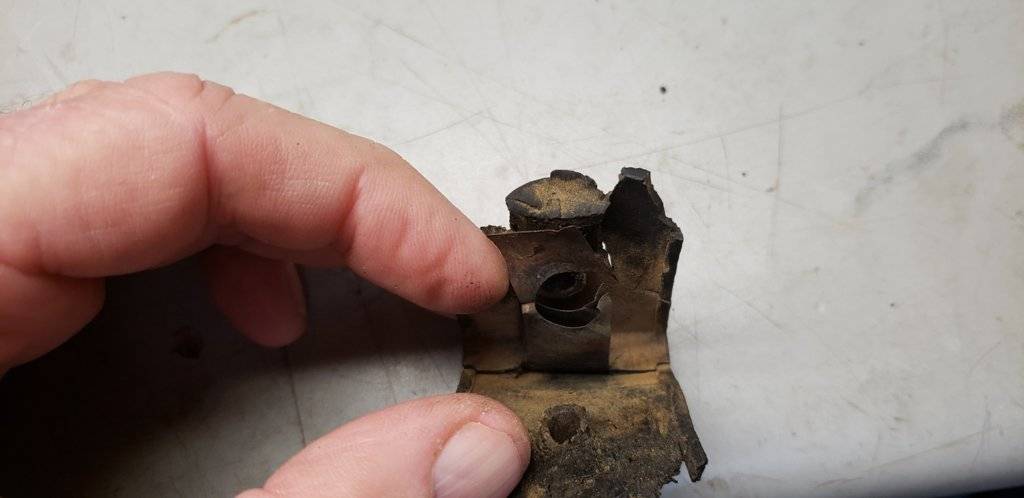

    It is the ground , for the horn to work. PT#2405 594 20200419_081824_resized.jpg 20200419_081628_resized.jpg 20200419_081648_resized (1).jpg

    Last edited: Apr 19, 2020
    • Like Like x 1
  10. Brent Scherzinger

    Brent Scherzinger New Member

    Messages:
    41
    Likes Received:
    4
    Joined:
    Oct 28, 2019
    Location:
    Utah
    Holy cow! That is an awesome diagram and makes sense from all the posts. The copper piece only goes down one side so...soldering the copper piece should work. Thank you all for the help. What an awesome group.

    • Like Like x 1
    • Agree Agree x 1
  11. Dan Scully

    Dan Scully Active Member

    Messages:
    425
    Likes Received:
    469
    Joined:
    Jan 10, 2014
    Location:
    Apple Valley Ca
    It has to go thru the rubber to touch the inside of the shaft, to compete the ground circuit.

    • Agree Agree x 1
