67 headliner bow order?

Interior

  1. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    67 fast top newport...

    All my headliner bows were in my trunk when I bought the car. I'm looking at replacing the headliner next and have no clue how these are supposed to fit. I know they go in the pockets, but some fit tight to the roof...others and inch down...trying to figure out the order they go in and how far from the roof they should lay, and if they are supposed to be straight up and down or curved towards the rear...I want to make my own headliner...or try anyway. There are no markings or colors on the bows to designate order.

    I also would love to know how deep the bow pockets in the headliner should be when making it..not sure how far down the headliner is supposed to sit.

  2. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    The bows should be color coded. The clips that hold them should have fixed points so that you shouldn’t have to worry about depth. I will check and see if I can find pictures of my ‘68 Polara fasttop during disassemble. It should get you close.

    Added more information

    The headliner will hold the bows upright.

    Last edited: Sep 1, 2019
  3. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND

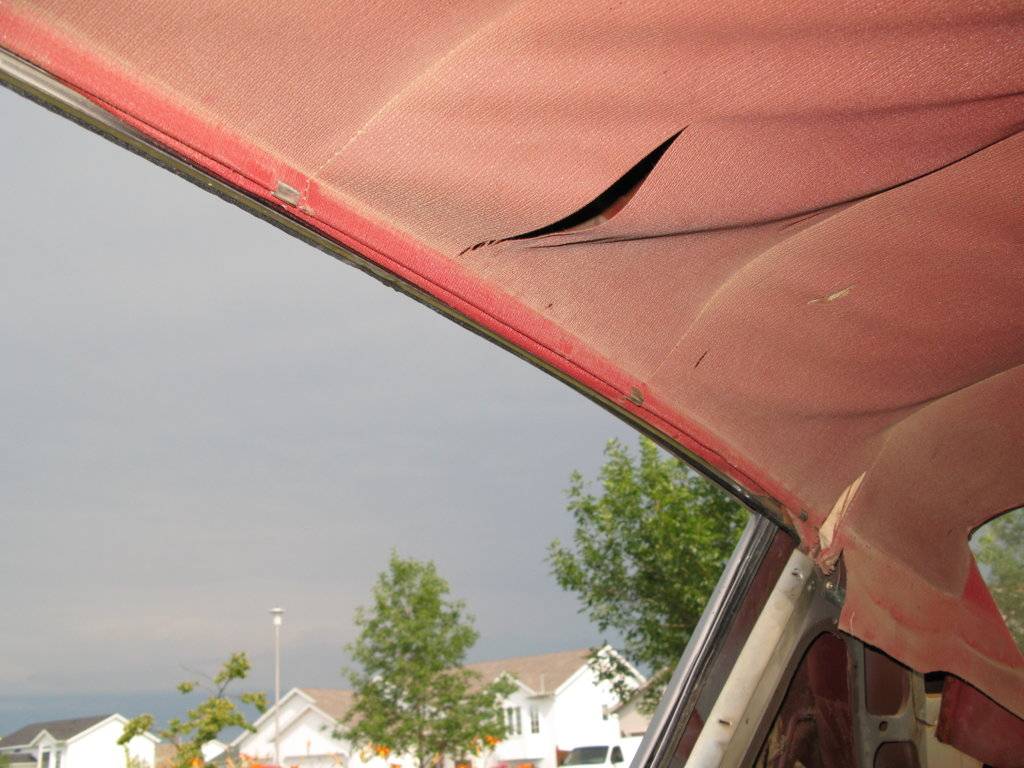

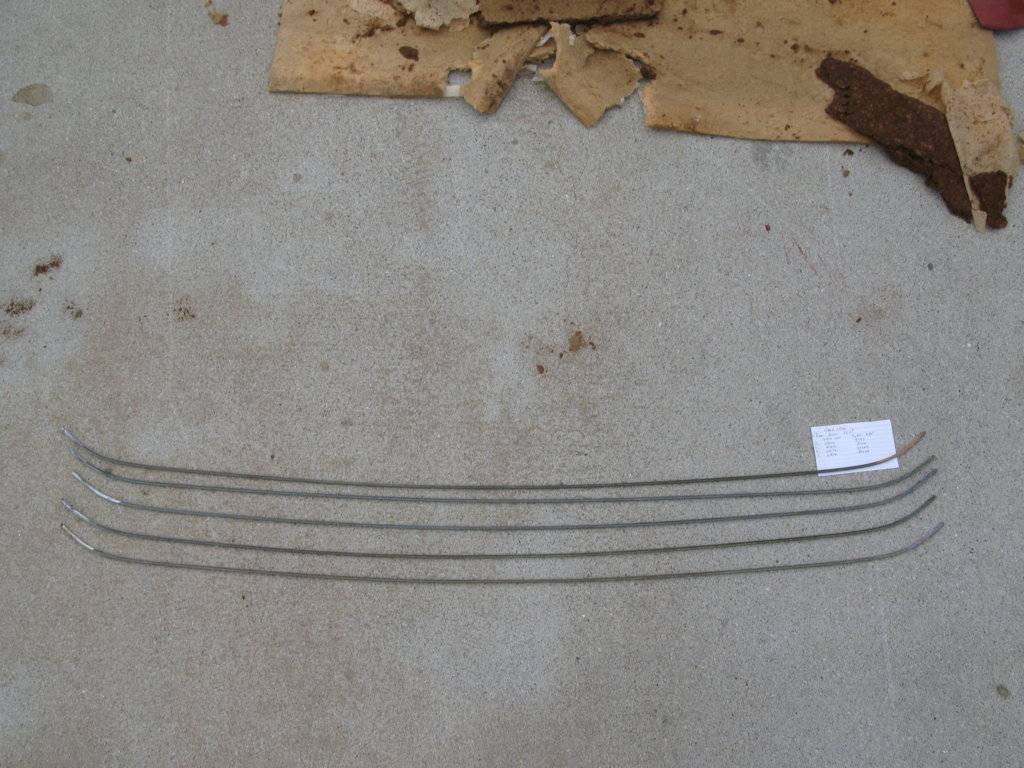

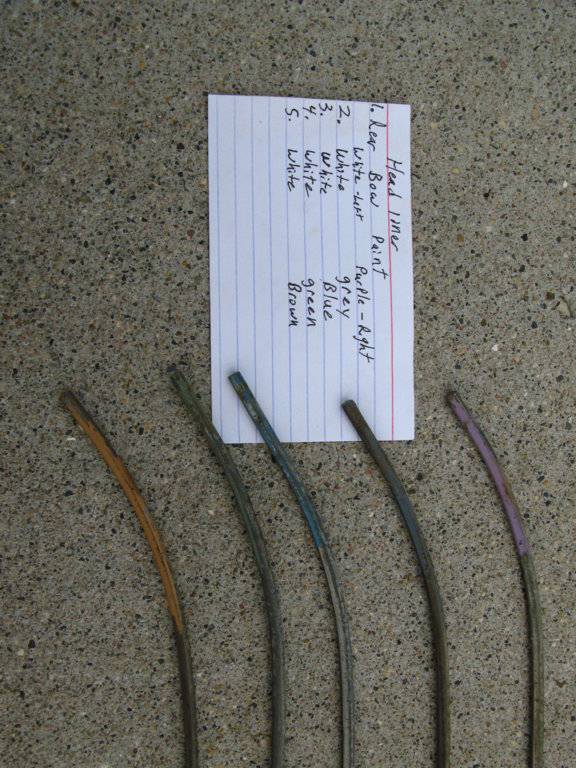

    I found them on my phone. Hope this helps.
    IMG_1371.JPG IMG_1373.JPG IMG_1375.JPG IMG_1376.JPG

  4. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND

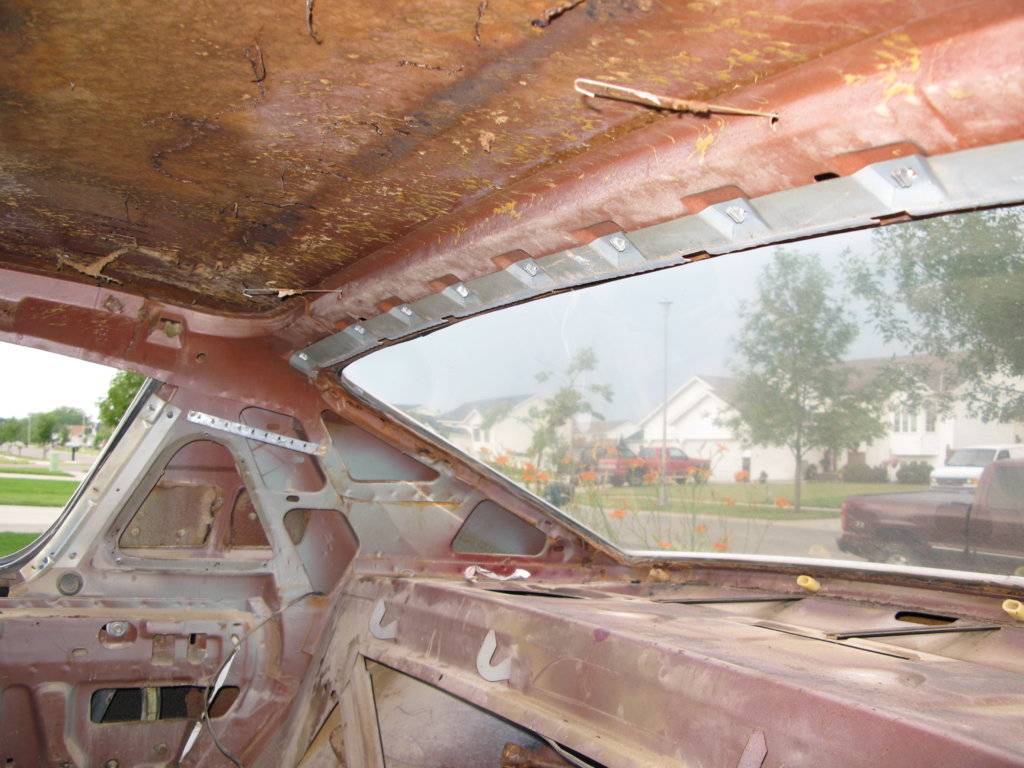

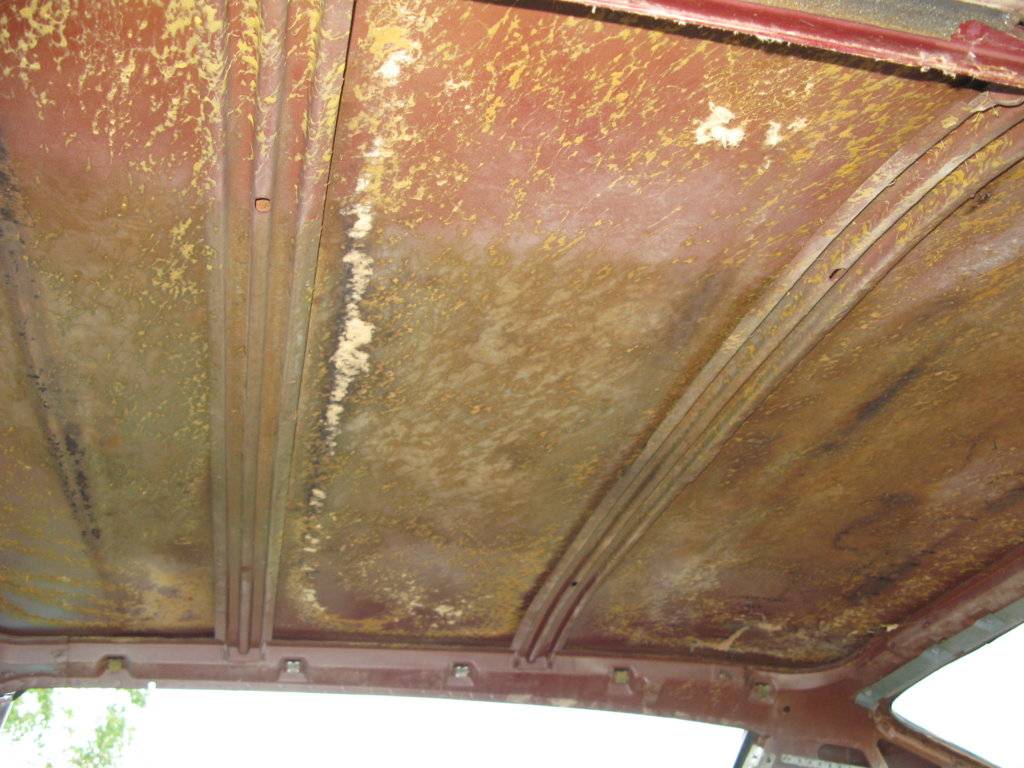

    Better picture of the bow pocket locations.


  5. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND

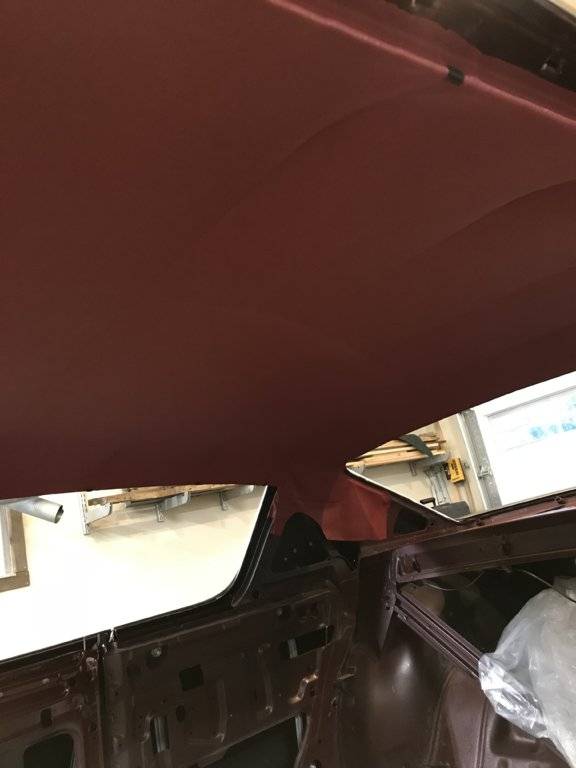

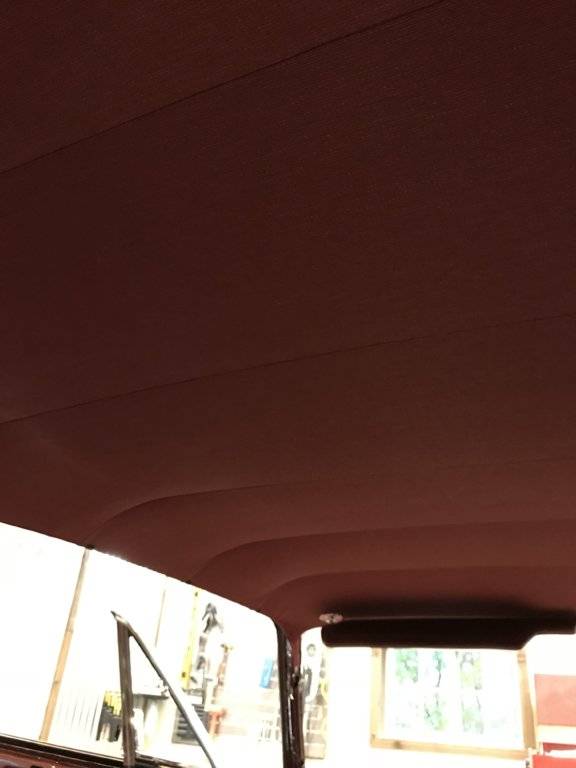

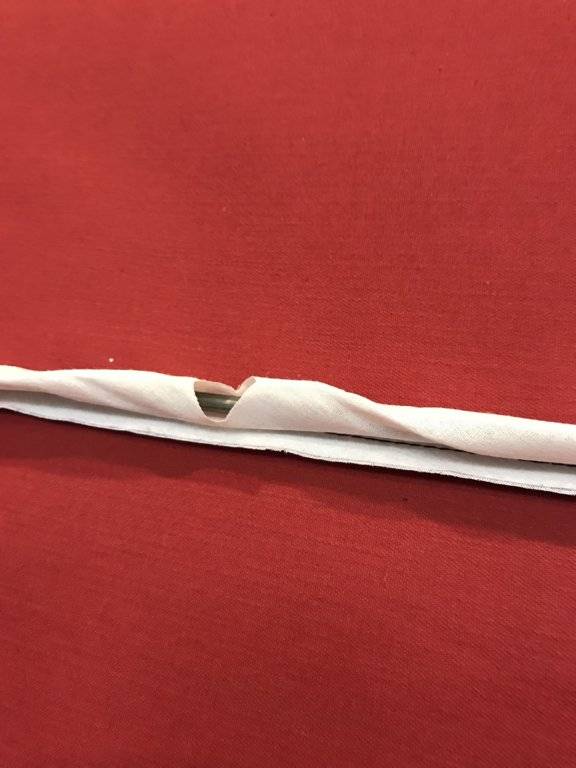

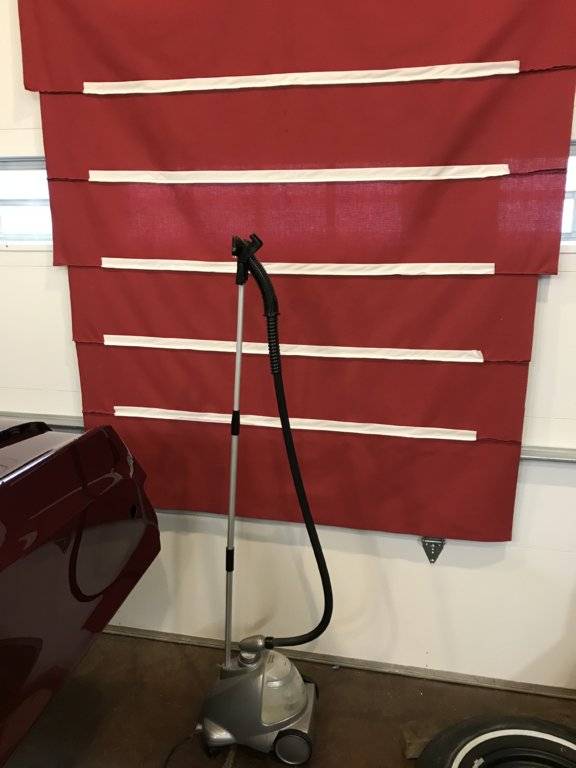

    Found my new headliner pictures. It looks like all the sheaves for the bows are equal.
    5C3530B8-DE35-4C48-89AA-E07F9D426BF7.jpeg 8A866007-33BE-4DF9-B314-E9E2B0B4C545.jpeg 951995A9-C1ED-4B7A-A92F-4D6EC8FAB68B.jpeg 5084F0FA-DDFD-4055-BAD9-B8E4298AC714.jpeg

  6. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    those are great pictures...my bows have no colors on them...should they sit pressed up against the roof or sit down some? that might give me an idea of what order they go in just by fitment.

  7. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    Edit.
    Just touching the insulation You don’t want them to press up into the insulation too tight or it may bind as you are stretching the headliner.
    I believe mine are lined up in order so you May get a general idea of the order by shape. Also some of the longer ones will not fit in the narrow portions of the roof. Look at the top of your roof profile. Front is wide to narrow in the rear I believe. Dry fit each in the pockets to find the best fit.

    • Like Like x 1
  8. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    Looking back at my pictures the bows may have been just touching the insulation due to the witness marks.

  9. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    I rearranged them and they all seem to free float except one...its tight to the roof...I will go back and keep trying.

  10. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    It seems that I had a couple of clips that had different depths. Also your rear bow should have witness marks from the rear wires.
    You May be able to see the difference in pockets on my picture above. They are different colors/ tints

  11. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    woohoo...I found very very faint colors that I can only see in direct sunlight...faded and corroded, but there....

  12. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    ok...going by the colors on your list, all my bows fit snug against the roof except Blue...middle bow sits 1/2" down. maybe the color pattern changed? I have different cup depths. the ones in the front and rear are deeper than the middle 3.

  13. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    I see a black clip on the side rail in your last picture...and I think I see clips in the FSM...are those supposed to be there? I dont think I have them.

  14. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,364
    Likes Received:
    2031
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    www.dantesparts.com has the bow clips for B-Bodies which are probably the same ones.

    Dave

  15. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    I'm referring to the clips that go on the roof rail...I found two different ones online, but not sure which ones are correct. I cant find a part number in the FSM or the parts manual.

  16. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    The little black clips that you can see on the finished headliner are just a simple “c” or “u” clip it helps clip the edges of the fabric around the corner to help keep it tight before the trim piece goes on. Mine were the originals so I didn’t have to source them. It seems there were only 2 per side? Maybe 3. I will see if I have any disassembly pictures with them in it. As far as the bows it seems only two of mine in the middle were shorter but they all were probably customized a little at the factory.

    • Like Like x 1
  17. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    2,971
    Likes Received:
    3719
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    It looks like 4 clips per side.

    • Like Like x 1
  18. swisherred

    swisherred Senior Member

    Messages:
    1,223
    Likes Received:
    650
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    I found 2 sets online...one is a flat clip and the other is more rounded like a C. I'm going to the junkyard tomorrow if they are open. They have a fast top there I can grab all my missing hardware from. Hopefully its all still there.

    • Like Like x 1
