69 Chrysler 300 Fuel Line

MJFUR

Member
Joined
Nov 12, 2021
Messages
173
Reaction score
141
Location
Texas
Looking for photos of proper routing/clamps/clips/etc. for forward fuel line to pump to carb (4640S). Mine had a cobbled rubber hose running from mid car. Thx.



CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
8,101
Reaction score
5,169
Might be some illustrations/images in various areas of the FSM and/or Chrysler parts book (for your particular model year)?


Wrenchygeorgie

New Member
FCBO Gold Member
Joined
Jan 16, 2022
Messages
40
Reaction score
23
Location
Tucson Arizona

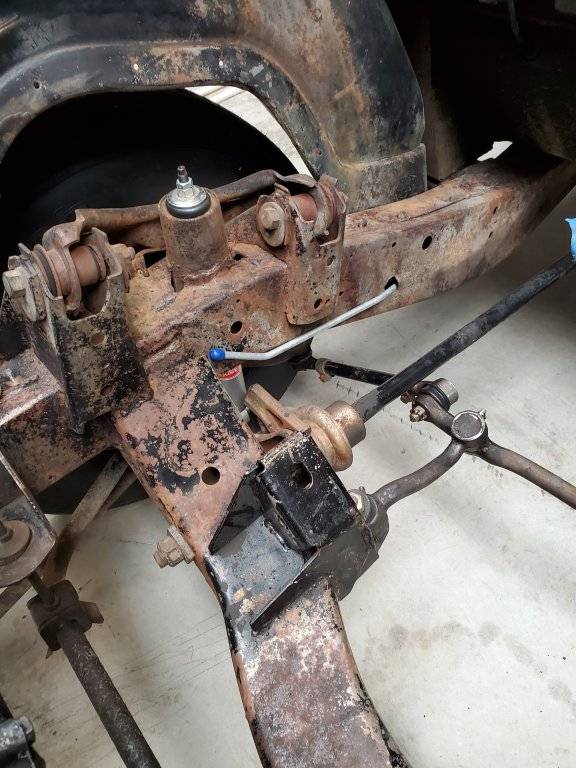

That is how mine is too. The metal lines runs through the frame and exits at the end of the stub, then a small section of rubber hose connects
to the metal fuel line in the rear. Im guessing this has something with the ease of assembling the stubframe to the body?
Buut, i would check out some pics in the Big book O your car first.. probably some info you never thought of in there!


Trace 300 Hurst

Professional Tinkerer
FCBO Gold Member
Joined
May 27, 2018
Messages
2,055
Reaction score
2,497
Location
Ponte Vedra Beach, FL

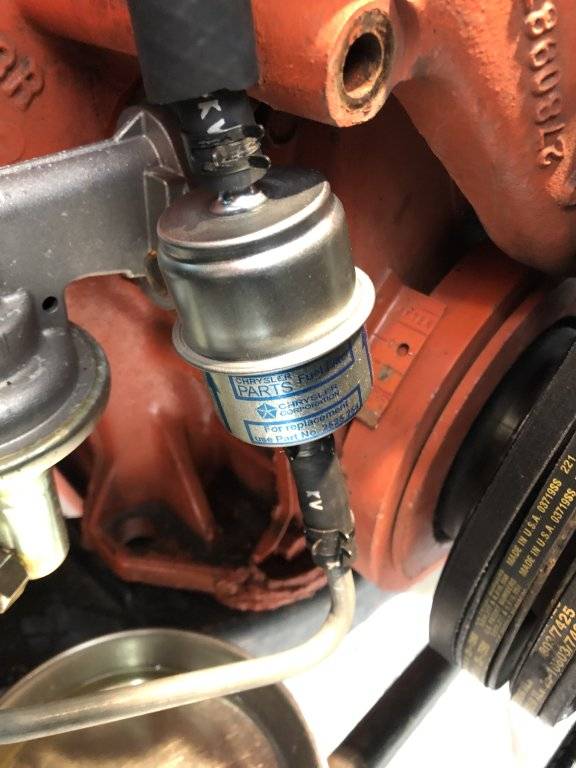

The hose from the end of the steel line is inside the ThermaTech insulation, but you get the drift. Pretty straightforward, actually.

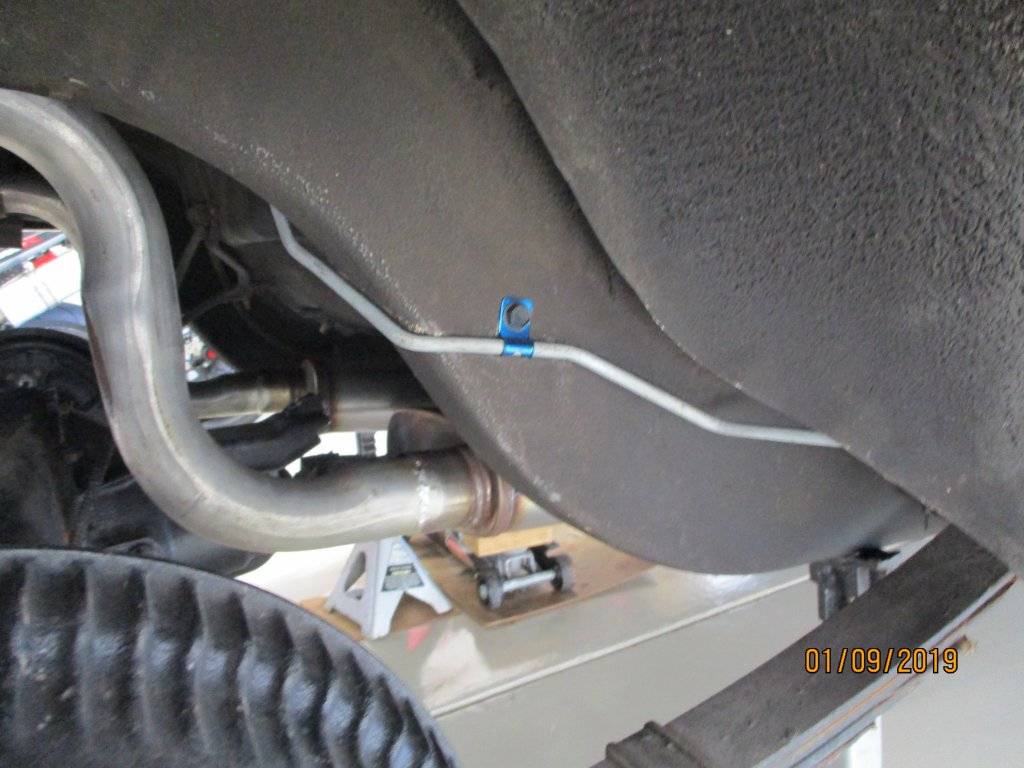

And here's the line from the tank from Inline Tube.
