AMC Volcano Center Cap vs Chrysler Road Wheel Center Cap

Brakes, Suspension, Rims and Tires

  1. 330dTA

    330dTA Well-Known Member

    Messages:
    842
    Likes Received:
    231
    Joined:
    Dec 23, 2014
    Location:
    Helsinki Finland
    I have a set of the late style ('75-'78) Chrysler Road Wheel Center Caps, but I need a set of the early ones.
    As those are unobtainium, I settled for a set of repop AMC Volcano Center Caps. I paid $138 for a set:

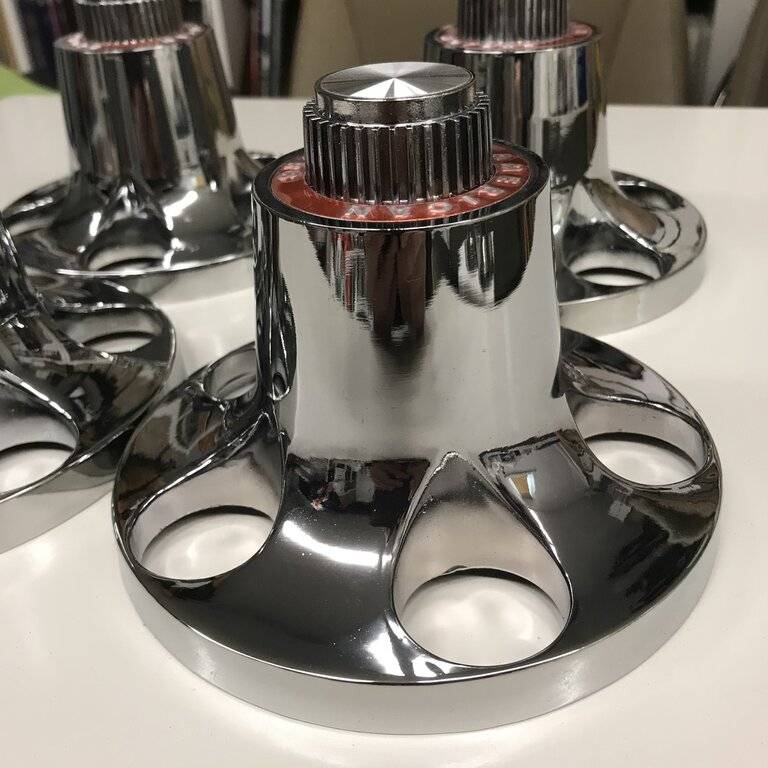

    The quality of the repops gave me a pleasant surprise: they are quite nice! UNADJUSTEDNONRAW_thumb_511.jpg

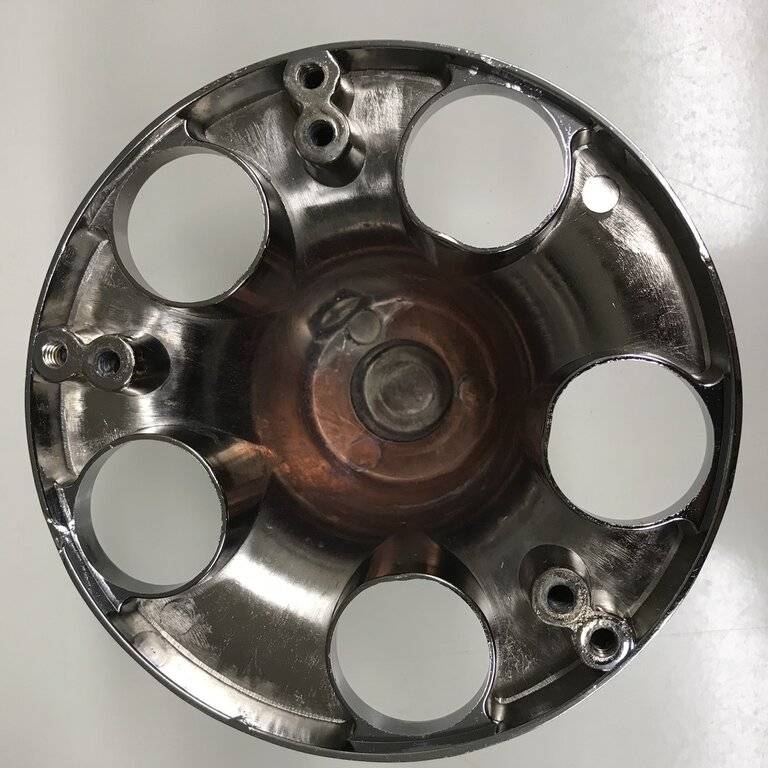

    The base seems to be very similar to the Chrysler Center Cap: UNADJUSTEDNONRAW_thumb_515.jpg
    Although the base is slightly thinner on the AMC cap:
    Which is 13mm thick - the Chrysler cap base is about 16mm thick.
    The tip of the repop AMC cap is fixed, not removable like the one in the Chrysler cap.
    But the quality of the workmanship is really nice:

    Initially I had thought of having that red "American Motors" band turned away by a competent lathing company.
    Now I think like ...what the heck, isn't the NYer an 'American motor' as well?...

    • Like Like x 6
    • Thanks! Thanks! x 1
  2. Mr C

    Mr C Senior Member

    Messages:
    3,819
    Likes Received:
    1678
    Joined:
    Nov 20, 2012
    Location:
    All over
    The company making these should repop the Mopar ones too.

    • Agree Agree x 7
  3. FURYGT

    FURYGT Senior Member

    Messages:
    2,790
    Likes Received:
    1213
    Joined:
    Mar 11, 2017
    Location:
    Iron Station, NC
    That red circle may be a thin metal applique' or even a decal that may be glued in place and therefore you may be able to remove it.

    • Agree Agree x 4
    • Like Like x 1
  4. commando1

    commando1 Old Man With a Hat on the Porch FCBO Gold Member

    Messages:
    34,742
    Likes Received:
    19417
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    A company repops the AMC ones and not the Mopar ones. WTF??? :realcrazy::wtf:

    • Agree Agree x 3
  5. 330dTA

    330dTA Well-Known Member

    Messages:
    842
    Likes Received:
    231
    Joined:
    Dec 23, 2014
    Location:
    Helsinki Finland
    The company that sells those repops is called Quality Lapel Pins, from Littleton CO.https://www.qualitylapelpins.com/QualityLapelPins_AMC_Catalog.pdf
    (I have no idea who makes the AMC caps for them. My wild guess is... well, never mind.)

    Anyway, I e-mailed them, suggesting they pick up the Chrysler C-body market, as the NOS Center Caps go for obscene money these days. There must be more C-bodies with Road Wheels, than AMC:s with their Road Wheels. - Let's see if they reply.

    • Like Like x 2
    • Thanks! Thanks! x 1
  6. 330dTA

    330dTA Well-Known Member

    Messages:
    842
    Likes Received:
    231
    Joined:
    Dec 23, 2014
    Location:
    Helsinki Finland
    Yup, that much I found out. I might try that.

    • Like Like x 1
  7. ayilar

    ayilar Senior Member FCBO Gold Member

    Messages:
    2,721
    Likes Received:
    2612
    Joined:
    Jan 30, 2012
    Location:
    USA
    They sell a "Volcano wheel peel & stick trim" (Part # AM-5), so that looks like it should work. Let us know how it works out for you.

    Thank you for posting the link to the company's website, @330dTA, and for reaching g out to them. If they went for the Chrysler market, they would likely maximize their sales by teaming up with Mopar-oriented vendors.

    PS: @saforwardlook posted pictures of AMC repops that were made in the 1970's by Motor Wheel in this thread. He provided more pictures and additional information in this other thread.

    @Mr C posted pictures of the original 70-74 and 75-78 center caps here. He provides an illustrated explanation of the difference between the AMC Volcano and the Chrysler road wheel center caps in this other thread.

    Last edited: May 8, 2020
    • Thanks! Thanks! x 2
    • Like Like x 1
  8. polara71

    polara71 Old Man with a Hat

    Messages:
    41,822
    Likes Received:
    8962
    Joined:
    Nov 16, 2010
    Location:
    Here & There

    No China made stuff!

    • Agree Agree x 4
  9. 330dTA

    330dTA Well-Known Member

    Messages:
    842
    Likes Received:
    231
    Joined:
    Dec 23, 2014
    Location:
    Helsinki Finland
    Thanks, Ayilar, for reminding us of those previous threads. I for one have gone through them earlier, but had forgotten the details.

    It is obvious, that the OEM Chrysler Center Caps were not made by Chrysler Corp. but instead were farmed out. That particular company (Motor Wheel or whoever) most probably does not exist anymore. But there are new companies, with better machinery (3D scanning and CNC), so who knows. Perhaps someone takes up the challenge of making those repops again.

    The tip of the AMC Center Cap is flat, brushed stainless, with bevelled edge. And the serrated "axle end" is thinner.
    The tip of the Chrysler Center Cap is slightly convex and polished, with no bevelling.

  10. 330dTA

    330dTA Well-Known Member

    Messages:
    842
    Likes Received:
    231
    Joined:
    Dec 23, 2014
    Location:
    Helsinki Finland
    I just got an e-mail from Gary Konwinski, the owner or Quality Lapel Pins.
    His reply was "I looked into making the Chrysler wheel caps, but the tooling costs are thousands of dollars."

    • Thanks! Thanks! x 2
  11. ayilar

    ayilar Senior Member FCBO Gold Member

    Messages:
    2,721
    Likes Received:
    2612
    Joined:
    Jan 30, 2012
    Location:
    USA

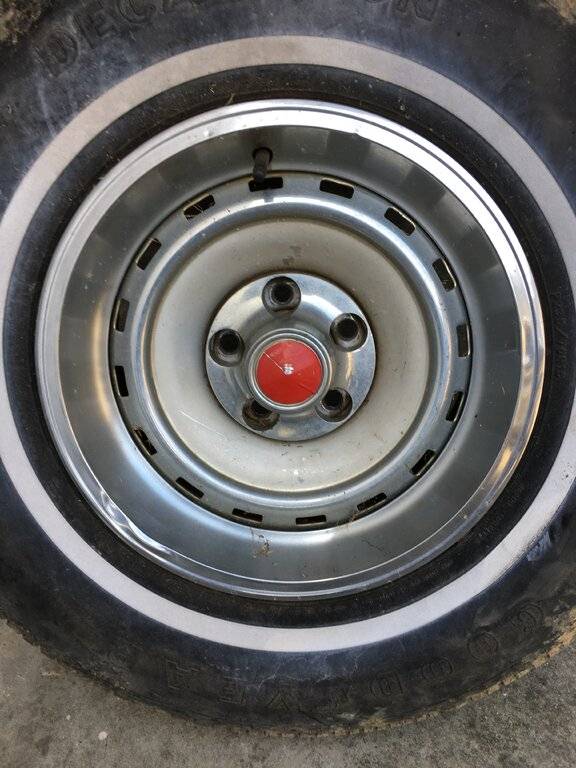

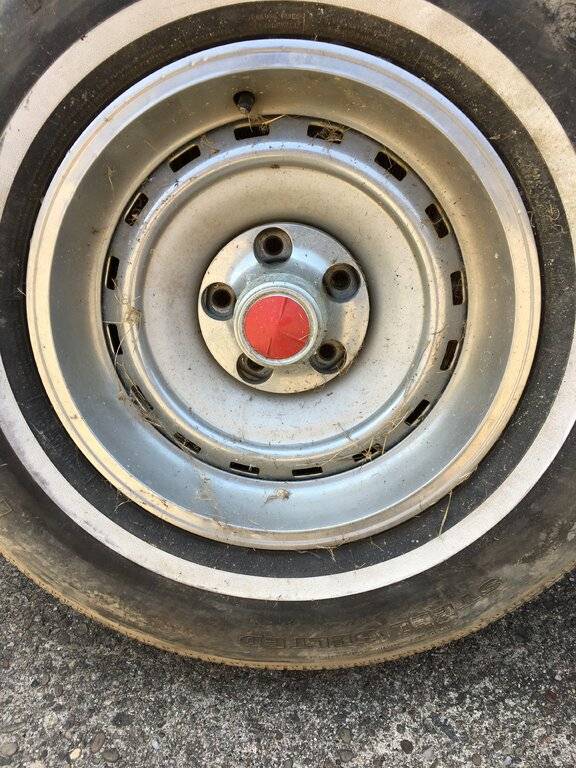

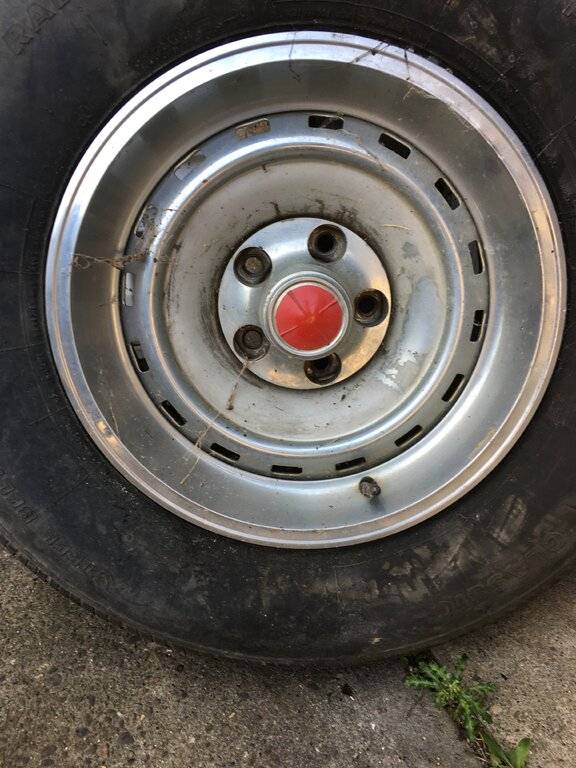

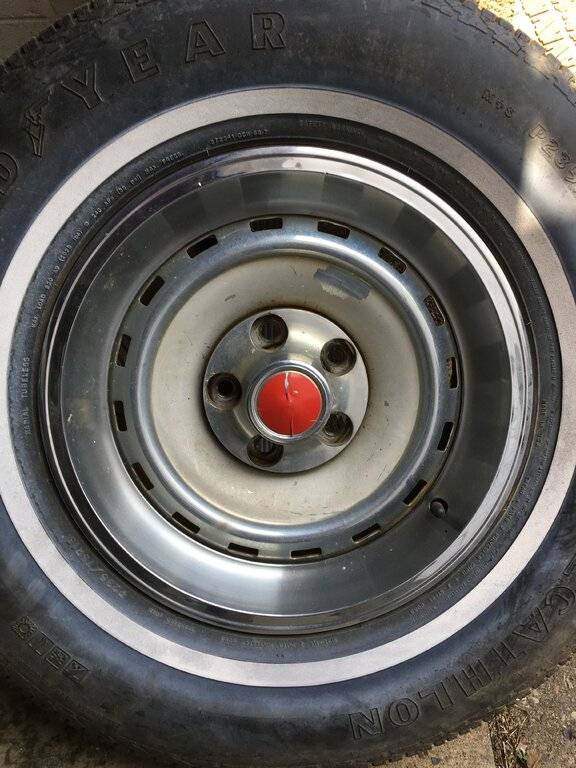

    Wow, that was fast — thank you for the quick update. How many folks would he need for a group buy to get started? I’d be in for this set of wheels that I recently got with help from @PH27L7 and @carfreak6970





  12. polara71

    polara71 Old Man with a Hat

    Messages:
    41,822
    Likes Received:
    8962
    Joined:
    Nov 16, 2010
    Location:
    Here & There

    What the Hell made the AMC wheel a cheaper center to make over the more desirable Chrysler dome?

    • Agree Agree x 5
  13. Samplingman

    Samplingman Senior Member

    Messages:
    4,862
    Likes Received:
    2763
    Joined:
    Apr 18, 2012
    Location:
    South Jersey
    All it needs to be is a different cap, the base fits as is. Here is the AMC cap on a Chrysler road wheel.


    • Like Like x 1
    • Thanks! Thanks! x 1
  14. Samplingman

    Samplingman Senior Member

    Messages:
    4,862
    Likes Received:
    2763
    Joined:
    Apr 18, 2012
    Location:
    South Jersey

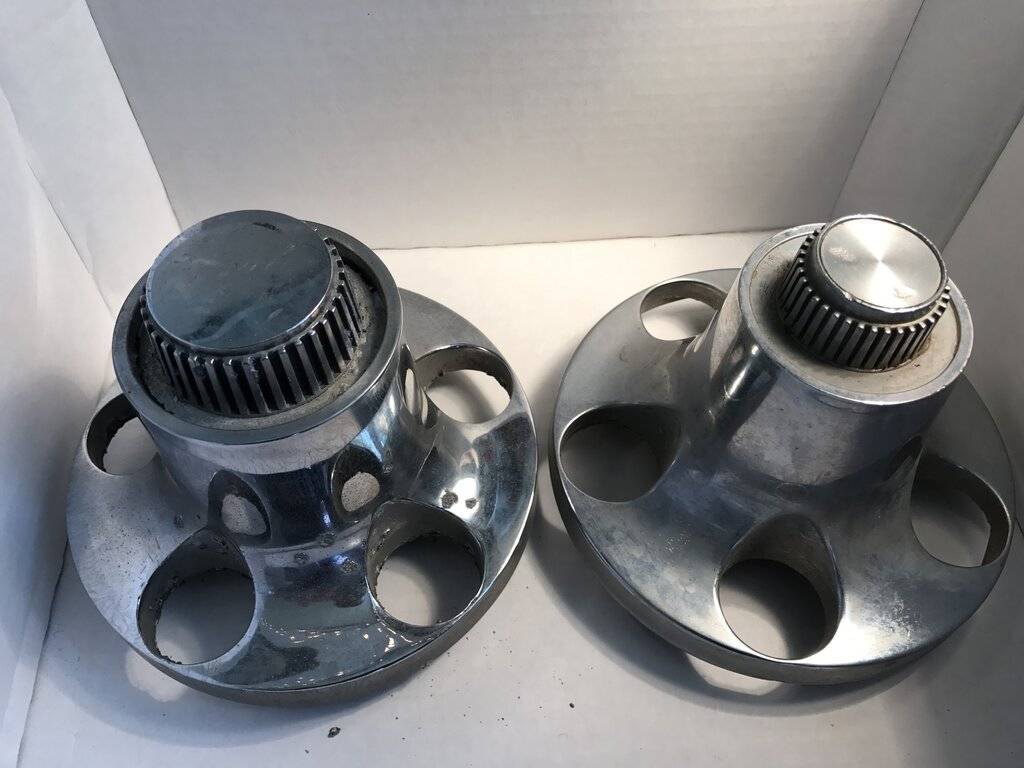

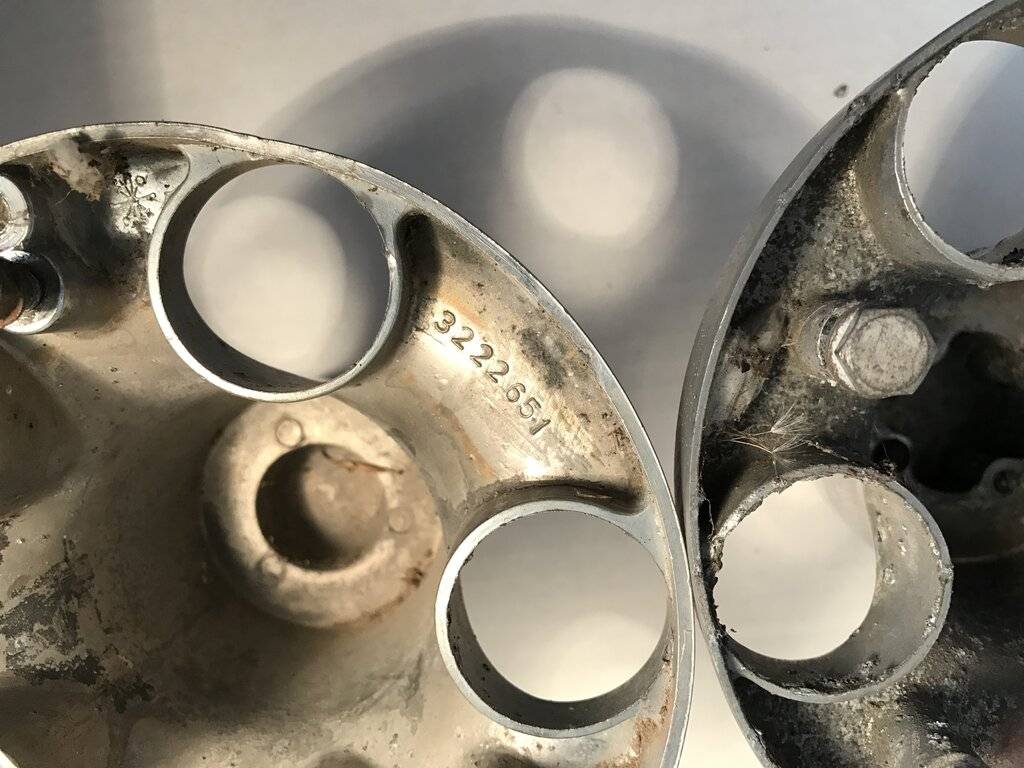

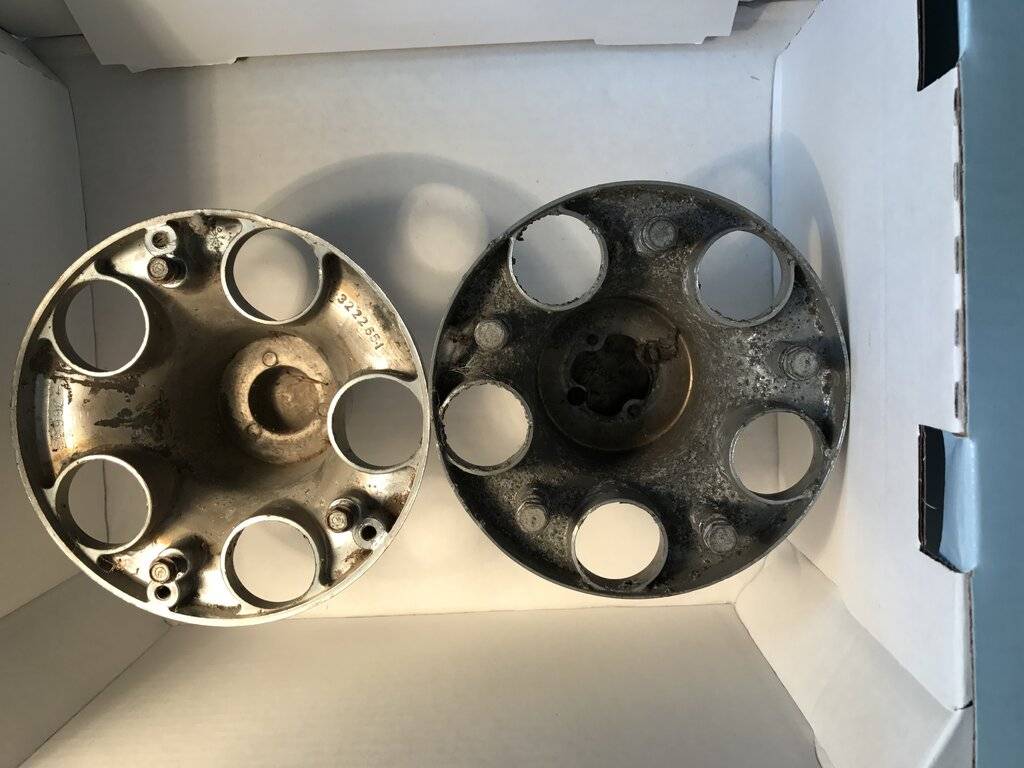

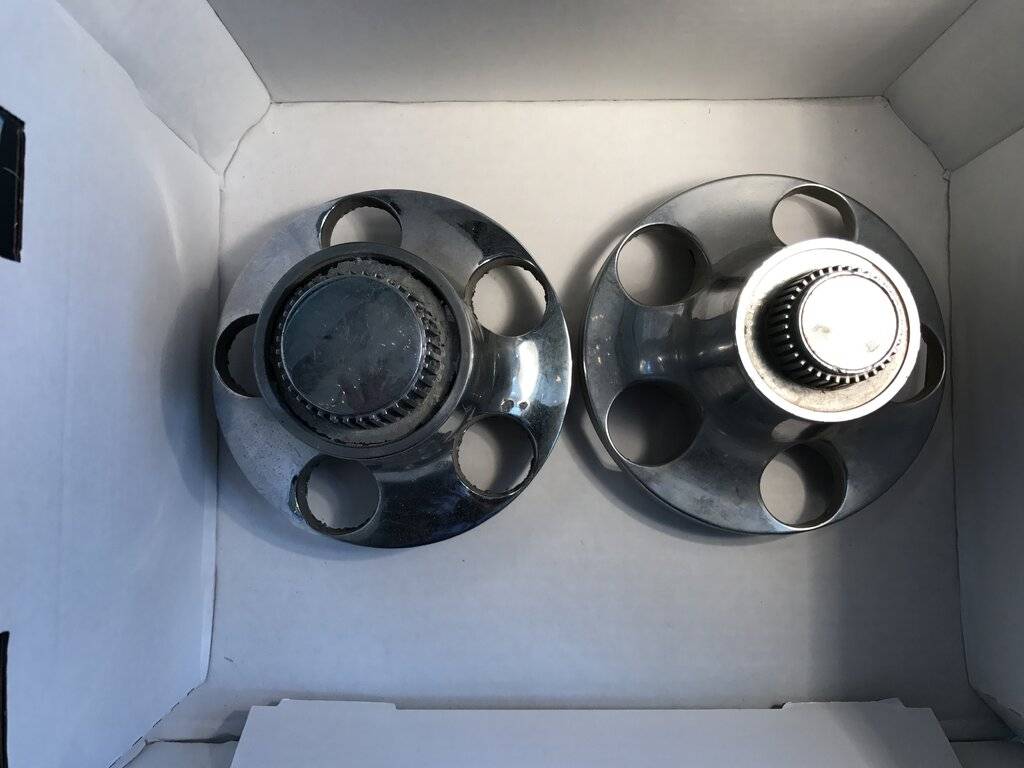

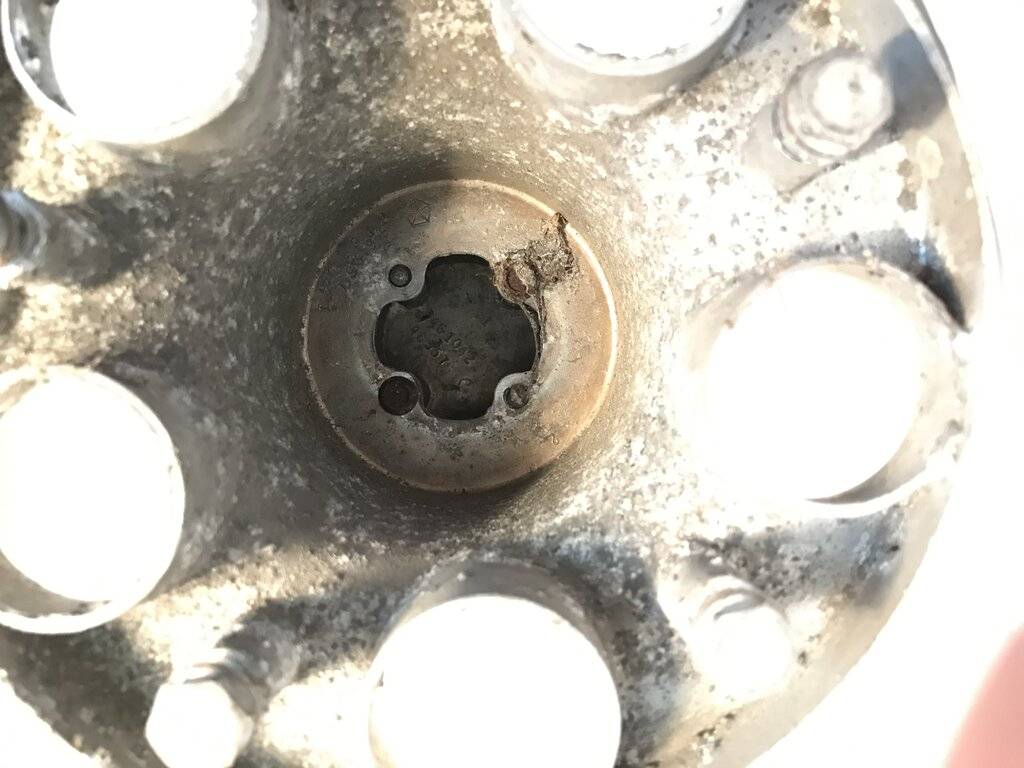

    A few more comparison shots:

    AC3A1ABD-CA05-4063-BFA2-4C4D2BB78D75.jpeg AE128888-FE7C-4C0C-ABE0-623E3FCCAE73.jpeg 41277272-A2B7-4D68-B965-14CC98BBA0F3.jpeg 4DAE574B-E73E-47FA-B258-E297F058BBC3.jpeg 1EB38917-BDF0-401C-9D9C-14185E7AA5B1.jpeg A0D31978-9B49-41CA-B819-B4AD661957F9.jpeg

    • Thanks! Thanks! x 2
    • Like Like x 1
  15. 330dTA

    330dTA Well-Known Member

    Messages:
    842
    Likes Received:
    231
    Joined:
    Dec 23, 2014
    Location:
    Helsinki Finland
    Thanks, Samplingman! That is the best comparison photo set of these two Center Caps that I have seen. The size difference between them shows clearly. - Could you please measure the diameter of the serrated part of the Chrysler dome?

    • Agree Agree x 1
  16. marko

    marko Well-Known Member FCBO Gold Member

    Messages:
    580
    Likes Received:
    415
    Joined:
    Dec 15, 2014
    Location:
    Victoria, BC Canada
    it looks close enough that i'd use a repop without the red ring if i had to

    • Agree Agree x 4
  17. MarPar

    MarPar Meat Man with a Hat FCBO Gold Member

    Messages:
    6,003
    Likes Received:
    6077
    Joined:
    Apr 22, 2015
    Location:
    Still in Dry Dock
    :popcorn:

  18. Samplingman

    Samplingman Senior Member

    Messages:
    4,862
    Likes Received:
    2763
    Joined:
    Apr 18, 2012
    Location:
    South Jersey
    Just under 2 inches, or exactly 5 cm.

    • Thanks! Thanks! x 2
  19. 71Polara383

    71Polara383 Kid with ballcap

    Messages:
    2,832
    Likes Received:
    4623
    Joined:
    Dec 10, 2016
    Location:
    Rockford,IL
    It's hard to believe the tooling to just make the center dome bigger would cost that much more...

    • Agree Agree x 4
  20. polarus

    polarus Senior Member

    Messages:
    1,860
    Likes Received:
    858
    Joined:
    Feb 22, 2013
    Does Mr. Konwinski realize that he just needs to replace the dome? Seems like an easy fix for a much needed part.

    • Agree Agree x 1
