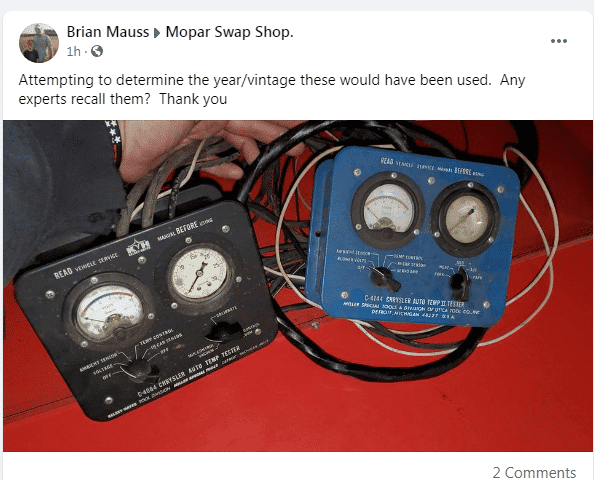

    NOT MINE!! Seen on FB, these may be available.

    • Thanks! Thanks! x 1
  2. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,086
    Likes Received:
    2171
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    The Black one is for auto temp, came out in '68 with the introduction of the auto temp system.
    The Blue one was for auto temp ll, not sure about the exact date but I think it was 1974.

    These were usually mounted on a roll away console with some other test equipment. Both were pretty much useless for finding the large number of small vacuum leaks that plagued both systems.

    Dave

  3. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    6,271
    Likes Received:
    5253
    Joined:
    Oct 8, 2011
    Location:
    California
    I agree the black one is for the first version of Auto Temp. The blue one is for Auto Temp II for the years 1971-73. I do not believe the blue one will work for the Auto Temp II systems for 1974+. I can verify that the blue tester is useful for the version II systems 1971-3.

    The blue one might be useful down the road for Wyatt given that @ayilar has at least one of those cars...........

    • Thanks! Thanks! x 1
  4. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,086
    Likes Received:
    2171
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    You are probably right, I remember using the blue tester, but after this many years I can't remember what years it worked on.

    Dave
