Battery not staying charged

saylor

Senior Member
Joined
Mar 31, 2013
Messages
2,886
Reaction score
1,735
Location
GARLAND TEXAS BABY !!!


or





make sure your V/R body is well grounded


saylor

Senior Member
Joined
Mar 31, 2013
Messages
2,886
Reaction score
1,735
Location
GARLAND TEXAS BABY !!!

Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,113
Reaction score
21,876
Location
Marcellus, NY

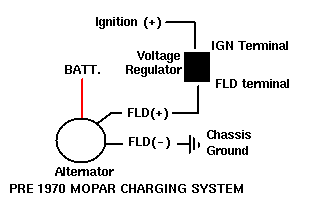

View attachment 392341

or

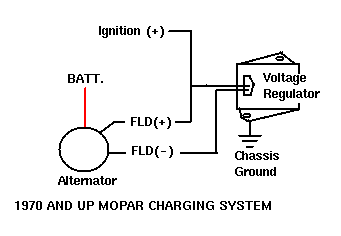

View attachment 392342



make sure your V/R body is well grounded

60 amp alternator too high? - Slant Six Forum

Improved Wiring for older Mopars

Alternator upgrade

Denso Alternator Installation

One wire alternator help

study slant six dans posts. and crackedbacks. and nachos.

myself i did the 2x 10ga wires from ALT<> BATT with 50a fuses on every end (4 fuses).

try not to die -

- saylor

Looks like he has a "one wire" alternator that would have the regulator built in. Gotta be wired differently.

Its just a 1 wire setup.


Biggredd2069

Active Member
Joined
Oct 26, 2018
Messages
388
Reaction score
115
Location
Parker, CO
I added a jumper ground from the body of the alternator to the negative it the battery. I'm holding steady at 13.4 volts. I'm about 5 minutes of idle right now with occasional revving to about 1500. Jumps up to 13.7, dips to about 13.2 then back to 13.4. Just a bad ground?


saylor

Senior Member
Joined
Mar 31, 2013
Messages
2,886
Reaction score
1,735
Location
GARLAND TEXAS BABY !!!
now you are getting somewhere grashopper. you have to eliminate all those variances. test ALT <> GND, engine <>GND, frame, body, etc., etc.

you want no lossses.

same with the hot side. no losses. if you find a loss, repair or replace that segment. you can get away with .02 loss thru the whole thing either side - or + - ..more than that .02 you got an issue somewhere.
