Buck up lights wiring question

GoneLoco99

Member
Joined
Jul 11, 2021
Messages
89
Reaction score
22
Location
USA
I am using a 68+ 727 transmission with the 3 peg NSS/Reverse lights.
I installed a Cheetah Turbo Action floor shifter and I’m not using the factory column shifter. Working on a 68 Imperial.

I ran the MIDDLE peg on the switch/NSS to the negative side of my starter relay and that is working.
I unhooked the 2 purple wires on the factory “back up light” switch at the bottom of the steering column and wired those 2 purple wires to the 2 out side NSS pegs on the transmission. Put transmission in reverse on the backup lights are not working. Would anyone know why? I also checked the fuses too.
Thank you


CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
7,755
Reaction score
4,853
Were there no instructions with the "hot rod" floor shifter you installed?


1970FuryConv

Senior Member
Joined
Aug 8, 2014
Messages
4,728
Reaction score
4,385
Location
Richmond, VA
One of the NSS original wires went to the fuse box, backup light fuse. The other went to the backup lights. Both thru the bulkhead connector. Do you have 12.6 volts at 1 purple wire and continuity to the reverse lights through the other?


GoneLoco99

Member
Joined
Jul 11, 2021
Messages
89
Reaction score
22
Location
USA
One of the NSS original wires went to the fuse box, backup light fuse. The other went to the backup lights. Both thru the bulkhead connector. Do you have 12.6 volts at 1 purple wire and continuity to the reverse lights through the other?
I have nothing when the wires are hooked up. I even tried to switching the wires around, and still got nothing at the reverse lights.


GoneLoco99

Member
Joined
Jul 11, 2021
Messages
89
Reaction score
22
Location
USA
Were there no instructions with the "hot rod" floor shifter you installed?
No sir. And transmission is brand new with a 3 speed manual reverse valve body. Thus why I needed the “hod rod” floor shifter.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,109
Reaction score
21,858
Location
Marcellus, NY
1968 trans does not work with the 69 and later nss with reverse lights.

You have to change the rooster comb on the valvebody to make one work.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,109
Reaction score
21,858
Location
Marcellus, NY

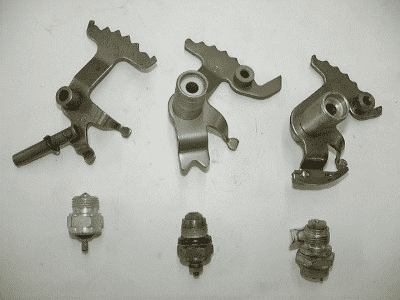

You need the one on the right. The 68 trans has the one in the center.


GoneLoco99

Member
Joined
Jul 11, 2021
Messages
89
Reaction score
22
Location
USA
1968 trans does not work with the 69 and later nss with reverse lights.

You have to change the rooster comb on the valvebody to make one work.
The car is a 68, the trans is a 68+ with the 3 peg style NSS.
It’s a brand new transmission & engine I put into a 68 Imperial.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,109
Reaction score
21,858
Location
Marcellus, NY
It might have the 3 pole nss, but does it have the correct rooster comb? Its worth popping out the nss and looking in the hole.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,109
Reaction score
21,858
Location
Marcellus, NY
You can also check for continuity between the two outside poles on the nss with the shifter in reverse.

If no continuity, the switch is bad or incorrect rooster comb.


CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
7,755
Reaction score
4,853
No sir. And transmission is brand new with a 3 speed manual reverse valve body. Thus why I needed the “hod rod” floor shifter.
So, you needed a reverse-action shifter when you will always be shifting away from "N", which was the main reason for the reverse valve body in the first place?


thethee

Well-Known Member
Joined
Feb 13, 2021
Messages
805
Reaction score
792
Location
Netherlands
Sorry if this is too obvious, but have you checked the wires at the factory backup switch at the base of the column for power? Were your back up lights working before you made the swap?


GoneLoco99

Member
Joined
Jul 11, 2021
Messages
89
Reaction score
22
Location
USA
Sorry if this is too obvious, but have you checked the wires at the factory backup switch at the base of the column for power? Were your back up lights working before you made the swap?
The “white” wire coming from the bulkhead area is “hot” the “purple” wire is not.
Those “white & purple” wires plug into (2) purple wires that is @ the factory reverse switch.

There is obviously a “hot” peg on the 3 peg NSS.
Does anyone know which is the “hot” side?
The left or the right? Or does it not matter?


GoneLoco99

Member
Joined
Jul 11, 2021
Messages
89
Reaction score
22
Location
USA
So in a nut shell & bottom line….
I wanna wire a 3 pegged NSS into a 1968 C body car.
That has 1 “hot” wire (white) & 1 “negative” wire (purple) @ the old backup switch.
To get backup lights.
Thank you in advance


1970FuryConv

Senior Member
Joined
Aug 8, 2014
Messages
4,728
Reaction score
4,385
Location
Richmond, VA
I have nothing when the wires are hooked up. I even tried to switching the wires around, and still got nothing at the reverse lights.
Have you used a volt/ohmmeter to be sure you have voltage at 1 outside prong and continuity to the reverse lights from the other outside prong? Since you are not using factory wiring, I don't think it matters which outside prong is input power and which is output power.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,109
Reaction score
21,858
Location
Marcellus, NY
The “white” wire coming from the bulkhead area is “hot” the “purple” wire is not.
Those “white & purple” wires plug into (2) purple wires that is @ the factory reverse switch.

There is obviously a “hot” peg on the 3 peg NSS.
Does anyone know which is the “hot” side?
The left or the right? Or does it not matter?
Doesn't matter.

All the nss switch is (regarding the lights) is a simple on-off switch. One side is power, one side goes to the lights. It doesn't matter what pole is what.

As i said, continuity between the two poles is what you need to check. Put it in reverse, hook a multimeter to the outside prongs and see if you have continuity. If you need to learn how to do this:



GoneLoco99

Member
Joined
Jul 11, 2021
Messages
89
Reaction score
22
Location
USA
Doesn't matter.

All the nss switch is (regarding the lights) is a simple on-off switch. One side is power, one side goes to the lights. It doesn't matter what pole is what.

As i said, continuity between the two poles is what you need to check. Put it in reverse, hook a multimeter to the outside prongs and see if you have continuity. If you need to learn how to do this:


I am getting a 28.8 - 29.6 reading on the ohm meter.
Not sure what is “good” but I done it 4 or 5 times and that was the readings


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,109
Reaction score
21,858
Location
Marcellus, NY
I am getting a 28.8 - 29.6 reading on the ohm meter.
Not sure what is “good” but I done it 4 or 5 times and that was the readings
You should get zero or close to it.

Check for any change when its not in reverse, if it shows open, then its the switch.

If no change, bad switch or incorrect rooster comb on valve body.

Pull the switch and look in the hole to be 100% sure on rooster comb since you'll have to pull the switch anyways.

FWIW, I went through this with a bad new switch. Some of the replacements are junk.
