Build me a new fan shroud

Heating, Cooling & AC

  1. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon

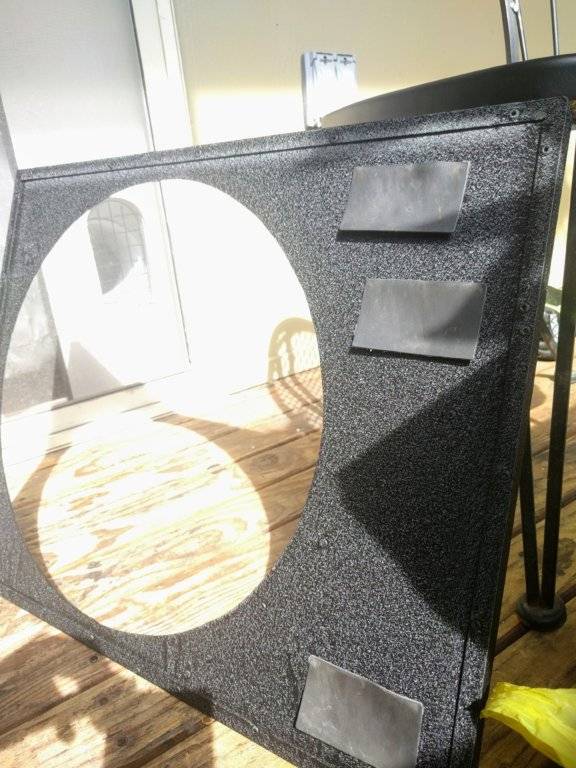

    I got a stronger efan from Spal last year and got tired if my ugly looking cookie sheet shroud. I just got done building a new one out of sheetmetal aluminium and some L profile.

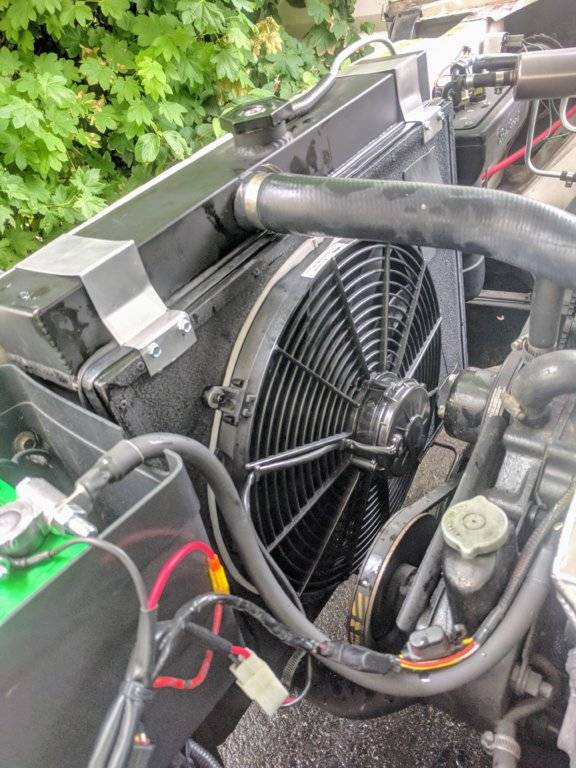

    Looks way better and should seal way better against the radiator. This should cool it down at an idle way quicker now since there are no gaps anywhere! The top mounting brackets I have to redo unfortunately.







    • Like Like x 2
  2. live4theking

    live4theking Old Man with a Hat

    Messages:
    11,776
    Likes Received:
    3818
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    nice

    • Agree Agree x 1
  3. jct

    jct Senior Member

    Messages:
    3,735
    Likes Received:
    2684
    Joined:
    Jun 11, 2015
    Location:
    indianapolis
    dumb question, what's the deal with the rubber flappy bits?

  4. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,799
    Likes Received:
    9779
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    I would recommend a few more flaps if possible to insure you don’t have an air dam in front of your rad while driving at speed on the highway. That’s what happened With my first shroud I built, it heated a bit at road speed till I had a better airflow. You built a nice looking shroud

    • Like Like x 1
  5. 65sporty

    65sporty Old Man with a Hat

    Messages:
    8,481
    Likes Received:
    2077
    Joined:
    Aug 24, 2013
    Location:
    Kingston, Mi
    To let some air bypass the fan at highway cruise speed

    • Thanks! Thanks! x 1
  6. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon
    thanks, it could have been made better but with what I had to work with i think its okay!

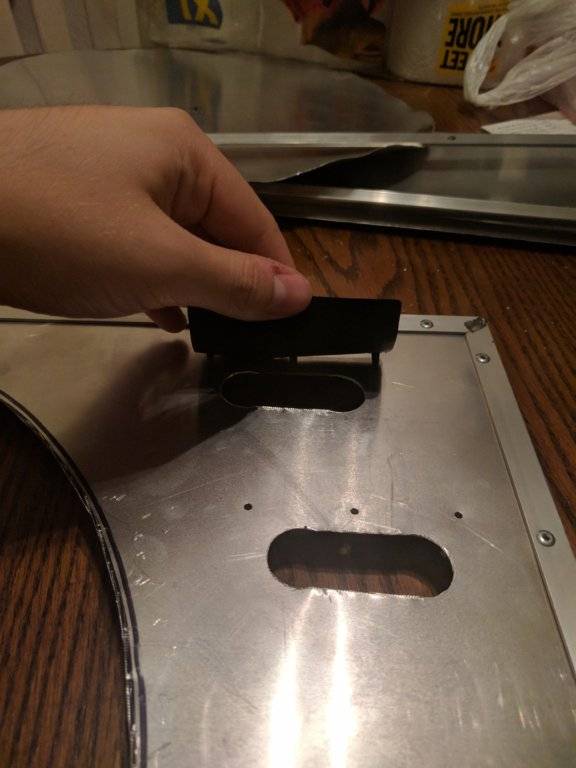

    the flaps cover up air holes that let airflow through while driving and they get sucked closed when the fan pulls air. i had 5 on my old shroud and actually glued 2 of them shut cause it cooled too good at speeds. Thats why I decided to only do 3.

    Seems to work quite good now, the fan actually pulls way better through the radiator cooling down quicker at idle!

    • Like Like x 1
    • Thanks! Thanks! x 1
