build sheet??

[carguy300]

I just found the build sheet in my 68 300. Where can i find how to figure out codes?



[Davea Lux]

www.mopardealer.com/decoding.htm

Dave



[69CoronetRT]

I just found the build sheet in my 68 300. Where can i find how to figure out codes?

Broadcast sheets include:

Administrative codes (VIN, SO number, and some others)
Sales Option codes
Assembly or parts codes

Knowing what is coded in each section helps decode it.

I can help decode it if you want to send me a picture or scan.



[Snotty]

You can get a Galen Govier decoding book.



[James Romano]

The only number I'm trying to figure out in mine is the pinion/gear size of the rear. I haven't seen the little metal tag on mine. Either it broke or rusted off. Can one figure that out from the broadcast sheet?



[69CoronetRT]

The only number I'm trying to figure out in mine is the pinion/gear size of the rear. I haven't seen the little metal tag on mine. Either it broke or rusted off. Can one figure that out from the broadcast sheet?

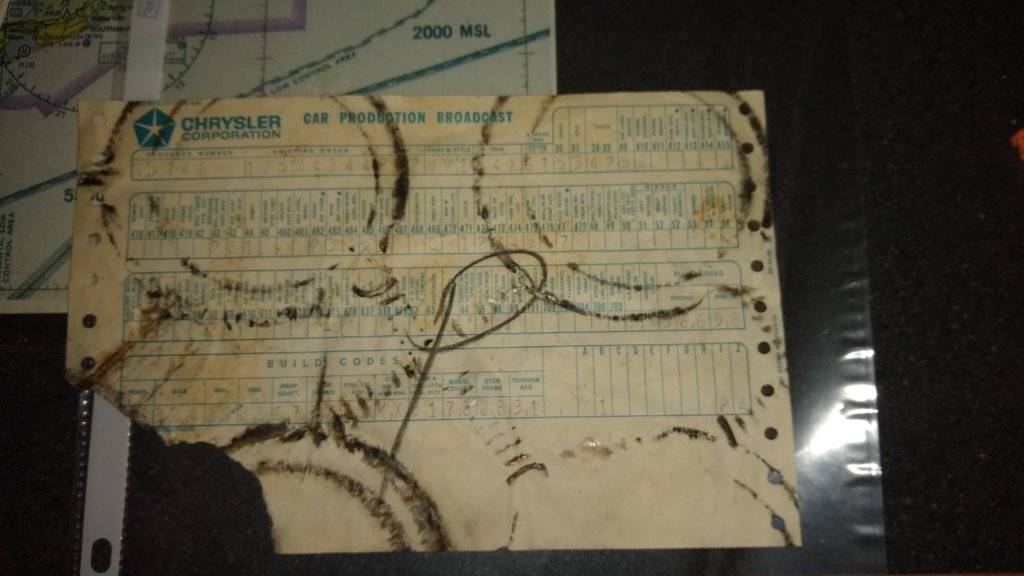

View attachment 330857

top row AXLE 373 = 3.23 gears.



[James Romano]

Thank you!



[carguy300]

Broadcast sheets include:

Administrative codes (VIN, SO number, and some others)
Sales Option codes
Assembly or parts codes

Knowing what is coded in each section helps decode it.

I can help decode it if you want to send me a picture or scan.

Thanks. I will try and get a photo and post it.



[carguy300]

Broadcast sheets include:

Administrative codes (VIN, SO number, and some others)
Sales Option codes
Assembly or parts codes

Knowing what is coded in each section helps decode it.

I can help decode it if you want to send me a picture or scan.

I've got a pic of my build sheet, will upload, i'm not sure how it will look. My scanner at the moment doesnt work.



[carguy300]

If this can help you tell me something about my car that would be great.



[Davea Lux]

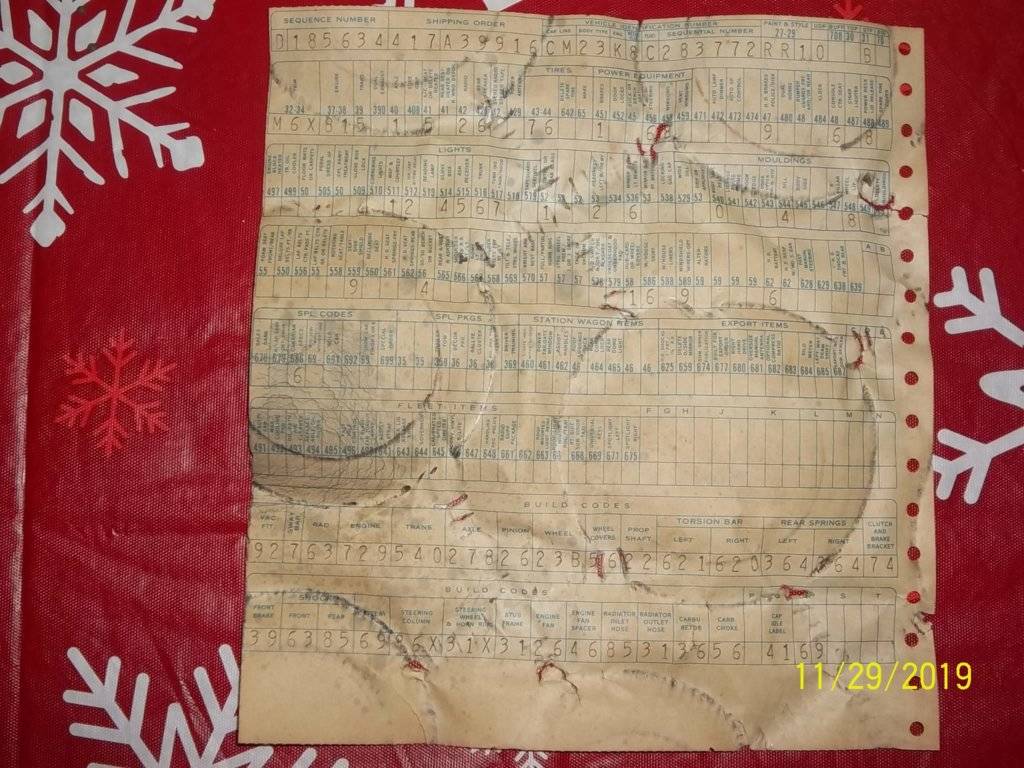

I've got a pic of my build sheet, will upload, i'm not sure how it will look. My scanner at the moment doesnt work.View attachment 333590

See www.mopardealer.com/decoding.htm
This is a partial list.

Dave
