WANTED Carb Linkage

[Omni]

Good Day All
Switching from a Carter 2V to a Carter AFB. Looking for the carb to bellcrank linkage (The one with the adjustable slotted end) for a '65 383 Newport.

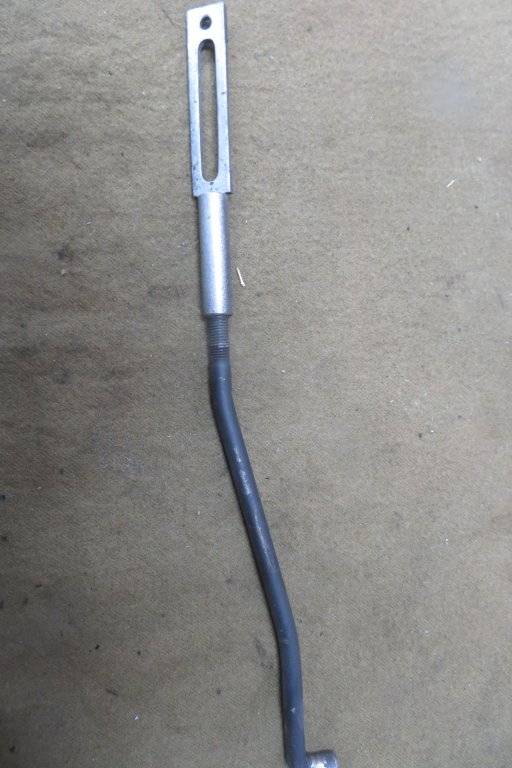

Here is pic of the 2BBL linkage for reference. For you number cruncher's I THINK the part # is 2465429. The description is unclear.
The slotted end is not necessarily needed.
Thanks to all who respond.
Omni



[azblackhemi]

For Sale - Kick Down Linkage

Not sure what they came off. $20 each plus shipping.

www.forcbodiesonly.com

Does the one in the top picture look like it will work?



[Omni]

Good Afternoon
Thanks for the reply.
It LOOKS like the 2 bbl linkage that I have.
Not sure what a 4 bbl link is suppose to look like....
Omni



[jollyjoker]

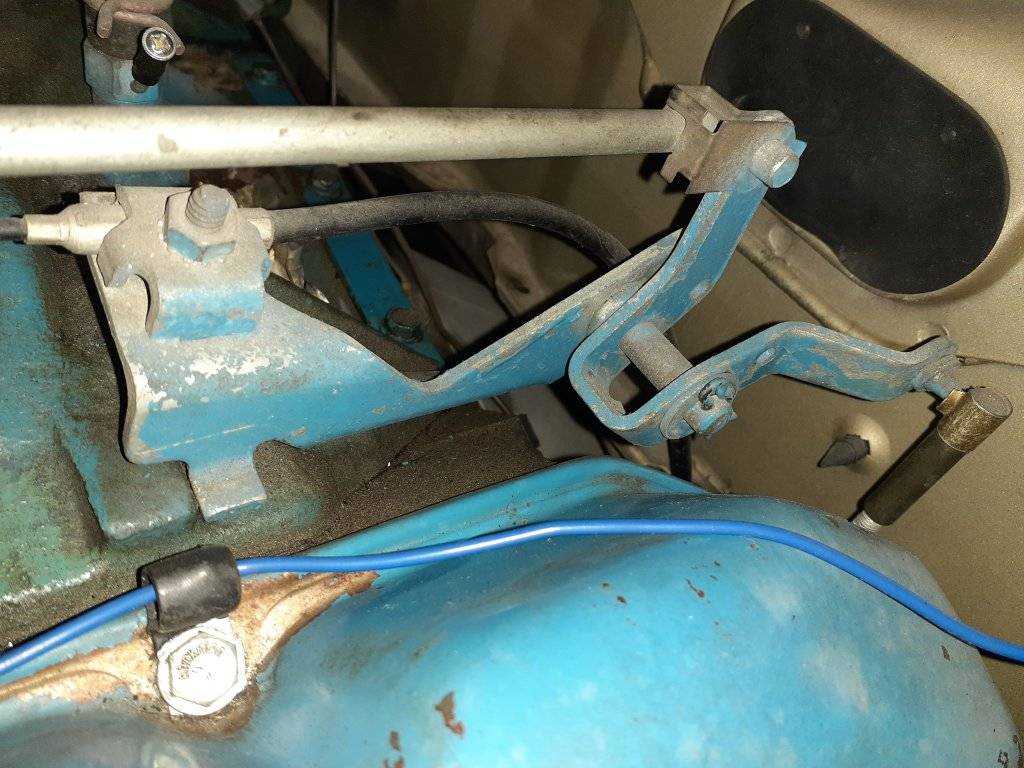

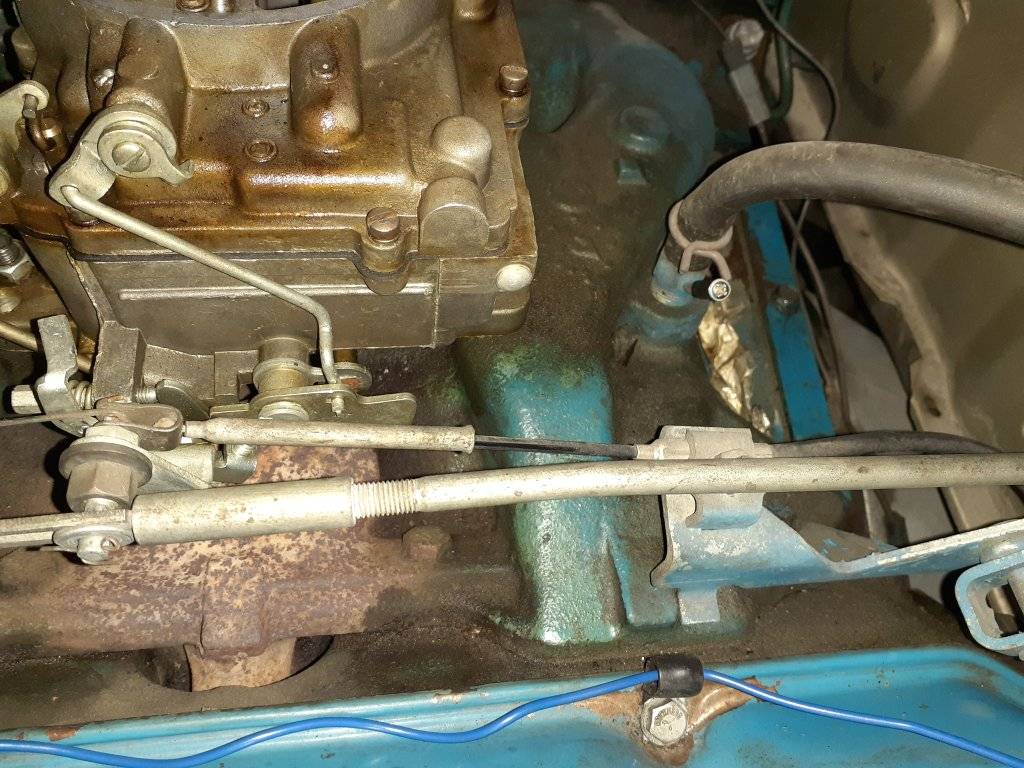

Don't know if this will help, or not. This is the AFB linkage on 65 413. My 65 383 AFB appears to be identical . . .



[azblackhemi]

Does this look like it will work?



[jollyjoker]

Curious, so I went back to my trusty parts book. Looks like bell crank to carb rod is same for everything (#2268356). That's the rod with the slotted end. But the bracket lever to bell crank rod is different between 2 and 4 bbl. That's where you need the #2465429 rod.



[Omni]

J Joker

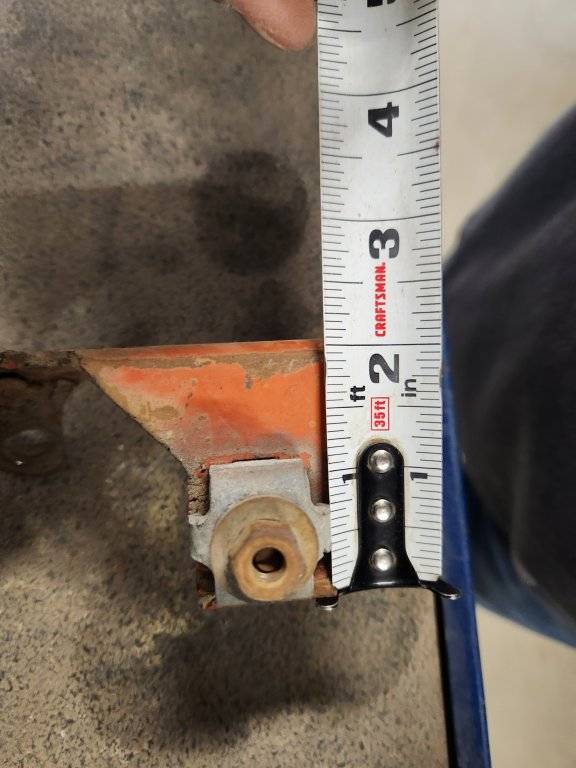

Great pic. The cable bracket that I have now (2BBL) is set further inboard, approx 3/4 inch. My '65 parts book lists the bracket as 2465425. Says it 383 (partial (?) Doesn't mention any other V8.



[patrick66]

I used the 2-bbl 361 linkage on my '66 Coronet for a long time. After sorting through my linkages, I found the right 383 4-bbl in my stash. If I have a second one, I'll let you know.

The 3/4" offset for the cable makes a big difference, though it wouldn't appear so, by just a visual glance.



[Omni]

Thank You Patrick66



[cudamark]

Good Day All
Switching from a Carter 2V to a Carter AFB. Looking for the carb to bellcrank linkage (The one with the adjustable slotted end) for a '65 383 Newport.
Here is pic of the 2BBL linkage for reference. For you number cruncher's I THINK the part # is 2465429. The description is unclear.
The slotted end is not necessarily needed.
Thanks to all who respond.
Omni
View attachment 588967

I show 2536828 as being the proper cable bracket for the bell crank on a 4bbl 383 (different than the 413/440), and 2536429 being the correct carb to bell crank rod for a 383. This is in the factory '66 parts manual however.
