Choke / WOT issue Carter AVS

Engine, Transmission & Driveline

  1. Stoffauge

    Stoffauge Member

    Messages:
    94
    Likes Received:
    9
    Joined:
    Feb 6, 2020
    Location:
    Germany
    Hello all together.

    I bet there were lots of carb issues but I hope to challenge you with this one!

    71 Sport Fury 383 CARTER AVS 4BBL

    Ignition checked and reset to 8-9 degress before tdc

    Carb rebuild and adjusted (fast idle speed cam, vacuum kick, acc pump, sec throttle lever, sec air valve etc pp)

    Problem 1: CHOKE valve goes wide open right away while cranking cold engine

    Car won´t start without keeping choke valve almost closed MANUALLY BY HAND because it wide opens while cranking the cold engine and the engine dies right away ! Starts without any problem if holding choke valve almost closed by hand till it warmed up and runs good after that.

    Problem 2.

    WOT not possibe without backfiring or spitting some gas out of the bowls. Did turn out the mixure screws while checking for highest vaccum via gauge (plugged in at choke outlet vaccum port . Got 15hg while idling) WIth choke plugged off WOT with the new screw adjustment ( very far turned out ) is almost 100% with no backfire and good but with choke assembled and attacjed WOT is doing hickups/dies and sometimes backfiring after 2-3 times WOT in a row.

    Hope I did describe it detailed enough. If not just ask .

    I am VERY excited what you guys will tell me because I am at the end of my carb knowledge.

    SO lets go :D






  2. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,984
    Likes Received:
    1362
    Joined:
    Mar 27, 2011
    #1 -- Where is the automatic choke thermostat? The choke plate is offset so that air flow will pull it open, by design, but without the automatic choke thermostat to modulate the valve, plus the vacuum break pull-off, you get what you've got. It should be in the well on the rh side of the intake manifold, with its rod being in the circular slot that attaches to the choke plate's shaft.

    #2 -- The idle screws only affect the idle mixture, probably below 1000rpm and before the main system starts flowing fuel. The choke linkage has a WOT lock-out feature on it to prevent WOT while the engine is cold and before the choke is open a good bit.

    All for now,
    CBODY67

  3. 413

    413 Well-Known Member

    Messages:
    826
    Likes Received:
    258
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    MOve the accerator pump linkage. To the outer Of the 3 holes. Is the accelerator pump pumping fuel?

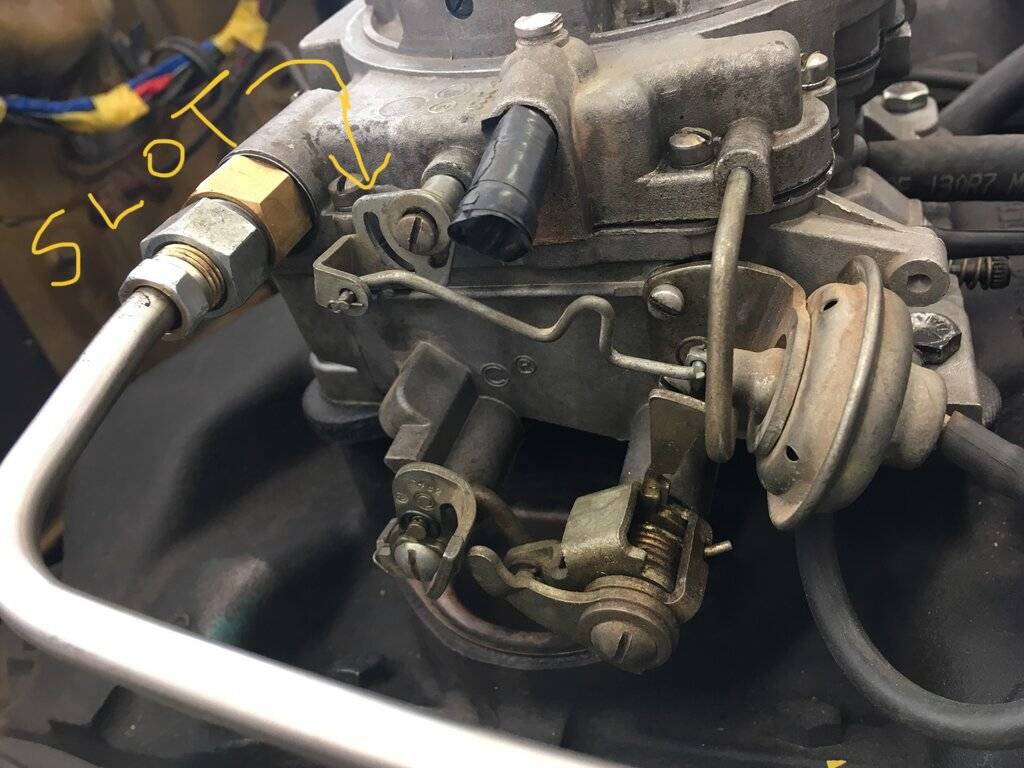

    You are missing the choke thermostat. Choke will not close on its own, you need this part. 1970-1971 383 & 440 AVS the same, Holley different. You have the choke pull off rod in the wrong hole, it goes in the slot. And choke goes on the hole where the rod is now.


    • Thanks! Thanks! x 1
    • Agree Agree x 1
  4. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    12,676
    Likes Received:
    5467
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    I was going to say your divorced choke is weak, but it's missing so there's your problem.
    The backfiring at WOT is most likely ignition related. Without the choke being held open by the divorced choke and the vacuum falling off at WOT that could also be a issue.
    Your timing should be set more like 10-12-14 degrees BTDC initial or around 35-36 degrees total at around 3500 rpm. You will get better mileage, more throttle response and power. This is as long as your not getting any detonation.

  5. Stoffauge

    Stoffauge Member

    Messages:
    94
    Likes Received:
    9
    Joined:
    Feb 6, 2020
    Location:
    Germany
    Good morning guys

    Hoped to wake up to a bunch of nice answers :)

    First to say: How you see the carb, is how I got it. I never ever had anything to do with carbs before and thats why I didnt notice that something is missing. I put it back together like it was before so I took all the issues with me. Hope that makes sense :)

    So whats the part called excactly that I need ? Automatic choke thermostat or electric choke thermostat or is it the same?And that part goes in the slot where the choke rod is right now ? Hope I can get it seperatly.

    @413: The acc pump is new and all gaskets. How do I check if the acc pump is pumping fuel? With the outer hole you mean the one on the very bottom right?

    Ignition: Gonna check that later when the carb is complete and advance it more to 12-14. (Don´t have lightning gun so I did it manually with the scale on the vibration damper)

    Ok I am happy to hear a part is missing instead of doing biiig mistakes.

    Thanks for now gonna check for that part and keep you updated.

    F



    EDIT: Guess I found it . Damn thats pricey! Hope to find a aftermarket part maybe...
    https://quadrajetparts.com/divorced-choke-carter-p-2354.html

    Last edited: Feb 18, 2021
    • Like Like x 1
    • Thanks! Thanks! x 1
  6. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,984
    Likes Received:
    1362
    Joined:
    Mar 27, 2011
    Thanks for that link. Price in USD seems about right to me, all things considered.

    CBODY67

  7. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,184
    Likes Received:
    8877
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    I have a used one sitting on the shelf in my garage. I believe it’s from a 70 fury. I will take a few pictures of it . Maybe it will work for you. It’s in pretty good shape.

  8. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,184
    Likes Received:
    8877
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

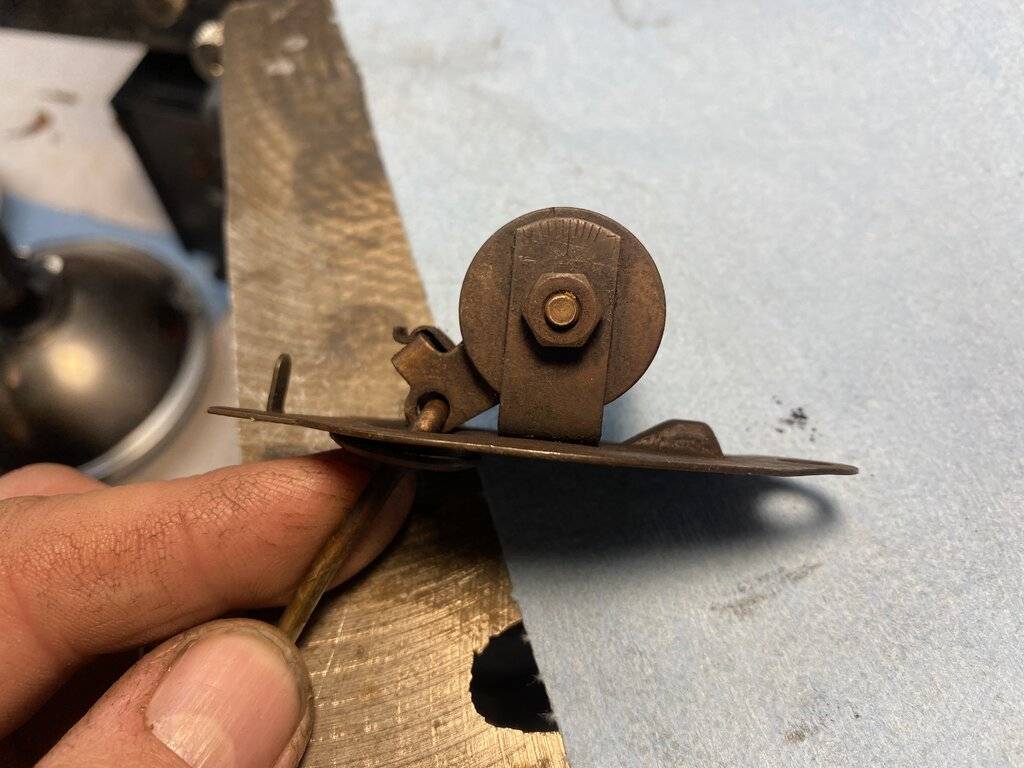

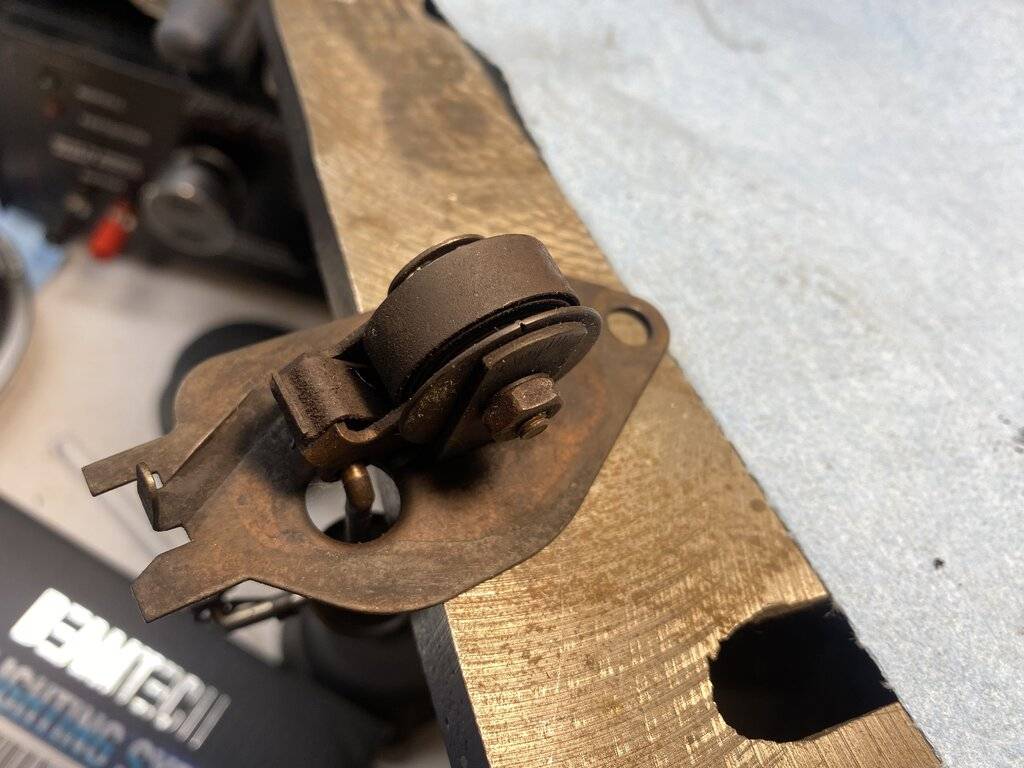

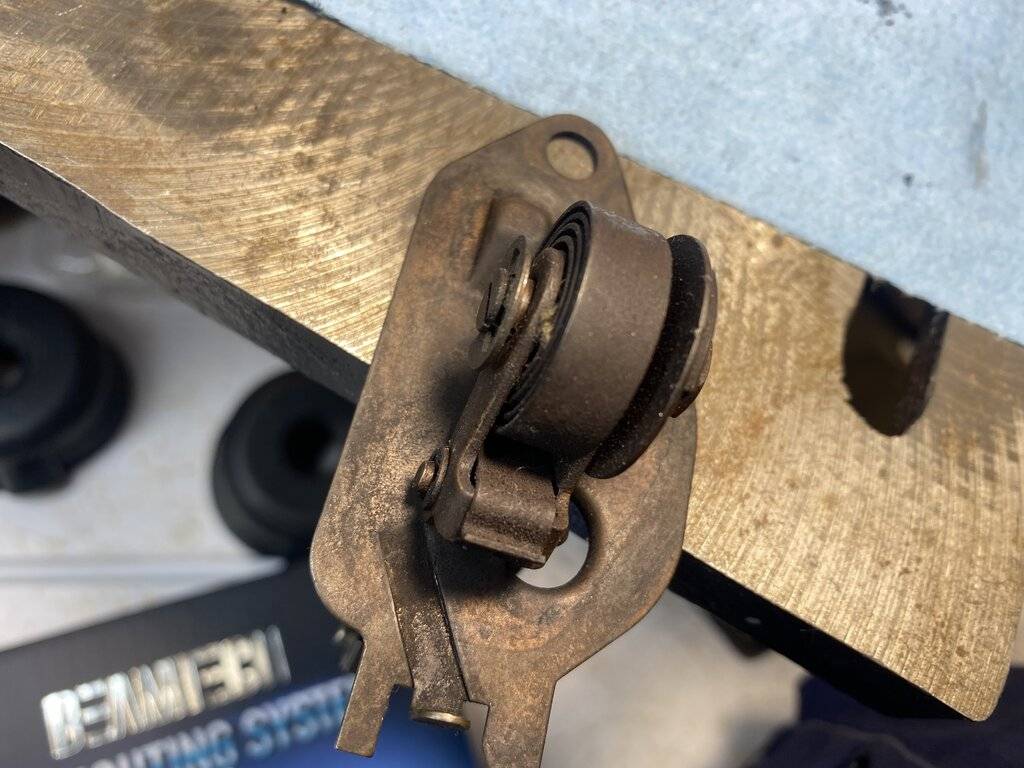

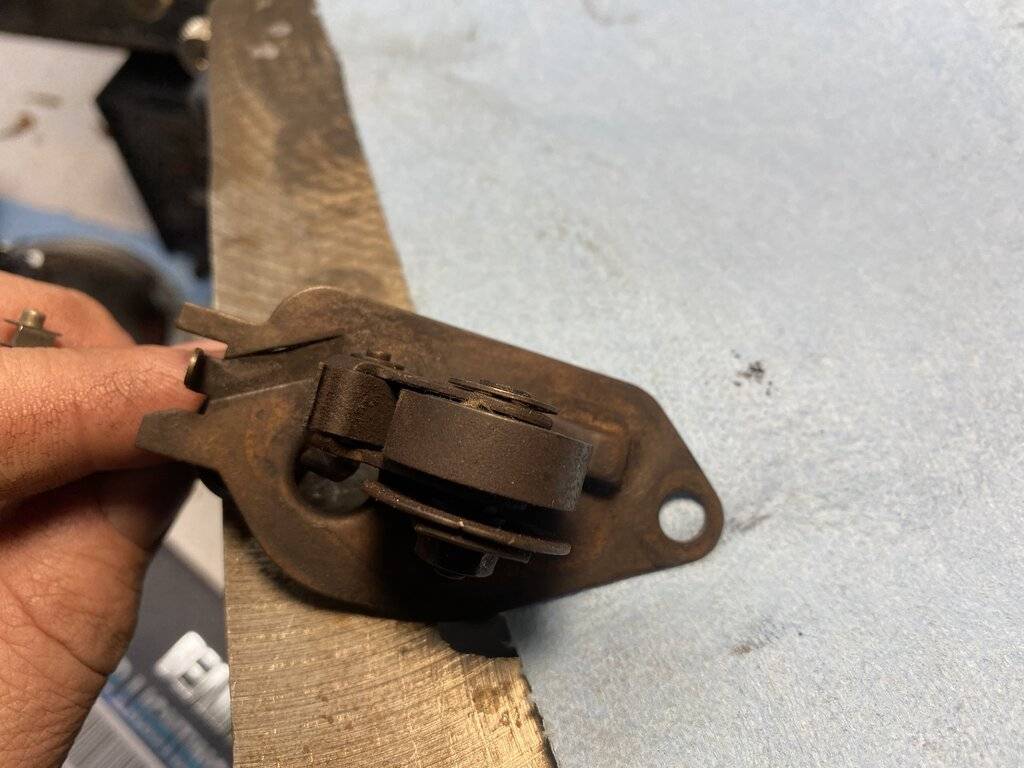

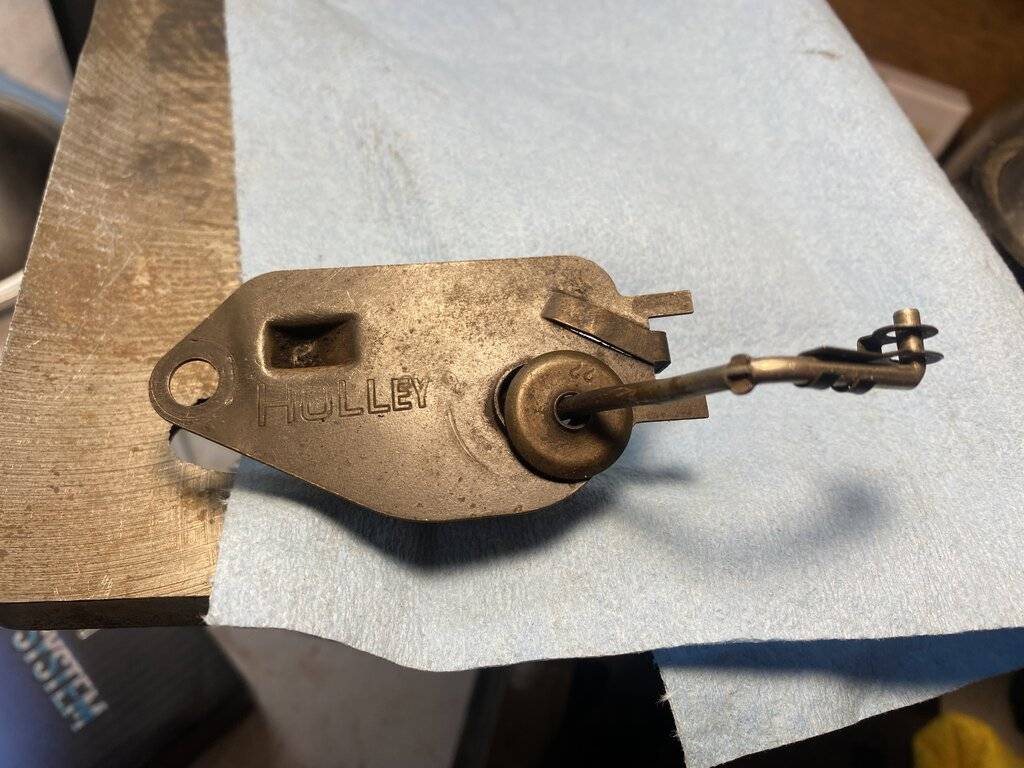

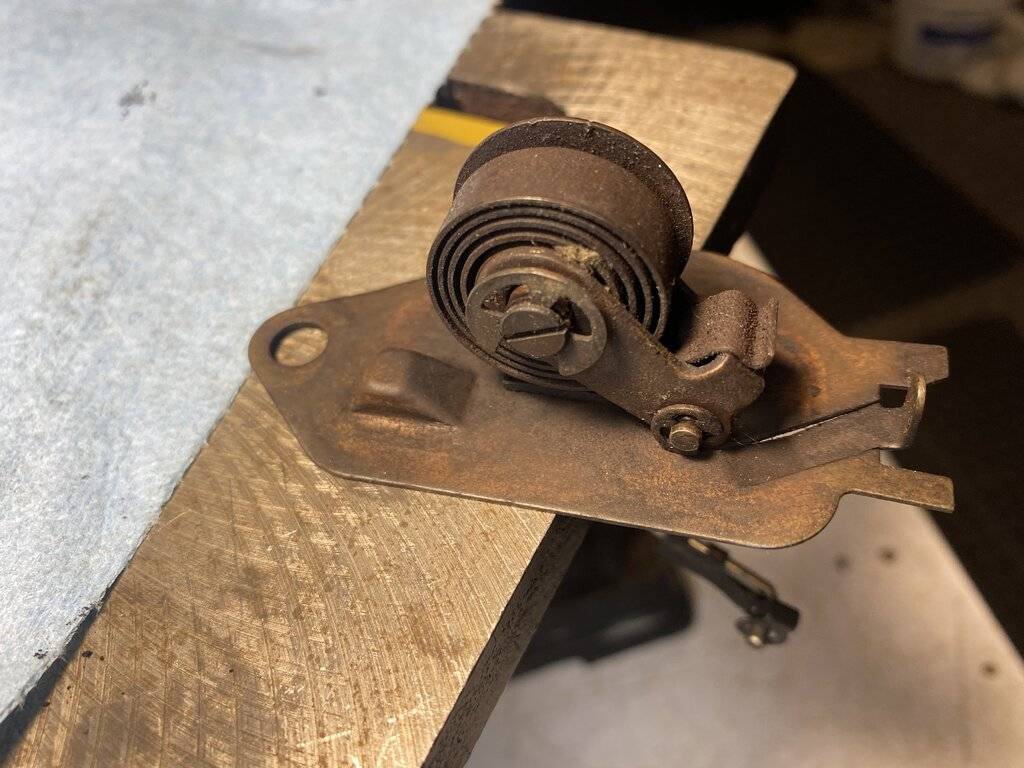

    Well I do have one but it’s for a Holley, I’m not sure if it will work properly on your Carter . I don’t know if the linkage is the same . E43DF70D-7A82-443F-81B6-0A6BE98194E2.jpeg E6926B29-E503-4823-8F9F-8D924DAE06E7.jpeg 76F421CE-ED38-483A-9260-052182B4F244.jpeg AFE6C430-A842-42EA-8884-03E2C22391F1.jpeg 3CEE5E3D-8197-4FEC-ABD5-A534F56C989C.jpeg 5E0DA51C-C36B-4DAC-B68E-6844B44F0473.jpeg 5115BED8-1458-40CE-B774-8172635BCC88.jpeg 3E52AA4D-C156-40A9-93B4-BB9E9DEE86FD.jpeg

  9. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,184
    Likes Received:
    8877
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

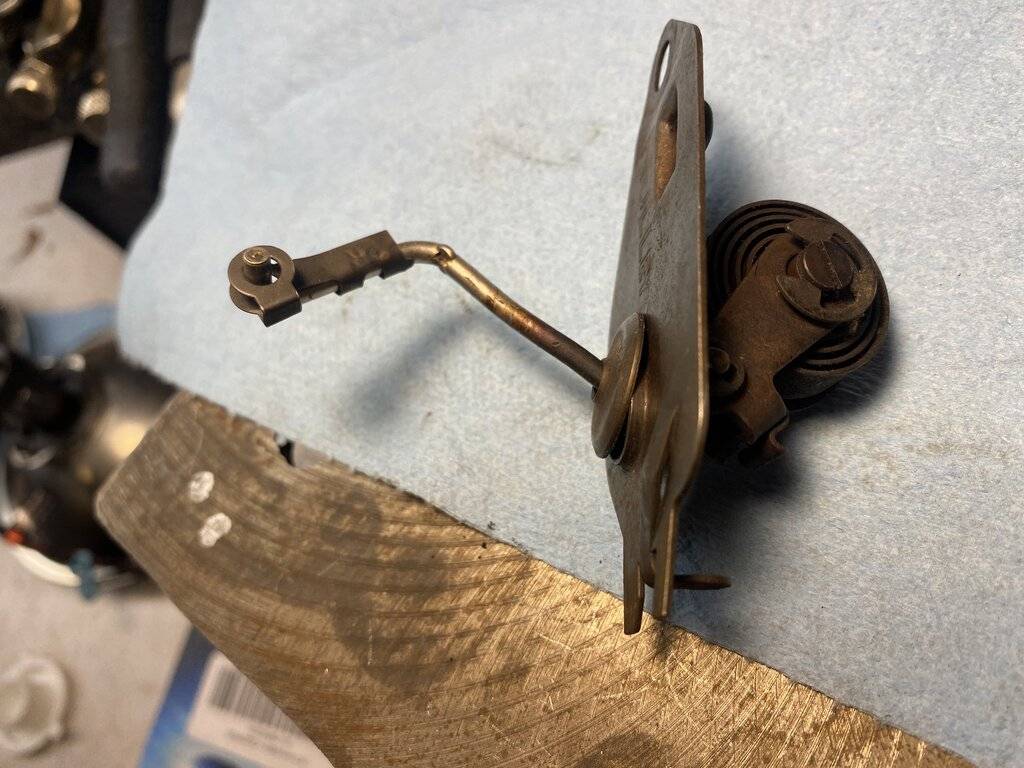

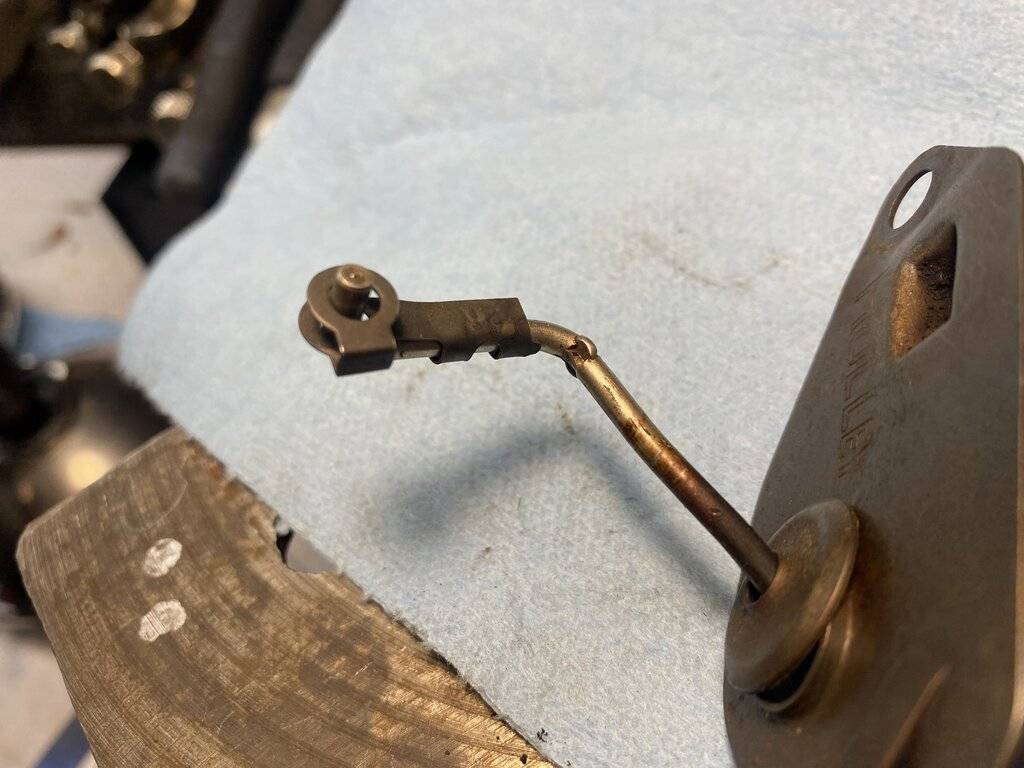

    218F6BC7-ADD5-4C43-A822-AA51AD1070BC.jpeg 911D82CD-01C5-466A-8DA8-0374B7F34669.jpeg E7C9BCA5-A886-41E2-BCE0-BC58B17EA916.jpeg

  10. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,984
    Likes Received:
    1362
    Joined:
    Mar 27, 2011
    With the "Holley" imprint, is that a Holley-brand thermostat for a Carter AVS?

  11. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,184
    Likes Received:
    8877
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    Well I’m guessing it’s for a Holley

  12. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,184
    Likes Received:
    8877
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    I just don’t know for sure

  13. 413

    413 Well-Known Member

    Messages:
    826
    Likes Received:
    258
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    That one is for a 67-69 intake and a Holley carb. Won’t work no-how.

    Compare the bends in the rod to the one in his link above. Very different Carter to Holley choke thermostats.

    Last edited: Feb 18, 2021
    • Agree Agree x 2
  14. Dana

    Dana Woodruff Carburetor Specialties FCBO Vendor

    Messages:
    391
    Likes Received:
    475
    Joined:
    Sep 17, 2011
    Location:
    Youngstown
    ^^^^this^^^

  15. Stoffauge

    Stoffauge Member

    Messages:
    94
    Likes Received:
    9
    Joined:
    Feb 6, 2020
    Location:
    Germany
    Morning guys,

    called a buddy yesterday and he has a good used choke thermostat from the same Carter AVS. Guess that will work.

    After it´s installed I am gonna advance the timing a tiny bit more and see if the WOT problem is getting better or not :)

    • Like Like x 1
  16. Stoffauge

    Stoffauge Member

    Messages:
    94
    Likes Received:
    9
    Joined:
    Feb 6, 2020
    Location:
    Germany
    Ok guys attention :D

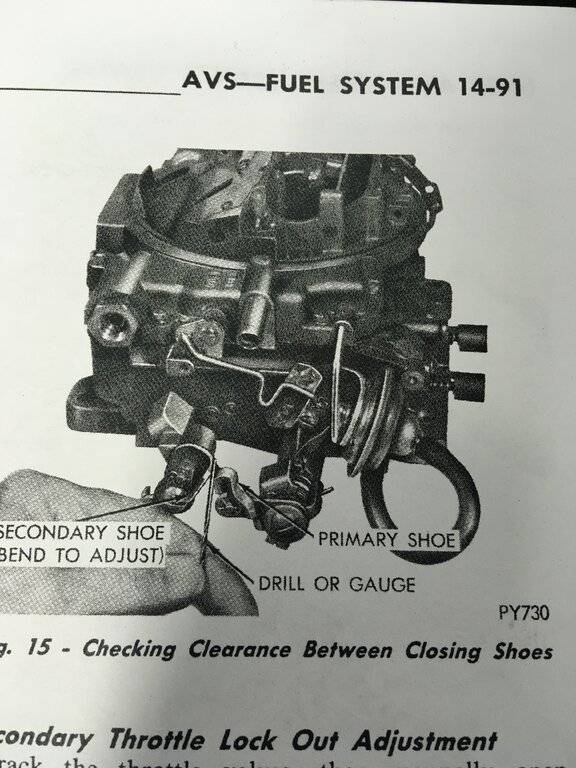

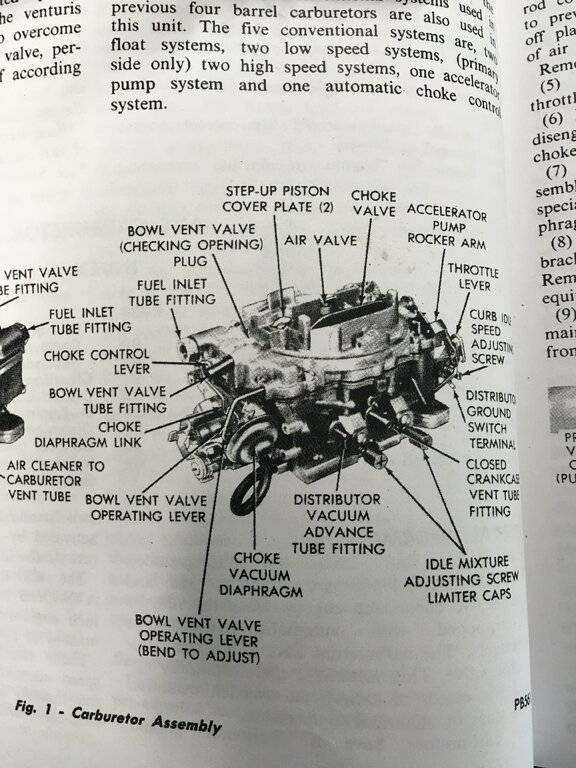

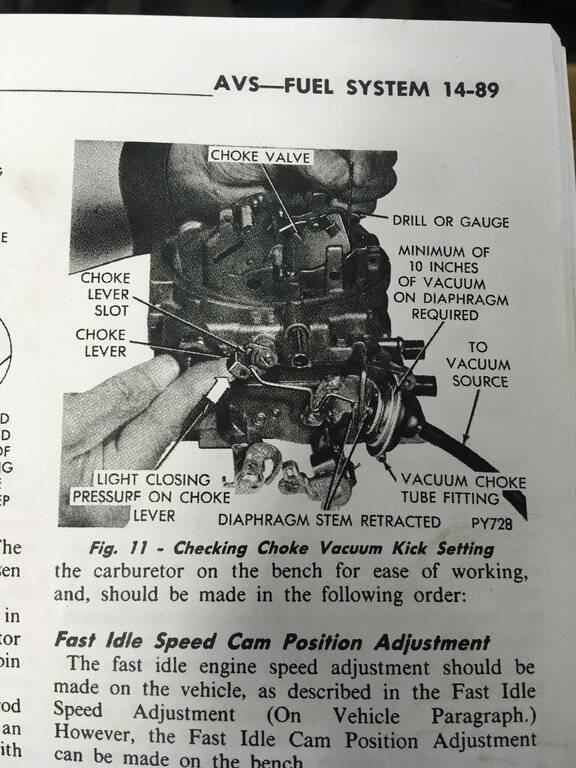

    Checked my fsm again because couldn’t believe I’ve overseen the choke thermostat and not noticing that it’s missing and boom !: no damn choke thermostat on one picture and no word said about also !

    So what’s going on here ? Don’t I need that part ? But then why is my choke not working ? Weiiiird!

    Looking for help :)




  17. ceebuddy

    ceebuddy Well-Known Member

    Messages:
    786
    Likes Received:
    405
    Joined:
    May 13, 2014
    Location:
    Frankfurt, Germany
    Stoffauge, the divorced choke thermostat spring is not an integral part of the carb, but is attached to the choke well in the intake manifold. It actuates the choke shaft via a steel rod that goes in the hole of the choke lever, as was mentioned earlier.

    Yes, you do need it, or any other device closing the choke valve in relation to cold engine temperature, unless you live in a very warm climate and/or do sunmmer driving only. Otherwise the cold engine will get too much air and too little fuel into the cylinders as fuel vapor will condensate on the cold intake runners, etc. Plus the choke thermostat spring also is in charge of raising the cold idle RPM, which is effected by the lever mechanism on the driver's side of the carb, actuated by the driver's side end of the choke shaft, which in turn, is moved by the choke thermostat spring.

    Aftermarket carbs often have electric chokes, which basically are the same spring (but mounted to the side of the carb itself) and also actuating the choke shaft via a tiny rod. These springs are heated up electrically when the igintion is turned on, whereas the original setup is mechanically reacting to the heat of the exhaust gas in the crossover of the intake manifold (so the original setup is somewhat more sensitive to actual engine temperature).

  18. Stoffauge

    Stoffauge Member

    Messages:
    94
    Likes Received:
    9
    Joined:
    Feb 6, 2020
    Location:
    Germany
    Alright that was the answer I was looking for . So it’s not on these picture because it’s more belonging to the intake manifold part of the fsm ? I am gonna get the one I posted earlier with the link . It’s for a 6125s I have from 71. it’s pricey but I want it original .

    thanks for the help .

    the wot is still present but gonna get the timing a bit more advanced and see how it’ll work out .

  19. ceebuddy

    ceebuddy Well-Known Member

    Messages:
    786
    Likes Received:
    405
    Joined:
    May 13, 2014
    Location:
    Frankfurt, Germany
    Here is a link to a reproduction item, which is a couple of bucks cheaper. I have no clue if these are any good.

  20. 413

    413 Well-Known Member

    Messages:
    826
    Likes Received:
    258
    Joined:
    Jan 28, 2019
    Location:
    NW USA

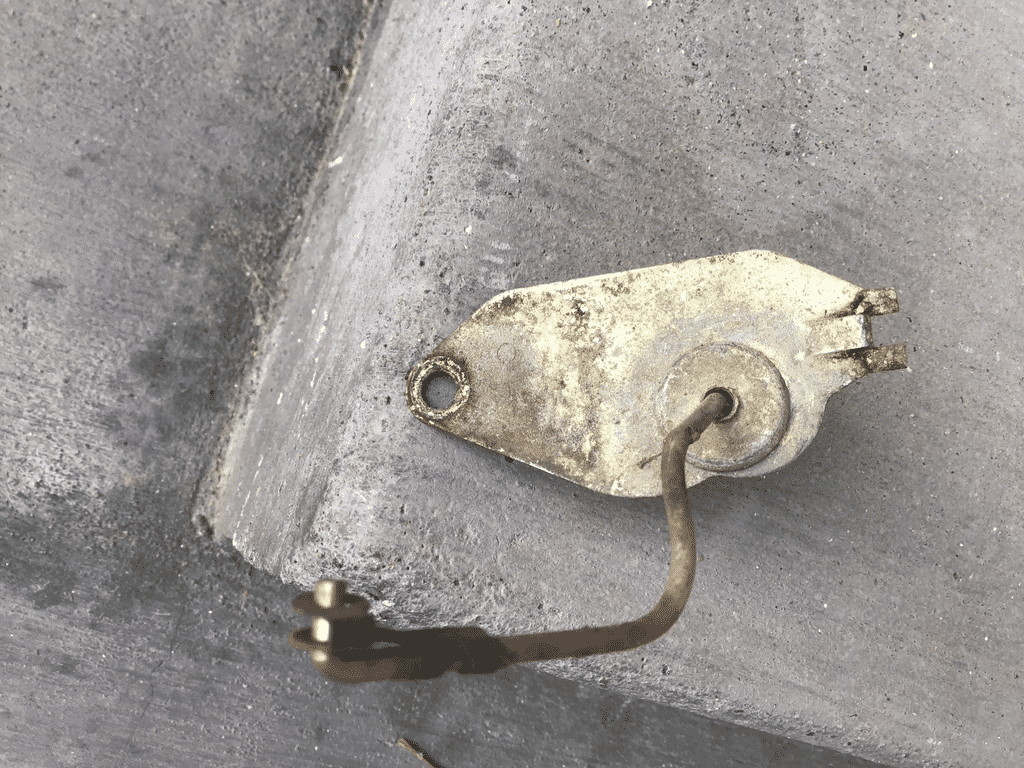

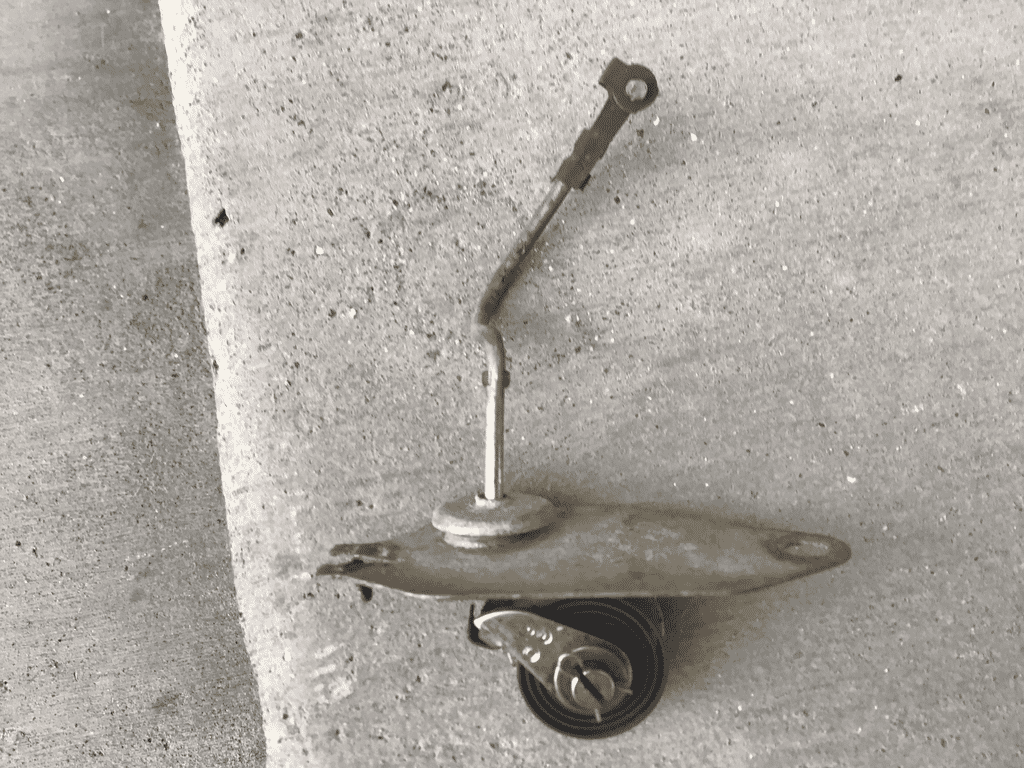

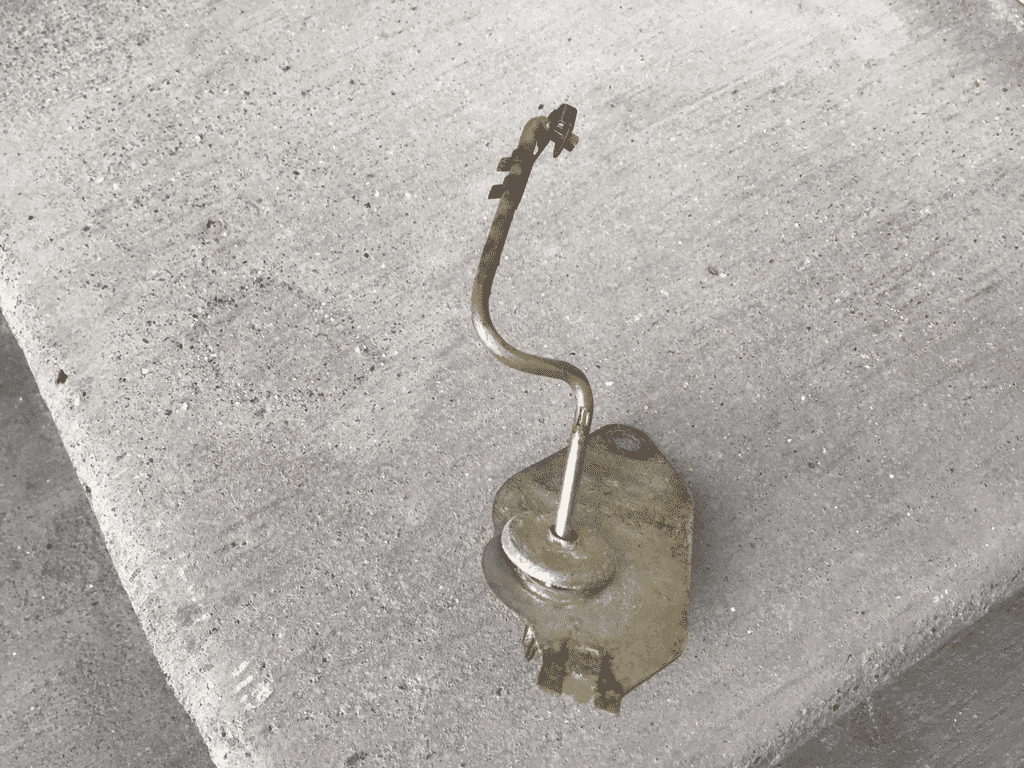

    Here is one from a 67-69 for an AVS. Compare to the Holley choke in post #9. Different rod. Similar flat mounting plate.

    Im Just showing this to compare to the 67-69 Holley choke in post #9.

    yes he needs the domed one. He has the correct on in his link in post #5



    Last edited: Feb 19, 2021
