Current cam 180 deg out ?

Engine, Transmission & Driveline

  1. ofb383

    ofb383 Member

    Messages:
    53
    Likes Received:
    16
    Joined:
    Nov 28, 2019
    Location:
    UK

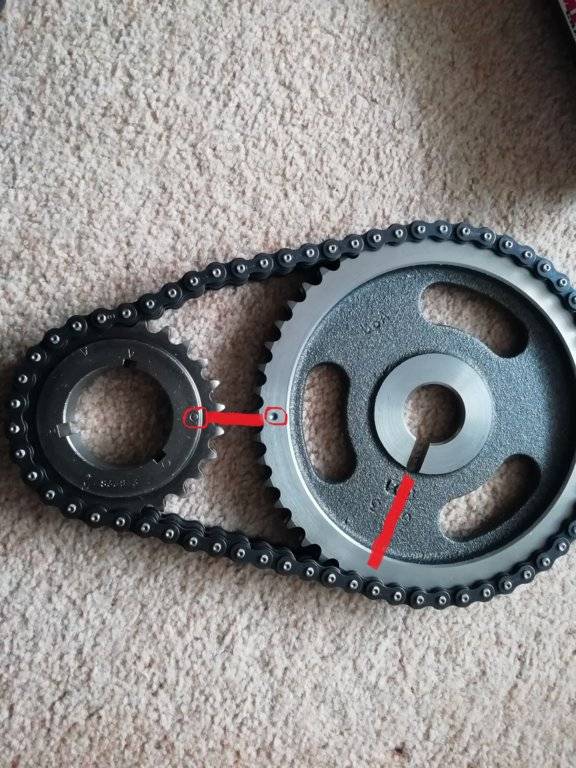

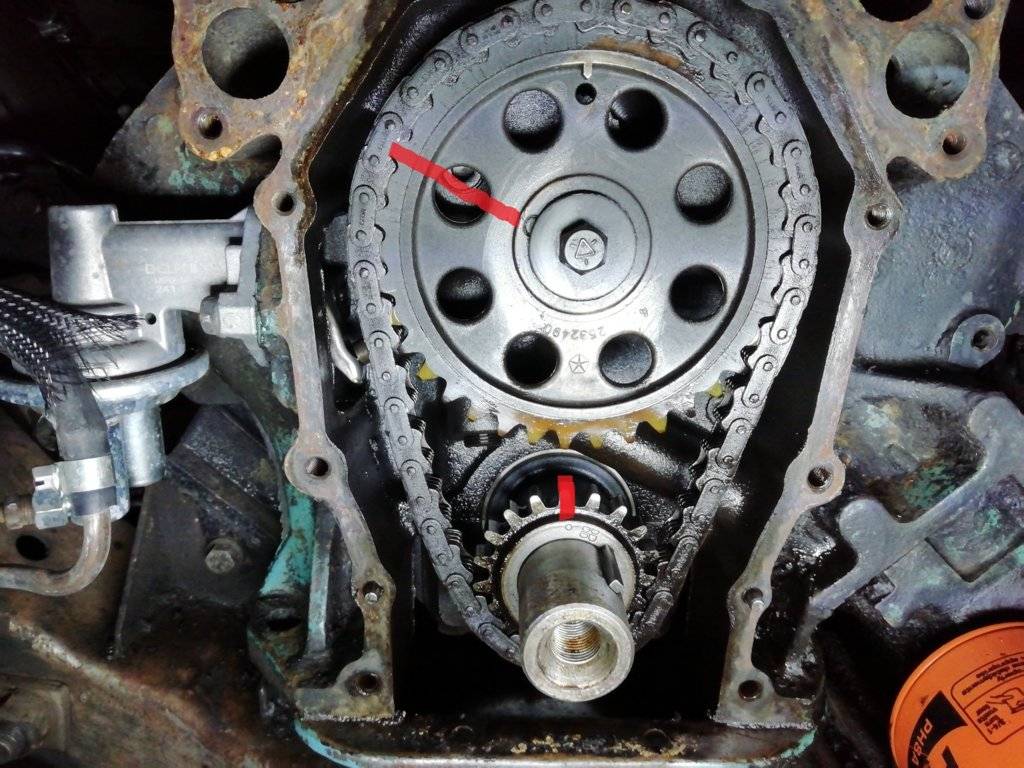

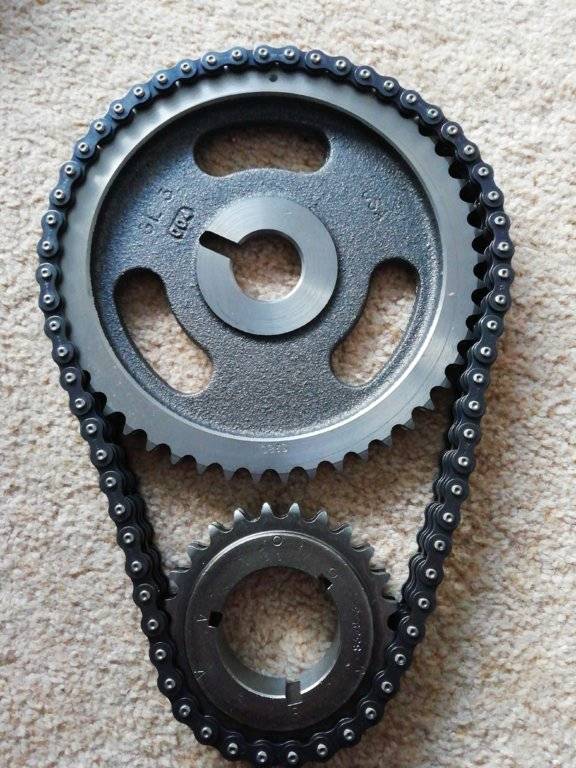

    Ok guys, this looks odd to me, looking at these photos, the current set up in the car and when compared to the new equipment going in, crank at TDC No 1, there looks to be 180 difference in the cam gear position / cam position ?

    Did someone put the current one in 180 deg out ? you can see the marker and its up the top and kind of looks like it's pointing down :confused:

    Cam timing 1.jpg

    Cam timing 2.jpg

  2. CBODY67

    CBODY67 Senior Member

    Messages:
    4,139
    Likes Received:
    966
    Joined:
    Mar 27, 2011
    Here's something from the small block Chevy world, which I learned from my machine shop operative/engine builder.

    Normally, with "dot-to-dot" we PERCEIVE that the engine is at #1 TDC AND is firing #1 cylinder. When, in fact, #6 cylinder cylinder (also at TDC, as it's 180 degrees away from #1 in the firing order), is firing. Actually, with the #1 at TDC AND FIRING, it's "dot top" on the cam sprocket and "dot top" on the crank sprocket.

    The engine will not start/run with the cam 180 degree OUT from the distributor.

    CBODY67

    • Agree Agree x 4
  3. ofb383

    ofb383 Member

    Messages:
    53
    Likes Received:
    16
    Joined:
    Nov 28, 2019
    Location:
    UK
    My assumption put me wrong and the current setup correctly installed, everyday is a learning day. So dot top is the correct way


  4. CBODY67

    CBODY67 Senior Member

    Messages:
    4,139
    Likes Received:
    966
    Joined:
    Mar 27, 2011
    Given the multi-keyway crank sprocket, make sure it's at "0" and not "+4" or "-4" locations. Which should be in the instructions.

    CBODY67

    • Like Like x 1
  5. Badvert65

    Badvert65 Active Member

    Messages:
    415
    Likes Received:
    235
    Joined:
    Oct 10, 2013
    Location:
    Brightwood, Virginia
    Spin your crank one time and you will see the marks properly align.
    There are two times the piston is at the top of the bore, once for the power stroke (TDC) and the other time for the exhaust stroke. You just have the crank at the top of the exhaust stroke (#1) in the picture.
    Most install directions will state "TDC - Compression stroke", but not always.
    Yes, Mopar big block engines are "dot to dot".

    Last edited: Dec 8, 2019
    • Like Like x 1
    • Thanks! Thanks! x 1
  6. ofb383

    ofb383 Member

    Messages:
    53
    Likes Received:
    16
    Joined:
    Nov 28, 2019
    Location:
    UK
    Yes 0 at the top gives me the correct position for 0 key and tdc on 1

    • Thanks! Thanks! x 1
  7. CBODY67

    CBODY67 Senior Member

    Messages:
    4,139
    Likes Received:
    966
    Joined:
    Mar 27, 2011
    Also be sure to put the distributor drive "gear" in the correct orientation upon reassembly.

    • Thanks! Thanks! x 1
  8. ofb383

    ofb383 Member

    Messages:
    53
    Likes Received:
    16
    Joined:
    Nov 28, 2019
    Location:
    UK

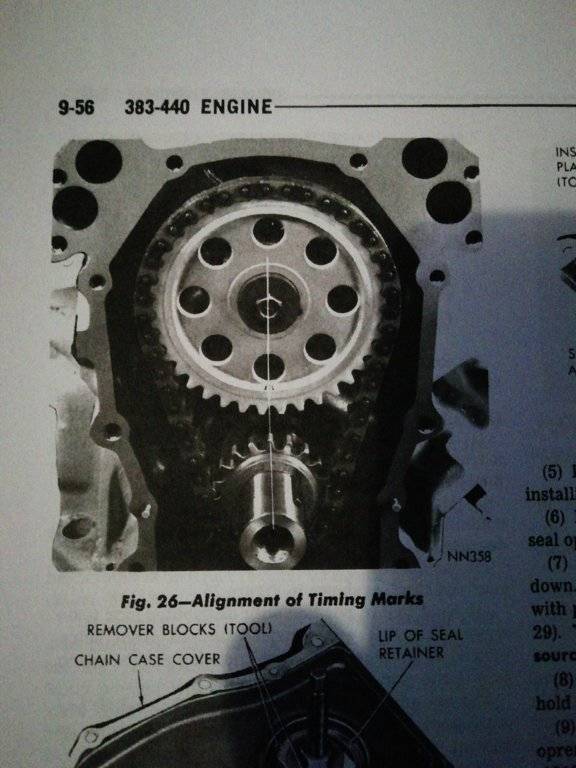

    Just found this in the book, dot to dot


  9. Badvert65

    Badvert65 Active Member

    Messages:
    415
    Likes Received:
    235
    Joined:
    Oct 10, 2013
    Location:
    Brightwood, Virginia
  10. stubs300

    stubs300 Senior Member

    Messages:
    2,063
    Likes Received:
    862
    Joined:
    Oct 30, 2011
    Location:
    Free America
    The book is loaded with good info, use it!

    • Like Like x 2
    • Agree Agree x 2
  11. CanCritter

    CanCritter Senior Member

    Messages:
    4,637
    Likes Received:
    3803
    Joined:
    Apr 9, 2014
    Location:
    alberta
    [QUOTE="Badvert65, post: 814333,
    Yes, Mopar big block engines are "dot to dot".[/QUOTE]

    .........phew......

    • Like Like x 1
  12. ofb383

    ofb383 Member

    Messages:
    53
    Likes Received:
    16
    Joined:
    Nov 28, 2019
    Location:
    UK
    :lol: I forget what I downloaded it and printed it off months ago

  13. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    11,685
    Likes Received:
    4802
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Dot to dot gives you TDC on exhaust stroke. Dot to Dot on top gives you TDC on compression stroke and where you want to ensure oil pump drive gear is pretty close to parallel with cam then you can drop distributor in with rotor pointing to #1 cylinder terminal on the cap. At this point you should be able to see a almost lined up notch on dist flange and lip on the block if you line them up you will be ready to start up.

    • Like Like x 1
    • Thanks! Thanks! x 1
    • Disagree Disagree x 1
  14. ofb383

    ofb383 Member

    Messages:
    53
    Likes Received:
    16
    Joined:
    Nov 28, 2019
    Location:
    UK
    I did notice that the slot for the dizzy was almost parallel with the cam before I removed the oil pump drive:thumbsup:

  15. Timothy

    Timothy New Member

    Messages:
    14
    Likes Received:
    4
    Joined:
    Mar 15, 2018
    Location:
    Buffalo NY
    There can only be one way to time the cam correctly. The BB book I have by HP books say the timing marks must face each other on a centerline between crank and cam.
    I haven't checked my Motor Manual which I usually go by.

  16. Badvert65

    Badvert65 Active Member

    Messages:
    415
    Likes Received:
    235
    Joined:
    Oct 10, 2013
    Location:
    Brightwood, Virginia
    This is exactly correct. I have literally built many dozens of big block Mopars over the years and always done it this way, 'dot to dot', by the book.
