    Spoiler alert : if you're a purist, stay away from this thread ;)

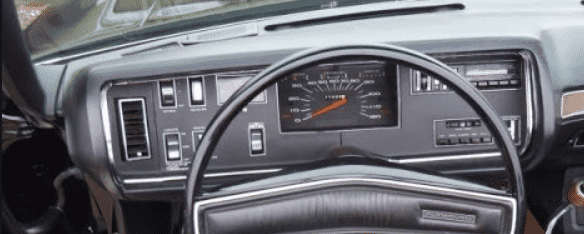

    Don't get me wrong, I love my '70 Sport Fury. But when it comes to the dashboard, I think they could have done a better job than this all-rectangular plain-vanilla cluster. It does not look out of place on the people-moving Fury I, but when you're behind the wheel of a 383 Sport Fury, it does not look the part (to me anyway). I think they should have done some "Rallye" version of that gauge cluster for the Sport Fury model.

    So I've been toying with the idea of making a custom gauge cluster. Something that would look like it has been designed in 1970, but more along the "Rallye" look, with round gauges. Somehow similar to the B-body rallye gauge cluster.

    I'm not saying I'm completely convinced. As I said, I'm toying with the idea ... So I'd like to see if someone already had that idea, and welcome any picture that would show their creation. Or any idea that you may have.

    Thank you.

    • Agree Agree x 1
  2. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    6,065
    Likes Received:
    1383
    Joined:
    Mar 27, 2011
    Maybe some gauges with numbers? As the police clusters might have had, with the Certified Speedometer? Seems like somebody has done a tach that goes into the clock space?

    CBODY67

    • Like Like x 1
  3. 69PHOENIX

    69PHOENIX Member

    Messages:
    174
    Likes Received:
    97
    Joined:
    May 27, 2019
    Location:
    Mystical Land of OZ
    Funnily Enough You've Reminded Me of a 65 Phoenix We Parted Out About Thirty Years Ago.
    Someone Had Managed to Fit a Small Electric Clock Dead Set in the Middle of the Horn Ring.
    Looked Factory.
    Tony.M

  4. 68 4spd Fury

    68 4spd Fury Well-Known Member

    Messages:
    973
    Likes Received:
    255
    Joined:
    Aug 17, 2014
    Location:
    Syracuse, NY

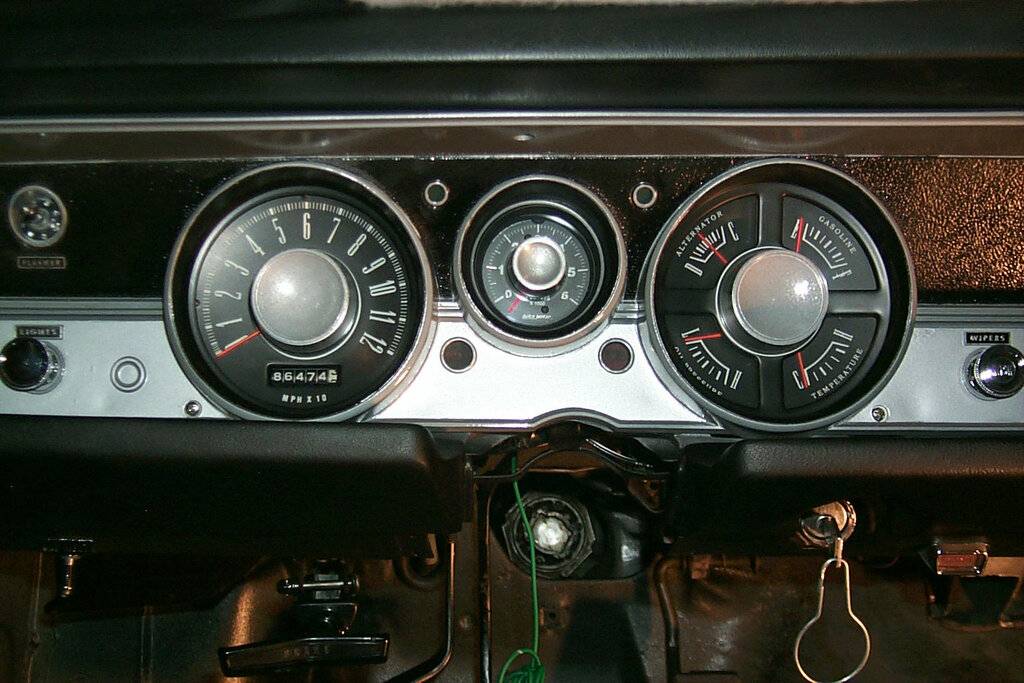

    I always liked what Chrysler did with the 67-69 A body Barracuda dash and this carried on into the Duster 340 at least for the first couple of years. I assume your looking for something to fit in the Norman area in front of the steering wheel? I think the police cars had an oil pressure gage where the clock would normally be but the fuel/amp/temp were still the same. instrumentsInCar.jpg

    • Like Like x 3
  5. barnfind

    barnfind Senior Member

    Messages:
    4,916
    Likes Received:
    5776
    Joined:
    Nov 20, 2014
    Location:
    Around Town

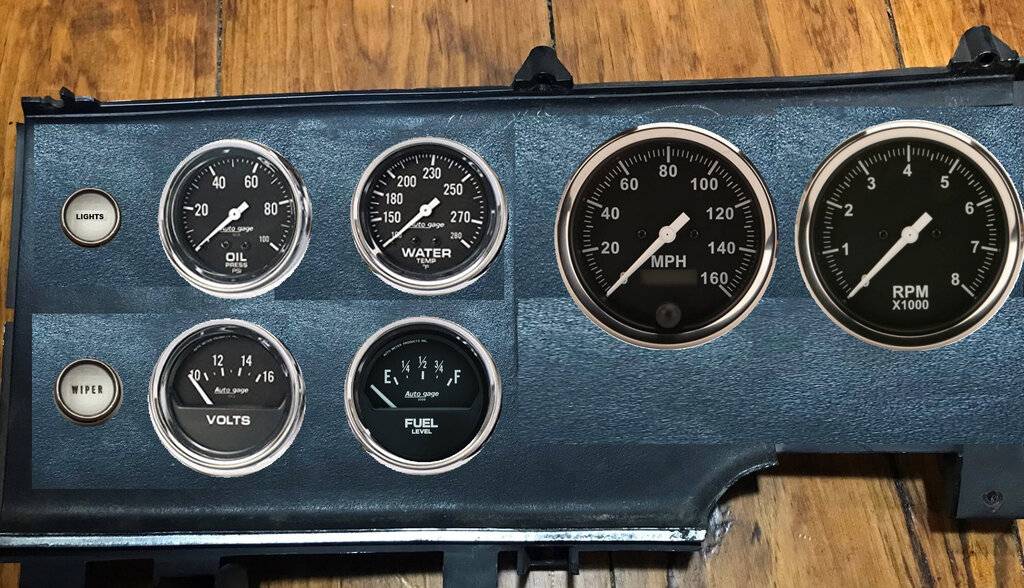

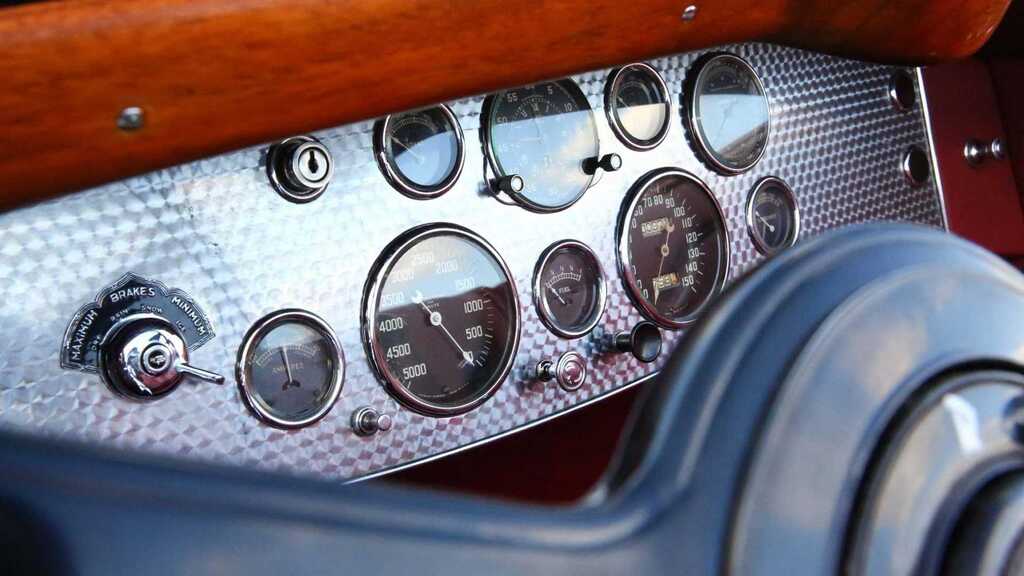

  6. bnz84

    bnz84 Active Member

    Messages:
    245
    Likes Received:
    166
    Joined:
    Feb 28, 2011
    Location:
    Maryland

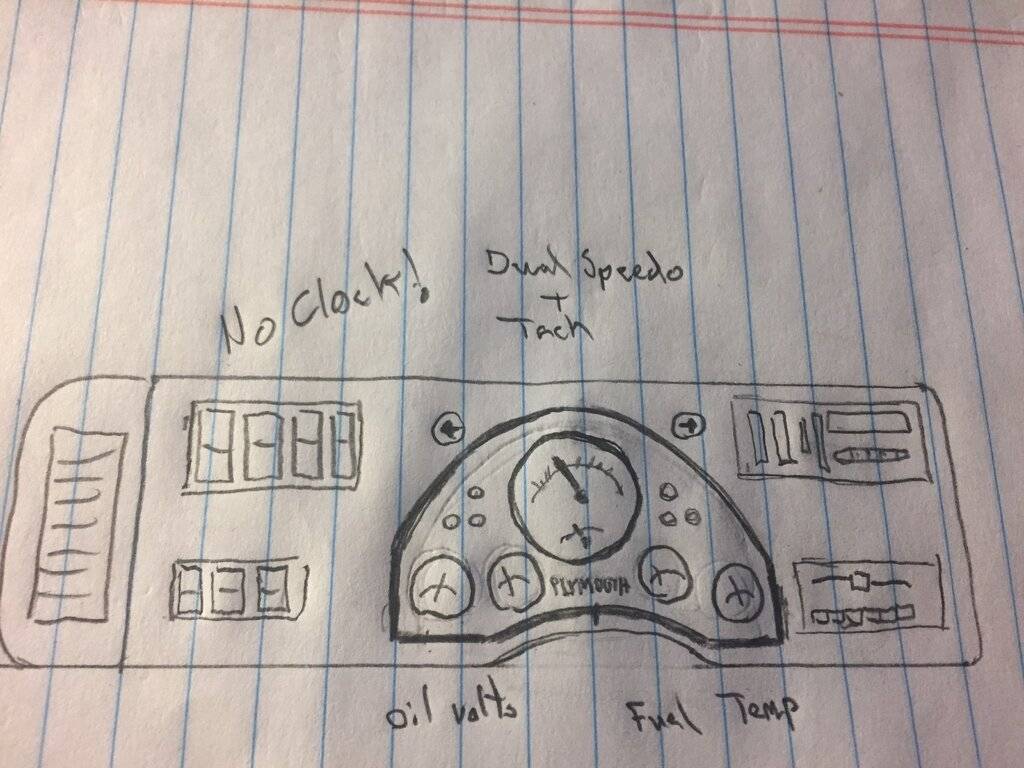

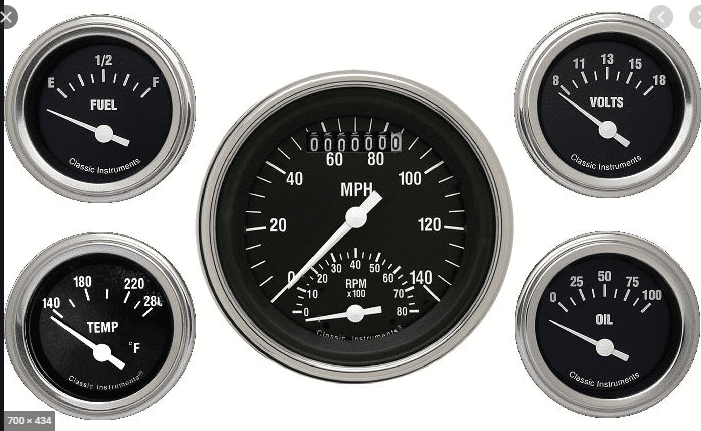

    OK, since I have the same dash how about this. Excuse my drawing. This assumes the radio and heater controls have to stay because of mounting issues. My thought was to be able to make this with modern gauges you choose. Same thing for switches but I'm not sure what to use. Gotta have some silver or chrome for accents. The center gauge would be dual speedo and tach and the whole center cluster would be recessed maybe 3/4 inch behind some clear. BUT the gauges themselves would have their trim rings outside the clear..on top. So recessed but protruding if that makes sense. The 3 little dots to left and right would be invisible idiot lights for whatever you want to wire there.

    The switches could be original although I would prefer modern rocker and/or knob. All switches would be mounted to a mount from behind panel that can hold 1 or many switches. Even USB ports. But I gotta be carful it doesn't look like an 18 wheeler or race car. Gotta be classy. Again silver trim around holes like original. Turn signal flush mounted left and right. And the whole thing would be in a custom piece of plastic with holes you make. No original plates need be sacrificed. Center pod would be centered on steering wheel line of site. One of the big things here....no clock. Might be a deal breaker for some. I know there is so many ways to do this and the gauge font would be important as well as plastic, but its an idea.





    • Like Like x 2
  7. EurekaSevven

    EurekaSevven Member

    Messages:
    54
    Likes Received:
    10
    Joined:
    Jan 14, 2021
    Location:
    North Carolina
    These old cars had a surprising amount of diagnostic information on the dashes if I'm perfectly honest, only thing I would change/add is replace the clock (which I don't even have) with a square tachometer setup, if such a thing existed. In the same styling as the rest anyways. I have a 68 Newport though, not a Sport Fury, and all of the gauges for oil and such are idiot lights instead of gauges.

  8. Chrome58

    Chrome58 Active Member

    Messages:
    285
    Likes Received:
    158
    Joined:
    Oct 4, 2017
    Location:
    Belgium
    Yes, I'm aware of that, and actually, I was planning on doing just that.

    Exactly.

    Wow. I wasn't expecting such a developed idea ... Thanks a lot for taking the time to draw your idea on paper. I like your creation, but I think I'd want something that blends more with the current cluster. I don't know if the line you draw between the 2 areas is there to visually separate them, or if it's there because it's needed.

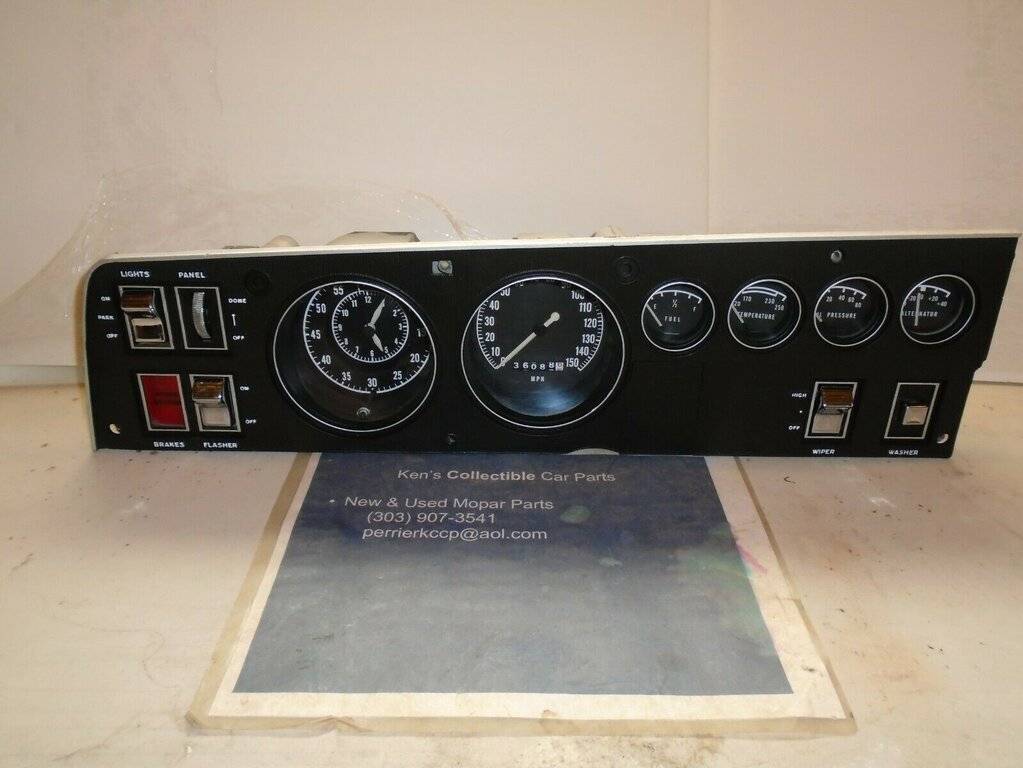

    The rectangular switches are very nice, and I think they would stay. I'm looking to replicate something like this B-body rallye cluster, which makes a good mix of those rectangular switches and round gauges. Actually, I would probably graft that B-body rallye cluster in my Fury, if it was possible. But the curved dash will make it very difficult.

    70 Charger Roadrunner Superbee GTX.jpg

  9. bnz84

    bnz84 Active Member

    Messages:
    245
    Likes Received:
    166
    Joined:
    Feb 28, 2011
    Location:
    Maryland
    Well, you could replace our big square speedo with the a speedo and tach as u have shown and then add triple gauges in place of the radio? And yes I like the switches too and would need to be careful. Most old care separated their switches and did not gang them together. I'll draw another version with a big square recessed area to put the round gauges in. That might be cool. mmm My idea is not fully thought out but probably would be in 2 pieces. And I completely forgot that the original bezel is recessed under the pad. Unless a complete replacement could be made I probably would need to cut up an original.

    • Like Like x 1
  10. live4theking

    live4theking Old Man with a Hat

    Messages:
    10,768
    Likes Received:
    2949
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    You could also have someone 3d print the plastic pieces you might need.

    • Agree Agree x 1
  11. bigmoparjeff

    bigmoparjeff Senior Member

    Messages:
    1,861
    Likes Received:
    1243
    Joined:
    Aug 9, 2017
    Location:
    Dublin, PA
    The biggest problem with this plan is that there just isn't space on the C body cluster surround for any more stuff. You have to decide what item you want to relocate somewhere else to make room for more gauges. As bnz84 mentioned, I think the best bet is to move the radio. If you don't need a CD player or cassette player, you can get these new "digital media player" car stereos that are quite a bit shallower, making them easier to mount. You could put it in a box, on top of the console, similar to the factory cassette recorder.

    The distance from the right side of your switches to the far right of the surround might be long enough to get that those Charger gauges in there. It shouldn't be too hard to find measurements for the Charger stuff. I might be able to get that on Friday evening for you.

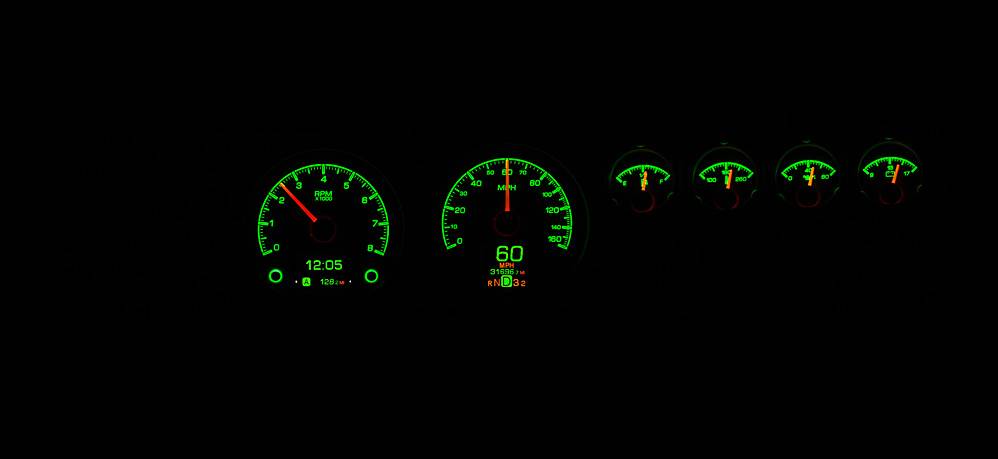

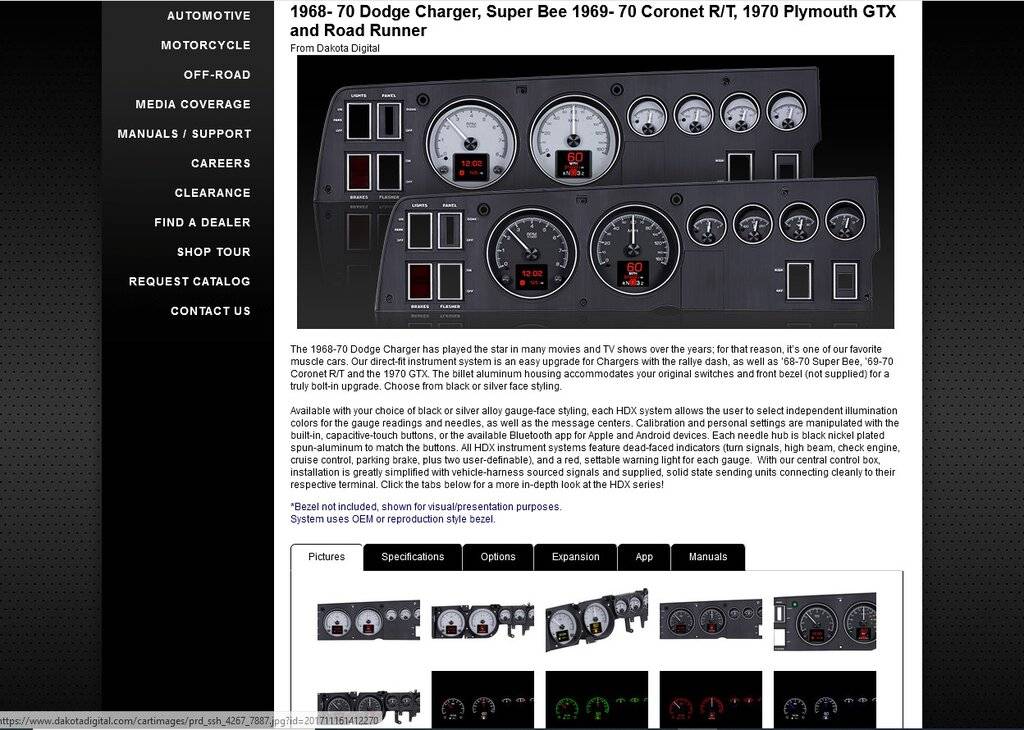

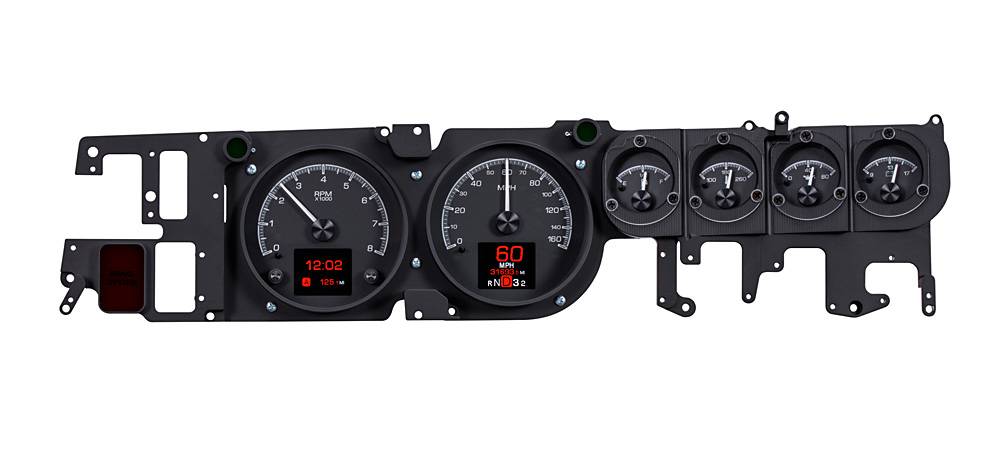

    If you really want to blow up the budget, Dakota Digital now makes modern gauges for most muscle cars, including the '68-'70 B bodies.

    1968- 70 Dodge Charger, Super Bee 1969- 70 Coronet R/T, 1970 Plymouth GTX and Road Runner

    Dakota Digital 1.JPG



    Before you do anything, you need to remove your cluster surround and check to see what kind of clearance you have. You will have to do surgery to the metal dash frame to make any changes to the location of the components.

    Jeff

    Last edited: Apr 7, 2021
    • Like Like x 1
  12. Chrome58

    Chrome58 Active Member

    Messages:
    285
    Likes Received:
    158
    Joined:
    Oct 4, 2017
    Location:
    Belgium
    Yes, I'm thinking about that. The only thing is, I'm not sure about the maximum size they can print (and the price also, obviously). But I might have to go there, if only for the curvature of the dash.

    Yes I thought about that. Although my car is non-AC, so I might have a little bit more space on the right-bottom side.

    That's a great help, thank you. I also thought about buying a cheap used B-body rallye gauge cluster, just so I could use it as a template. I've seen several on eBay recently.

    Yes, I know, I've seen their products, and I love their B-body modern version.
    That's a big dent in the budget, though, but I'm keeping my eyes on them!

    Absolutely correct.
    Thanks Jeff.

  13. bigmoparjeff

    bigmoparjeff Senior Member

    Messages:
    1,861
    Likes Received:
    1243
    Joined:
    Aug 9, 2017
    Location:
    Dublin, PA
    I assume you've probably seen these photos, since I've posted them a bunch of times. But, just in case you didn't I'll put them up again. The changes aren't as extensive as what you want to do, but I didn't spend all that much time on mine. Some sheet metal, a little plastic, and a hot glue gun got the job done.

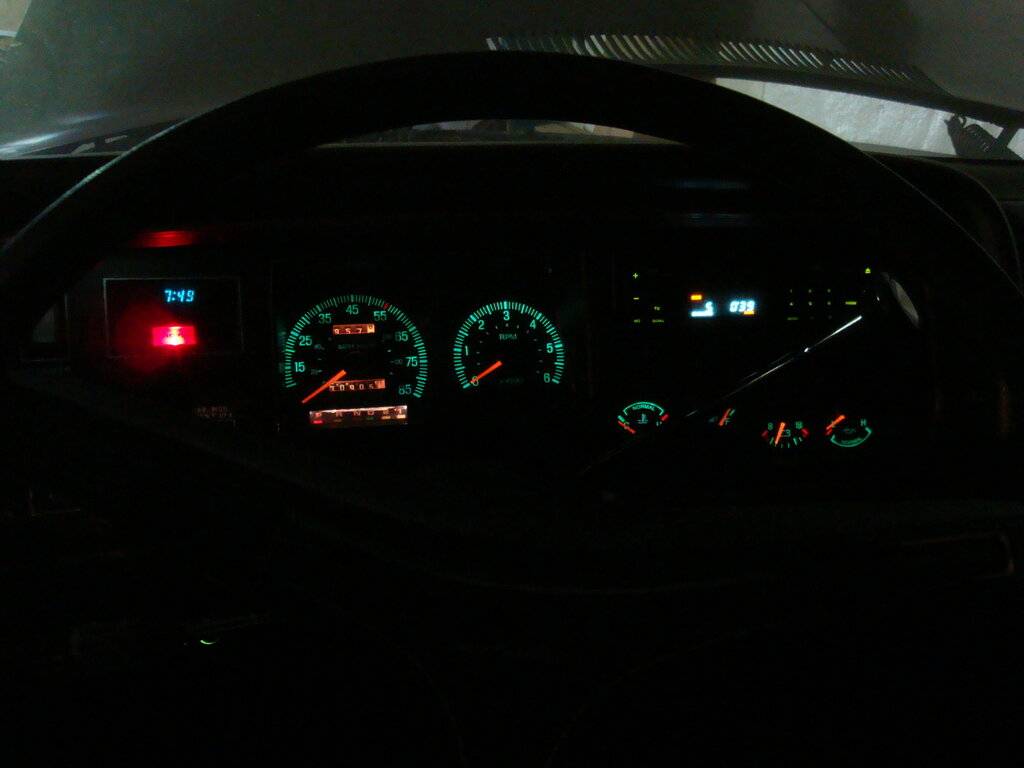

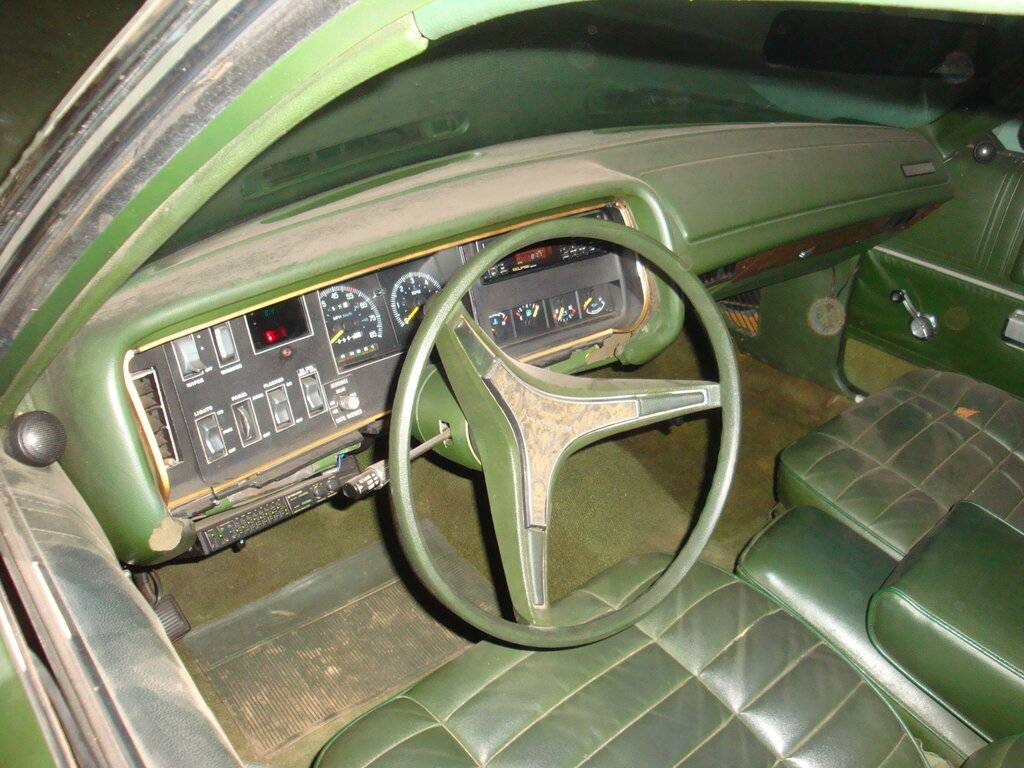

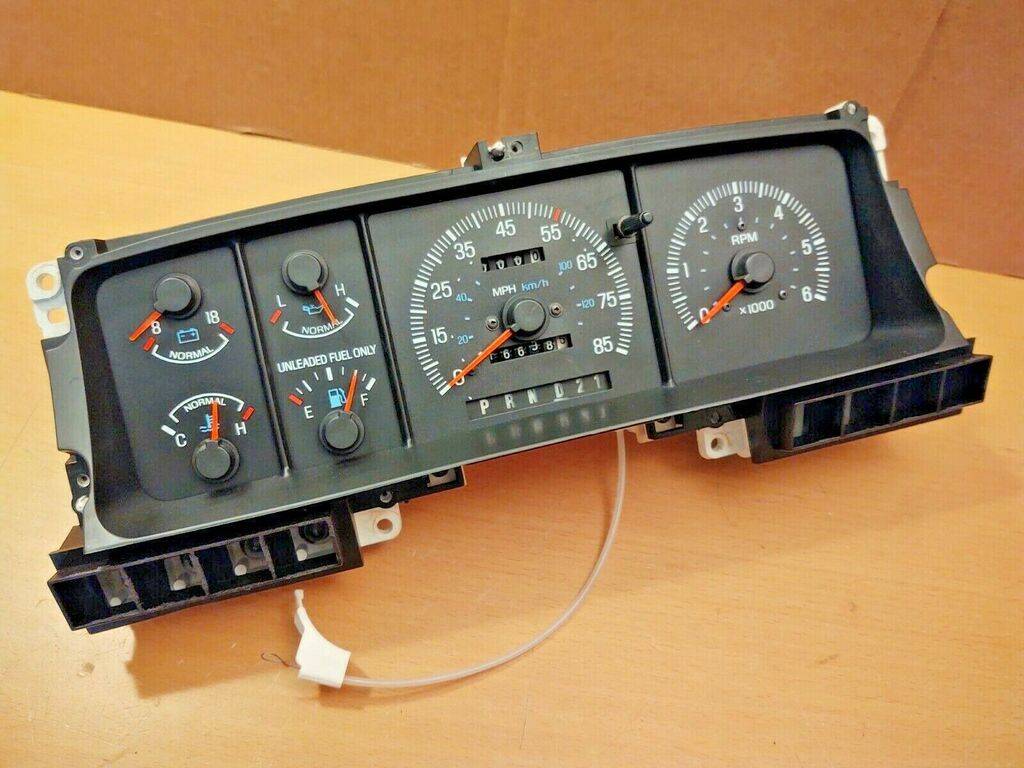

    Back when I got my '72 Fury wagon, the spedo was shot. I wasn't a big fan of the flood lit instruments, so I bought a used 1988 Ford F-150 cluster and cut it apart to fit in a 1969 Plymouth dash. The biggest issue I had was that the contour of the '69 surround was quite different from the '72 and it left gaps that I never got around to addressing, and I couldn't get the lower finish panel back on. I had plans to mount the HVAC control in a center console, but that never happened either. Not too long after getting the car roadworthy I started shopping for a house, then moved and changed jobs, and the Fury went on the back burner. If I had stayed with the 1972 surround, it would have been a much neater job and I probably would have had the time to get that console mounted. The 1969 surround caused other problems, like having to change the tailgate window motor to 1969 version because the switch was set up different from the '72. I chose the '69 surround because I really liked the rocker switches on the '69 dash.

    72 Sport Sub 7.JPG

    72 Sport Sub 8.JPG


    Jeff
