Dash panel detail, fine white lettering on black?

Restoration

  1. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    1,272
    Likes Received:
    1515
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    I had my dash panels re chromed back when MR. G’s did them 10 years ago. It seems back then there wasn’t much on E bay but now they show up quite frequently for less than the restoration costs. Any way I got them back and it looked like a third grader did the white lettering. This was after I had already sent them back as they were detailed like the ‘67 dash ( a lot of silver)and after loosing the little panel that is removed for a fader. I was not going to send them back again.
    So now w am going to touch them up. I tried to clean up the excess white paint, but it took the black paint off.

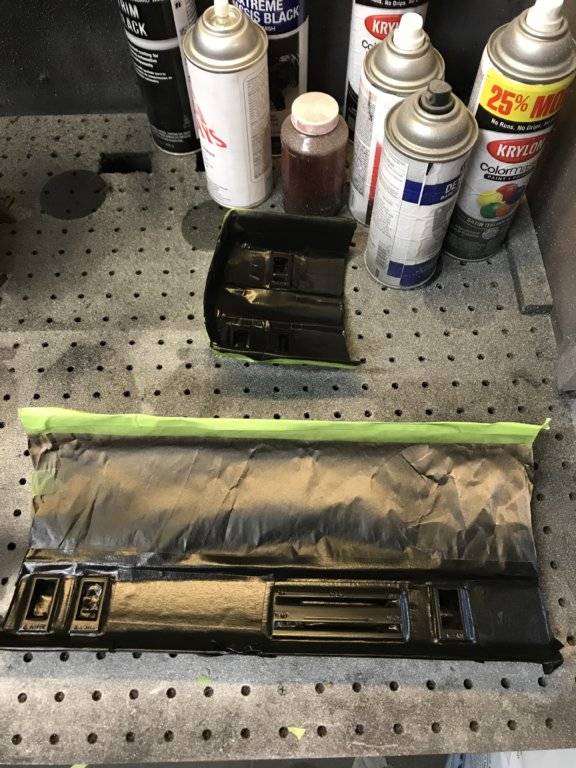

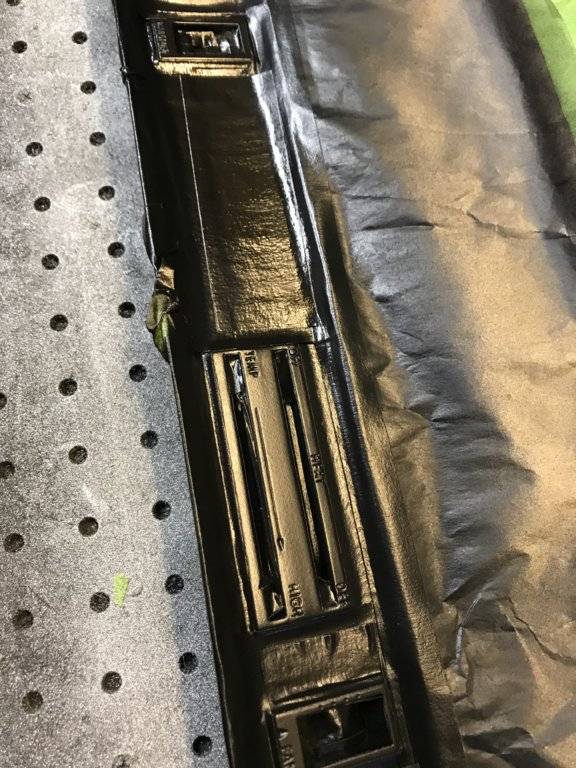

    I masked everything and repainted the black on top of the bezels and let it cure a while. My dilemma is to get the white paint in the letters and wipe off the excess without taking off the black. I need to maybe find a different paint type that I can easily wipe off without solvent.
    Any ideas?
    35B7C862-96AA-4005-903E-E217FD84D752.jpeg E619C03F-CDD3-43F7-A537-4719114C50B9.jpeg

    • Like Like x 1
  2. 66Fury383

    66Fury383 Member

    Messages:
    100
    Likes Received:
    44
    Joined:
    Aug 7, 2018
    Location:
    Kansas City, MO
    I used some acrylic paint on a shift knob once, surprisingly durable and $.50 at walmart. Worth a go around at least!

    • Thanks! Thanks! x 1
  3. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    11,001
    Likes Received:
    5974
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    • Thanks! Thanks! x 1
  4. haywire 440

    haywire 440 Active Member FCBO Gold Member

    Messages:
    469
    Likes Received:
    68
    Joined:
    Jun 30, 2017
    Location:
    Usa
    I did a switch plate with raised letters. Yours is different because of what looks like sunken letters.
    But what I did was set up 2 horses and lay a 6’ stiff plank of wood (1”x6”, 3/4” plywood, etc.) on top. Hang the piece to be painted by 12 gauge solid wire about half way to the ground. The face that will be painted will be facing down. Now the tricky part, put cushions or a blanket on the ground to lay on (more cushions or pillow for your head) and you will essentially be painting upside down. Get a good light facing up and use a small paint brush. The paint won’t spread as easily to areas you don’t want. I used paint pens that have a wide and pointy tip from Hobby Lobby. I had a small block of wood next to me on the floor that by turning to your side and pushing down the tip of the paint pen it reloads paint. It’s all about a comfortable position because it will take time. I practiced on another part first. The part you’re painting can’t move so 12 gauge solid wire worked for me. You may need a different mounting idea. Good luck.

    • Thanks! Thanks! x 1
  5. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    1,272
    Likes Received:
    1515
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    Yes they are innies I may try the krylon pen and a wipe first. If that doesn’t work then I will have to try the Michelangelo / Sistine chapel method laying on my back using gravity.

    Thanks @Big_John and @haywire 440

    Last edited: May 13, 2019
  6. 65sporty

    65sporty Old Man with a Hat

    Messages:
    6,028
    Likes Received:
    1340
    Joined:
    Aug 24, 2013
    Location:
    Marlette,Mi
    I have a paint marker at work that I use for marking timing marks, it has a steel tip that pushes in to let the paint flow. I will take a pic of it

    • Thanks! Thanks! x 1
  7. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    1,272
    Likes Received:
    1515
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    I need something like a needle pen that is white.
    I will have to google that.

  8. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    11,001
    Likes Received:
    5974
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Rapidograph technical pen. Not cheap.

  9. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    1,272
    Likes Received:
    1515
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    I just need to go to the art isle at Michael’s. I am bound to find something that will work. I would like to find a water based one that I could wipe the excess white off the black flat with a damp rag. Solvent based seem to take the black off as well.

  10. rexus31

    rexus31 Senior Member FCBO Gold Member

    Messages:
    2,402
    Likes Received:
    1090
    Joined:
    Jan 7, 2011
    Location:
    San Gabriel, CA 91775
    Needle and syringe.

    • Thanks! Thanks! x 1
  11. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    2,614
    Likes Received:
    1092
    Joined:
    Dec 10, 2012
    Location:
    central ny
    tip of a toothpick?

  12. cbarge

    cbarge Senior Member FCBO Gold Member

    Messages:
    1,696
    Likes Received:
    1960
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    Go to a hobby shop and get the finest brush available say like a 00000 brush. Testors flat white works well when well stirred/shaken and it is starting to set on the brush which keeps it from running and dripping.
    Another cheat method is tape up the innie letters then apray the black. Then do the white and touch up any mistskes with a black sharpie. Works for me.

  13. 65sporty

    65sporty Old Man with a Hat

    Messages:
    6,028
    Likes Received:
    1340
    Joined:
    Aug 24, 2013
    Location:
    Marlette,Mi

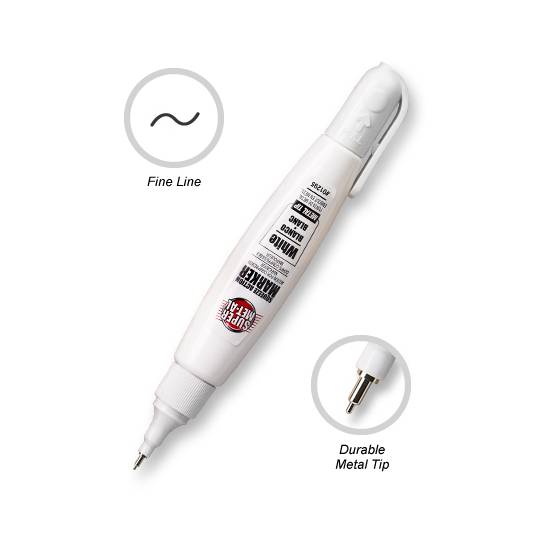

    This is the same one I have at work


    It works good for what I use it for, it way flow too much paint at once for you. It depends on how deep the letters are.

    • Like Like x 1
