Does Imperial -69 front stub bolt to Chrysler?

Engine, Transmission & Driveline

  1. Slantsix

    Slantsix Well-Known Member

    Messages:
    603
    Likes Received:
    165
    Joined:
    Oct 26, 2015
    Location:
    Mikkeli
    So, even bodies of Imperial and Chrysler looks same. Does -69 Imperial front stub bolt on to -69 Chrysler, like Newport Conv? Or is there is different bolt/mount locations of stubs and body?

  2. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,018
    Likes Received:
    1595
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    No. Imperial has a longer front stub, and it is structurally different.

    Dave

    • Agree Agree x 1
  3. Slantsix

    Slantsix Well-Known Member

    Messages:
    603
    Likes Received:
    165
    Joined:
    Oct 26, 2015
    Location:
    Mikkeli
    How big is the different? Any factory draws?

  4. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,018
    Likes Received:
    1595
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Photo from parts manual is attached. Click on mail0014 not the icon

    Dave


    Attached Files:

  5. CBODY67

    CBODY67 Senior Member

    Messages:
    4,334
    Likes Received:
    998
    Joined:
    Mar 27, 2011
    See my PM. As for body dimensions, you can probably find the "body shop frame machine" diagonal dimensions in the FSM. What a body shop frame machine tech might use to put a bent body/stub frame back "to specs".

    CBODY67

  6. Wollfen

    Wollfen Old Man with a Hat

    Messages:
    6,496
    Likes Received:
    3361
    Joined:
    Jul 18, 2012
    Location:
    Greenville NC
    The Imperial frame is in fact a D body and is longer than the C body frames. Are you looking for a replacement frame for your car?

  7. Fury Pursuit

    Fury Pursuit Senior Member

    Messages:
    1,532
    Likes Received:
    1778
    Joined:
    Jun 28, 2014
    Location:
    .
    ...won’t work...

    In addition, Imps have a “K” member cradle for engine isolation...

  8. SGT FURY

    SGT FURY Active Member FCBO Gold Member

    Messages:
    347
    Likes Received:
    335
    Joined:
    Nov 18, 2019
    Location:
    Northern California
    It bolts in the rear frame. The firewall frame mounts have to be moved back a few inches.
    The front wheels won't be in the center of the fender. They will be forward a few inches.
    It can be done,but it's a demo derby trick to reuse a imperial sub in a c body.
    Won't work for restoration.

    • Thanks! Thanks! x 1
  9. Slantsix

    Slantsix Well-Known Member

    Messages:
    603
    Likes Received:
    165
    Joined:
    Oct 26, 2015
    Location:
    Mikkeli
    Crazy idea on making 1 of none -69 Imperial convertible. Newport conv and bolt Imperial front stub to it. Also swap rear bumper, tail lights, interior... etc

  10. Wollfen

    Wollfen Old Man with a Hat

    Messages:
    6,496
    Likes Received:
    3361
    Joined:
    Jul 18, 2012
    Location:
    Greenville NC
    MM Imperial has all different sheet metal body too in that case, it wont look right at all. It would be easier to take the convertible components from a fuselage car and convert an Imperial coupe.

    • Disagree Disagree x 1
  11. Carmine

    Carmine Old Man with a Hat

    Messages:
    5,369
    Likes Received:
    4594
    Joined:
    Feb 22, 2015
    Location:
    Detroit 'burbs
    I instantly figured out what you were looking to do, because I've toyed with the same idea. That should work. I believe there are some minor differences at the bumper/trunk area. (internal bracing, not cosmetic/exterior)

  12. Carmine

    Carmine Old Man with a Hat

    Messages:
    5,369
    Likes Received:
    4594
    Joined:
    Feb 22, 2015
    Location:
    Detroit 'burbs
    I have a perfect parts car for this, good only knows if I'll ever get to it. 1354019004_zps050da86a.jpg

  13. CEJ7034

    CEJ7034 New Member

    Messages:
    12
    Likes Received:
    12
    Joined:
    May 8, 2014
    Location:
    Tulsa, Oklahoma

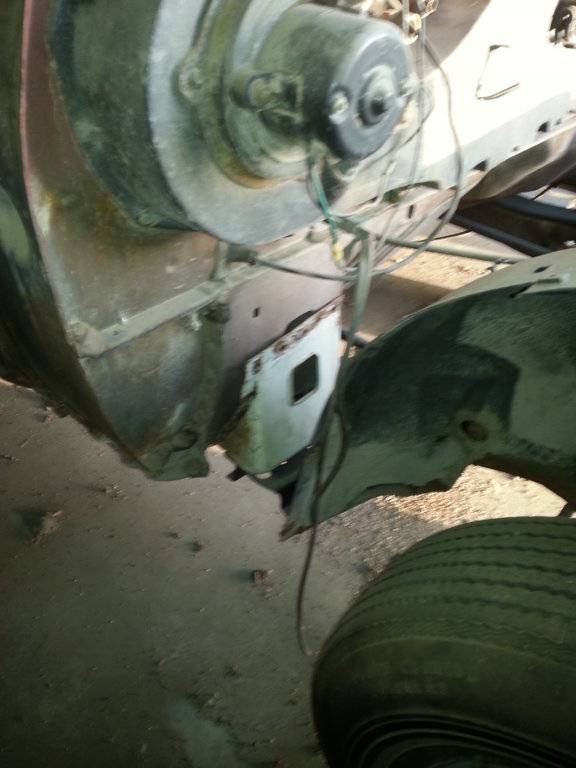

    You are one of at least 3 people I know of wanting to do the same. The Imperial subframe will bolt up to a Newport/300 convertible body but you will have to remove the body tub extenders from the Imperial and weld them to the body tub of the convertible. The Imperial front clip will bolt on. Imperial front doors will also fit but you have to use the convertible vent windows. Trunk lid and rear bumper assembly will also bolt in/on. Rear bumper must come from an Imperial Coupe, the 4 door is different. 20140712_070032.jpg DSCF2029.JPG

    • Thanks! Thanks! x 1
  14. barnfind

    barnfind Senior Member

    Messages:
    4,400
    Likes Received:
    4737
    Joined:
    Nov 20, 2014
    Location:
    Around Town
    In case you missed this thread.
    1969 Imperial Convertible

    Another wealth of info
    1969 - 1971 C body Stub Frame (subframe)

    This might be the fate of my blue 69 as it was sold thru several auctions in state, without transferring the title, then lost. I have the original owners name in California, but haven't checked on if it's in Californias system.

    Last edited: Mar 26, 2020
    • Thanks! Thanks! x 1
  15. 3C's & a D?

    3C's & a D? Senior Member

    Messages:
    1,112
    Likes Received:
    382
    Joined:
    Oct 27, 2015
    Location:
    By the tree in Edmonton
    Are you sure? I thought that 1966 was the last year of the body on frame, D body.

    • Agree Agree x 1
