Door stuck. Ideas?

Interior

  1. Joseph James

    Joseph James Senior Member

    Messages:
    1,539
    Likes Received:
    939
    Joined:
    Jul 21, 2018
    Location:
    Asheville, NC
    Passenger door wasn’t closing well. It flew open when my daughter was riding so I wanted to fix ASAP. The outside handle button was staying in.

    This morning, I greased everything with lithium grease and the button seemed smooth. Lightly closing, it wouldn’t close all the way. Slamming got it closed. Now it won’t open at all. From inside or outside. The lock is pulled up.

    Going to look at FSM, but I am hoping someone else has solved this already.

    Thanks.

  2. 413

    413 Well-Known Member

    Messages:
    676
    Likes Received:
    228
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    Next time this happens don’t close the door at all. Remove the door panel. Then clean and lubricate the mechanisms inside the door.

    In my experience white lithium grease is not the best product for this job. don’t use WD-40 either. Use a liquid lubricant that can penetrate into all the pivot shafts and sliding linkage.

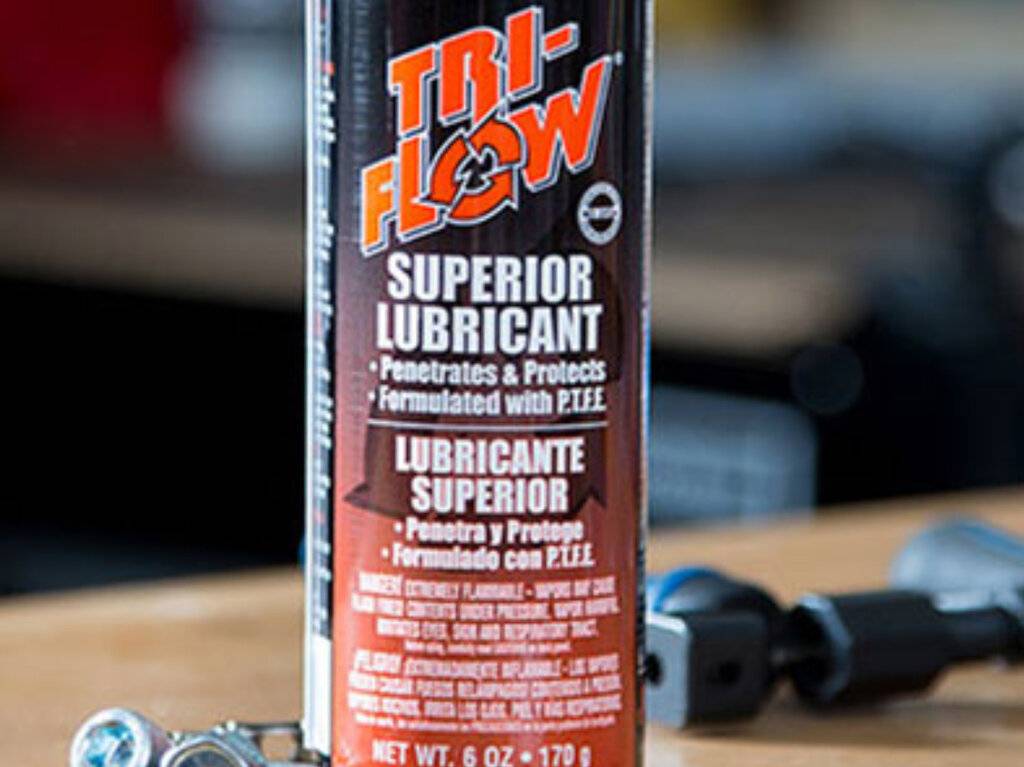

    I Like tri-flow

    Tri-Flow Superior Lubricant Aerosol – Triflow Lubricants

    I bought a desert car and the doors and windows were not working Well at all, binding and popping, etc. Removed panels and rinsed out the inside of the doors with the garden hose with hot water in it from the sun. Then dried and lubed everything and all Is working great now.


    Last edited: Sep 12, 2020
    • Agree Agree x 1
  3. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,311
    Likes Received:
    1210
    Joined:
    Mar 27, 2011
    I concur with getting the door open and then removing the trim panel, replacing the water shield as necesseary, and inspecting what you can of the latch mechanism and related actuating rods/clips. I suspect you'll find that one of the moving latch parts has some wear on it, which might be what is causing the issues you describe. Hopefully, getting everything well-lubed will be all you might need. Might start searching for a good rh latch assy, though, for good measure.

    Just some thoughts,
    CBODY67

    • Agree Agree x 1
  4. Joseph James

    Joseph James Senior Member

    Messages:
    1,539
    Likes Received:
    939
    Joined:
    Jul 21, 2018
    Location:
    Asheville, NC
    I actually had the panel off lubed everything and then put it back together. I only tried the outside handle that had been sticking but did not try closing the door. Now, I guess I will remove the panel again and see if I can get it open. Bummer.

  5. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    7,992
    Likes Received:
    1965
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    If the door striker is improperly adjusted it will bind against the mechanism and make the door hard to open and close. Try getting inside the car, pull the release handle back and bump the door with your shoulder. Sometimes that will open the door if the latch mechanism has not failed. Once you get the door open, check the hinge pins for excessive wear. Worn pins will cause a door to sag and not open/close properly. Open the door about half way and lift up on the base of the door, if it has more that about 1/16" play, the pins are worn.

    Dave

    • Like Like x 1
    • Thanks! Thanks! x 1
    • Agree Agree x 1
  6. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    3,228
    Likes Received:
    1387
    Joined:
    Dec 10, 2012
    Location:
    central ny
    is there resistance when you pull the lock knob up or does it just flop around ? is there a place to put a key in and try that?

  7. The Goose

    The Goose Senior Member

    Messages:
    2,098
    Likes Received:
    2808
    Joined:
    Nov 21, 2016
    Location:
    Santa Clarita ca
    Dr Dave is correct pull the inside handle and bump or kick the door open at the same time. 413 is correct, WD40 is NOT a lubricant. Probably the most misunderstood and misused product ever sold. Anyways also check to see if the plunger rod came off the in the door. If you’ve ever seen an old car in a body shop with no door handles get opened by sticking your finger in that door handle hole you know which rod I’m talking about. You kinda reach in with your finger and push it down to pop the door. Weird both handles would die together. That leads me to think it’s stuck on the striker like Dave said.

    • Thanks! Thanks! x 1
  8. 1970FuryConv

    1970FuryConv Senior Member

    Messages:
    2,189
    Likes Received:
    1856
    Joined:
    Aug 8, 2014
    Location:
    Richmond, VA
    On the worn hinge pins, sometimes if you lift up hard on the outside handle while pushing in the button, the door will release. If you've already done that, I agree with something broken in the latch itself. Unfortunately, the only way to see is to pull the door panel and see what happens when you move the rods from the door handles.

  9. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,311
    Likes Received:
    1210
    Joined:
    Mar 27, 2011
    Where the rods attach to the latch mechanism, they are held in with either a "push-in" plastic retainer or a "slide-over" metal clip. With time, BOTH styles can deteriorate and fall out at an inopportune time. Just some thing to look for while you're in there.

    Keep us posted on what you find,
    CBODY67

    • Thanks! Thanks! x 1
  10. FURYGT

    FURYGT Senior Member

    Messages:
    2,790
    Likes Received:
    1213
    Joined:
    Mar 11, 2017
    Location:
    Iron Station, NC
    Alternatively, have someone stand outside and push the door handle in while you lay across the front seat with clean showes and kick the door hard, sometimes it takes using both feet. Good Luck!

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  11. Joseph James

    Joseph James Senior Member

    Messages:
    1,539
    Likes Received:
    939
    Joined:
    Jul 21, 2018
    Location:
    Asheville, NC
    Gave it a swift kick and it opened. I pulled panel off first to look for anything broken or loose.

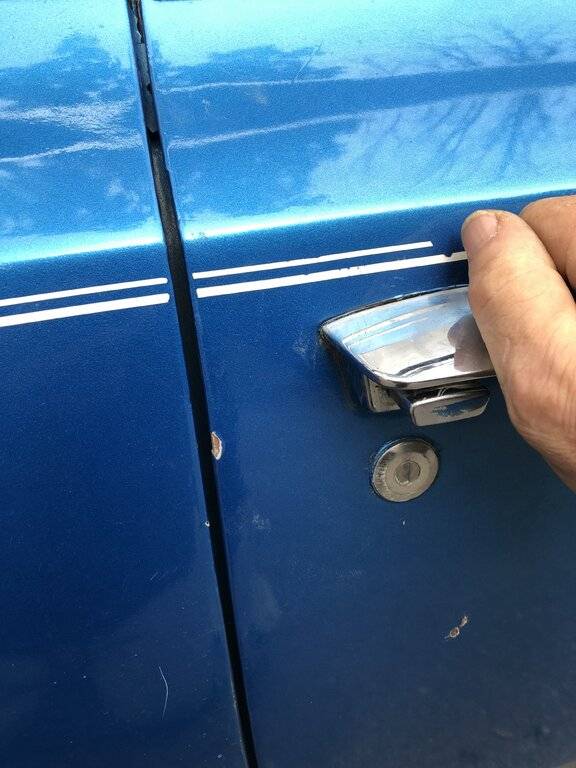

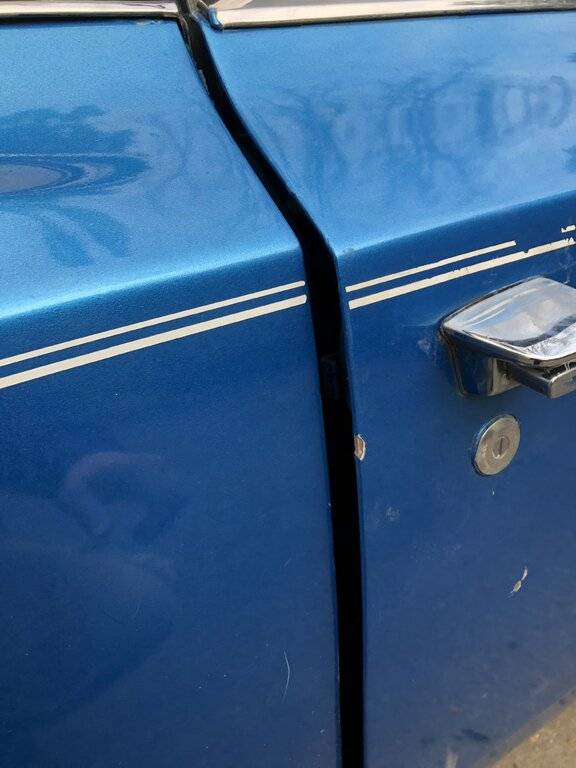

    One pic is gently pushing and letting go. It doesn’t close completely. Closing harder or keeping my hand on the handle seems to close well.

    Original problem was the outside button not releasing after opening that resulted in the door flying open in a curve. My teen daughter didn’t appreciate it. Just one more time I have embarrassed her.



  12. 1970FuryConv

    1970FuryConv Senior Member

    Messages:
    2,189
    Likes Received:
    1856
    Joined:
    Aug 8, 2014
    Location:
    Richmond, VA
    Hi Joe. So are the latch and striker OK?
    I have used the innards from 1972 4-door handle to repair a 2-door handle
    Center rod off button and broken thru back of hinge.

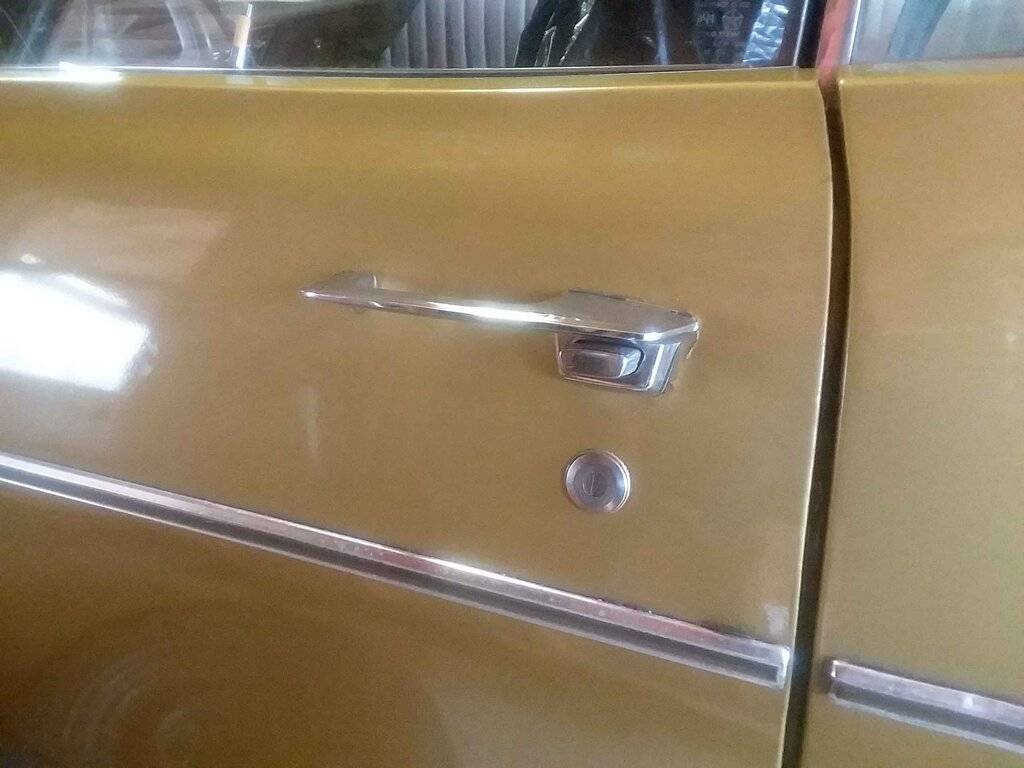

    20180326_172816 72.jpg

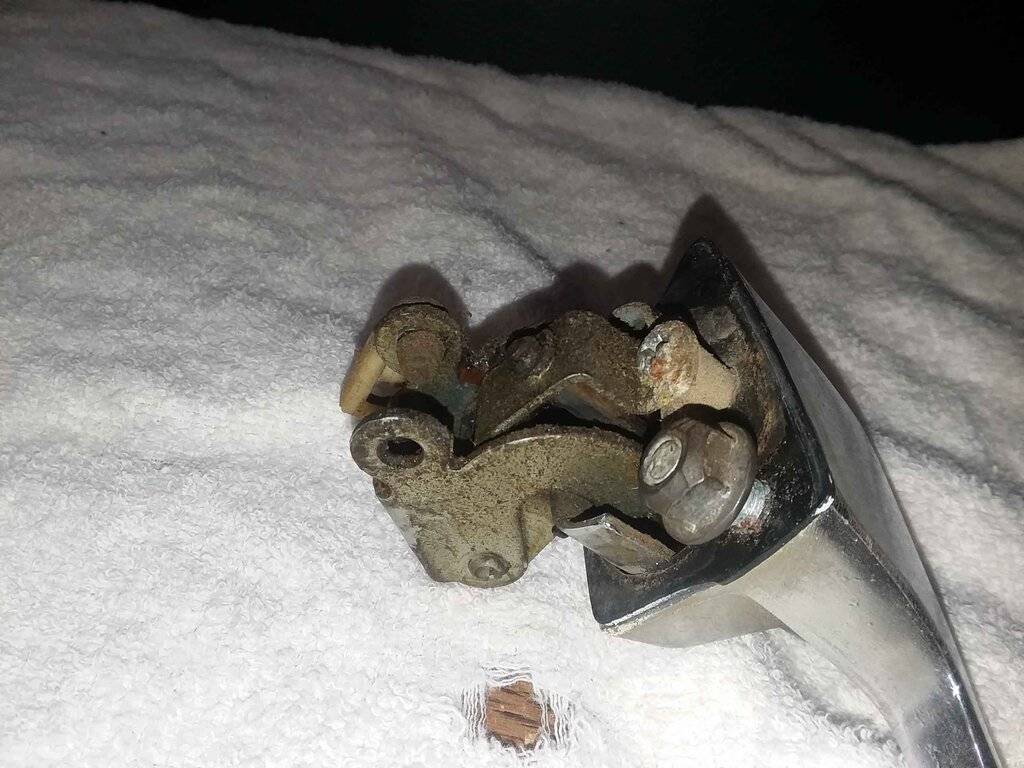

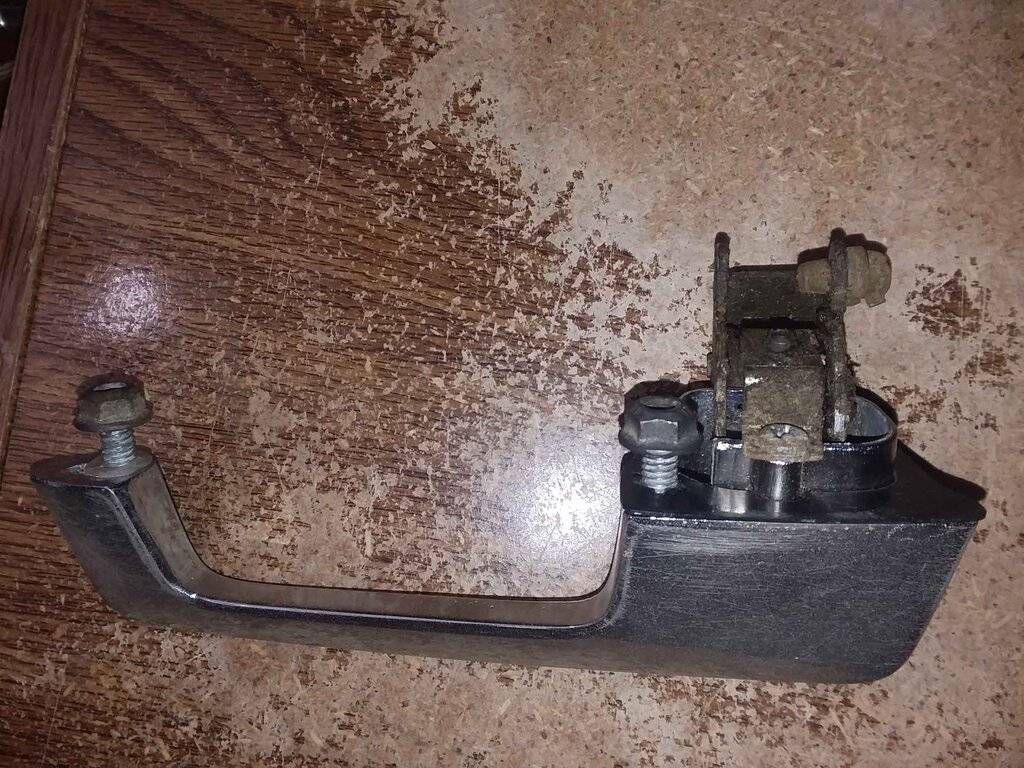

    4-door handle before disassemble
    20180327_113959 4d be4 disassemble.jpg

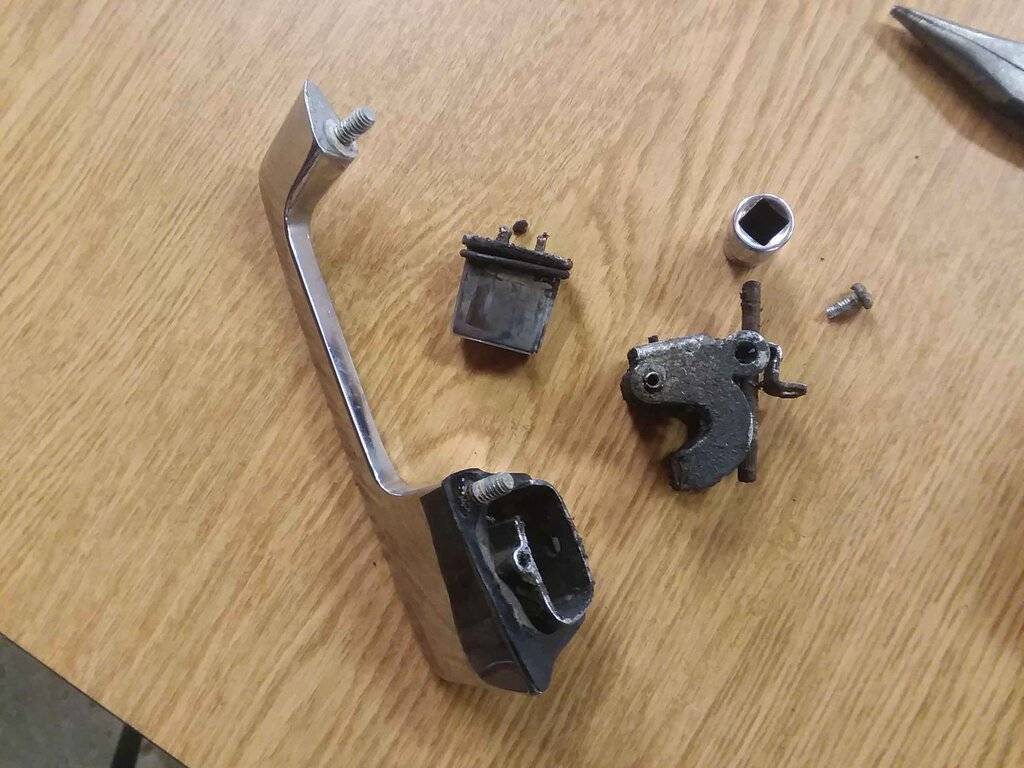

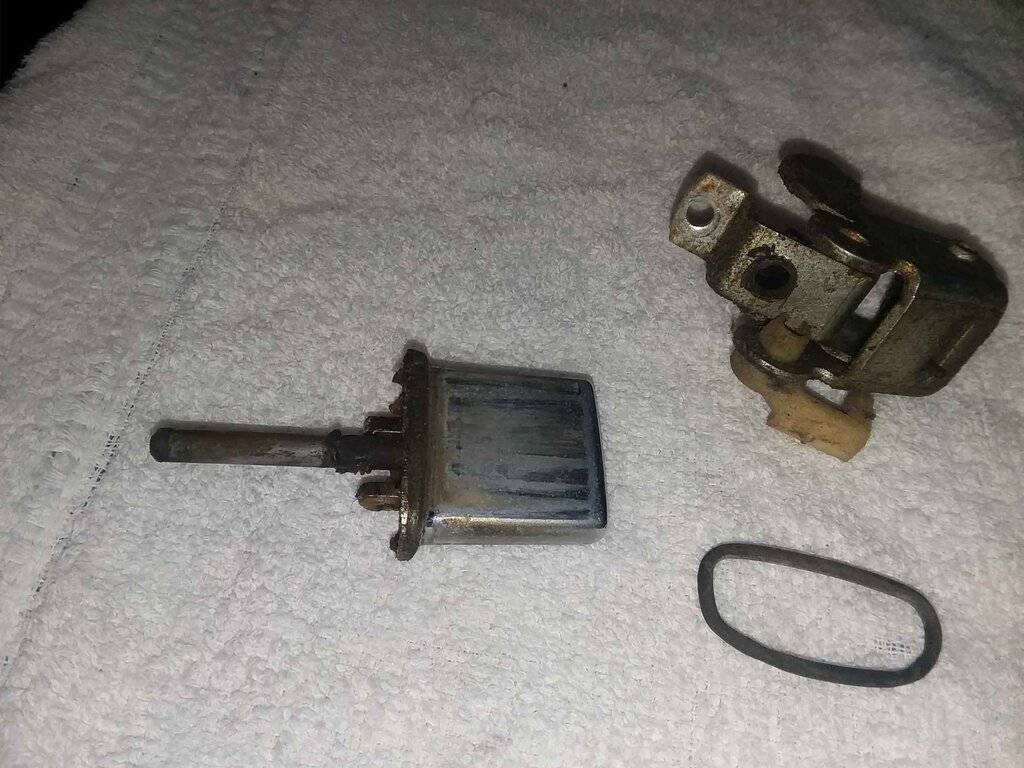

    Needed parts for 2-door handle repair
    20180327_114401 4 door parts.jpg

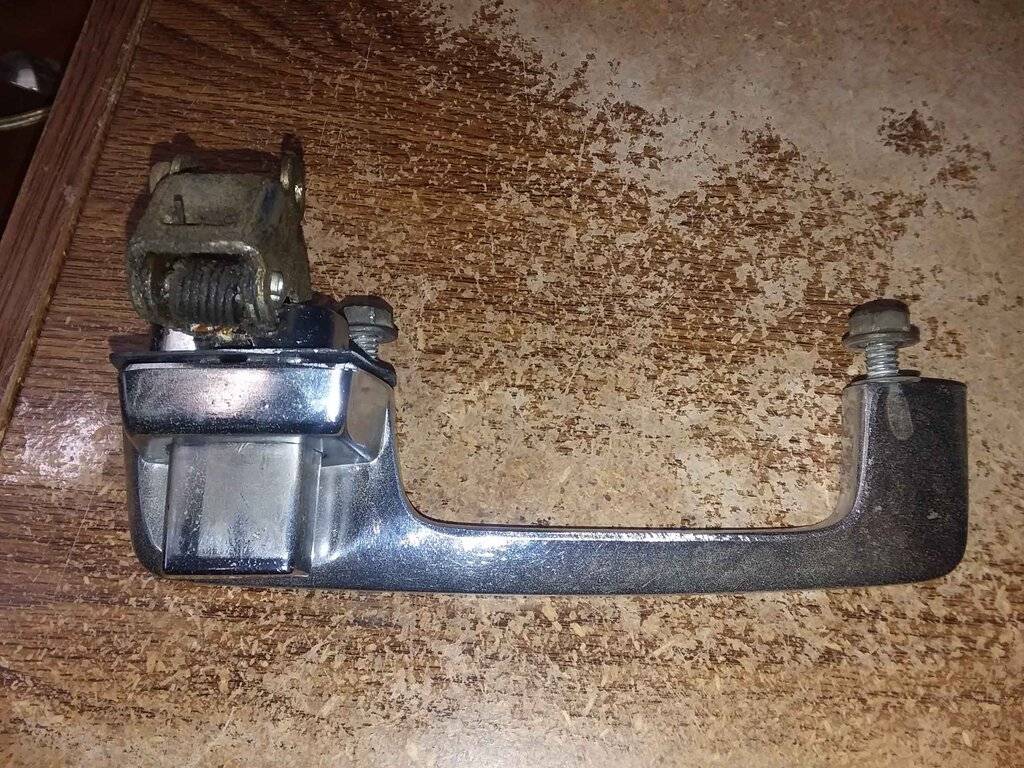

    Parts installed
    20180327_125406 assembled.jpg
    20180327_125440 assembled.jpg
    Good as new
    20180327_164245 good as new.jpg

    • Thanks! Thanks! x 1
  13. Joseph James

    Joseph James Senior Member

    Messages:
    1,539
    Likes Received:
    939
    Joined:
    Jul 21, 2018
    Location:
    Asheville, NC
    Thanks for those photos.

    It seems to be working fine now. It requires a more firm closing than the driver side but ok otherwise.

  14. 1970FuryConv

    1970FuryConv Senior Member

    Messages:
    2,189
    Likes Received:
    1856
    Joined:
    Aug 8, 2014
    Location:
    Richmond, VA
    That's fortunate!

  15. live4theking

    live4theking Old Man with a Hat

    Messages:
    10,030
    Likes Received:
    2852
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    The guys out of dodge truck handles up through the late 80's also fit.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  16. Joseph James

    Joseph James Senior Member

    Messages:
    1,539
    Likes Received:
    939
    Joined:
    Jul 21, 2018
    Location:
    Asheville, NC
    It’s really stupid I didn’t catch this before. I put new carpet in. I haven’t put the sill plates back yet and the carpet was binding the door, pushing up on it . D’oh!!!!

    • Like Like x 1
  17. The Goose

    The Goose Senior Member

    Messages:
    2,098
    Likes Received:
    2808
    Joined:
    Nov 21, 2016
    Location:
    Santa Clarita ca

    • Like Like x 1
  18. 1970FuryConv

    1970FuryConv Senior Member

    Messages:
    2,189
    Likes Received:
    1856
    Joined:
    Aug 8, 2014
    Location:
    Richmond, VA
    WONDER IF A B-VAN WOULD WORK TOO
