Exhaust leak, my broken bolt

Early C Bodies - The Slab Side Years

  1. GOLDMYN

    GOLDMYN Well-Known Member

    Messages:
    590
    Likes Received:
    584
    Joined:
    Nov 23, 2013
    Location:
    Chilton Wi

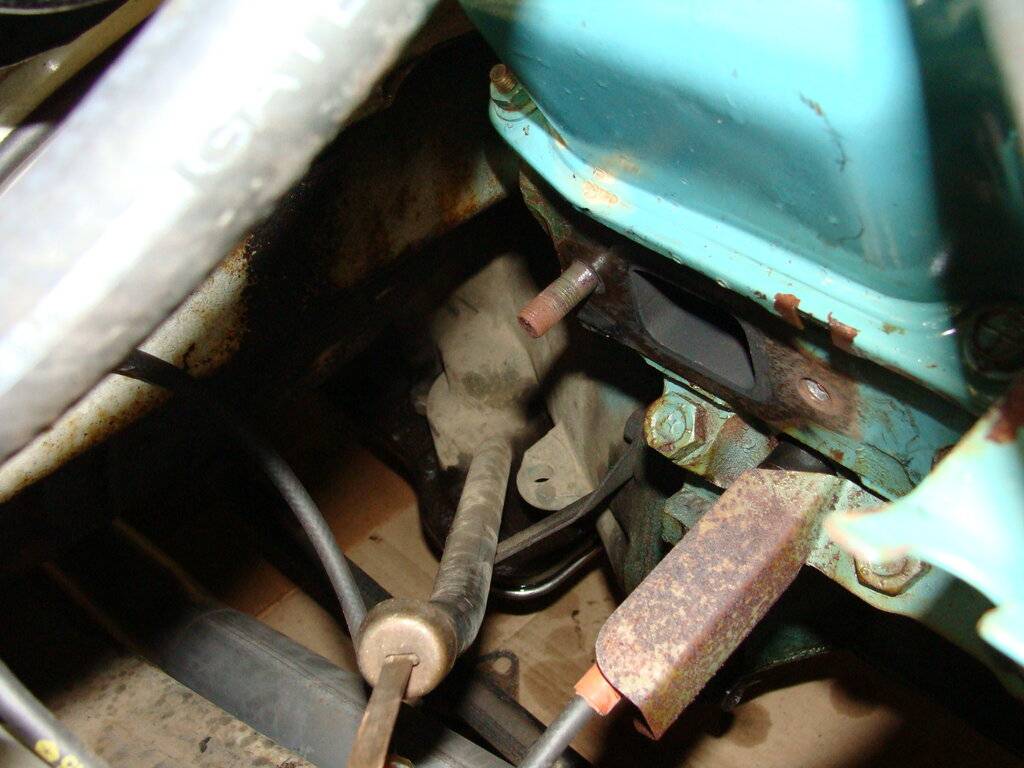

    Hi, well, I finally got the ambition to tackle an exhaust leak in my 68 newyorker. soaked them all in Koil , I told my wife before heading out. This job NEVER ends up good. Sure enough, #6 never gave a warning, just twisted off. I'm going to attempt the repair by drilling out the remained. question I have. Which right angle drill would be best to purchase. I appreciate your comments. DSC05252.JPG DSC05256.JPG

  2. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,828
    Likes Received:
    7847
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Get one that reverses and use a left hand drill. It might walk out.

    • Agree Agree x 3
    • Thanks! Thanks! x 1
  3. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,828
    Likes Received:
    7847
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    If this is the only time you may use it, buy a Harbor Fright for $30. 3/8 in. Variable Speed Reversible Close Quarters Drill

    There are better ones... and ones that may last longer etc., but this should get the job done and it's $30. Find a coupon and it's even cheaper.

    These should work, although be very careful with the extractor. Bust one of those off and it gets serious. I usually give them a quick try and if it doesn't walk right out, I go back to drilling.


    Screw Extractor and Left-Hand Drill Bit Combo Set, 10 Pc.

    • Like Like x 3
  4. GOLDMYN

    GOLDMYN Well-Known Member

    Messages:
    590
    Likes Received:
    584
    Joined:
    Nov 23, 2013
    Location:
    Chilton Wi
    thank-you

  5. PH27L7

    PH27L7 Member

    Messages:
    150
    Likes Received:
    111
    Joined:
    Mar 10, 2020
    Location:
    Pittsburgh, PA
    That will be very difficult to get the hole centered for the extractor. I've had great success with this tool for the same job but it's pricey, it has a drill guide that centers the hole perfectly. It has to have a little bit of the stud sticking out to work, it looks like you have some threads left to screw in to. As an alternative you could make your own drill guide by center drilling a bolt & then cutting off a length. Just some thoughts, would beat out removing head.
    Snap-on Store

    • Like Like x 1
  6. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,731
    Likes Received:
    1783
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    You need to be very careful that you get the hole drilled centered and straight. If it is drilled crooked, the extractor will usually break or the other thing that happens is the treads get damaged by the drill bit. I usually pull the head to change studs, but try to drill first if you are comfortable doing that. If you drill a small hole thru the stud first, you can use the wand on the spray can of penetrating oil to force oil to the back side of the stud and then drill the appropriate sized hole for the extractor. The left hand drill bits are a good idea as mentioned. Oil to the back side of the stud will make removing it easier.

    Dave

    • Agree Agree x 1
  7. PH27L7

    PH27L7 Member

    Messages:
    150
    Likes Received:
    111
    Joined:
    Mar 10, 2020
    Location:
    Pittsburgh, PA
    Little off topic but your engine appears to be running quite rich based on your exhaust port.

  8. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,119
    Likes Received:
    641
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    There are a number of vids on YouTube showing removal of broken-off bolts. I haven't watched any of these, I just grabbed 'em for ya. There are probably a zillion others.

    Removing broken bolts










    • Like Like x 2
    • Thanks! Thanks! x 1
  9. 65sporty

    65sporty Old Man with a Hat

    Messages:
    7,253
    Likes Received:
    1795
    Joined:
    Aug 24, 2013
    Location:
    Kingston, Mi
    I have those, use them quite a bit. I find they work best when the broken bolt is recessed a bit.

  10. jct

    jct Senior Member FCBO Gold Member

    Messages:
    3,508
    Likes Received:
    2361
    Joined:
    Jun 11, 2015
    Location:
    indianapolis
    Keep soaking it in penetrating oil

  11. 65sporty

    65sporty Old Man with a Hat

    Messages:
    7,253
    Likes Received:
    1795
    Joined:
    Aug 24, 2013
    Location:
    Kingston, Mi
    I don't want to be a downer, but when I have had a stud or bolt break while removing it. I usually can't get it to come out with a extractor. It's rusted so much it won't budge, most of the time I drill them all the way out.

    • Agree Agree x 2
  12. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,828
    Likes Received:
    7847
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    ^This^

    I never have much, if any luck with an extractor either. Occasionally, they will work, but you really can't crank on them, especially at that size. A broken extractor is a nightmare.

    • Agree Agree x 4
  13. 65sporty

    65sporty Old Man with a Hat

    Messages:
    7,253
    Likes Received:
    1795
    Joined:
    Aug 24, 2013
    Location:
    Kingston, Mi
    I have broken both extractors and drill bits, the best way I have found to get them out is with a 1/8 inch carbide bit and grinder, it's little bigger then a dental drill, but sounds just like it. We have both straight and 90 degree grinders at work.

  14. GOLDMYN

    GOLDMYN Well-Known Member

    Messages:
    590
    Likes Received:
    584
    Joined:
    Nov 23, 2013
    Location:
    Chilton Wi
    Hey everyone, Thanks for the great comments. Looks like taking the head off is the safest.

    • Agree Agree x 2
  15. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,731
    Likes Received:
    1783
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    If you are going to pull the head, this would be an excellent time to replace all of the studs. These studs cold work over time from the repeated heating and cooling and get very brittle, and they also stretch, that was probably what caused your exhaust leak. Few things are more annoying that replacing the one damaged stud and bolting everything back together and having another one break. Any good auto machine shop can remove and replace the old studs and it is not terribly expensive.

    Dave

  16. bluefury361

    bluefury361 Old Man with a Hat

    Messages:
    12,597
    Likes Received:
    8814
    Joined:
    Mar 9, 2011
    Location:
    Alabama Gulf Coast
    Welding a bolt to the broken stud might work. You can get a wrench on it that way. And the heat cycle may help loosen things.

    • Agree Agree x 1
  17. GOLDMYN

    GOLDMYN Well-Known Member

    Messages:
    590
    Likes Received:
    584
    Joined:
    Nov 23, 2013
    Location:
    Chilton Wi

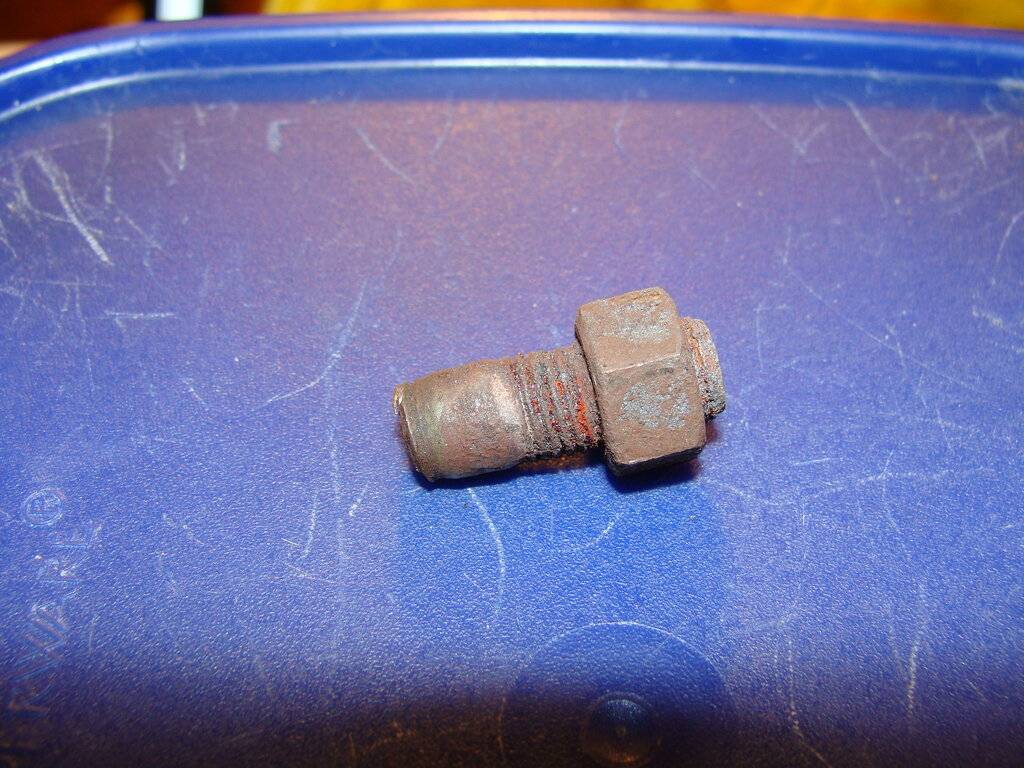

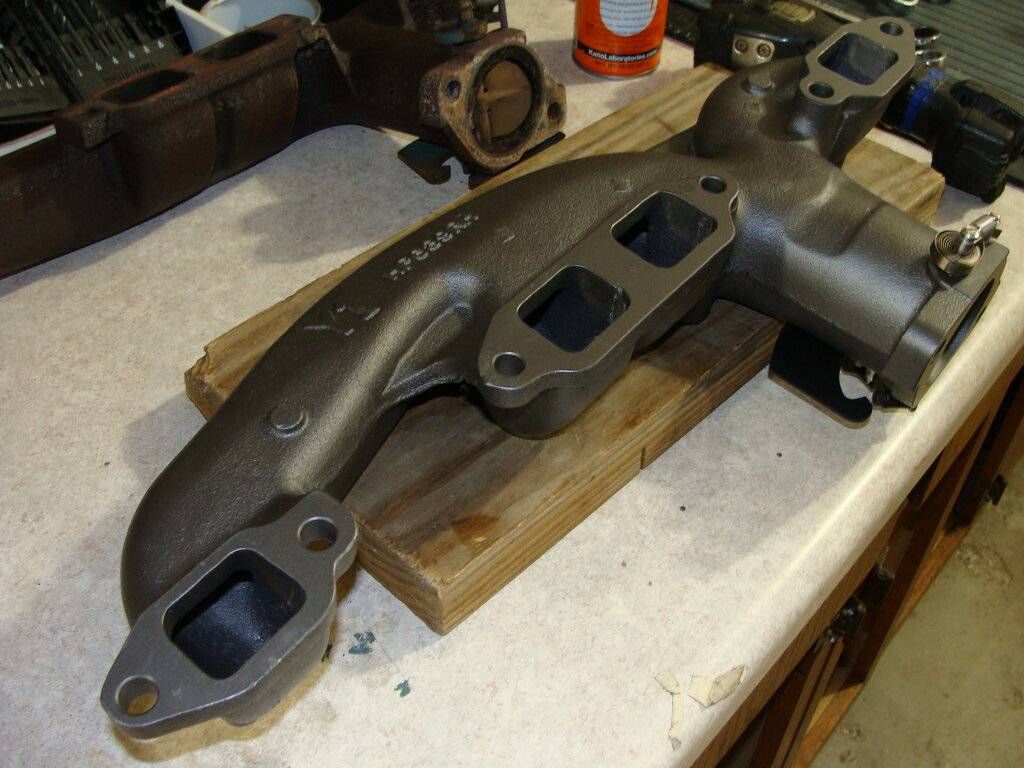

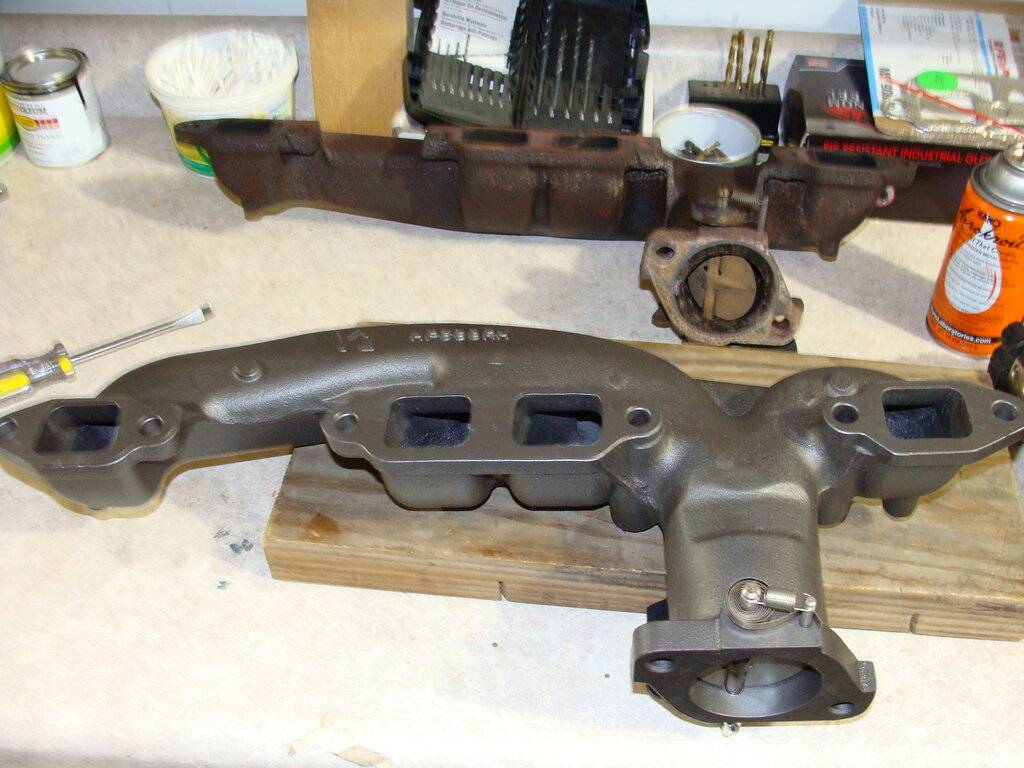

    no threads, here's a pix of the stud and manifold replacement DSC05260.JPG DSC05258.JPG

  18. GOLDMYN

    GOLDMYN Well-Known Member

    Messages:
    590
    Likes Received:
    584
    Joined:
    Nov 23, 2013
    Location:
    Chilton Wi


    Year one

  19. GOLDMYN

    GOLDMYN Well-Known Member

    Messages:
    590
    Likes Received:
    584
    Joined:
    Nov 23, 2013
    Location:
    Chilton Wi
    some good examples with the part out of the car with plenty of access

  20. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,731
    Likes Received:
    1783
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Nice clean looking manifold. By the looks of the stud that broke you should be replacing them all.

    Dave
