Headlight switch

Joined
Jun 23, 2022
Messages
17
Reaction score
10
Location
Pa
I was wonder if anyone has a ok kinda cheap switch or knows how to fix a switch





halifaxhops

Retired USAF MSGT (SW) yes navy also.
FCBO Gold Member
Joined
Mar 10, 2017
Messages
2,868
Reaction score
1,554
Location
HALIFAX PA
tommy at Parts hound does a great job on them also


1970FuryConv

Senior Member
Joined
Aug 8, 2014
Messages
4,738
Reaction score
4,394
Location
Richmond, VA
I was wonder if anyone has a ok kinda cheap switch or knows how to fix a switch

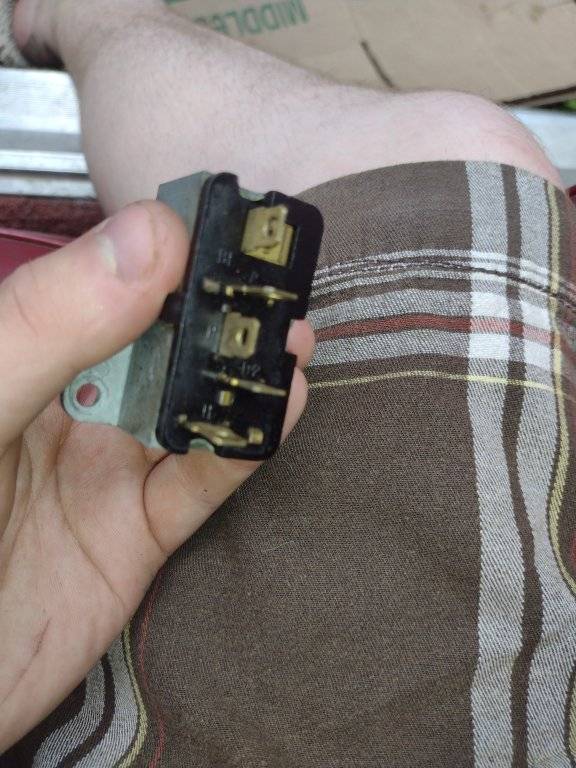

View attachment 557843

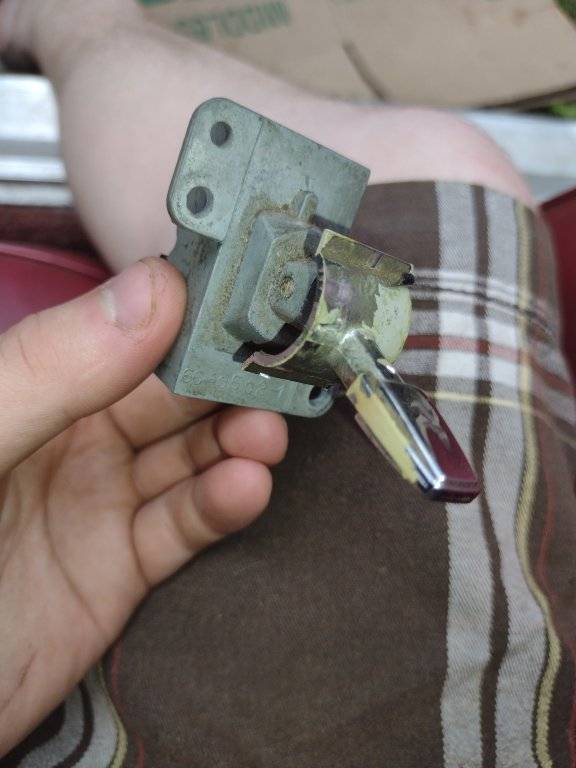

View attachment 557844
The difficulty with rebuilding is tapping back the areas of the metal switch box that are peened over the tabs on the black plastic backing plate. Then you can clean contacts with a sandpaper or wire wheel. My repair of a 1970 headlight switch is detailed here: Headlight Switch Disassemble, 1970-1971 Fury

Since the switch may be valuable I'd consider PM to member Devinism to get a rebuild price.


1970FuryConv

Senior Member
Joined
Aug 8, 2014
Messages
4,738
Reaction score
4,394
Location
Richmond, VA
The park lights work but when I flick it on the head lights nothing works

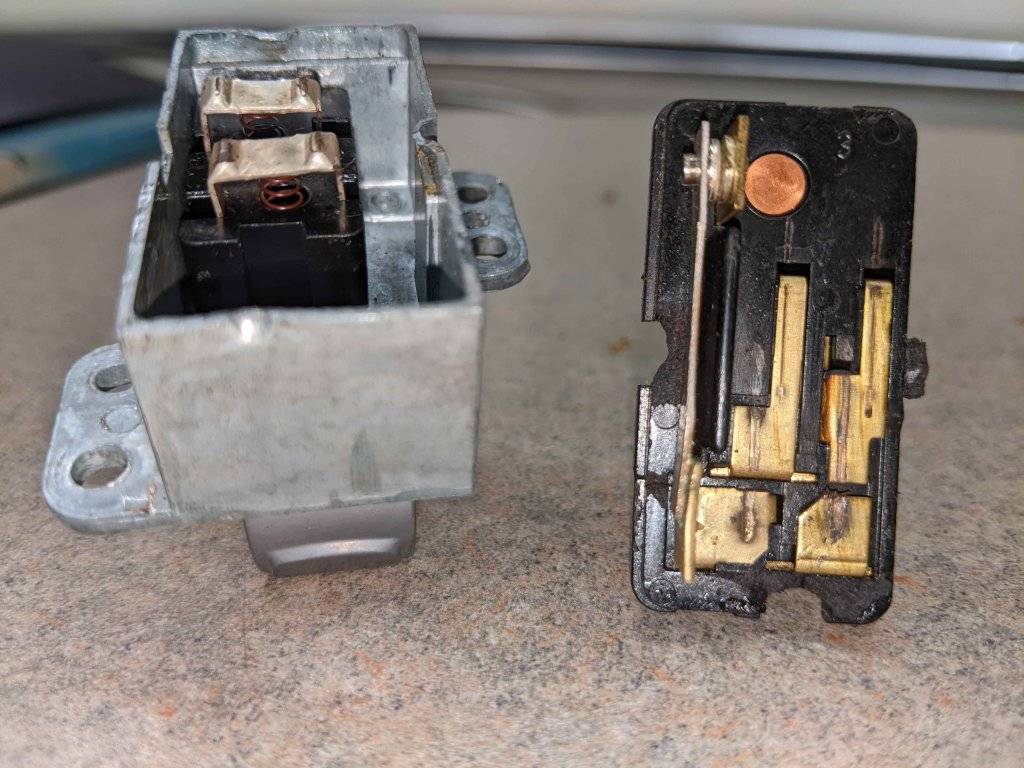

You may have contacts like these. The park portion in the middle stays clean and less grooved because it's used less. The lower portion gets more use and a lot more dirty because of the headlights getting more use.
1970 Switch, box and backing plate (spades at rear of backing plate). I cleaned brass contact strips with a red pencil eraser but had to wire wheel lightly to polish everything to the point where I got consistent low resistance at the parking lights position and headlight position of the rocker switch. If Devinism says 1967 is different, go with what he says.


Devinism

Member
FCBO Gold Member
Joined
Feb 15, 2016
Messages
175
Reaction score
129
Location
Wagoner, OK

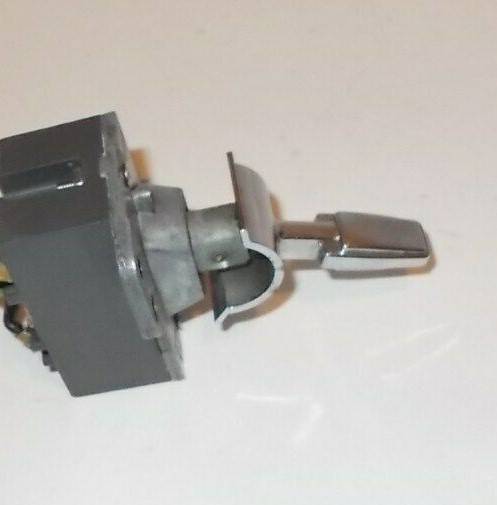

There were 2 different switches that could have been installed.

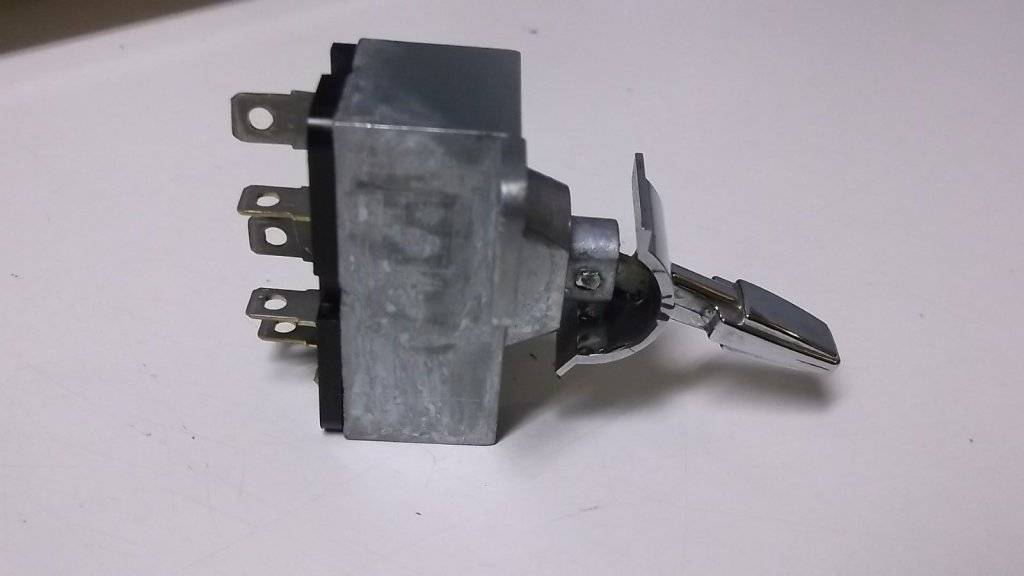

One with the black plastic body, or one with a metal body (with black plastic back)
Do you know which you have?



Devinism

Member
FCBO Gold Member
Joined
Feb 15, 2016
Messages
175
Reaction score
129
Location
Wagoner, OK
You have 2 terminals that should be hot at all times. B1 and B2

If you have an ohm meter you can check resistance
For headlights B1= power in, H=power out (to the floor hi/low switch).
You should see an open circuit between the 2 terminals when OFF and PARK.
HEADLIGHT ON position you should see continuity between the two (B1 & H)

B2 is power in for tail/dash/parking lamps. R is power out to dash/tail lamps. P is power out to park lamps.

Off = no continuity between B2 and R or P
PARK (center position) = continuity between B2 and R and also B2 and P
HEADLAMP ON = continuity between B2 and R
