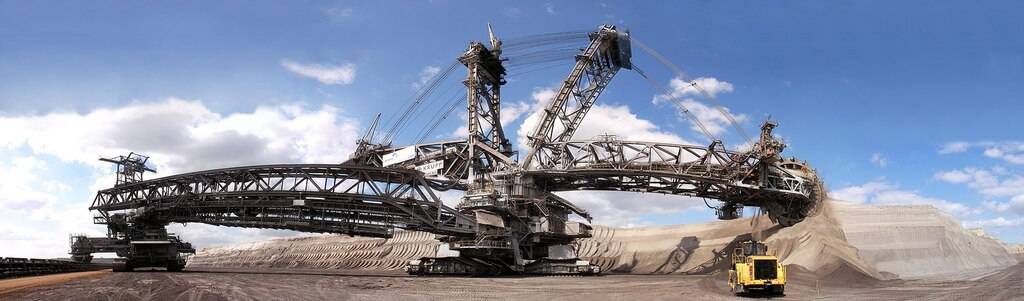

The Bagger 288...never heard of it.

She ain't fast, can't shoot a spitwad, but at 14,000 tons it might qualify as "heavy metal". Anybody know anything about this machine?

Here Are Some Cool Facts About Bagger 288 - The World's Largest Land Vehicle (wonderfulengineering.com)
Going waaaay back to the beginning of this thread Here's some info on this beast and a diifernt picture that gives perspective of how massive it is.


LocuMob

Fluid Technician with a hat
FCBO Gold Member
Joined
Oct 31, 2013
Messages
13,303
Reaction score
15,112
Location
Winnebago Mn

amazinblue82

Old Man with a Hat
FCBO Gold Member
Joined
Apr 29, 2014
Messages
7,407
Reaction score
12,754
Location
Michigan
was watching Aliens (second movie) on cable. wondered ALL these years what the APC was based on?

Obviously a prop, but had to have been built on a real vehicle of some sort. It was big, sounded like a diesel, and had production parts NO hollywood studio would ever have made -- even for big-budget films.

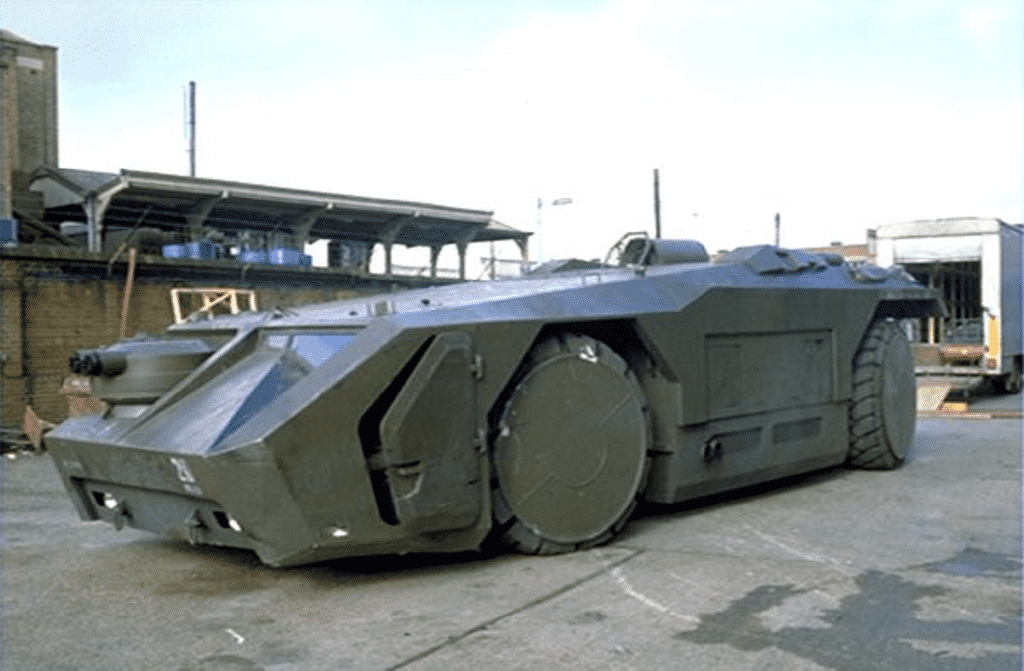

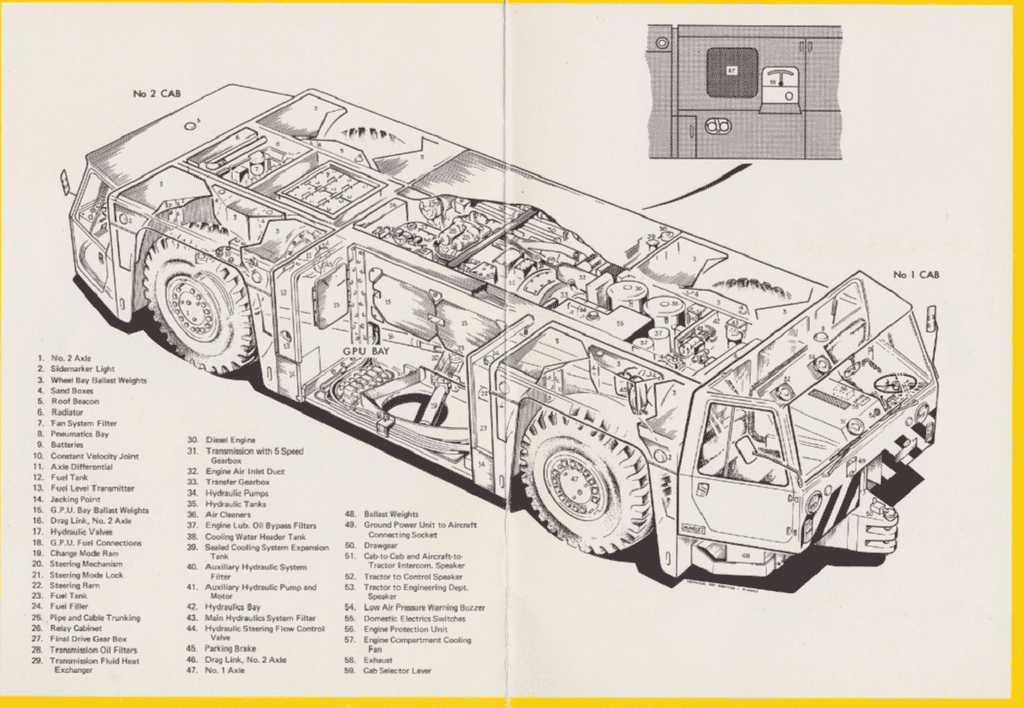

Meet the Hunslet ATT77 in "Aliens"

This was an aircraft towing tug that once used for towing Boeing 747s at Heathrow Airport, it weighed 72 tons and was stripped down to about 28 tons, the bodywork was done by metalworkers in Slough, near Pinewood Studios where most of the movie was made.

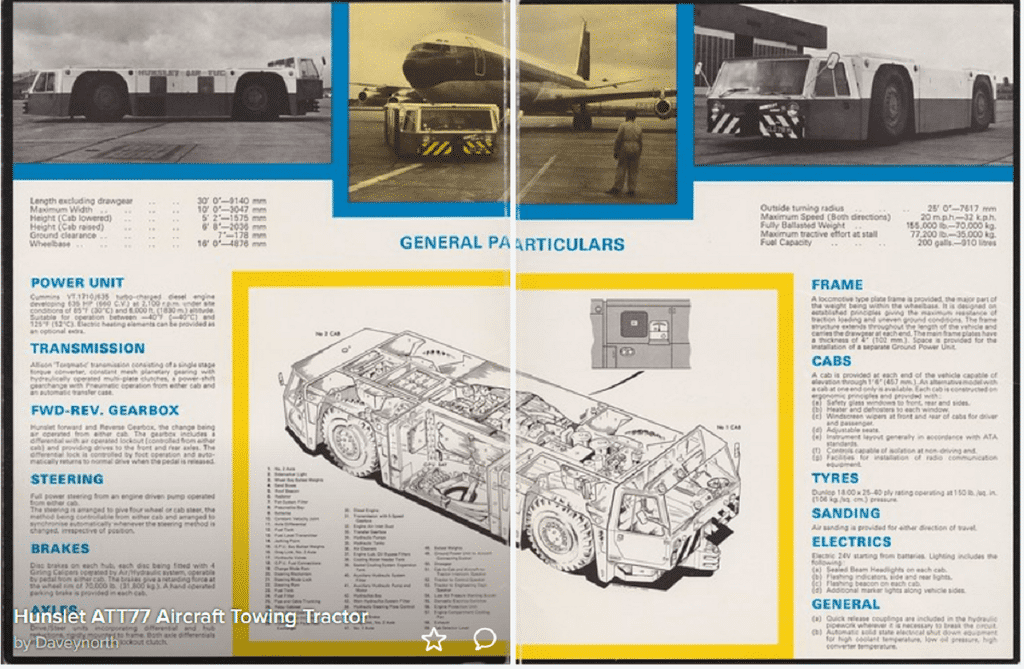

source: Hunslet ATT77 "Air Tug" Aircraft Towing Tractor 1968

Cummins, Allison, 700 HP, 2,100 ft. lbs torque, vintage 1968



Moseman

Senior Member
FCBO Gold Member
Joined
May 21, 2014
Messages
1,229
Reaction score
2,843
Location
Longmont, CO
Here Are Some Cool Facts About Bagger 288 - The World's Largest Land Vehicle (wonderfulengineering.com)
Going waaaay back to the beginning of this thread Here's some info on this beast and a diifernt picture that gives perspective of how massive it is.

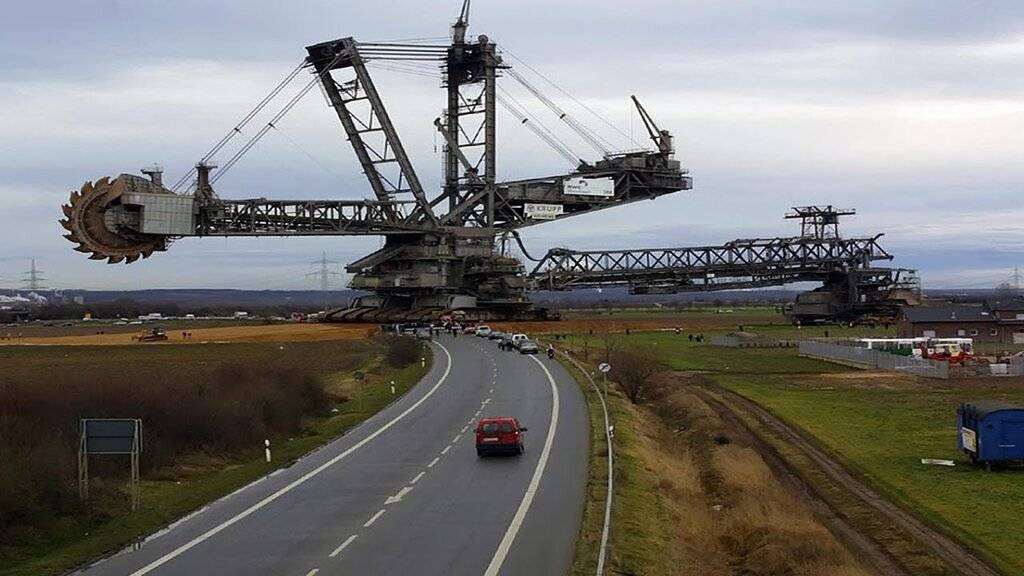

View attachment 499513
Schaffelradbagger - Greman for bucket wheel excavator. Can move a lot of dirt, but development costs are great, flexibility is poor, tremendous amout of conveyors, hate to see what happens when it gets stuck, and they do! I worked on several projects where we used truck shovel to ecavate and transport to a crusher/conveyor belt transfer. Much more flexible, Quite a bit lower cost.


3175375

Senior Member
Joined
May 16, 2018
Messages
1,981
Reaction score
3,567
Location
Centerville, South Dakota
Capt. William A. Perkins, USN
Commanding Officer, Naval Air Facility El Centro, joined Santa for the lighting of the F-14A BuNo 159856.

What better way for a Naval Air Facility to say Happy Holidays!!!

Last night parade was an amazing event where they hosted 1,200 guests and had 450 participants in 29 floats and marching groups!



amazinblue82

Old Man with a Hat
FCBO Gold Member
Joined
Apr 29, 2014
Messages
7,407
Reaction score
12,754
Location
Michigan

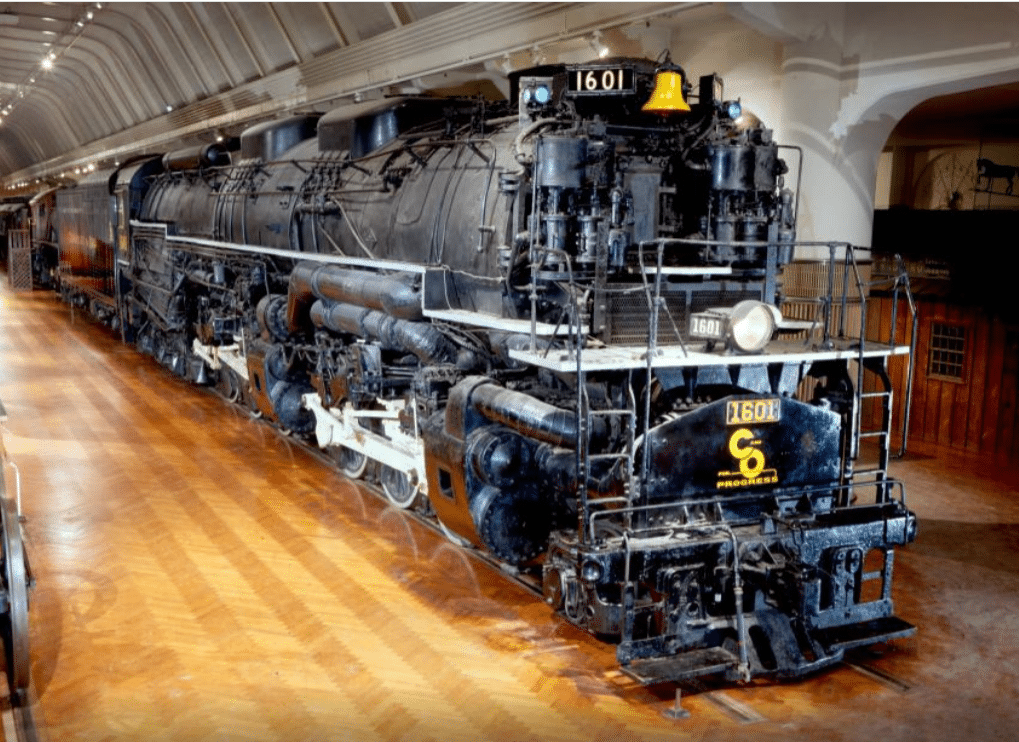

Fairchild Junction - Allegheny 2-6-6-6 H-8 #1601

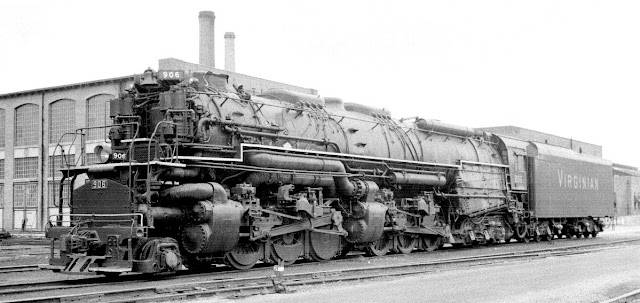

One source that identified this as "Allegheny 2-6-6-6 H-8 #1601". THe number on the locomotive in the picture though is different. Might be another Allegheny?

Either way, she's a big 'un. #1601 is at the Henry Ford Museum .. seen it many times. A wonder but at the junction of new technology -- the diesel electrics -- and new demands obsoleted the Alleghenys in about a decade

Allegheny Steam Locomotive, 1941 - The Henry Ford



71Newp

Active Member
Joined
Mar 5, 2015
Messages
201
Reaction score
133
Location
Maine
what is the paper strapped to there legs?
That is the airport diagram. It show the runways, taxiways and parking areas on the airport. The pilot will use that to ensure that they exit the runway and taxi via how they are directed by the controllers.
