    Hi folks,
    I started my 5.7 Hemi swap a while ago a I thought I would share the progress.

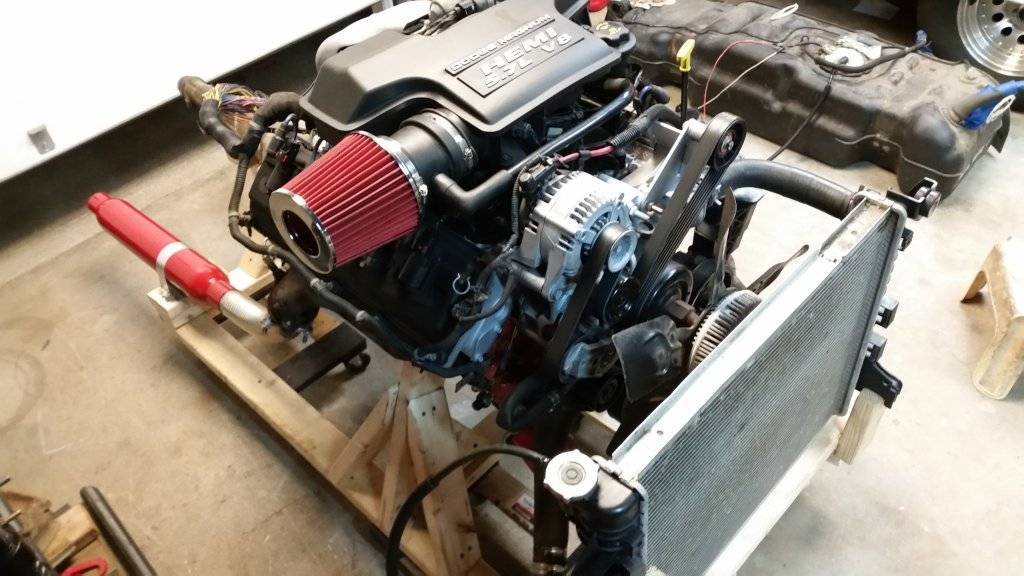

    I was given a 04 Durango truck engine that suffered from hydro lock. Rebuilt it with stock components and fired it up on the stand. I used stock wiring harness and ECM, as well as accelerator pedal and fuel pump.
    I used HP Tuners to tweak the ECM (manual transmission, disable rear O2 sensors, disable some diagnostic codes, etc.).

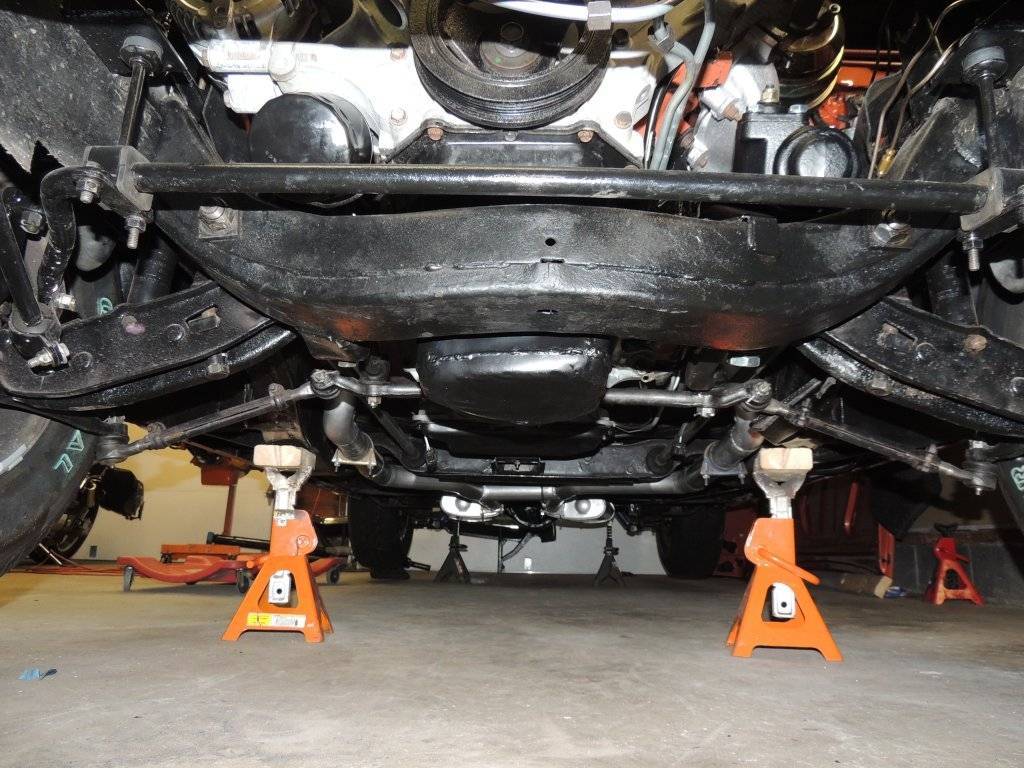

    I made a custom oil pan and pickup - took hemi pan and c-body pan and combined the two. I could buy Milodon pan, but I was concerned about the idler arm notch that the pan is missing, plus $250 seemed high to me. After I welded the pan I leak tested it using penetrating dye and developer, found a few pin holes, fixed, tested again. It holds 7 quarts of oil.
    Next I found a small block 727 case and swapped my big block 727 internals.
    For engine mounts I used small block mounts and made adapter plates. Took me a while to get them right.

    • Like Like x 11
    • Thanks! Thanks! x 1
  2. superfragl

    superfragl Active Member

    Messages:
    358
    Likes Received:
    273
    Joined:
    Jan 16, 2014
    Location:
    MA
    I installed original big block oil pressure sensor into one of the oil plugs next to the oil filter and coolant temp sensor in front engine cover. This way original dash gauges will work fine.
    I also had to use a Mopar 45 degree oil filter adaptor to clear the stub frame.
    After I dropped the motor in I found that truck intake manifold will not work... it is hitting the firewall... Had to pull the motor out. Found a crashed 06 police charger and took off front cover with accessories and intake manifold. Two days later the motor was back in and I had about 1" gap between intake and firewall.
    On a car engine heater tubes come out back at the firewall, but with not much clearance in that spot I had to modify the tubes so they exit at the right location.

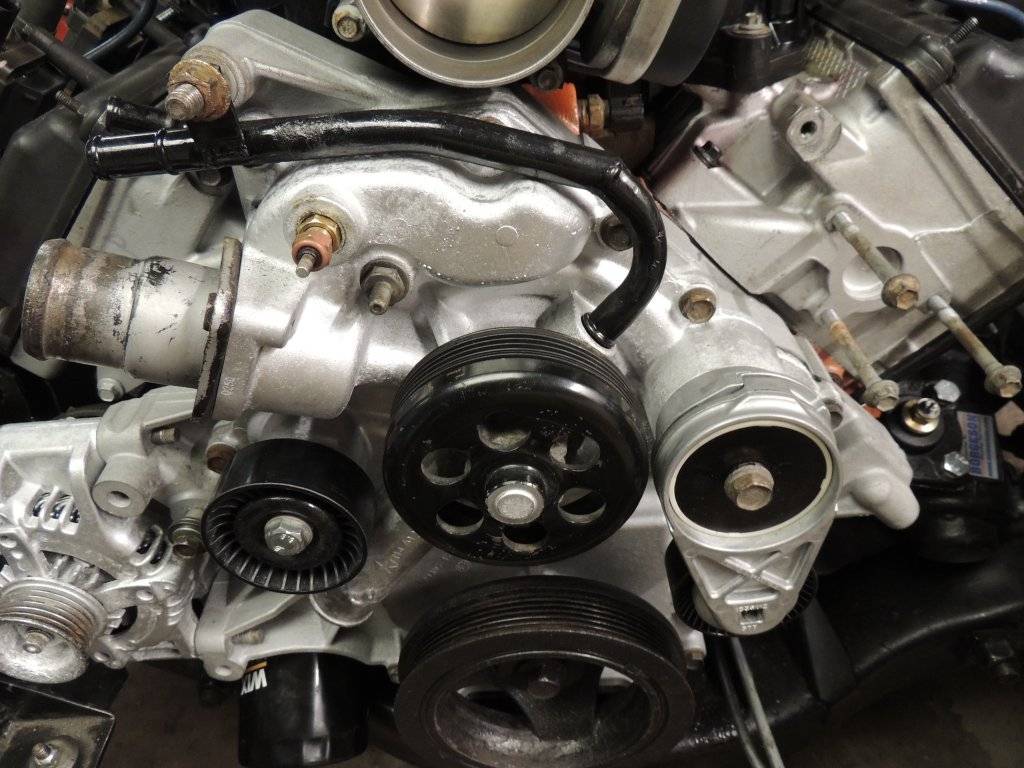

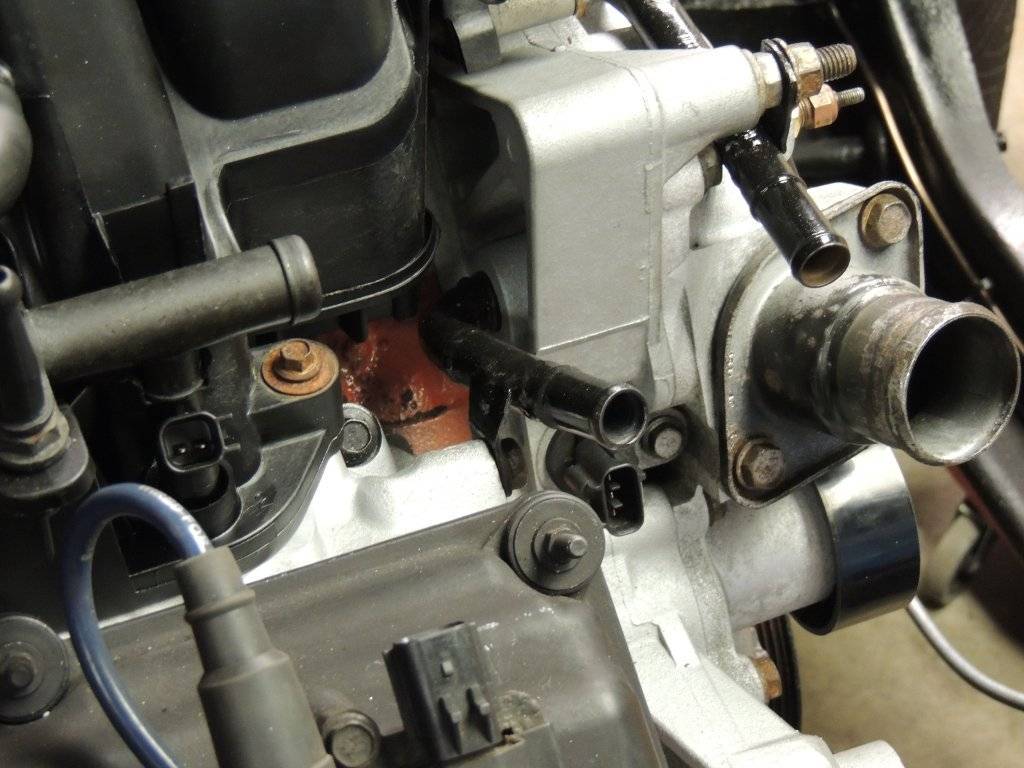

    DSCN9692.JPG DSCN9713.JPG

    • Like Like x 6
  3. superfragl

    superfragl Active Member

    Messages:
    358
    Likes Received:
    273
    Joined:
    Jan 16, 2014
    Location:
    MA
    The fuel rail fitting on car intake is on passenger side, which worked better for me and I could use original fuel line.

    • Like Like x 5
  4. superfragl

    superfragl Active Member

    Messages:
    358
    Likes Received:
    273
    Joined:
    Jan 16, 2014
    Location:
    MA

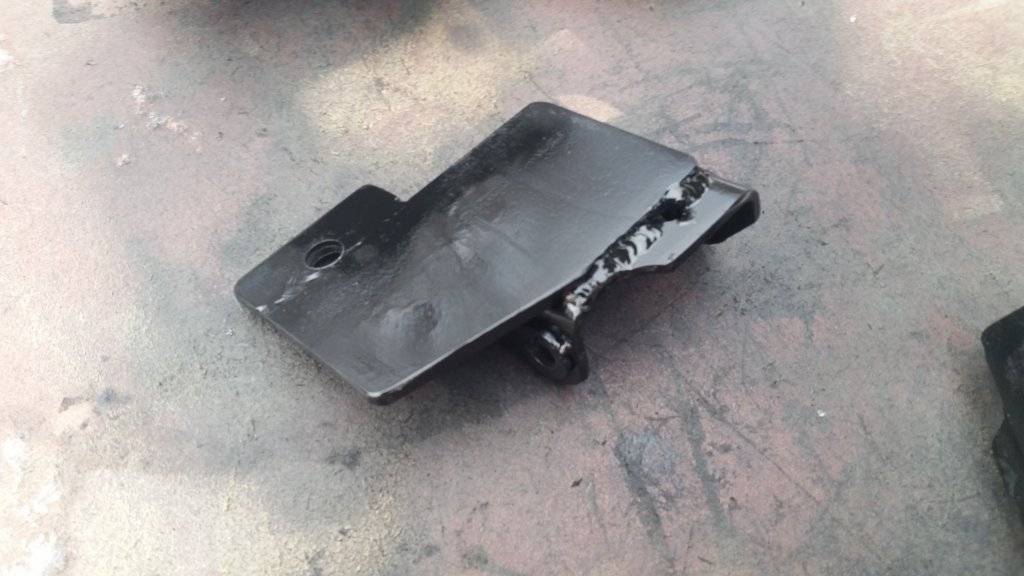

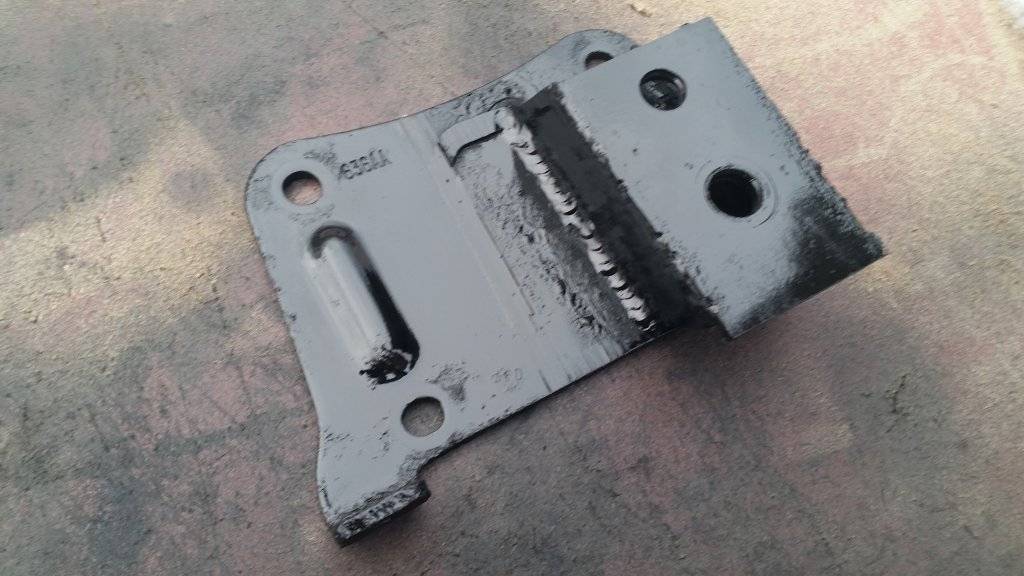

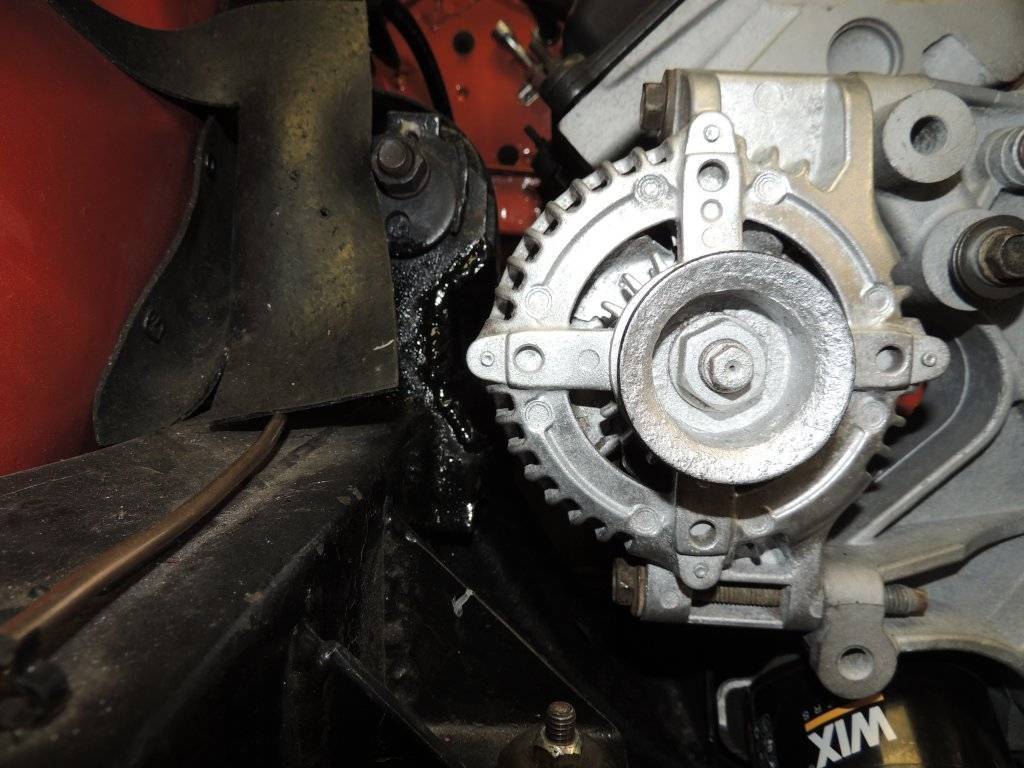

    Then I ran into another issue - alternator is interfering with upper control arm post. I had to cut a notch and weld a plate (to reinforce).
    I also milled alternator mounts down by 1/4" to get it closer to the motor.

    • Like Like x 5
  5. superfragl

    superfragl Active Member

    Messages:
    358
    Likes Received:
    273
    Joined:
    Jan 16, 2014
    Location:
    MA
    After all those mods I have no clearance issues so far.

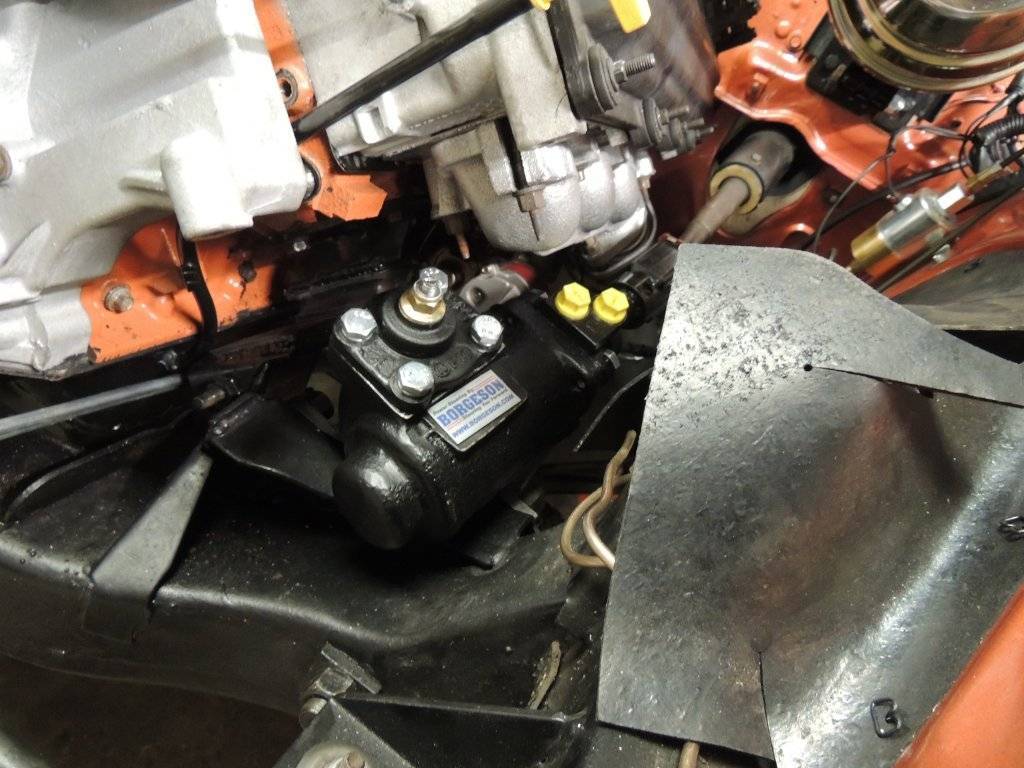

    Truck exhaust manifolds fit perfect and clear the new Borgeson steering box. Durango down pipes fit as well.

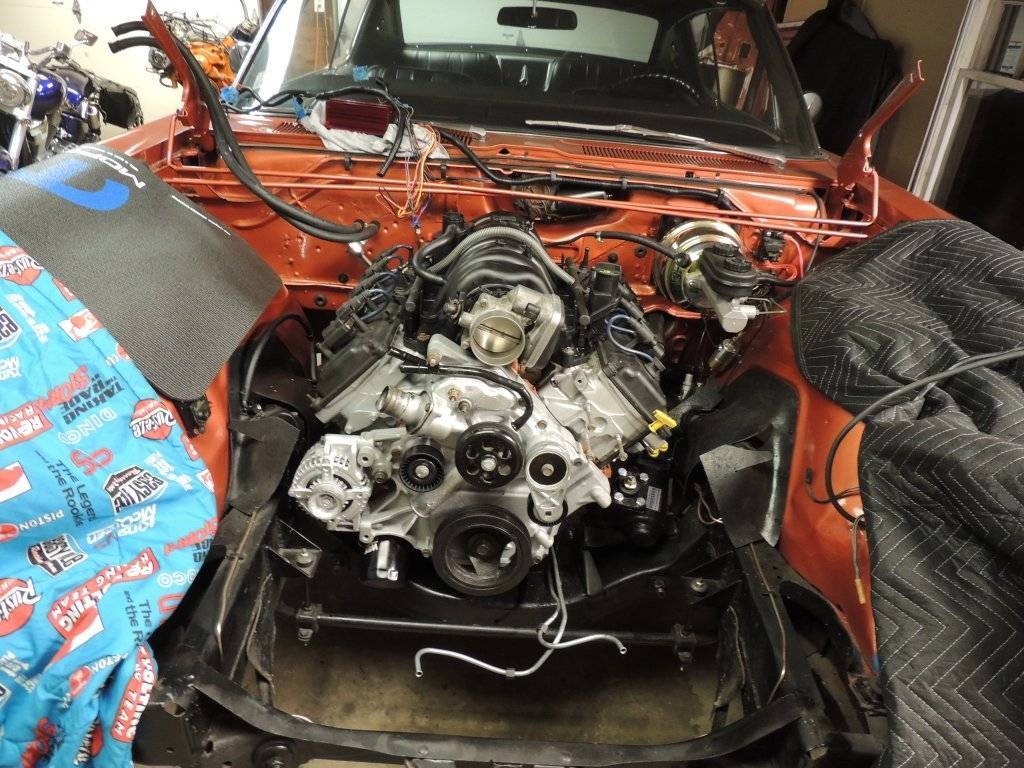

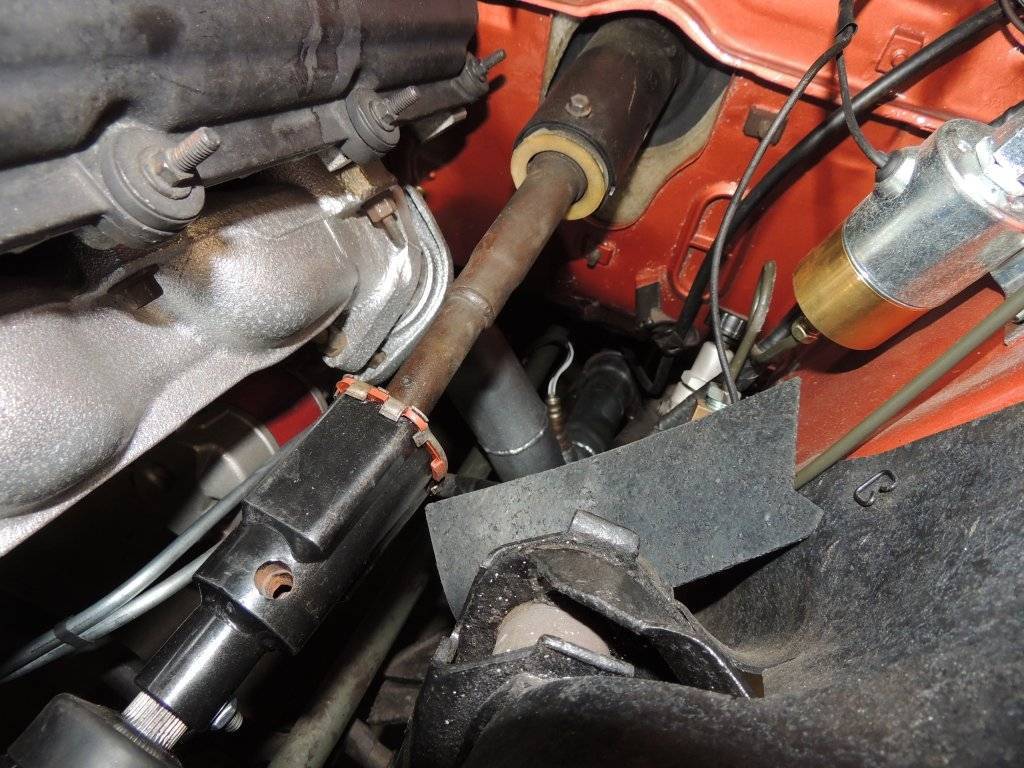

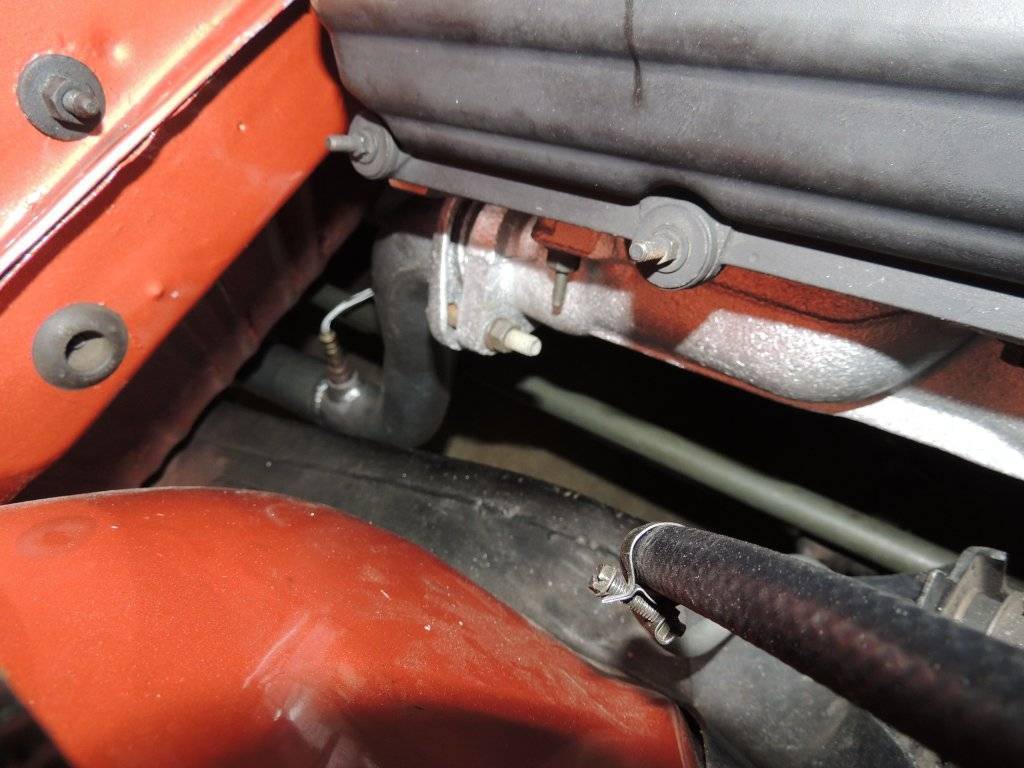

    DSCN9690.JPG DSCN9697.JPG DSCN9698.JPG DSCN9699.JPG

    You can see my custom made steering coupler.

    Last edited: Jan 18, 2017
    • Like Like x 4
  6. superfragl

    superfragl Active Member

    Messages:
    358
    Likes Received:
    273
    Joined:
    Jan 16, 2014
    Location:
    MA
    Finished exhaust last night

    • Like Like x 6
  7. superfragl

    superfragl Active Member

    Messages:
    358
    Likes Received:
    273
    Joined:
    Jan 16, 2014
    Location:
    MA

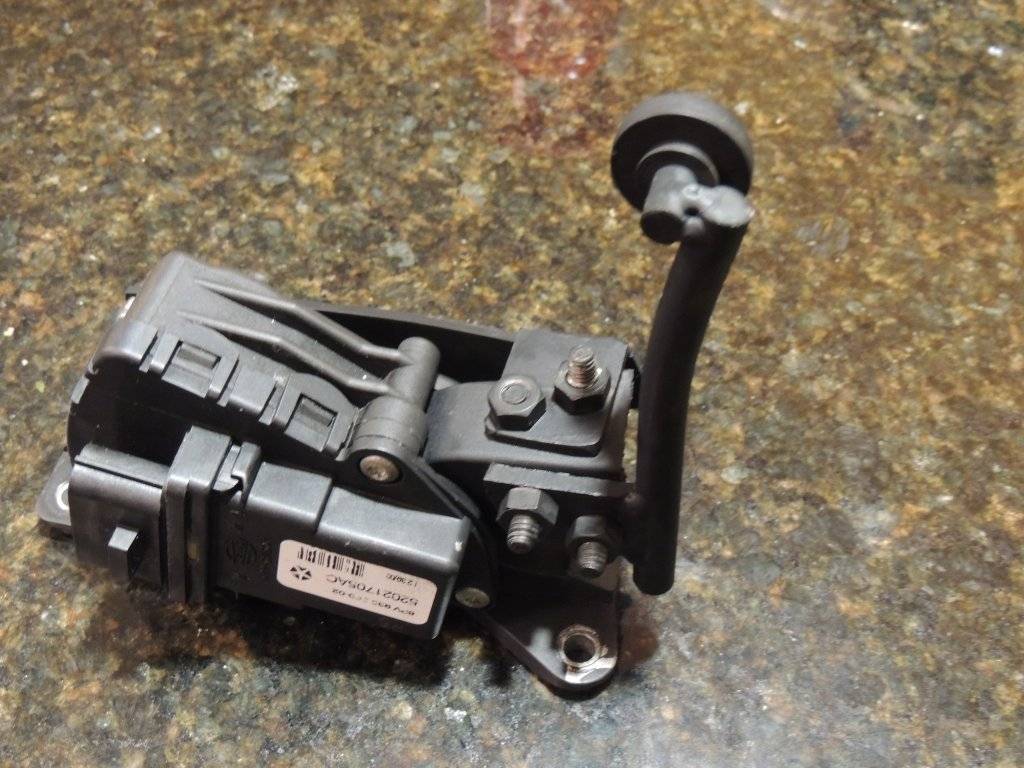

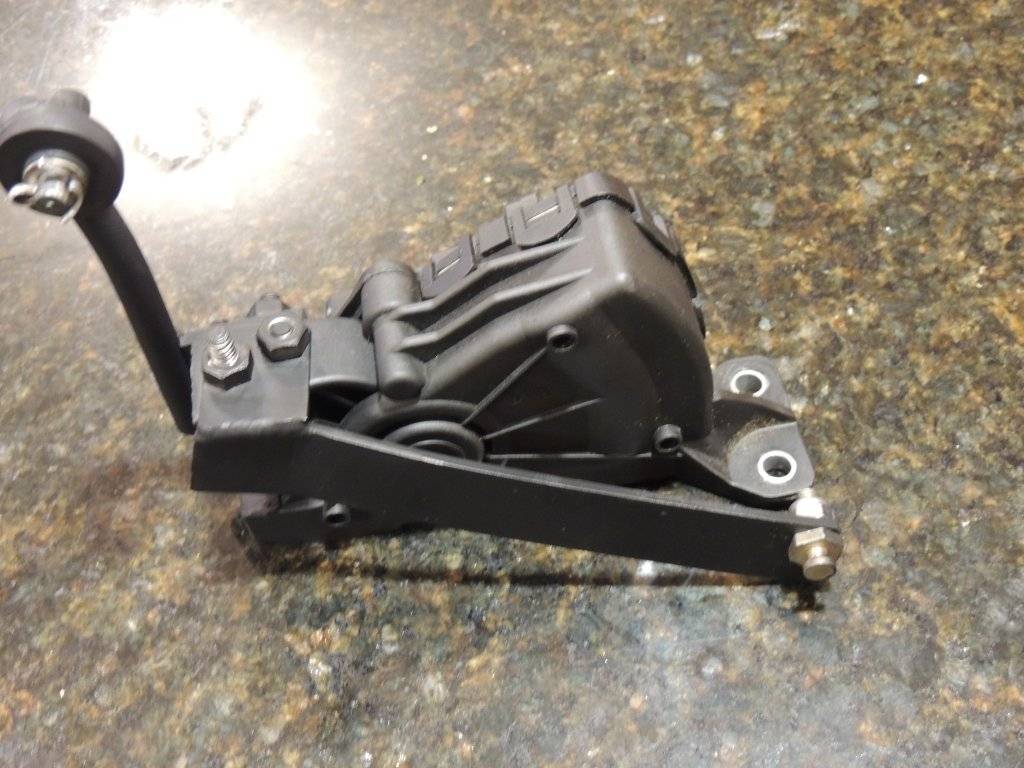

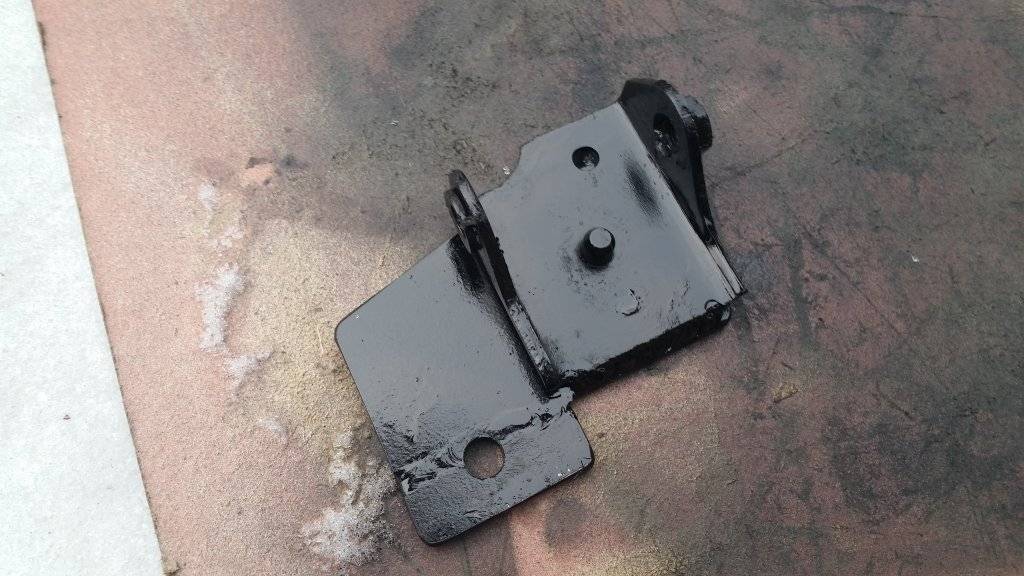

    I was going to use cable operated accelerator position sensor (04 Ram), but could not come up with a location, also had to hook up transmission kick down cable somehow. In the end i modified Durango acc. pedal and put it in place of the lever that goes behind original accelerator pedal. I was able to retain original gas pedal and use only one cable to control transmission kick-down.
