How close is tailpipe supposed to be to frame rail

Mopar Exhaust Systems

  1. D Cluley

    D Cluley Member

    Messages:
    180
    Likes Received:
    105
    Joined:
    Nov 19, 2010
    Location:
    Lansing MI
    I'm replacing the single exhaust on my '65 Chrysler, and am not sure 100% about the placement of the tailpipe.

    I believe it is supposed to run inboard of the frame rail but not sure how close horizontally or vertically to the rail.

    Anyone have dimensions or photos of a stock setup in that area?

    Thanks,
    Dan

  2. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    4,454
    Likes Received:
    4999
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    Dan I have a few pics.
    Let me dig them out of my archives.
    The tailpipe runs between the gas tank and frame rail slightly lower than the frame rail.
    Stock tailpipes end before the bumper and have a baloney sliced tip.
    Btw, you still have the blue Dart? Lol!

  3. D Cluley

    D Cluley Member

    Messages:
    180
    Likes Received:
    105
    Joined:
    Nov 19, 2010
    Location:
    Lansing MI
    No, the Dart lasted till the spring of 2014. It just got too rusty & needed significant engine work so got parted out that summer.

    After 7 years I figured out I don't have the time/energy/budget to keep more than one old car together.

    The current daily is a Buick from Alabama. 18 years old & no rust! :)

    • Like Like x 1
  4. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    6,748
    Likes Received:
    1539
    Joined:
    Mar 27, 2011
    In general, the pipe is closer to the frame rail than to the fuel tank. With the normal C-body muffler, seems line the rear pipe is pretty much on the same straight line out of the muffler after it goes over the rear axle? Consider, too, that the L-shaped rear hanger is about 2.5-2.75" in its horizontal dimension.

    Just some thoughts,
    CBODY67

  5. azblackhemi

    azblackhemi Old Man with a Hat FCBO Gold Member

    Messages:
    6,809
    Likes Received:
    4795
    Joined:
    Nov 13, 2010
    Location:
    Waddell AZ
    Here you go Dan.

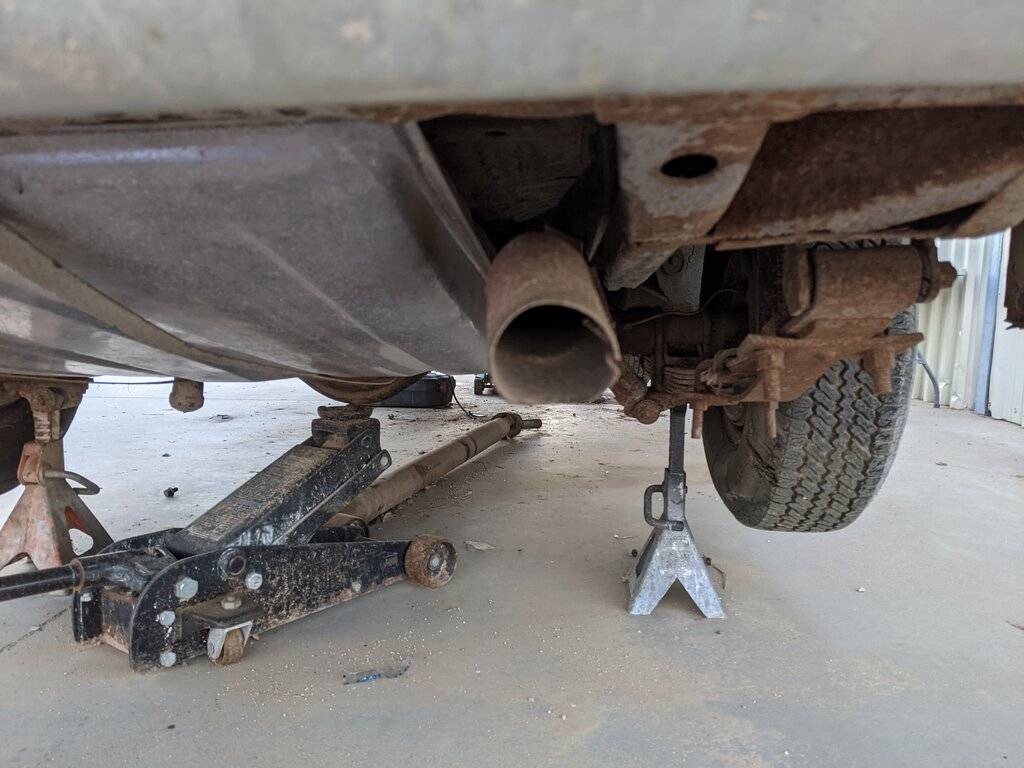

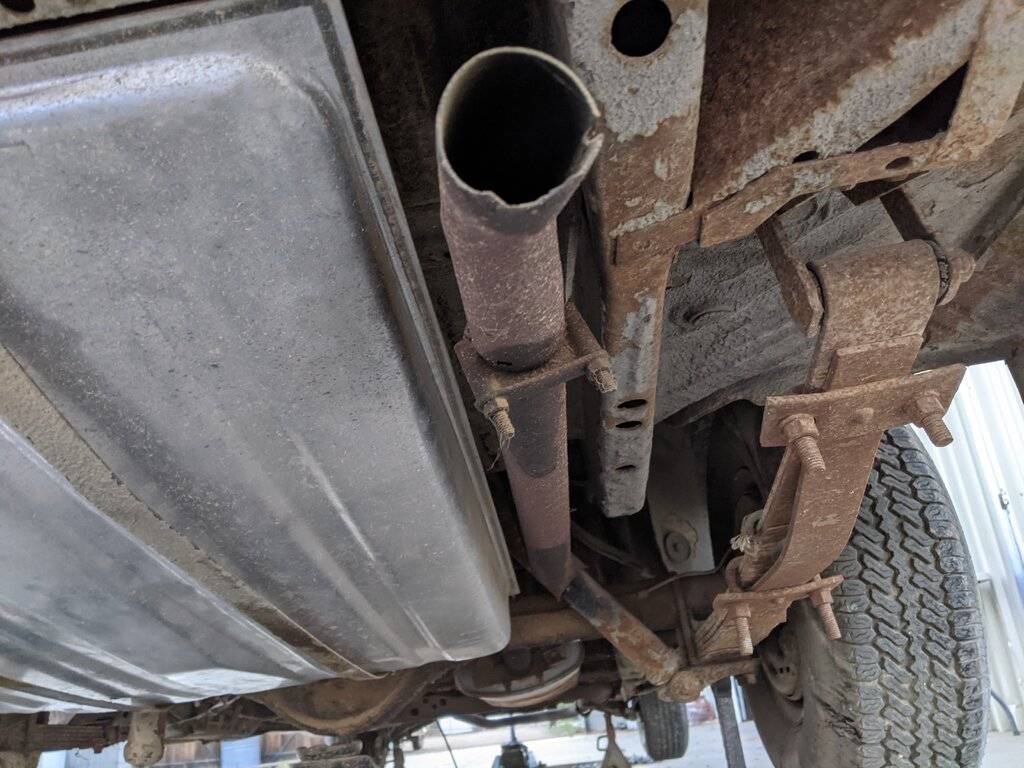

    PXL_20211018_134032608.jpg PXL_20211018_134041769.jpg PXL_20211018_134045544.jpg

  6. odcics2

    odcics2 Well-Known Member

    Messages:
    665
    Likes Received:
    303
    Joined:
    May 14, 2014
    Location:
    utica, mi
    When I used to do exhaust work in the 70s, a good rule of thumb is... the width of your thumb between any metal as a minimum.

    • Agree Agree x 1
  7. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    4,454
    Likes Received:
    4999
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?

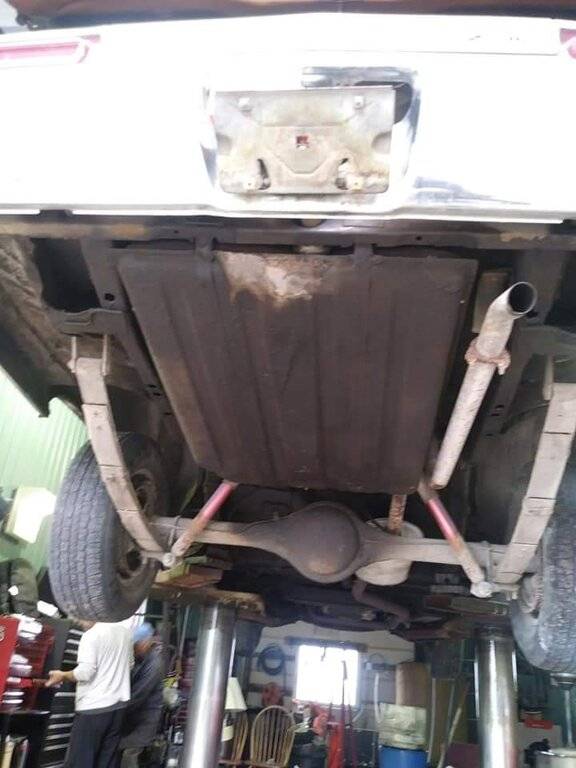

    Dan what i have on file so far..
    Pretty much dead center between the tsnk and frame.


  8. D Cluley

    D Cluley Member

    Messages:
    180
    Likes Received:
    105
    Joined:
    Nov 19, 2010
    Location:
    Lansing MI
    Thanks guys.

    I got a complete setup from Waldron's and it seems to fit quite well. Problem is my car has a trailer hitch, and it is pretty much exactly where the pipe is supposed to run.

    I'm thinking tweaking it down and over (under the frame rail) is going to be easier than up and through the hitch frame, but we will see.

    1965 Chrysler 300 exhaust 10 20 2021.jpg
