Ignition wiring (My car should be on fire)

Electrical & Ignition

  1. JustMatt

    JustMatt New Member

    Messages:
    14
    Likes Received:
    9
    Joined:
    Sep 6, 2019
    Location:
    Alabama

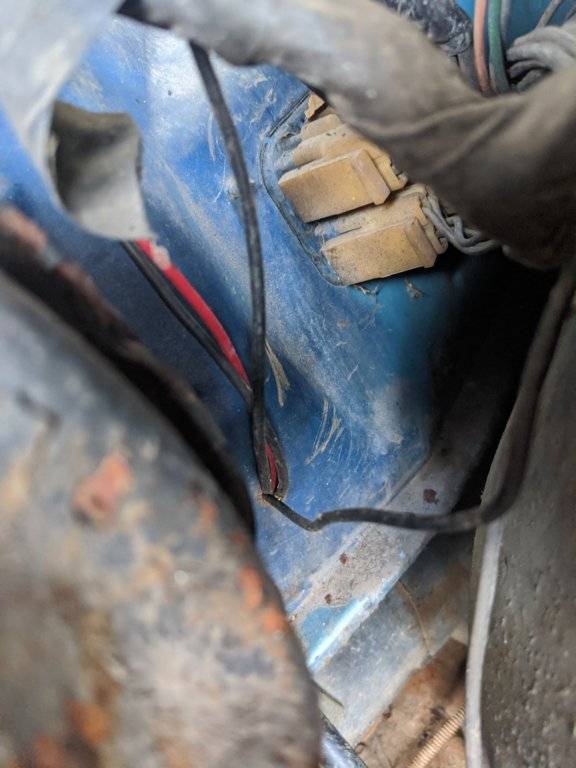

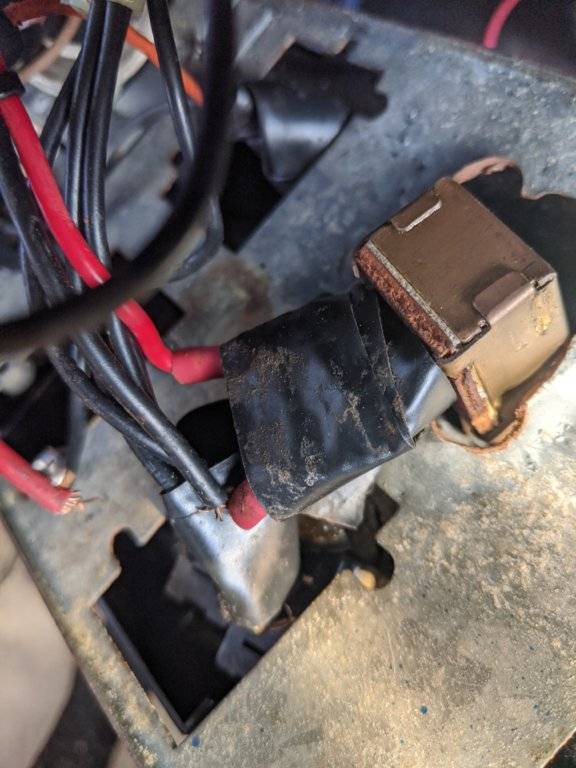

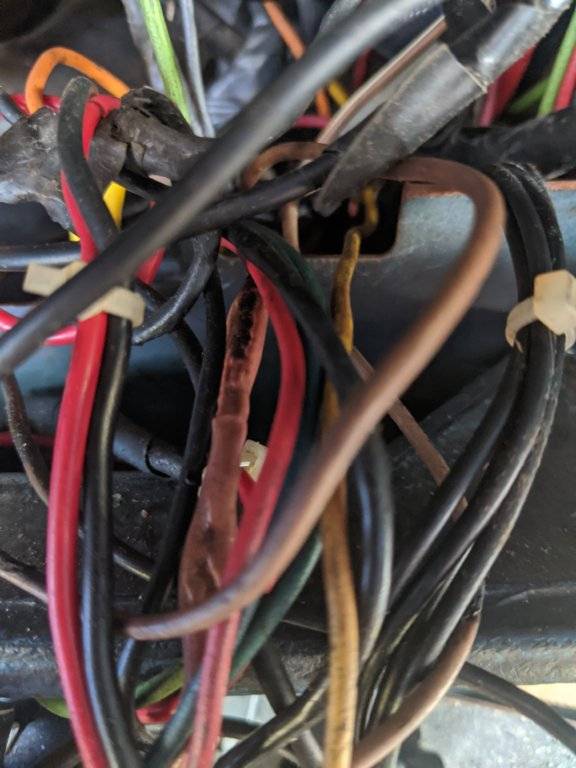

    Previous owner bypassed the key. The fact this thing hasn't burned to the ground is amazing. Anyone have a wiring diagram for 70 383? Any pictures would be helpful too






  2. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,071
    Likes Received:
    7100
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    • Agree Agree x 2
  3. JustMatt

    JustMatt New Member

    Messages:
    14
    Likes Received:
    9
    Joined:
    Sep 6, 2019
    Location:
    Alabama
    Prefect thanks so much

  4. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    2,585
    Likes Received:
    3174
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    Yup...FSM with wiring diagrams,a multimeter,lots of patience and beer.
    In this case,what I had done the past is a total gut and start from scratch.
    If the harness is beyond repair score a good used harness,perform continuity tests on all circuits,repair whatever needs repairing and re-install in the car.
    I also unwrap the harness check for damage and re-wrap it so it looks clean and no spagetti mess hanging at your feet.

    Now is the time to bypass the bulkhead for the main red and black wires that feed the whole system AND do an ammeter bypass/shunt under the hood.
    With the dash already out install an electronic 5 volt limiter for the gauges-worth the extra cost and no headaches down the road (literally)
    I solder and shrink tube any broken wires but never the main feeds.I replace the wires stem to stern
    Pull out and Clean up each and every spade in the bulkhead connector.
    Labor intensive but never have to do it again.
    Clean each and every ground in the dash and under the hood.
    Best of luck and any ?? PM me.. I love and hate electrical in our beloved Mopars,LOL!!

    Last edited: Jan 17, 2020
    • Like Like x 4
  5. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,071
    Likes Received:
    7100
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Here's a suggestion since you've got a lot to deal with.

    I print out the FSM wiring diagrams and get out the colored highlighters and trace the circuit(s) I want to troubleshoot. Makes it a lot easier to see the circuit. That is one of the great things about a digital copy.

    • Agree Agree x 5
    • Like Like x 2
  6. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    2,585
    Likes Received:
    3174
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    Whereabouts in Alabama? I was in Gadsden AL for Christmas LOL!
    Ddid the Little River falls Parkway and roamed around the mountains.
    Boaz,Cleveland,etc.

  7. JustMatt

    JustMatt New Member

    Messages:
    14
    Likes Received:
    9
    Joined:
    Sep 6, 2019
    Location:
    Alabama
    I should also mention it's a power windows wagon. So tons of extra wiring

  8. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    2,585
    Likes Received:
    3174
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    The power windows feed and harness is typically separate from the main harness. When new they add the P.window harness as per build sheet.

  9. JustMatt

    JustMatt New Member

    Messages:
    14
    Likes Received:
    9
    Joined:
    Sep 6, 2019
    Location:
    Alabama
    I'm down towards Tuscaloosa. South of Birmingham

    • Like Like x 1
  10. JustMatt

    JustMatt New Member

    Messages:
    14
    Likes Received:
    9
    Joined:
    Sep 6, 2019
    Location:
    Alabama
    The rear window controls are in that rats nest somewhere is why I mentioned it

  11. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    2,585
    Likes Received:
    3174
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    Yeah! we drove through Tuscaloosa then the storm came afterwards,LOL!

  12. stubs300

    stubs300 Senior Member

    Messages:
    2,051
    Likes Received:
    857
    Joined:
    Oct 30, 2011
    Location:
    Free America
    • Like Like x 1
    • Agree Agree x 1
  13. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    1,859
    Likes Received:
    2544
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    Both wiring diagrams are good ideas. The good about the colored pencil trace is that you can tackle one circuit at a time and learn what is feeding what as you are tracing.

    The pre made color circuit is a little more durable and great for fast troubleshooting and tracing.

    • Agree Agree x 1
  14. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    2,839
    Likes Received:
    1213
    Joined:
    Dec 10, 2012
    Location:
    central ny
    :wideyed: i would suggest trying to find a good replacement dash harness at the least. i'd bet the bulkhead is melted .

    • Agree Agree x 2
  15. JustMatt

    JustMatt New Member

    Messages:
    14
    Likes Received:
    9
    Joined:
    Sep 6, 2019
    Location:
    Alabama
    I'm almost afraid to dig any deeper lol

  16. thrashingcows

    thrashingcows Senior Member

    Messages:
    2,779
    Likes Received:
    1084
    Joined:
    May 15, 2012
    Location:
    British Columbia
    I have kept all the wiring harnesses from my parts vehicles over the years....little pieces of wire with the correct colours and correct connections are invaluable when repairing old OEM harnesses.

    • Agree Agree x 1
  17. JustMatt

    JustMatt New Member

    Messages:
    14
    Likes Received:
    9
    Joined:
    Sep 6, 2019
    Location:
    Alabama
    This is my first Mopar. I'm use to the simpler GM system

    • Like Like x 1
  18. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    2,585
    Likes Received:
    3174
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    Welcome to this forum,you came to the right place for parts and help. :thumbsup:

  19. stubs300

    stubs300 Senior Member

    Messages:
    2,051
    Likes Received:
    857
    Joined:
    Oct 30, 2011
    Location:
    Free America
    Nobody sweats the details like GM, And they don't!

  20. cbarge

    cbarge World Famous Barge in a Budget FCBO Gold Member

    Messages:
    2,585
    Likes Received:
    3174
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
