Inboard or outboard?

Heating, Cooling & AC

  1. swisherred

    swisherred Well-Known Member

    Messages:
    634
    Likes Received:
    346
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc

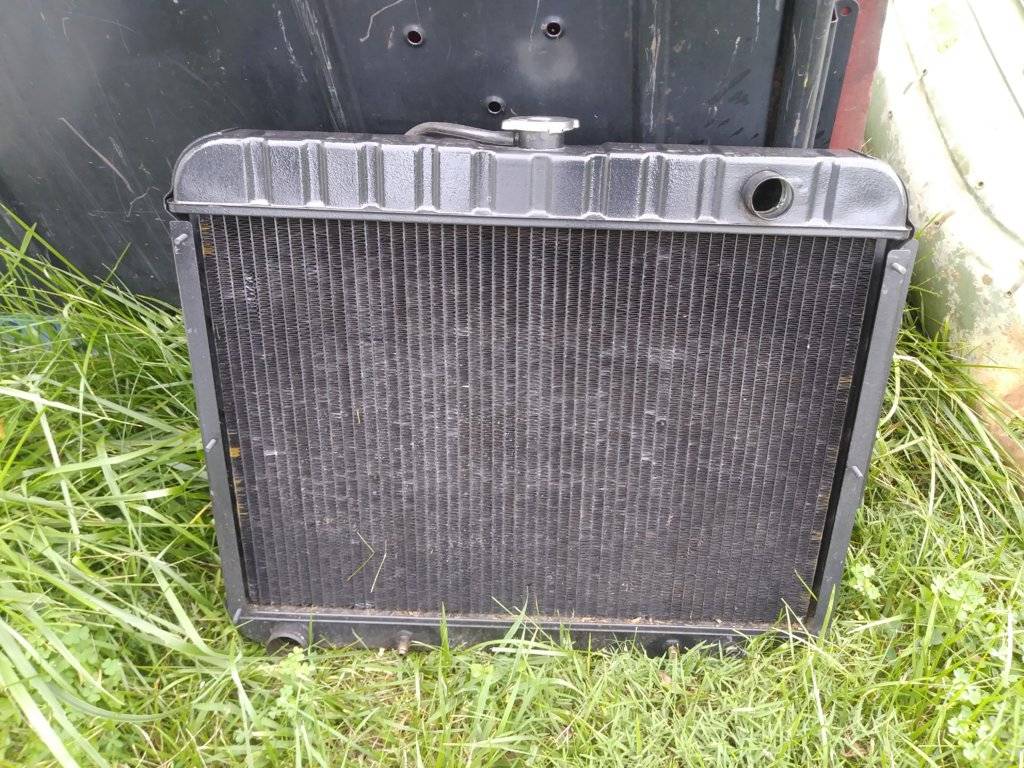

    Would this 26" radiator be considered inboard or outboard on the upper hose?


  2. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    4,065
    Likes Received:
    1009
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Mopar used two configurations on 26" radiators, One with the outlet on the driver side and one with the outlet on the passenger side. Never heard them referred to as inboard or outboard.

    Dave

    • Agree Agree x 9
  3. swisherred

    swisherred Well-Known Member

    Messages:
    634
    Likes Received:
    346
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    Even the fsm refers to them as in or out. This isn't the original radiator for my car...it was replaced. I have swapped the yoke out for an ac car yoke so now it fits....but I want to ditch the flex hose that was used.

  4. polara71

    polara71 Old Man with a Hat FCBO Gold Member

    Messages:
    39,288
    Likes Received:
    7203
    Joined:
    Nov 16, 2010
    Location:
    New Jersey
    That photo and the mounting studs makes me wanna go look at my radiator .

  5. mrfury68

    mrfury68 Well-Known Member

    Messages:
    816
    Likes Received:
    279
    Joined:
    Jul 15, 2015
    Location:
    Bethel Park PA
    Those studs are for the shroud. Upper rad hose is on passenger side. Looks just like the one in my '68 Fury, 383 with A/C.

    • Like Like x 1
    • Thanks! Thanks! x 1
    • Agree Agree x 1
  6. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    2,666
    Likes Received:
    1109
    Joined:
    Dec 10, 2012
    Location:
    central ny
    in and out = inlet and outlet as far as i know.

    • Agree Agree x 4
  7. MoparJim

    MoparJim Member

    Messages:
    145
    Likes Received:
    143
    Joined:
    Mar 18, 2017
    Location:
    Oakdale, California
    I was thinking the exact same thing: This looks exactly like my radiator set up in my 68 Sport Fury 383 with AC. In fact, although I don't claim to be any kind of expert, I have been around and interested in these cars since they were new and I don't recall ever seeing the radiator hoses any different than on this example.

  8. 65sporty

    65sporty Old Man with a Hat

    Messages:
    6,361
    Likes Received:
    1479
    Joined:
    Aug 24, 2013
    Location:
    Marlette,Mi
    So your just looking for a new hose?

  9. 300rag

    300rag Grumpy Old Man With a Hat FCBO Gold Member

    Messages:
    10,419
    Likes Received:
    10367
    Joined:
    Dec 4, 2010
    Location:
    Calgary, Alberta, Canada

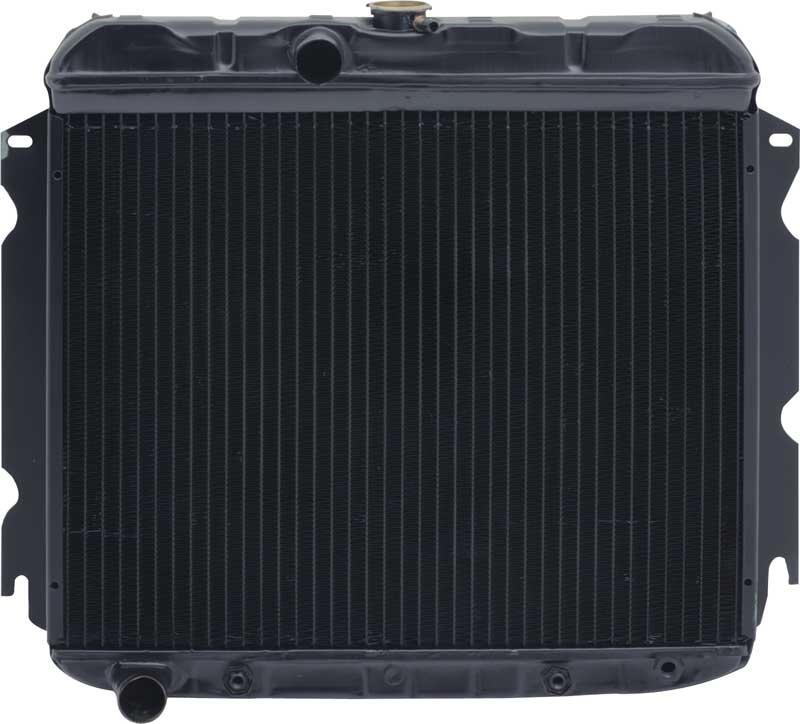

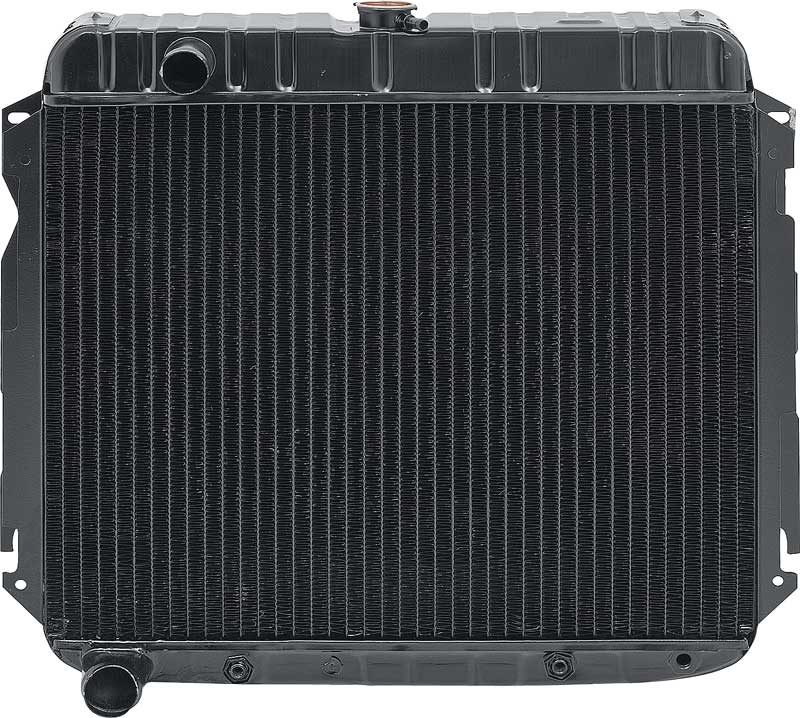

    Not to muddy the waters here, but could this be the reference of inboard/outboard? Yes, I know it's a different application, but you get the idea with the location of the inlet.



  10. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    2,666
    Likes Received:
    1109
    Joined:
    Dec 10, 2012
    Location:
    central ny
    where did you find those pictures? looks like a 22" i need.

  11. CBODY67

    CBODY67 Senior Member

    Messages:
    3,669
    Likes Received:
    826
    Joined:
    Mar 27, 2011
    Upper hose for a B-block a/c car (passenger side of the tank outlet) is very similar to the one on the B/E-body 383s with a/c. Mostly the same contours. Might require a bit of shortening at the t/stat end, as I recall.

    Personally, I'd term the upper picture, with the hose near the filler neck, as "center" rather than "inboard".

    CBODY67

  12. 300rag

    300rag Grumpy Old Man With a Hat FCBO Gold Member

    Messages:
    10,419
    Likes Received:
    10367
    Joined:
    Dec 4, 2010
    Location:
    Calgary, Alberta, Canada
    • Thanks! Thanks! x 1
  13. polara71

    polara71 Old Man with a Hat FCBO Gold Member

    Messages:
    39,288
    Likes Received:
    7203
    Joined:
    Nov 16, 2010
    Location:
    New Jersey
    Thanks, I can leave the hood closed .

  14. swisherred

    swisherred Well-Known Member

    Messages:
    634
    Likes Received:
    346
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    Those radiator pics are exactly what I meant. The upper one is inboard...lower pic is outboard. They had 22 26 and 28" radiators. Some inboard, some outboard depending on big block or small block. I want to make sure I get the correct upper hose for mine. The lowers were the same.

  15. live4theking

    live4theking Old Man with a Hat

    Messages:
    7,648
    Likes Received:
    1667
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    What engine is in your car? Also, which way does your t-stat point.

    My 68 NYer with AC has the inlet on the passenger side. The t-stat points to the passenger side as well. Purchasing am upper hose was not a problem, but I had to buy 3 lowers to get one that would fit and then like someone else said I had to shorten it.

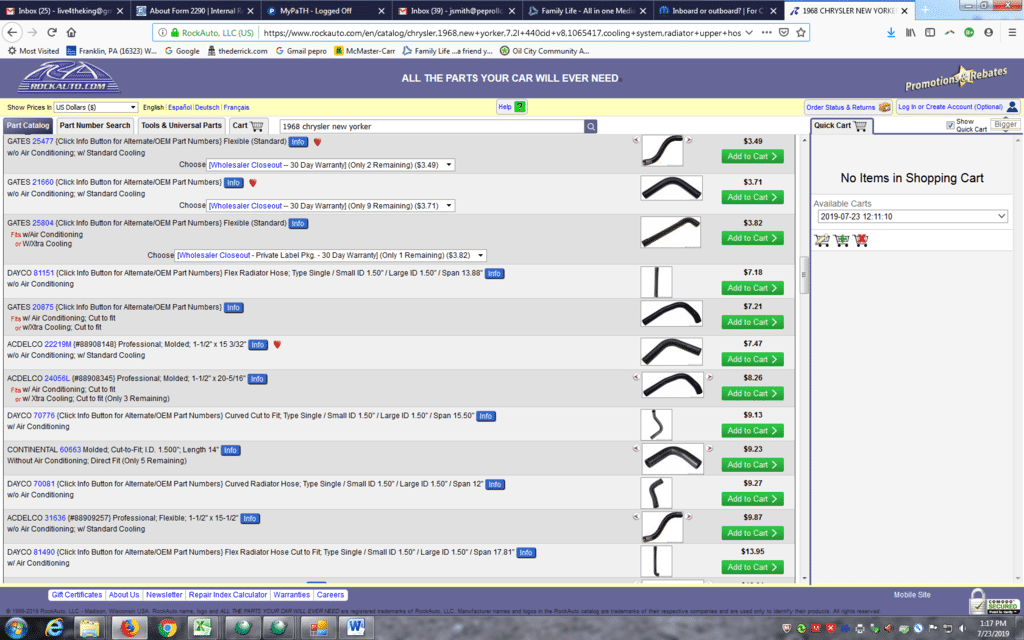

    Rock Auto listing for 68.


  16. swisherred

    swisherred Well-Known Member

    Messages:
    634
    Likes Received:
    346
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    67 383. Stat points straight up. Water pump to the drivers side.

  17. live4theking

    live4theking Old Man with a Hat

    Messages:
    7,648
    Likes Received:
    1667
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    Silly me mine points straight up too. At that rate one for a 68 NYer should do fine for the top. I guess the thing that could throw you off is if the distance from the radiator support tip the engine is different.

  18. Don A

    Don A New Member

    Messages:
    2
    Likes Received:
    2
    Joined:
    Dec 12, 2014
    Location:
    Vernon, Ca
    Small blocks and big blocks without AC had the top hose connection near center or closer to the driver side of the car. Big blocks with AC had the top connection where your picture indicates. Hemi's had the connection in the top passenger side corner for both air and no air applications. Btw, the yoke is generally refereed to as a core support. Note: when you buy new hose's most come with instruction to "cut to fit" and the bottom one is always a small problem because it needs to fit between the lower cross member and the oil filter without touching or rubbing on either. Be sure and use a wire in the bottom hose. It's a tight bend and wire will prevent collapsing the hose under acceleration. The top hose it straight forward and the 90 degree bend slips over the thermostat housing and then shorten the other end if needed to slip on the radiator. The Gates hose pictured above (25804), third one down in the picture, is used on big blocks with AC and Hemi motors ('66-'69) where the radiator connection is on the passenger side. Don A

    • Like Like x 2
  19. swisherred

    swisherred Well-Known Member

    Messages:
    634
    Likes Received:
    346
    Joined:
    Jan 19, 2016
    Location:
    winston salem, nc
    Thanks guys. I ordered what I think is correct from what y'all are saying. Will find out soon.
