Location of power window relay70 Polara

Interior

  1. JPMODL

    JPMODL Active Member

    Messages:
    337
    Likes Received:
    590
    Joined:
    Nov 3, 2016
    Location:
    WI
    Anyone know where I should look to locate the power window relay for my 70 Polara? Neither power window switch works at this time, friend told me to find and check relay.
    John

  2. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,372
    Likes Received:
    2032
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Check behind the kick plate on the driver side, might want to check fuses or circuit breaker first. Mopar feeds the rest of the power windows off the master switch on the driver's door, so if there is not power to that switch, none of the windows will work. The cable feeding the switch sometimes breaks off wires from the door opening and closing, so your problem could also be there.

    Dave

    • Thanks! Thanks! x 1
  3. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,748
    Likes Received:
    8562
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    The relay itself is located on the fuse block next to the horn relay. Take a look at the wiring diagrams in your FSM and you'll see it.

    The way it works is to supply power to the entire system when the key is on. I kinda doubt that's the issue, but it's worth a check.

    • Agree Agree x 1
  4. JPMODL

    JPMODL Active Member

    Messages:
    337
    Likes Received:
    590
    Joined:
    Nov 3, 2016
    Location:
    WI
    The other three windows work fine.

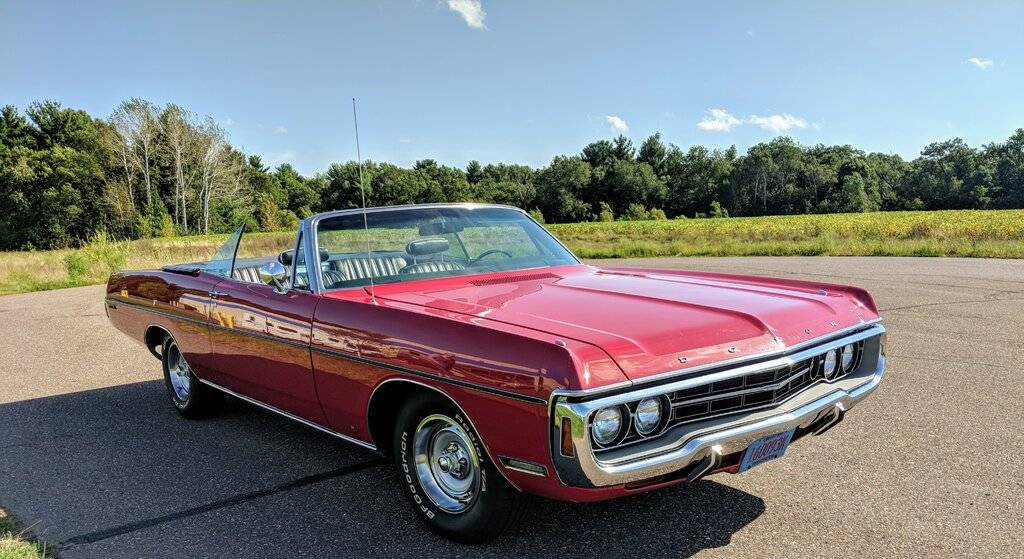

    John MVIMG_20190910_153431.jpg

  5. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,372
    Likes Received:
    2032
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    If the rest of the windows work, it is not the relay. You either have a bad switch to the driver side motor or a bad or jammed motor.

    Dave

    • Agree Agree x 1
  6. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,748
    Likes Received:
    8562
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Then it's definitely not the relay.

    The relay feeds the entire system. Go to the FSM and there's a good procedure to check the electrical feed and switch.

    • Like Like x 1
  7. 3175375

    3175375 Senior Member FCBO Gold Member

    Messages:
    1,319
    Likes Received:
    1367
    Joined:
    May 16, 2018
    Location:
    Centerville, South Dakota
    • Agree Agree x 1
  8. JPMODL

    JPMODL Active Member

    Messages:
    337
    Likes Received:
    590
    Joined:
    Nov 3, 2016
    Location:
    WI
    To clarify, neither switch for the passenger side rear window works.

    Thank you for your help.
    John

  9. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,748
    Likes Received:
    8562
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    IIRC, a bad switch on either position can cause that... or bad motor etc.
