Look'n not proper inside brake drum...

Glider

Member
Joined
Jul 18, 2021
Messages
61
Reaction score
11
Location
Tollarp Sweden

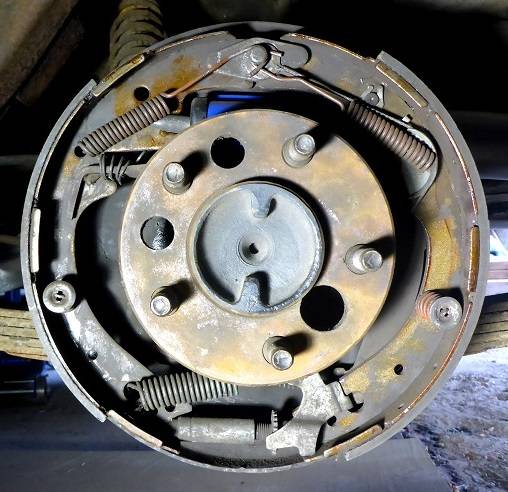

I just got the e-brake fixed but driver side wouldn't brake so I took of the drum & found it like this... & I can't get the "plate thing" to sit in a way to stop the adjusting wheel to move, it just lays beside the wheel:



Sixpactogo

Active Member
Joined
Aug 22, 2015
Messages
235
Reaction score
215
Location
Wisconsin
Looks correct to me.........It should adjust itself. When you back up and put the brake on, the shoes will expand lifting that adjuster plate up. Once the shoes are worn down enough, it will click that wheel to spread the shoes apart. If everything is in adjustment, it stays where it is. By the looks of the threads showing, it has been adjusting at some point.


thrashingcows

Senior Member
Joined
May 15, 2012
Messages
3,103
Reaction score
2,341
Location
British Columbia
Those starwheel adjustment plates are specific right and left side....I've seen more then one vehicle with them switched, or two of the same side. There is a small notch on theback side that grabs the starwheel if it's installed correctly.


1970FuryConv

Senior Member
Joined
Aug 8, 2014
Messages
3,643
Reaction score
3,817
Location
Richmond, VA
Did you adjust the brakes such that you get a slight drag when turning the tire and rim?

If the brakes are properly adjusted, regardless of the star wheel adjuster plate, you should have brakes at both sides. A test would be to remove the wheel and drum. Then have an assistant press the brake pedal, while you watch for the shoes to move. Obviously, the assistant should go very slow and you should stop the assistant as soon as you see movement. If there is a lot of pedal push before there's movement, I'd bleed that rear brake again.
