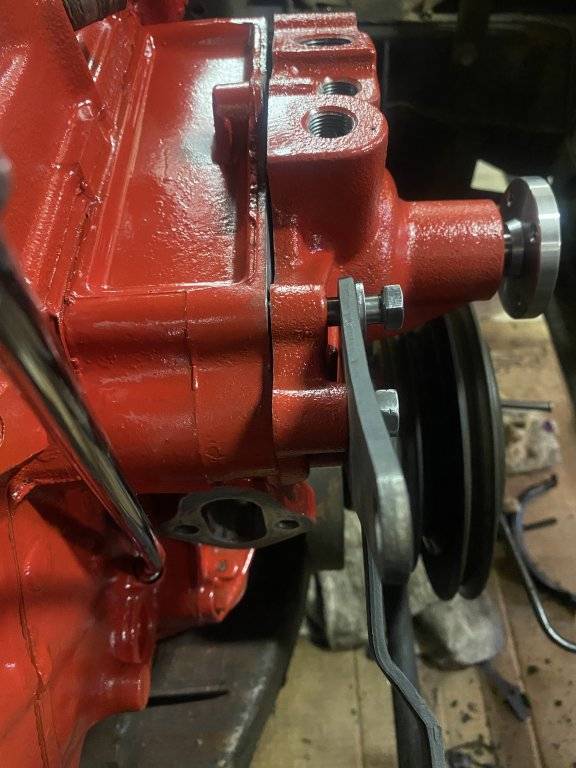

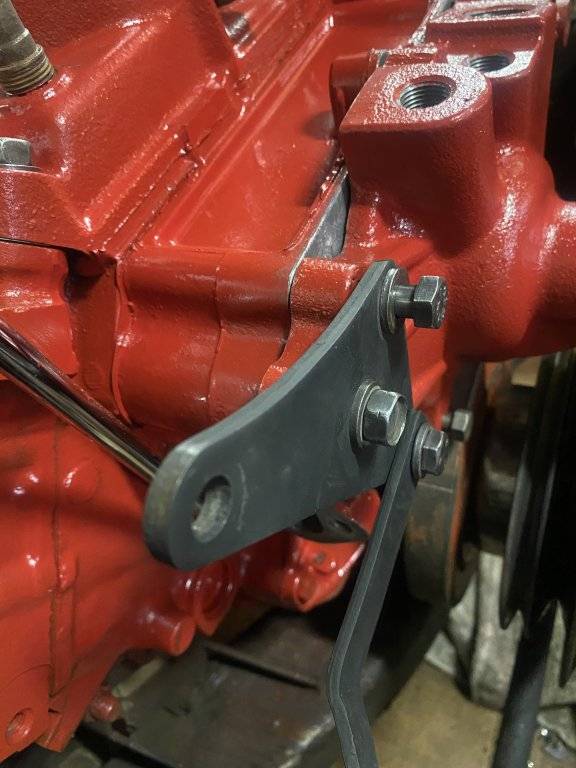

Hi Guys, Reassembling top end of my 69 Polara’s 318 here. Can somebody tell me exactly what I lost or am missing here? Is it indeed a spacer that’s about .150” thick? I’m trying to bolt up the water pump and get the alternator bracket on there correctly. Thanks.





'66 Fury I

Active Member
Joined
Aug 19, 2019
Messages
231
Reaction score
285
Location
Moncton, NB, Canada
My '69 318 has a spacer of (without accurate measure) one quarter inch, and works fine. Does your bracket have a bit of "Wonk" in it? Should be fine with the spacer added. Lindsay


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,113
Reaction score
21,876
Location
Marcellus, NY
I'll bet dollars to donuts that there used to be a A/C compressor bracket that was sandwiched in that spot.

If you aren't installing the A/C bracket, a proper sized (3/16?) spacer will be fine.


furyfever

Active Member
Joined
Dec 17, 2011
Messages
235
Reaction score
160
Location
upstate NY
I'll bet dollars to donuts that there used to be a A/C compressor bracket that was sandwiched in that spot.

If you aren't installing the A/C bracket, a proper sized (3/16?) spacer will be fine.
You are right on John. Here I thought I lost something…I did! The A/C. I didn’t even think of that. LOL.

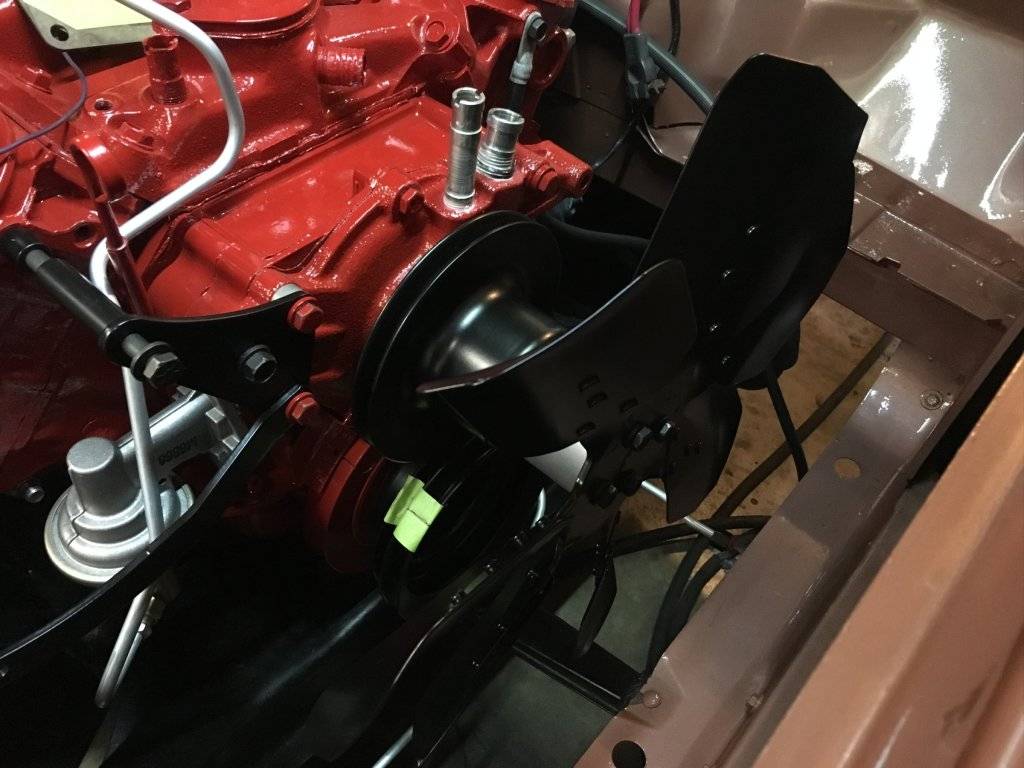

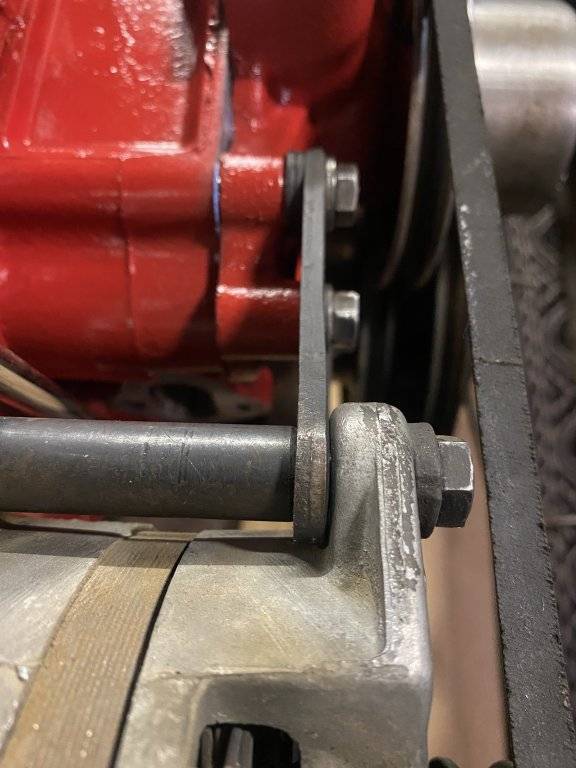

Thanks Alan, Appreciate the photo. Your motor looks phenomenal. REALLY Nice! I wound up using two .100” thick washers.
