Miz Ruby's brake booster woes, pt duex.

Brakes, Suspension, Rims and Tires

  1. Dsertdog

    Dsertdog Old man with an old guitar, and a blue note. FCBO Gold Member

    Messages:
    572
    Likes Received:
    619
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    So today I started changing out the defective booster.
    Had enough time to pull the master cylinder, and here's what I found.

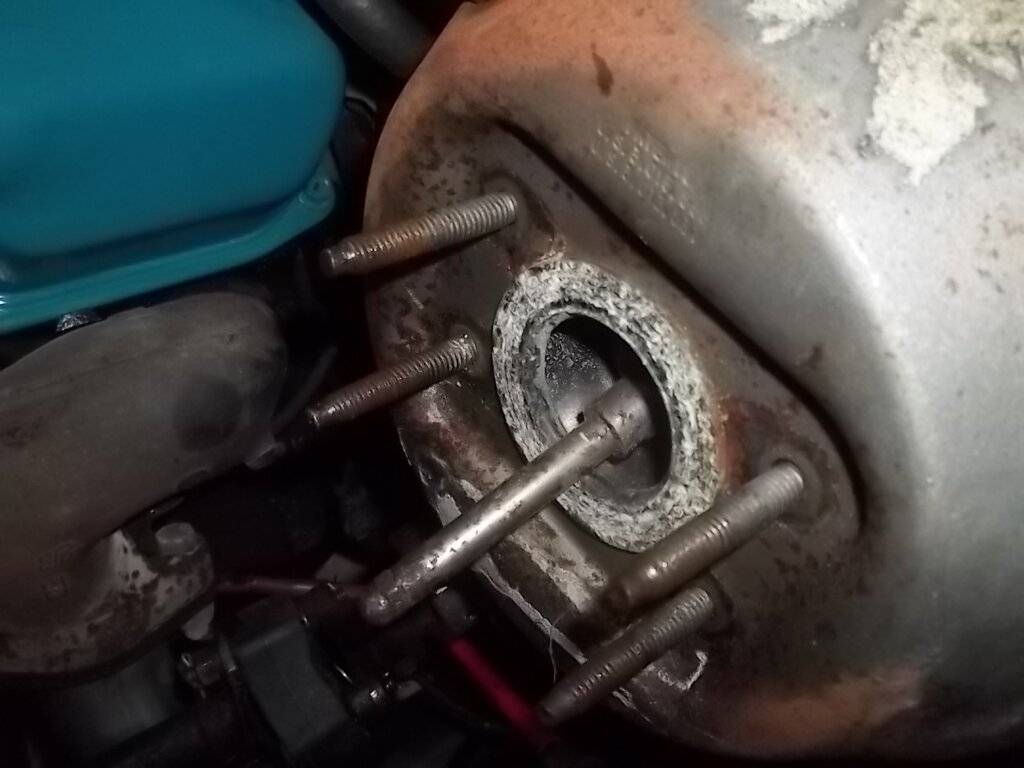

    Based on the FSM illustrations, the filter housing was installed upside down on the booster. Who ever installed the master cylinder simply shoved the retaining screw assembly into the filter and tightened things down.
    This is what I found...
    ^^^ Am I 'F'd"????
    The master cylinder shaft popped out with the cylinder but for now it's pushed into the booster.

    I have access to a Kelsey Hays type booster NIB but missing the "air filter" gasket according to the FSM
    Will the KH booster exchange with the MR here? Or is the brake pedal position different?
    Can I use or locate the gasket used on the Kelsey Hays?
    So many questions, meanwhile, I'm preparing to do a dual master cylinder change over and fix my steering coupler install.

  2. Dsertdog

    Dsertdog Old man with an old guitar, and a blue note. FCBO Gold Member

    Messages:
    572
    Likes Received:
    619
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    The bellows has a tear about an inch long where it meets and wraps around the housing. Source of vacuum leak found!

    • Like Like x 1
  3. live4theking

    live4theking Old Man with a Hat

    Messages:
    9,565
    Likes Received:
    2779
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    I recently was educated that the rod out of the booster into the master vines in and out. Is not secured. Additionally the filter can be bought just Google Midland Ross booster filter. Ford used them too, they are listed for mustang's.

    • Thanks! Thanks! x 1
  4. Dsertdog

    Dsertdog Old man with an old guitar, and a blue note. FCBO Gold Member

    Messages:
    572
    Likes Received:
    619
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma

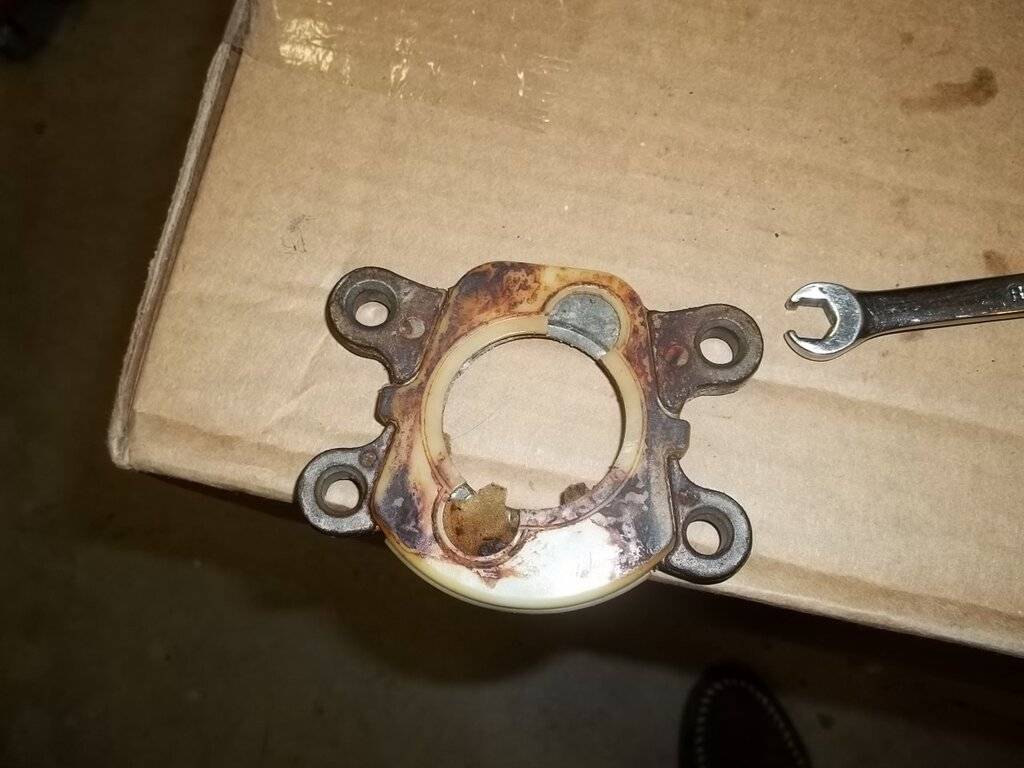

    I need a filter but I need the casting mount more. Ebay has a couple but not sure it they'll fit. Are all Mopar filter housings the same?

  5. Dsertdog

    Dsertdog Old man with an old guitar, and a blue note. FCBO Gold Member

    Messages:
    572
    Likes Received:
    619
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    Ordered the casting off ebay. Seller was cool, said I could return without a restock if it didn't fit. It looks the same.
    Ordered the filters off West Coast classic Cougars.

    Lastly, bought an adjustable proportioning valve off from Jegs.

    Now I play the wait game...

    Last edited: Aug 2, 2020
  6. Dsertdog

    Dsertdog Old man with an old guitar, and a blue note. FCBO Gold Member

    Messages:
    572
    Likes Received:
    619
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    Yup...

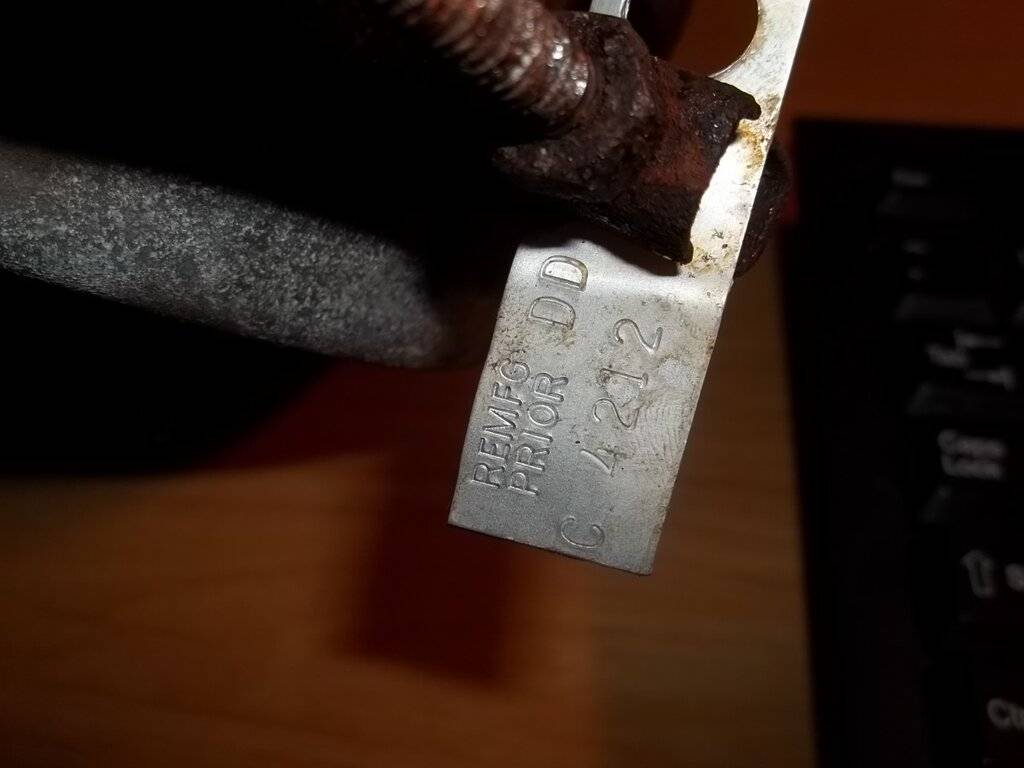

    It appears it was rebuilt here...
