My 69 Monaco

[Delfwin1978]

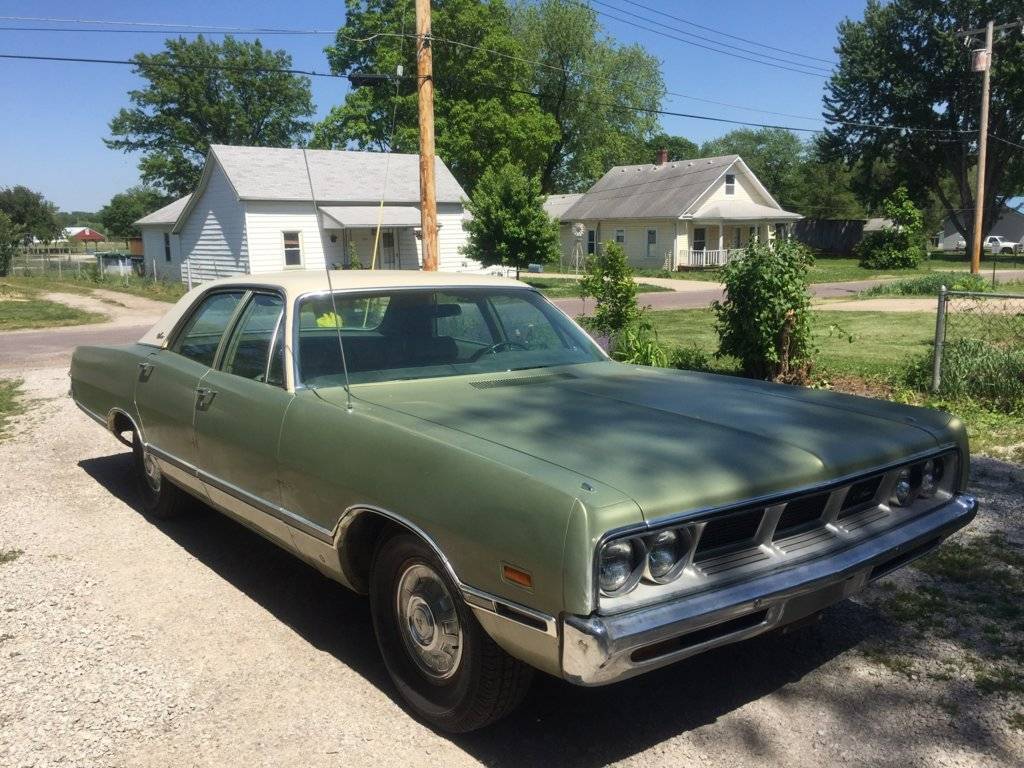

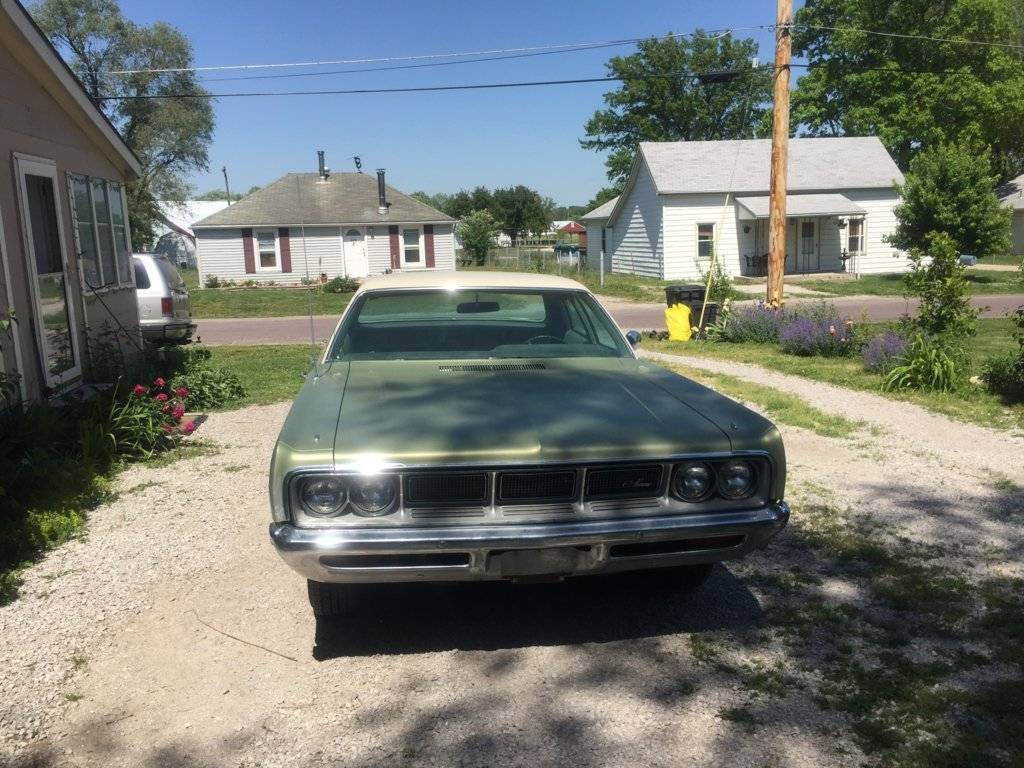

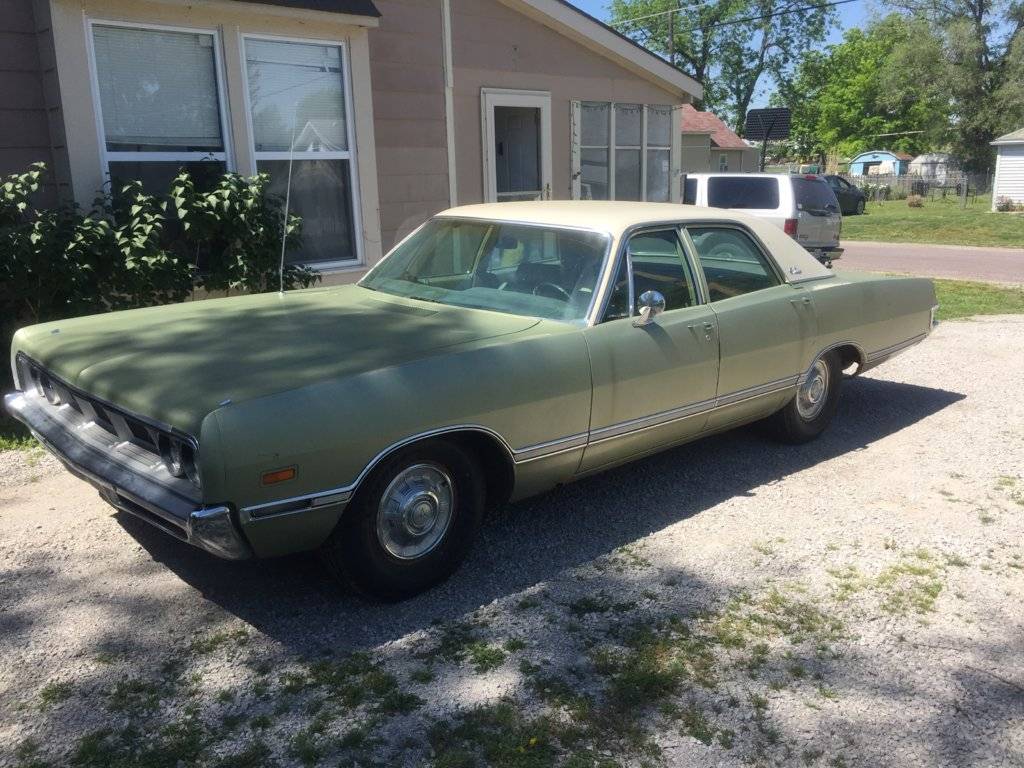

Thanks to all that helped with the search for the wheel studs. This is my Monaco. 383/727 A/C power steering drum brakes all around. The story that was told to me when I bought this was that a gentleman bought the car new for his wife.( I have a copy of the original title) It was driven for a short time until the drivers side was damaged while being backed out of the garage. After that the car was parked beside the garage and not drove again until 2015-2016. I bought the car in May of 2017 and it has been on the back burner until now. I am needing some help with the figuring out the build sheet and the fender tag. Who would I need to get in contact with for help with this?

Thanks
Andrew



[LocuMob]

MyMopar.com - 1969-1971 Mopar Option Codes

That has the codes for your fender tag. The site also has option codes for the broadcast sheet.

Nice car, looks good for sitting for a long time.



[tbm3fan]

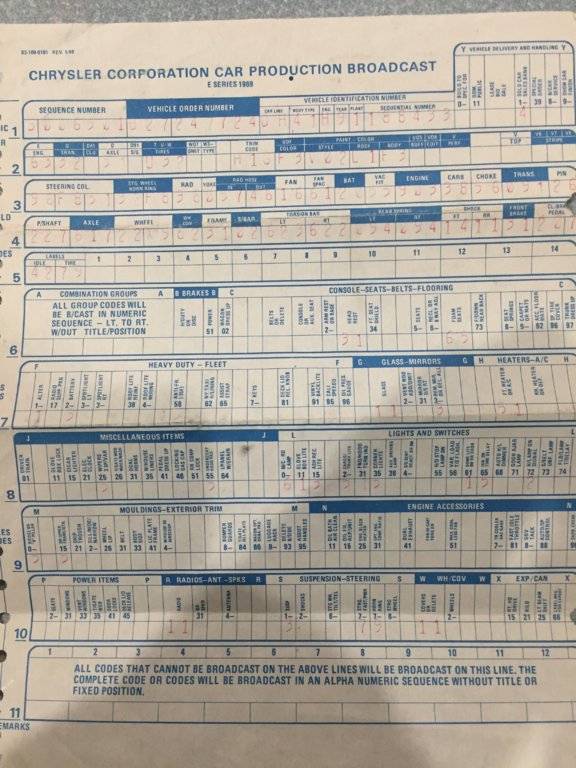

That is probably the cleanest build sheet I have ever seen...



[Delfwin1978]

Tbm3fan. The build sheet was in the plastic sleeve with the owners manual and warranty book. I have not went on a search for another one yet.

LocoMob.
I have looked on MyMopar but I still have some questions. For example line 8 section J all that is marked is j25 3 speed wipers and j55 under hood mat. The car has a cigar lighter j15 and a glove box lock j15. Dual exhaust n41 not marked but I have them m33 body side moldings have them also. Or am I just reading this completely wrong?
Any help will be appreciated

Thanks
Andrew.



[LocuMob]

Not everything on the broadcast sheet will be on the fender tag. The online decoders (and some codes) aren't always accurate, that's where your broadcast sheet comes in, and provides further detail onto what options the car came with. So no, you aren't reading it wrong. The sheet will have all the options, the tag will only have some of the options.



[Delfwin1978]

So what if I have options but are not marked on the broadcast sheet?



[ayilar]

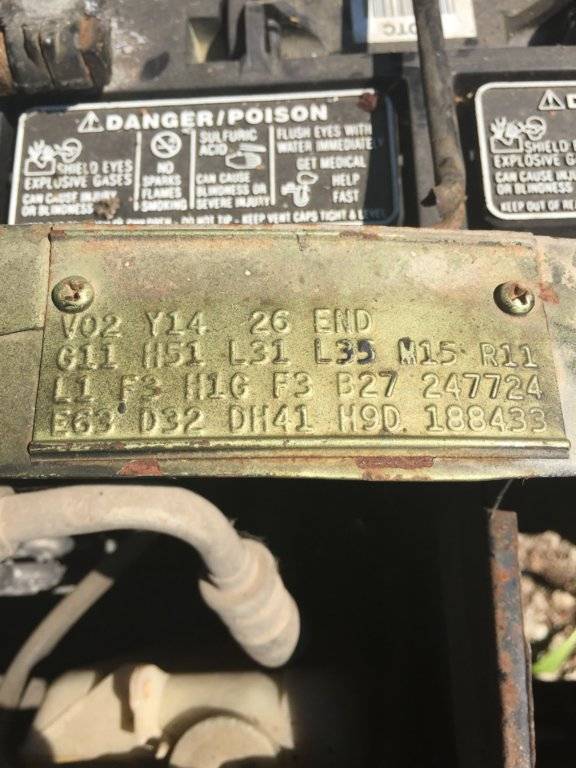

Nice car! Here is the tag decode:

DH: Dodge Monaco (High)
41: 4 Door Sedan

H: 383 330HP OR 335HP 1-4BBL 8 CYL
9: 1969
D: Belvidere, IL, USA

188433: Sequence number

E63: 383 cid 4 barrel V8 H.P. 335hp
D32: Heavy Duty Automatic Transmission
L1: Beige Exterior Color
F3H1G: Trim - Luxury, Cloth/Vinyl Bench Seat, Green
F3: Light Green Poly Int. Door Frames
B27: Build Date: November 27
247724: Order number

G11: TintedGlass
H51: Air Conditioning with Heater
L31: Hood/Fender Mounted Turn Signals
L35: Cornering Lamps
M15: Up Door Moldings
R11: Radio Solid State AM (2 Watts)

V02: Two Tone Paint Treatment
Y14: Sold Car
26: 26in Radiator
END: End of Sales Codes



[LocuMob]

So what if I have options but are not marked on the broadcast sheet?

Like what?



[Delfwin1978]

Options that I have that are not marked on the broadcast sheet
J11
J15
J31
M33
N41



[Delfwin1978]

Thanks for the info Ayilar. This gets me a little closer to knowing exactly what I have.



[LocuMob]

I'm guessing you have the Light Package, which gave you a number of light options, they are the codes just to the right, under the L section. If you had only ordered a cigar lighter it would probably have been under the J section. I'm only guessing, as I'm more educated on the '66 style sheet, which is similar, but different. Someone will probably chime in on this in a few hours.



[Delfwin1978]

You could be right. Could all of those options be part of the high price class? I would figure that dual exhaust would have been checked from what I can tell it looks like the original dual exhaust is still on the car.

Thanks again



[LocuMob]

I'm guessing you have the Light Package, which gave you a number of light options, they are the codes just to the right, under the L section. If you had only ordered a cigar lighter it would probably have been under the J section. I'm only guessing, as I'm more educated on the '66 style sheet, which is similar, but different. Someone will probably chime in on this in a few hours.

As I suspected, the car came with the lights as standard equipment, so they weren't an option, as they would be on the car no matter what.

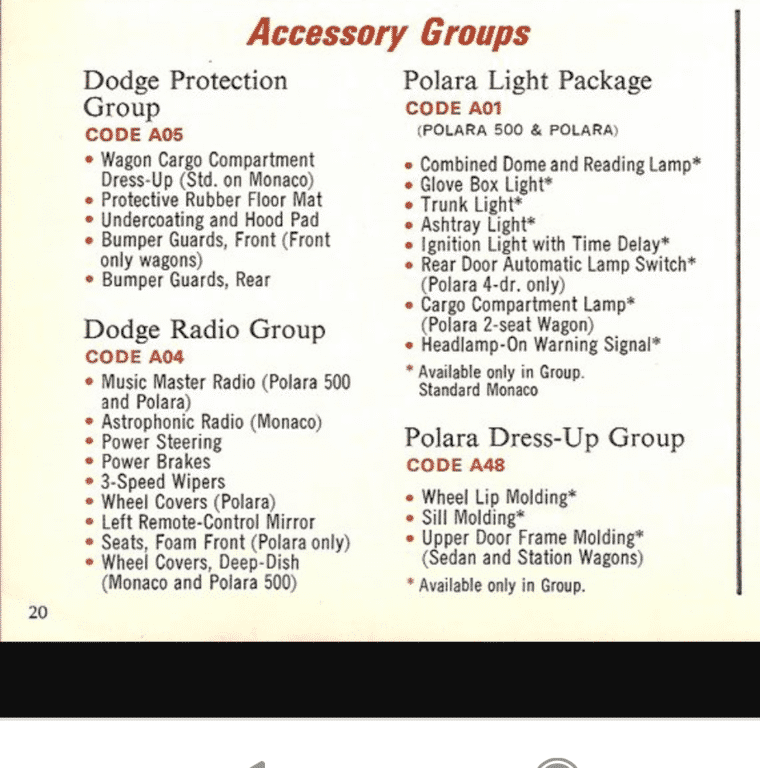

Here's a link to the brochure on the Hamtramck historical site. Dive in to that reference pile! (It can be a wormhole you can't escape from!)

The 1970 Hamtramck Registry - 1969 Dodge Dealership Data Book - Monaco & Polara



[71Polara383]

Nice 69! @David1907 is not too far from you in Kansas City. He has a yellow 71 Polara Sedan. Itd be cool to see you guys get the cars together sometime.

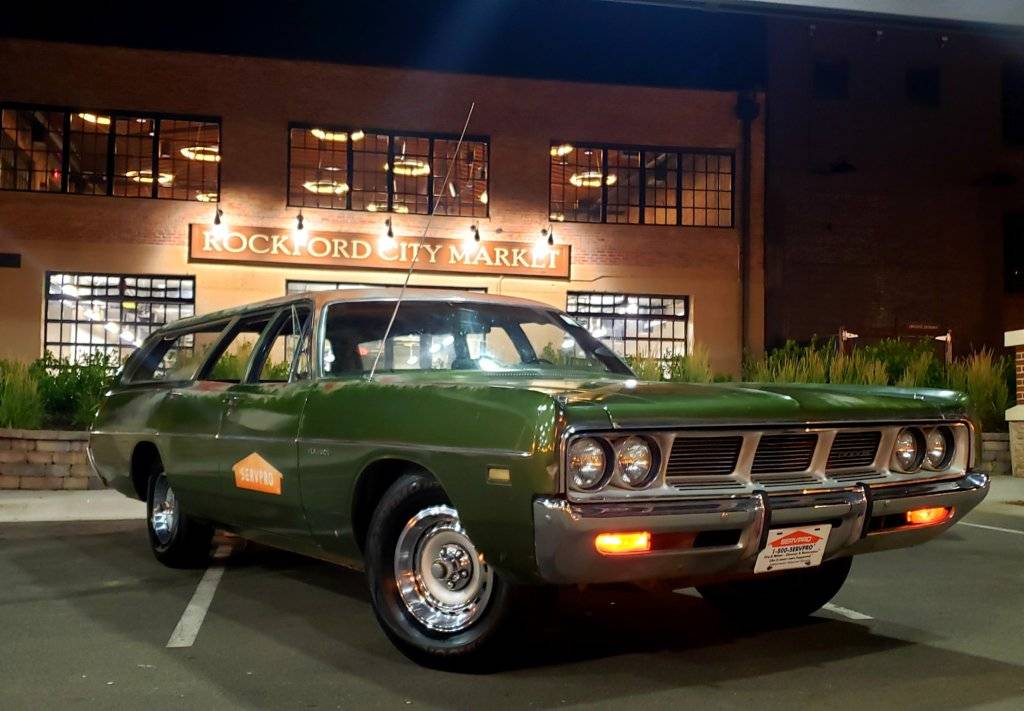

I have a green 69 as well...



[LocuMob]

Here's where my mind was coming from, if you had a Polara, you would have gotten the light package, as an option. Like you said, the higher trim line had those as standard.



[mrfury68]

Very nice Dodge. Thanks for posting the pics.



[Fratzog]

Nice looking ride. Just from looking at the pics there doesn't seem to be too much damage. What are your plans for the car?



[Delfwin1978]

Mfury68 thanks. I’ll post more pics as I work on the car.

Fratzog. The care is in good shape other than a couple of small rust holes at the bottom of the fenders. Tye carpet was dry rotted and fell apart when I tried to vacuum it so I’ll have to replace that. The plan is to get it on the road and drive it !! I do not want a trailer queen that I am afraid to drive. I want a car to enjoy with my wife and the kids.



[CBODY67]

Nice looking car. The "dual exhaust" would not be an option, but a part of the "H" engine code option, I believe. Horsepower in a C-body would be "330". The only place I've documented the "335" horsepower motor (and related camshaft) is in the B/E body cars that would be: Road Runners, 'Cudas, Super Bees, Challenger R/T models. But from my experience with my '70 Monaco Brougham 383/330 Code "N" motor, it'll run pretty dang good on the road. BOTH 383 4bbl engines were termed "High Performance" in the literature, though.

Enjoy!
CBODY67



[Delfwin1978]

Cbody67
Thanks for the info. If the motor in this one is any thing like the 383 that was in my 66 fury 3 I don’t think I’ll have any problems. I do have another question on the build sheet in line 3 engine has 903 marked. Will you please enlighten me on what that is if you know? I also noticed today that one of the valve covers also has a faint 903 written on it.

Thanks again
