mystery fire wall coolant connection - air conditioned 68 Newport

Early C Bodies - The Slab Side Years

  1. Mike McGuire

    Mike McGuire Member

    Messages:
    179
    Likes Received:
    33
    Joined:
    Aug 1, 2016
    Location:
    new hampshire
    Hello,

    Subject car is an H-code 68 Newport with AC.

    It has 4 heater core sized ~1 inch hose connections on the passenger side. (2 long hoses to the water pump housing, and 1 shorty between the 2 pairs. on the fire wall.)

    Over on the driver's side there is a smaller half inch or so hose connection, currently unpopulated. This car hasn't been run in a long time, and while test running it yesterday we noticed coolant coming from this tube.

    Can someone tell me where this is supposed to be connected and what is it used for?

    Thanks,
    Mike

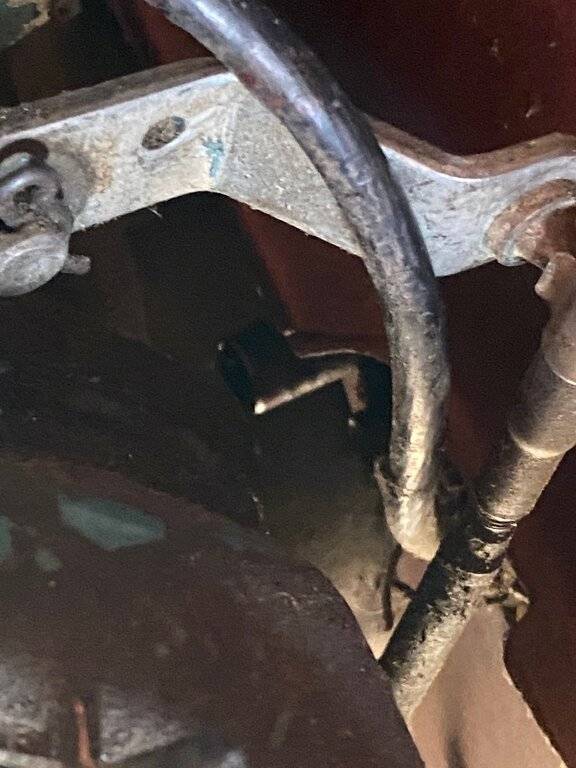

    out spout from rupert.jpg

    out spout from rupert.jpg

  2. patrick66

    patrick66 Old Man with a Hat

    Messages:
    5,308
    Likes Received:
    2656
    Joined:
    Jul 4, 2012
    Location:
    Central Oklahoma
    That is a drain for condensation, that has a formed hose that slips over that, and points downward. It connects to nothing forward of the cowl. My Coronet has the same hole, with the same function.

    If you have coolant coming out there, you likely have a heater core leaking.

    • Agree Agree x 3
    • Thanks! Thanks! x 1
  3. Mike McGuire

    Mike McGuire Member

    Messages:
    179
    Likes Received:
    33
    Joined:
    Aug 1, 2016
    Location:
    new hampshire

    OK, that makes sense. We saw coolant on the floor, under the motor in the back (starboard side), and suspected heater core. Inside there was no moisture to be found under the glove box area, on the carpet, where I would normally find it. Perhaps daylight will help pin point the source. Going with heater core.
    Do you know if the dual heater core was an option on some cars?

    Thanks !!!

  4. patrick66

    patrick66 Old Man with a Hat

    Messages:
    5,308
    Likes Received:
    2656
    Joined:
    Jul 4, 2012
    Location:
    Central Oklahoma
    I know on Imperial it was; but on NY/Newport, I'm not certain.

    That formed hose WAS available through Year One. Couldn't find it just now.

    Last edited: Apr 7, 2021
  5. Polara_500

    Polara_500 Senior Member FCBO Gold Member

    Messages:
    3,184
    Likes Received:
    1436
    Joined:
    Apr 17, 2011
    Location:
    MinnieSnowta
    Should be a dual heater core with AC.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  6. rapidtrans

    rapidtrans Senior Member FCBO Gold Member

    Messages:
    3,978
    Likes Received:
    2335
    Joined:
    Jun 8, 2016
    Location:
    rochester hills, mi.
    And keep that nipple clear of the exhaust manifold.
    We had a brand new Fifth Ave heater box fill with water, eventually running all over the carpet. The dealer diagnosed it without even looking at car. Apparently the factory installed a “too long” elbow fitting on a run of cars and the manifold heat melted the fitting closed!

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  7. live4theking

    live4theking Old Man with a Hat

    Messages:
    10,747
    Likes Received:
    2948
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    I have had a number of these boxes apart. Since the car had ac it should have a dual heater core. New ones are available on Ebay.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  8. Mike McGuire

    Mike McGuire Member

    Messages:
    179
    Likes Received:
    33
    Joined:
    Aug 1, 2016
    Location:
    new hampshire

    Thanks for that. I wonder why. Was it to draw more heat from the motor??

  9. Mike McGuire

    Mike McGuire Member

    Messages:
    179
    Likes Received:
    33
    Joined:
    Aug 1, 2016
    Location:
    new hampshire
    Thanks Will do.

  10. Mike McGuire

    Mike McGuire Member

    Messages:
    179
    Likes Received:
    33
    Joined:
    Aug 1, 2016
    Location:
    new hampshire
    Thanks!

  11. Polara_500

    Polara_500 Senior Member FCBO Gold Member

    Messages:
    3,184
    Likes Received:
    1436
    Joined:
    Apr 17, 2011
    Location:
    MinnieSnowta

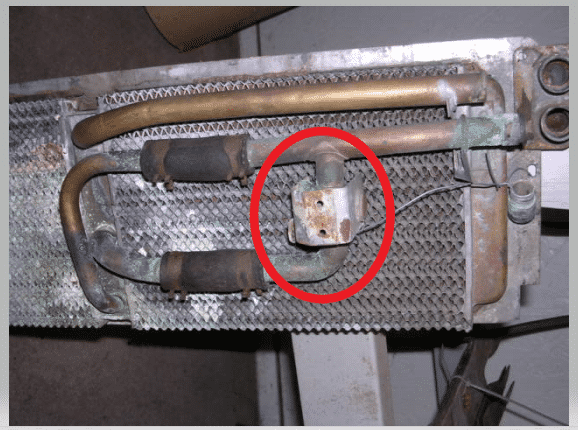

    I believe it was for finer heat/cooling control. There's a valve between the two heat cores that shuts when you turn on the A/C, so only half the core has any chance at heating and the variable control valve I think is supposed to control how much it gets so you don't necessarily have only cool air on A/C depending on the temp selector slider. This only shows a little over half of the core, but does show the valve which is controlled by a linkage to the dash air duct valve.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  12. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,371
    Likes Received:
    2010
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Before you spring for a new core, check those two short hoses for leaks, a lot of them are rotten after 50+ years. Probably a good idea to have the core pressure tested if the hoses are bad as the cores are a PIA to replace. Your local radiator shop can tell you if the core is worth putting back in.

    Dave

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  13. patrick66

    patrick66 Old Man with a Hat

    Messages:
    5,308
    Likes Received:
    2656
    Joined:
    Jul 4, 2012
    Location:
    Central Oklahoma
    • Thanks! Thanks! x 1
  14. rapidtrans

    rapidtrans Senior Member FCBO Gold Member

    Messages:
    3,978
    Likes Received:
    2335
    Joined:
    Jun 8, 2016
    Location:
    rochester hills, mi.
    The third one down is the one I’ve seen for condensate drain. Should have that pinched end to keep bugs out.

    • Thanks! Thanks! x 1
  15. marty koirtyohann

    marty koirtyohann Member

    Messages:
    169
    Likes Received:
    25
    Joined:
    Aug 2, 2017
    Location:
    washington,mo.
