Need Pictures or advice on carb linkage

Welcome Wagon

  1. sprice

    sprice Member

    Messages:
    55
    Likes Received:
    4
    Joined:
    Dec 7, 2011
    Location:
    Winnipeg, Manitoba
    Would anybody have any pics of a throttle, cruise and kick-down linkage setup on a 440 cid with Edelbrock Performer intake and 1411 carb? I have the Edelbrock #1481 kit however unless I'm missing something, doesn't appear to match up. Mine looks like I have too fabricate a riser on the throttle cable hold down plate to bring the cables higher to use without the 1481 kit. Thanks.

  2. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,046
    Likes Received:
    5874
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    Can you post some pics of your setup? That would help a lot.

  3. Dana

    Dana Active Member

    Messages:
    239
    Likes Received:
    181
    Joined:
    Sep 17, 2011
    Location:
    Ohio
    Mancini sells that bracket. Maybe AR Engineering also.

  4. sprice

    sprice Member

    Messages:
    55
    Likes Received:
    4
    Joined:
    Dec 7, 2011
    Location:
    Winnipeg, Manitoba

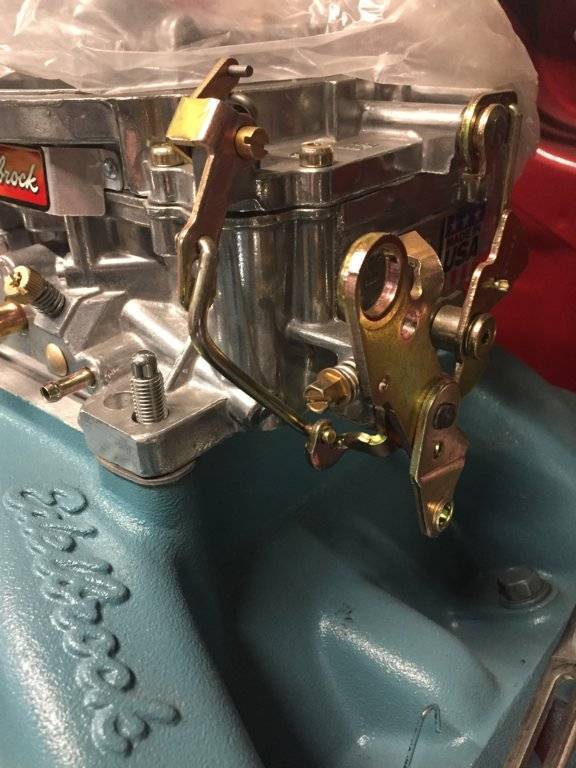

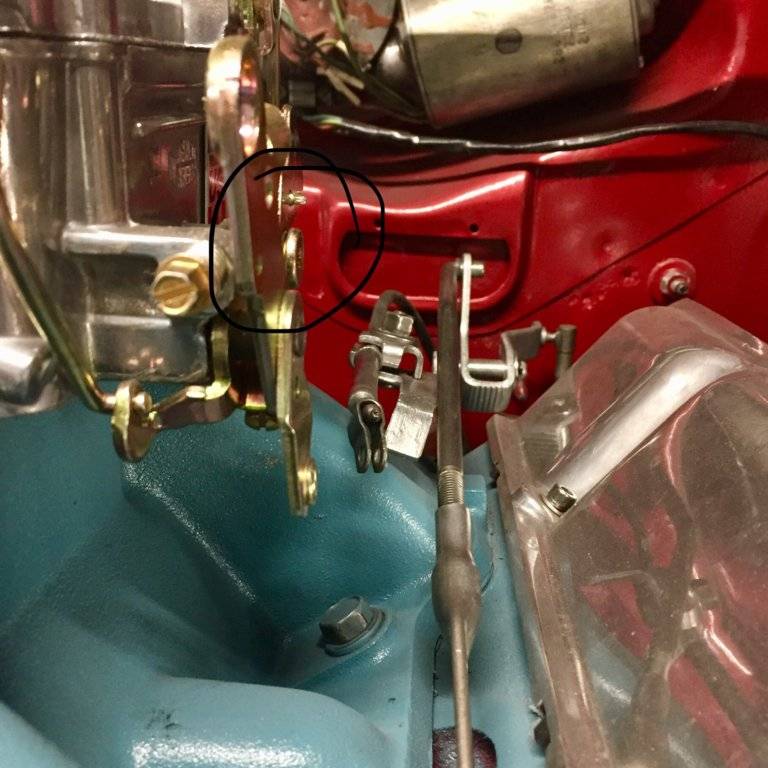

    I will check Mancini as suggested. As you can see the alignment is quite a bit lower and the accelerator needs to be attached to the top of the throttle plate arm, about 2” higher.




  5. LocuMob

    LocuMob Fluid Technician with a hat FCBO Gold Member

    Messages:
    9,341
    Likes Received:
    5242
    Joined:
    Oct 31, 2013
    Location:
    Blue Earth Mn
    Are you going from 2bbl to 4bbl?

  6. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,046
    Likes Received:
    5874
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

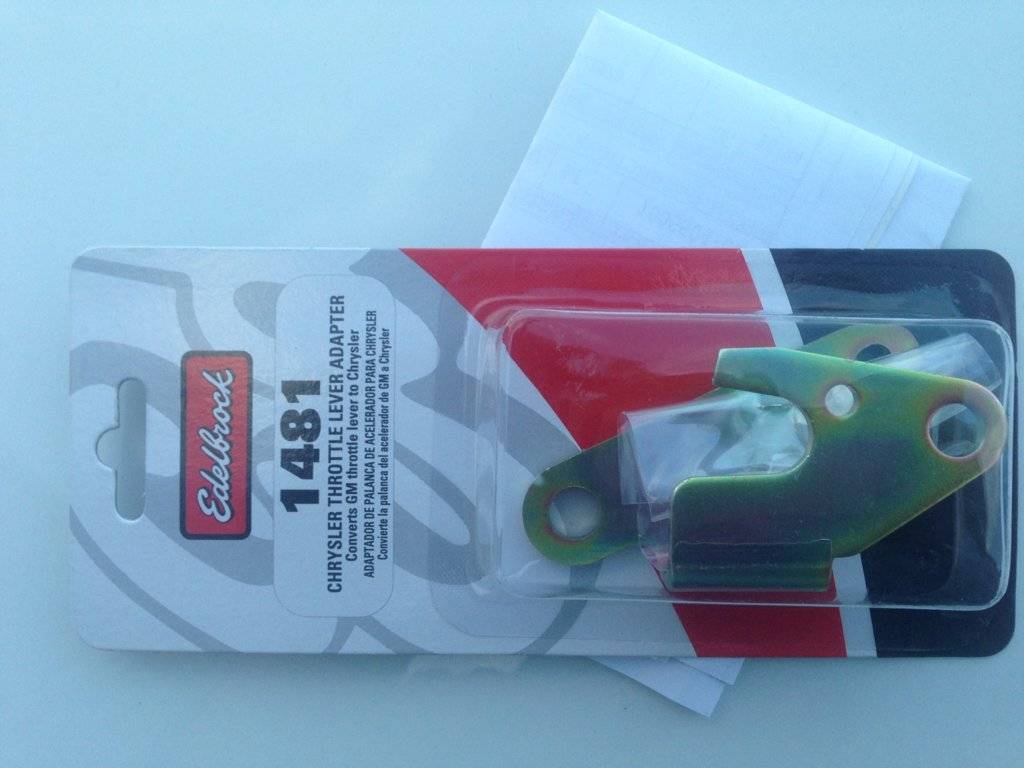

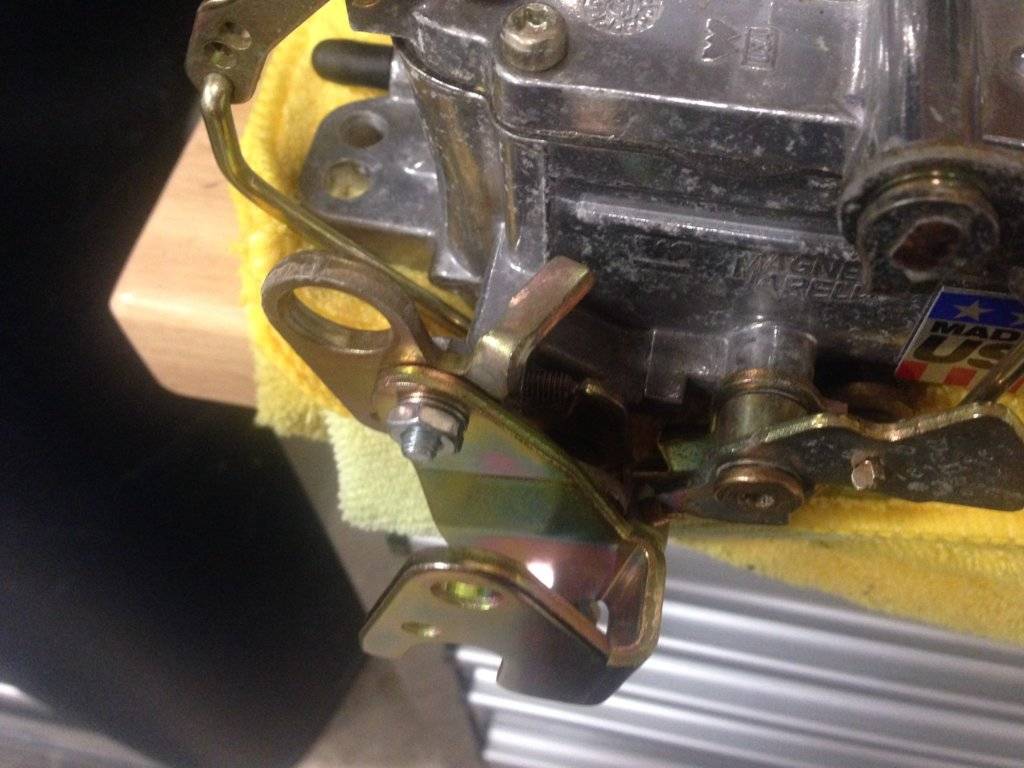

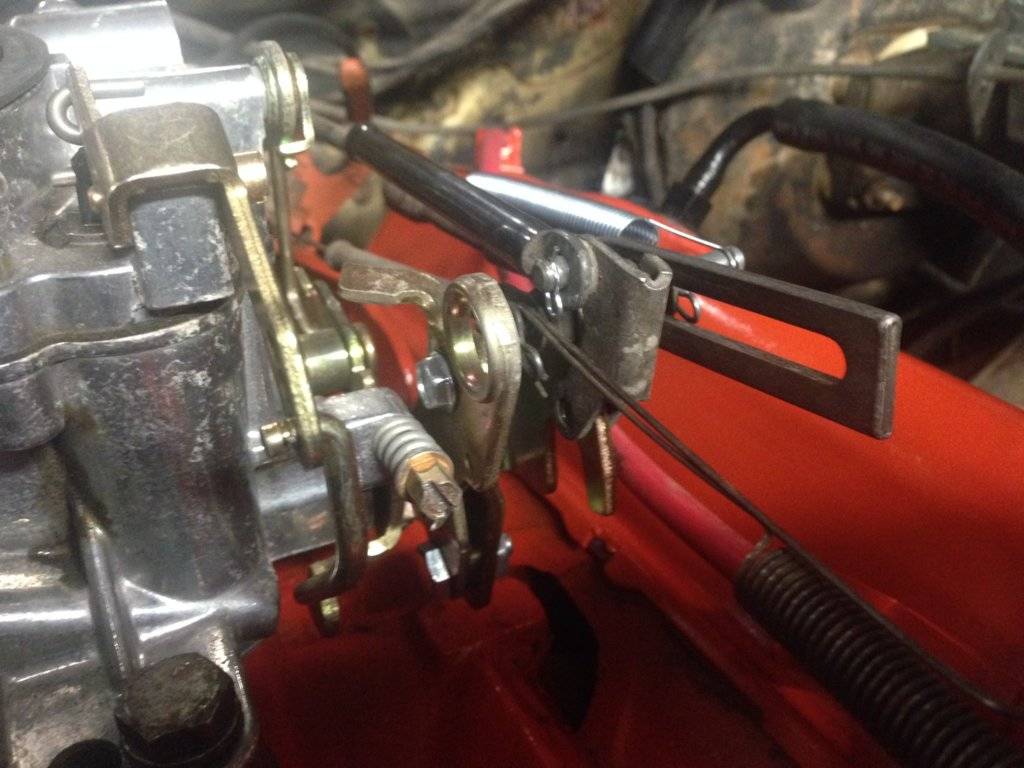

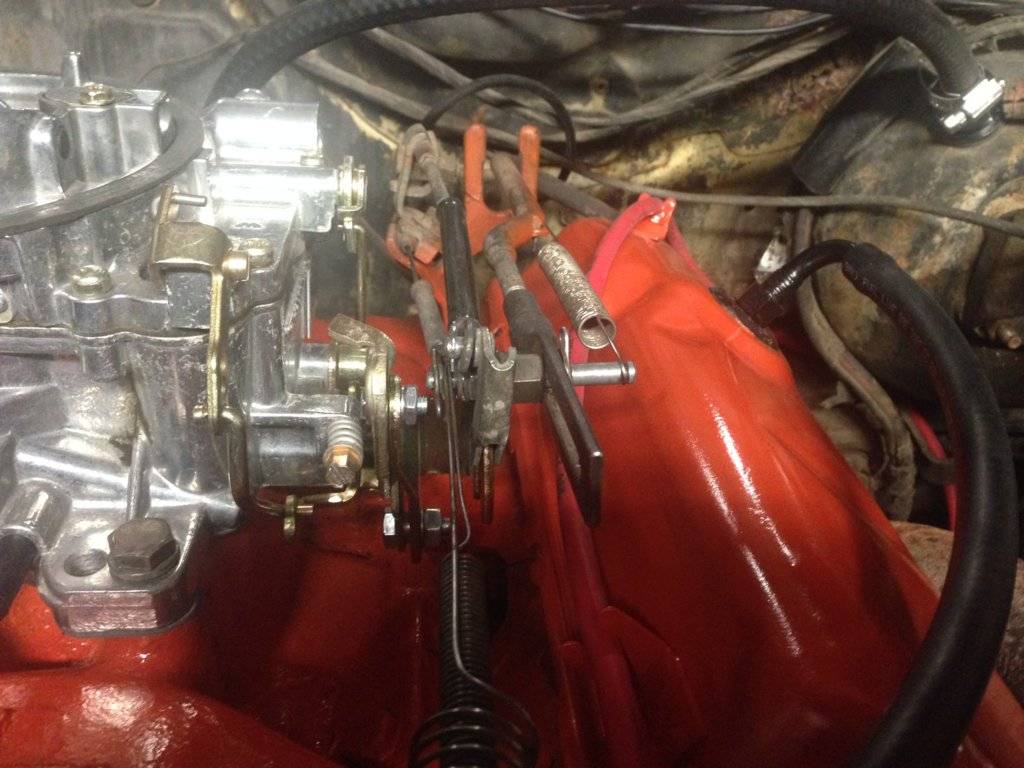

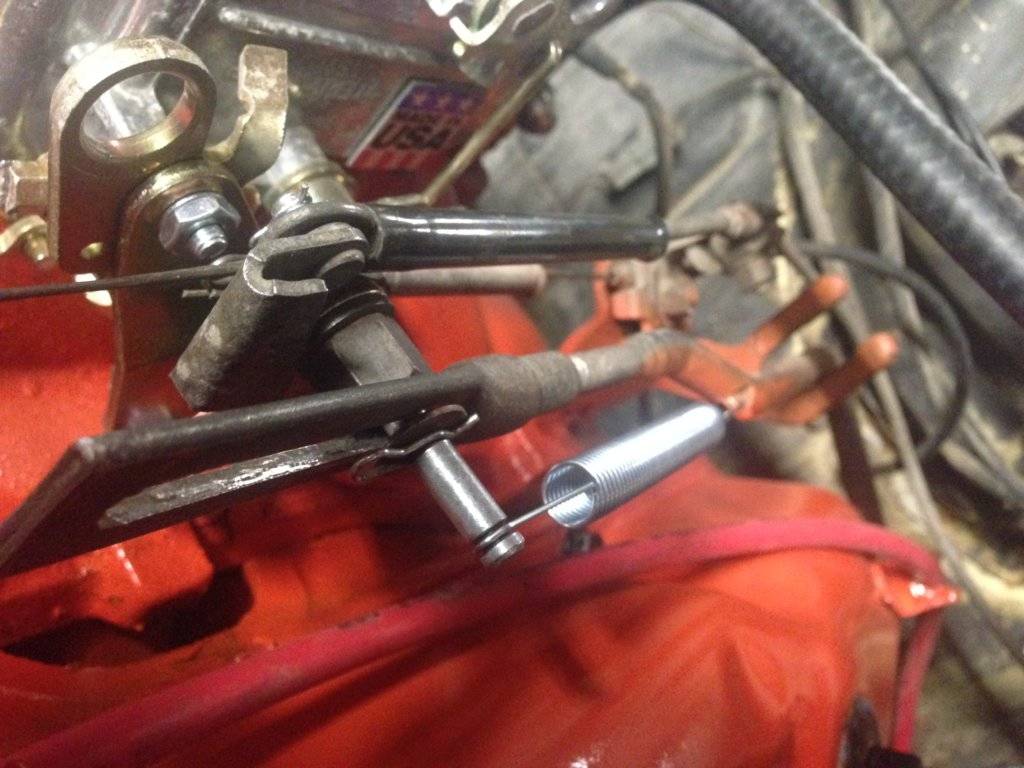

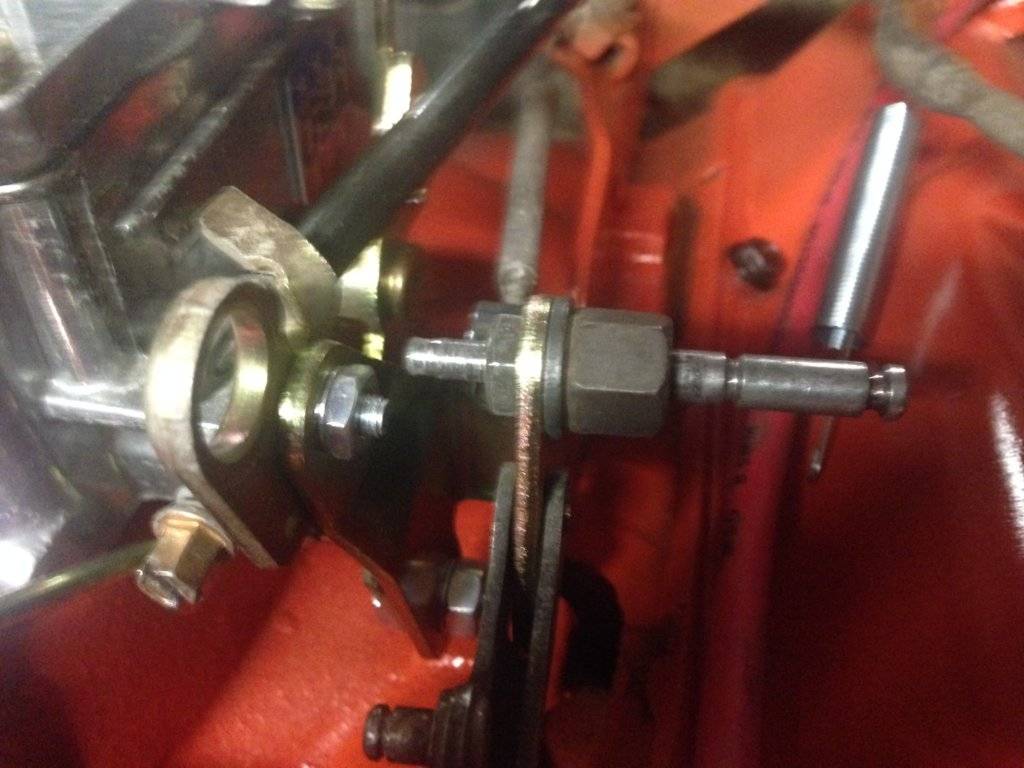

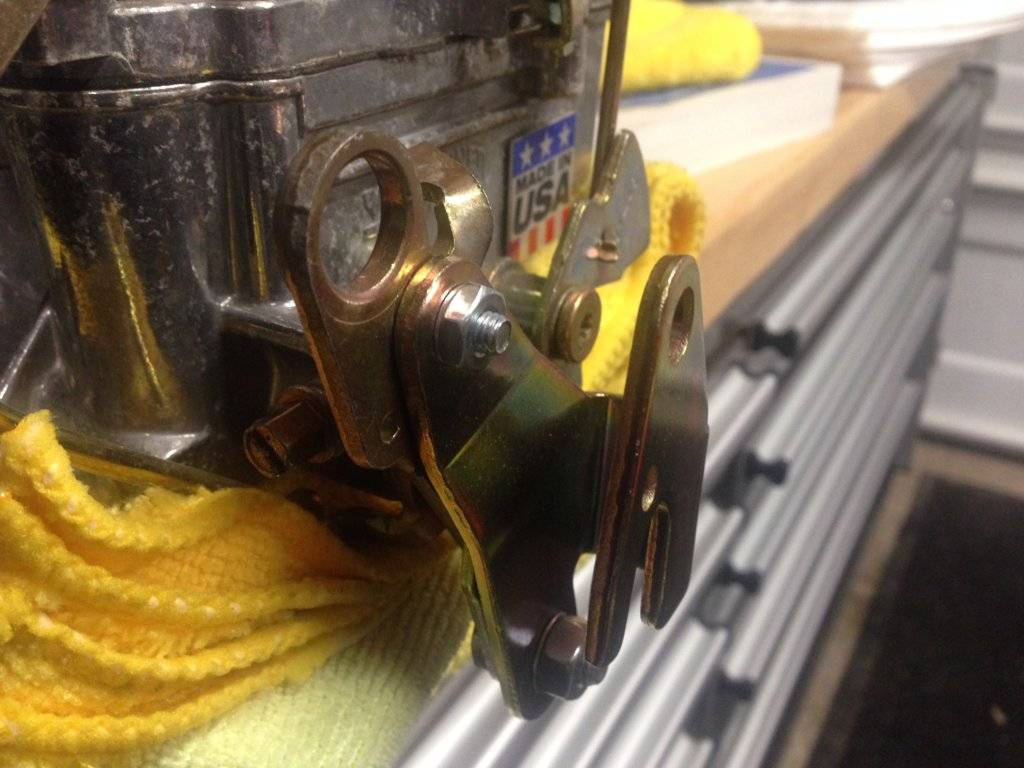

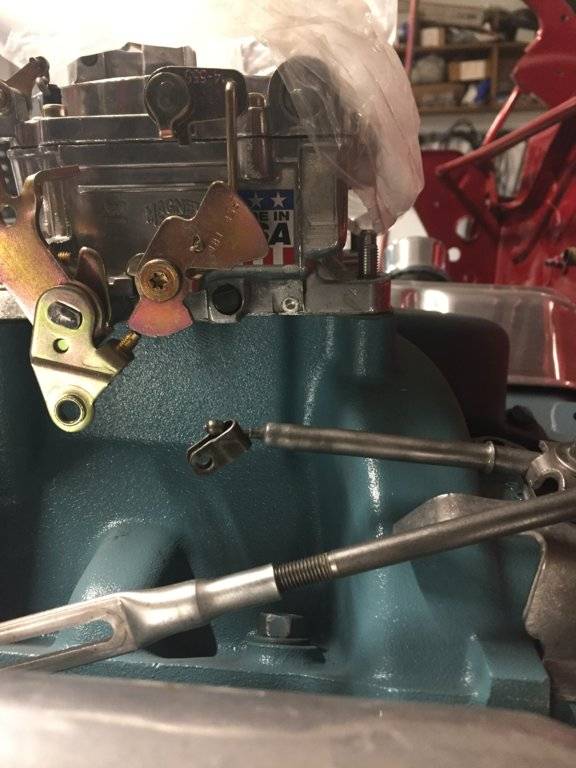

    1475CBFD-61EC-4512-8E6C-9CD012238A19.jpeg BF209301-CC8B-40C7-A0B9-E8D888C2110B.jpeg 8F028406-69EF-4A26-9B86-1B6760E44FC7.jpeg 903F19F3-8421-4636-B3C2-F55556F744A0.jpeg 851C6CFB-F422-4D12-ACC0-8C542C5D3220.jpeg F31DA8F9-F02E-425B-901C-8F064C820806.jpeg 1A71E2C9-B27B-4682-A801-5CBDCC0E4BCE.jpeg EA7CC6E3-1AB8-42AC-894C-1F26398CDCE3.jpeg

    • Agree Agree x 1
  7. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,046
    Likes Received:
    5874
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    Last edited: May 5, 2019
  8. Dana

    Dana Active Member

    Messages:
    239
    Likes Received:
    181
    Joined:
    Sep 17, 2011
    Location:
    Ohio
    His intake height is the issue.

  9. Mr C

    Mr C Senior Member

    Messages:
    3,337
    Likes Received:
    1450
    Joined:
    Nov 20, 2012
    Location:
    All over
    That is part of the issue...the big thing is the missing adapter. Some adjustment for height and he'll be there.

    • Agree Agree x 1
  10. Dana

    Dana Active Member

    Messages:
    239
    Likes Received:
    181
    Joined:
    Sep 17, 2011
    Location:
    Ohio
    My mistake. I thought the adapter missing was understood.

  11. Dana

    Dana Active Member

    Messages:
    239
    Likes Received:
    181
    Joined:
    Sep 17, 2011
    Location:
    Ohio
    OP says he has the adapter in his first post.

  12. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,046
    Likes Received:
    5874
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    The adaptor must be mounted on the carb to know exactly where the Chrysler linkage hooks up to it . Then you can adjust or modify the rest of the linkage as needed. The adapter can not be adjusted. Where it bolts on is where it stays. It’s the first step.

    Last edited: May 5, 2019
  13. sprice

    sprice Member

    Messages:
    55
    Likes Received:
    4
    Joined:
    Dec 7, 2011
    Location:
    Winnipeg, Manitoba
    Yes, I have the 1481 adapter and the close up pics are great, needed those too. There is a picture under the adapter pic that shows the mounting of the throttle/cruise cable much higher. That is what I need. Focus is on the carb linkage and the part I am looking for appears to be factory made or very well made. Would anybody have any close-ups of the throttle/cruise cable mounting near the rear of the engine? Thanks all.

  14. sprice

    sprice Member

    Messages:
    55
    Likes Received:
    4
    Joined:
    Dec 7, 2011
    Location:
    Winnipeg, Manitoba
    All the information is here that i needed. Thanks everybody.

    Shawn
