    Radio Model No. 4048569 -
    AM & FM Work Well -
    Pulling the Squelch knob selects to the CB (I think)
    I still cant get output from the CB even adjusting the squelch.



  2. CBODY67

    CBODY67 Senior Member

    Messages:
    2,473
    Likes Received:
    518
    Joined:
    Mar 27, 2011
    You mean it won't x-mit? Or won't "listen in"?

    CBODY67

  3. Robert Rogers

    Robert Rogers New Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Jun 20, 2018
    Location:
    Tennessee
    I can't get any CB ability.
    Funny, the squelch works on the BC radio reception.
    The row of led's light across when mic is keyed

  4. CBODY67

    CBODY67 Senior Member

    Messages:
    2,473
    Likes Received:
    518
    Joined:
    Mar 27, 2011

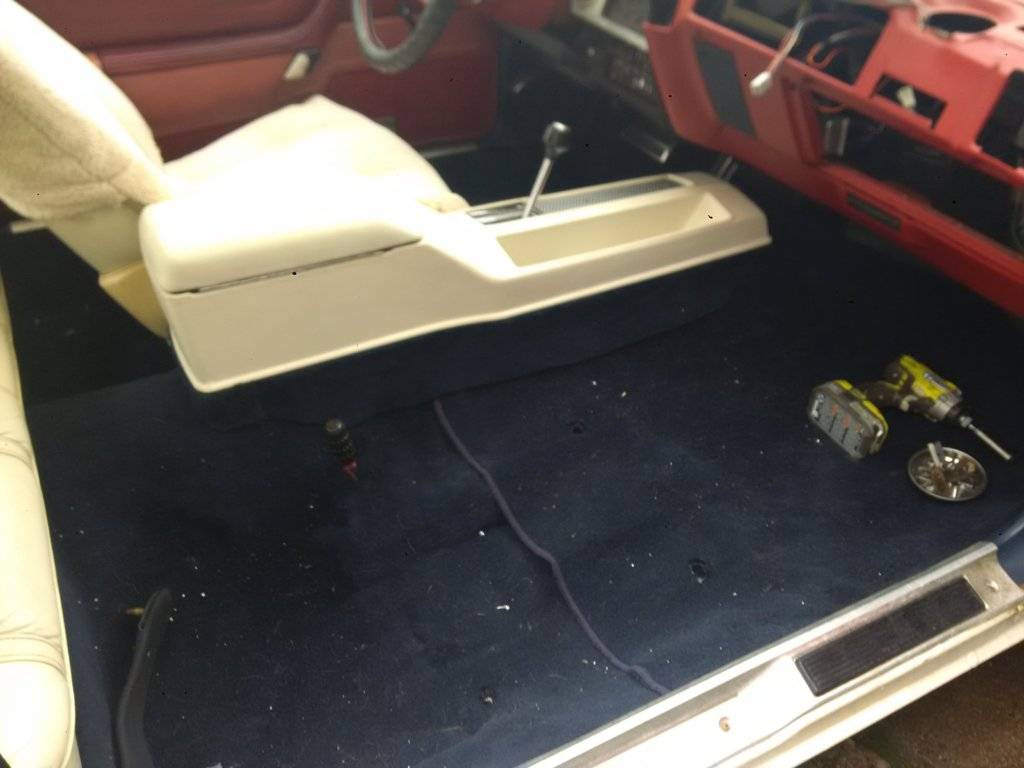

    Although your picture shows the radio on a bench, is it in the car when you're trying these things? If in the vehicle, what type of antenna? OEM power antenna or a separate CB antenna WITH the SWR correctly set?

    CBODY67

  5. Robert Rogers

    Robert Rogers New Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Jun 20, 2018
    Location:
    Tennessee
    No its on the bench but thats not the same radio
    I've a welding rod for antenna (unshielded)

  6. CBODY67

    CBODY67 Senior Member

    Messages:
    2,473
    Likes Received:
    518
    Joined:
    Mar 27, 2011
    The CB antenna is a separate item from the normal AM/FM antenna. The length of the CB "whip" is important, which relates to the SWR ratio, for optimum performance.

    CBODY67

  7. Robert Rogers

    Robert Rogers New Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Jun 20, 2018
    Location:
    Tennessee
    Not to listen to CB
    It won't output because I don't know what switch activates it
    I really need to read an Op manual
    The 1977 79 car owners manual may have what I need

    Last edited: Dec 5, 2018
    • Thanks! Thanks! x 1
  8. CBODY67

    CBODY67 Senior Member

    Messages:
    2,473
    Likes Received:
    518
    Joined:
    Mar 27, 2011
    My point is that unless you have a good CB antenna hooked to it, and with the SWR adjusted in a decent manner, then "output" might not happen as desired. Just like an "accessory" under-dash CB would be, in that respect.

    The OEM factory power AM/FM/CB antennas were termed "tri-band" and had the "load" in one of the antenna mast sections. You might search www.allpar.com for articles on these factory radios, with respect to operation and such.

    CBODY67

  9. LocuMob

    LocuMob Fluid Technician with a hat FCBO Gold Member

    My Photo Garage
    Messages:
    7,245
    Likes Received:
    3,640
    Joined:
    Oct 31, 2013
    Location:
    Blue Earth Mn
    Have you tried pushing the button labeled CB? Just a thought. And turned the volume up?

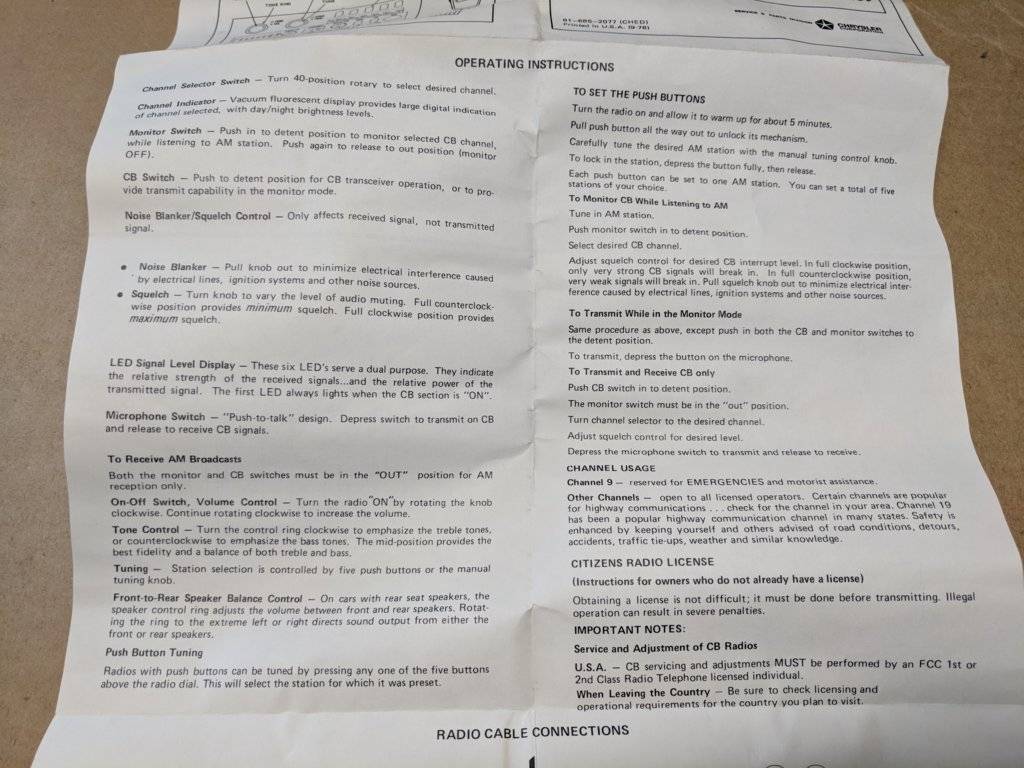

    This is for an AM version, but should help.


    Last edited: Dec 5, 2018
    • Agree Agree x 2
  10. Pete Kaczmarski

    Pete Kaczmarski Senior Member

    My Photo Garage
    Messages:
    1,875
    Likes Received:
    990
    Joined:
    Oct 11, 2012
    Location:
    Waupun WI.
    Correct on pushing the CB button in but, the radio will continue to play until someone breaks the squelch level that you select. So the radio plays until someone talks on the CB. I have this radio as new on my '78 New Yorker St Regis Coupe.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  11. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    10,087
    Likes Received:
    3,724
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Your not going to get anywhere with a piece of welding rod. If that worked I would not have a $80 anttenna bolted to my mirror. It will not receive more than a mile or two on a good day, with a good anttenna. So unless you are next to a truck stop or truck terminal or I interstate you are not getting any signal, worse for transmitting.

  12. Rapidtrans777

    Rapidtrans777 Active Member FCBO Gold Member

    Messages:
    403
    Likes Received:
    230
    Joined:
    Dec 15, 2013
    Location:
    Redneck Riviera
    I'm not familiar with these factory combo radios but I do know a little about CB radios. You need the correct impedance (50 ohms) and length antenna for CB frequency waves connected you won't be able to receive or transmit. The best length is 102", I'm sure you seen these "whip" antennas. Not feasible for most applications so antenna manufacturers have wire wound coils to shorten the physical lenght while still having electrical length of 102". If you have a correct antenna and the switches in the correct positions you should have static with the squelch turned all the way down.

  13. commando1

    commando1 Sergeant at Arms FCBO Gold Member

    Messages:
    30,030
    Likes Received:
    15,560
    Joined:
    Mar 10, 2011
    Location:
    Fumbuck County - Sebring, Florida
  14. Carmine

    Carmine Senior Member FCBO Gold Member

    Messages:
    4,815
    Likes Received:
    3,935
    Joined:
    Feb 22, 2015
    Location:
    Detroit 'burbs
    I defer to what the others have said, and I'm about midway through installing one in my own car (Magnum) backed with an amplifier.

    How do you know it isn't transmitting? Without the proper antenna it seems you'd pretty much need a receiver within a few feet before condemning the radio.


  15. 1978 NYB

    1978 NYB Old Man with a Hat FCBO Gold Member

    My Photo Garage
    Messages:
    36,624
    Likes Received:
    8,601
    Joined:
    Apr 16, 2011
    Location:
    Classified
    I had a factory CB in my 78 NYB. Too many things wrong with it besides not receiving and transmitting. The tuning system didn't work. Antenna wasn't repairable and couldn't find a working replacement.

    I had 2 choices....

    Give it away or take a big ass hammer to it. I gave it to a friend and I'm sure it's still sitting on his work bench in Indiana.

    Not worth the trouble to fix plus they sound like sh*t when they are working.

    My 50 gazillion light aftermarket stereo and my IPOD is what I listen to on the rare occasions I even turn on the music. I would rather listen to the 450hp rolling down the road.

    • Like Like x 3
  16. 78Brougham

    78Brougham Deplorable FCBO Gold Member

    Messages:
    5,731
    Likes Received:
    3,621
    Joined:
    Nov 10, 2013
    Location:
    Wellsboro, PA
    :rofl:

    • Like Like x 1
  17. 1978 NYB

    1978 NYB Old Man with a Hat FCBO Gold Member

    My Photo Garage
    Messages:
    36,624
    Likes Received:
    8,601
    Joined:
    Apr 16, 2011
    Location:
    Classified
    I can remember back in 70's when CB's were the thing.

    Breaker, breaker 19.

    I never had one until my 78 NYB.

  18. 78Brougham

    78Brougham Deplorable FCBO Gold Member

    Messages:
    5,731
    Likes Received:
    3,621
    Joined:
    Nov 10, 2013
    Location:
    Wellsboro, PA
    If I recall those factory CB's were almost a $650! option. A $650 piece of sh*t that is! Your lucky the am-fm part works in it. Let it go, before that part takes a crap.

    Just leave the mike there for nostalgia. You probably "fizzed" the cb by now anyway, by cueing the mike a thousand times with no antenna (or that piece of wire) hooked up. I'm sure @70bigblockdodge can tell you how that happens.
    I believe they came with a special "Loaded" antenna from the factory and unless you have it, it won't work.

    My advice.... As long as it fills the hole and the FM radio plays, leave it alone.

    • Like Like x 1
    • Agree Agree x 1
  19. 78Brougham

    78Brougham Deplorable FCBO Gold Member

    Messages:
    5,731
    Likes Received:
    3,621
    Joined:
    Nov 10, 2013
    Location:
    Wellsboro, PA
    Did you get your CB license yet? They won't work without one.
