New Repro Bendix Dual Diaphragm Brake Boosters Used on Some C Bodies & Other Models Circa 1970

Brakes, Suspension, Rims and Tires

  1. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    5,254
    Likes Received:
    4185
    Joined:
    Oct 8, 2011
    Location:
    California
    • Like Like x 2
  2. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    4,110
    Likes Received:
    1029
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    They are about the price of a rebuilt, new repops that are made in China. Guess we shall see if they are any good. My luck with Chi-com parts has not been very good, so I will let somebody else be the guinea pig.

    Dave

  3. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    5,254
    Likes Received:
    4185
    Joined:
    Oct 8, 2011
    Location:
    California
    Usually rebuilds of that booster cost in excess of $300, at least up until now.

  4. barnfind

    barnfind Senior Member

    Messages:
    4,011
    Likes Received:
    4156
    Joined:
    Nov 20, 2014
    Location:
    Around Town
    When the PJ unit is installed its obvious its non original. I have one for sale if theres any interest. Ill post a pic soon of the two side by side.

    • Thanks! Thanks! x 1
  5. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    2,254
    Likes Received:
    603
    Joined:
    Apr 25, 2016
    Location:
    Brantford, Ontario, Canada
    Can you be more specific as to the visual tips you refer to, and what if any other concerns have brought you to the point of selling it? It would be good to know so pthers are informed.

    Thanks!

    • Agree Agree x 1
  6. jason99

    jason99 Active Member FCBO Gold Member

    Messages:
    348
    Likes Received:
    146
    Joined:
    May 20, 2018
    Location:
    Atlanta, GA
    Possibly interesting for my e-body.

  7. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    10,971
    Likes Received:
    4315
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Only correct for 440 and Hemi cars, all others should use big single.

  8. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    2,254
    Likes Received:
    603
    Joined:
    Apr 25, 2016
    Location:
    Brantford, Ontario, Canada
    By saying hemi, I assume you're referring to non C body cars... Bendix dual diaphragm boosters were factory C body issue for 65-68, but I think they possibly were slightly bigger, at 8 3/4, but I can't confirm that. I need to measure my spare. Can anyone else confirm?

    The big single (Kelsey Hays) came into use on C body cars mid 69 I believe.

  9. twostick

    twostick Senior Member

    Messages:
    1,692
    Likes Received:
    739
    Joined:
    Dec 13, 2012
    Location:
    Beautiful Downtown Roebuck Ont.
    Were the originals only 8"? Seems a little small to me.

    Kevin

  10. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    10,971
    Likes Received:
    4315
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Yes I was replying to jason99 e body mention, sorry for confusion.

    • Like Like x 1
  11. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    2,254
    Likes Received:
    603
    Joined:
    Apr 25, 2016
    Location:
    Brantford, Ontario, Canada
    No worries, just clarifying.

  12. bigmoparjeff

    bigmoparjeff Senior Member

    Messages:
    1,099
    Likes Received:
    736
    Joined:
    Aug 9, 2017
    Location:
    Dublin, PA
    The rod that attaches to the brake pedal is different between C Bodies and the others. The rest of the booster is the same. The booster reman places that sell conversion kits for the B's and E's use mostly C body boosters to make the kits and they install new pedal rods for the conversion. Booster Dewy has loads of extra C body rods in stock if anyoneone wants to convert a '64-'66 Imperial Booster to fit a '65-'73 C body.

    A friend of mine in Sweden bought one of the repops with the intention of installing it in a '67 300. He was going to modify the rod to make it work. I'll have to ask him how that worked out, as it was at least a year ago now.

  13. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    5,254
    Likes Received:
    4185
    Joined:
    Oct 8, 2011
    Location:
    California
    In Chrysler models of C bodies at least, that bendix dual diaphragm booster was used up until 1971, when they switched to a larger single diaphragm booster. For the wagons and Imperials, they moved to a rounded design case dual diaphragm booster.

    The listing does say the mounting plate at the firewall does likely need to be modified, so it apparently isn't exactly correct, as mentioned above. I guess I will just have my old cores rebuilt by Booster Dewey or similar rebuilder. Booster Dewey has always done a good rebuild for me. But his wait times might be lengthy at times.

    • Like Like x 1
  14. barnfind

    barnfind Senior Member

    Messages:
    4,011
    Likes Received:
    4156
    Joined:
    Nov 20, 2014
    Location:
    Around Town

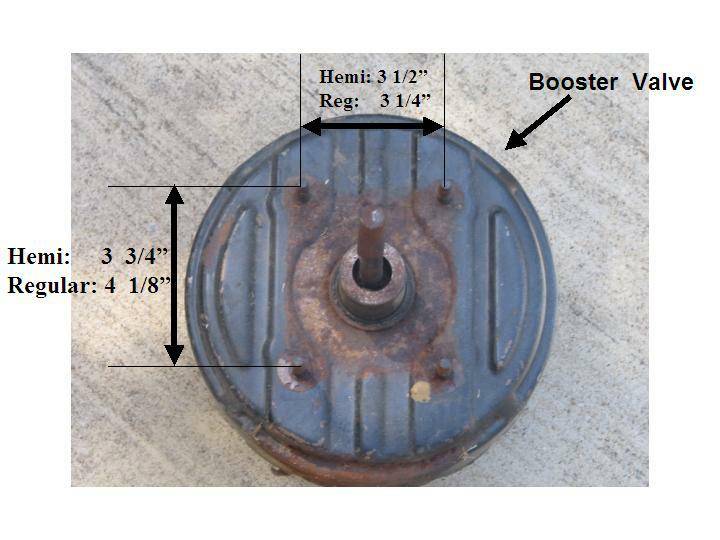

    1st pic is reference.

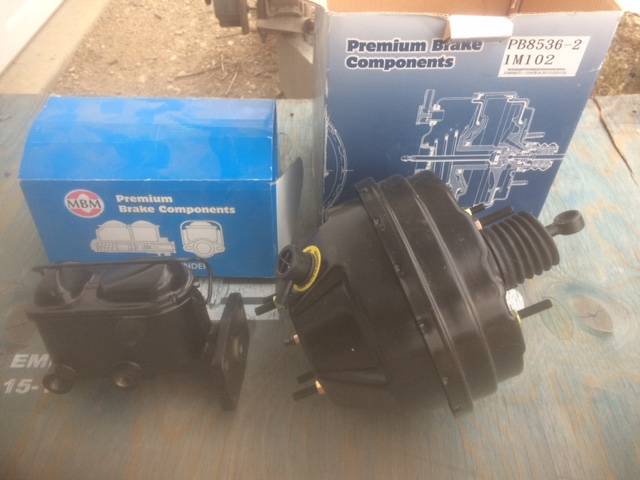

    2nd PJ unit -B body

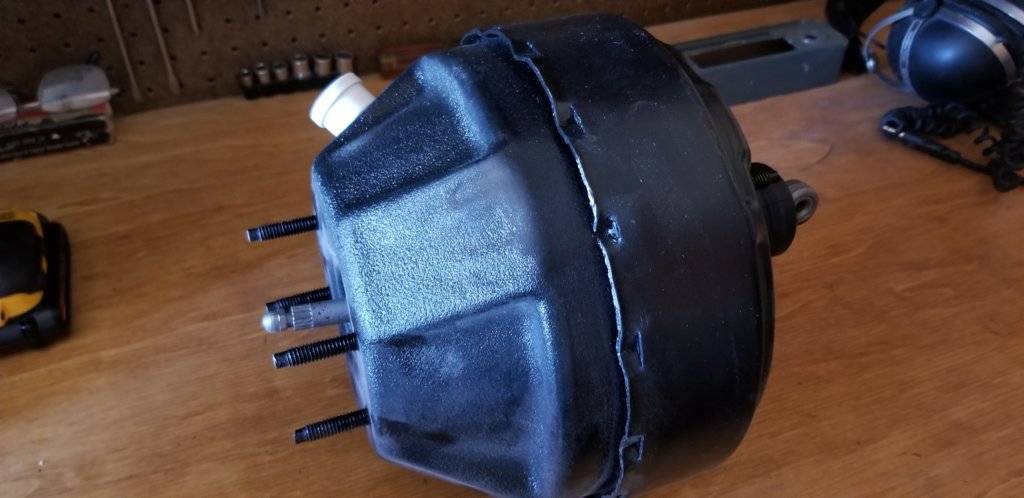

    3rd original C body, BD restored

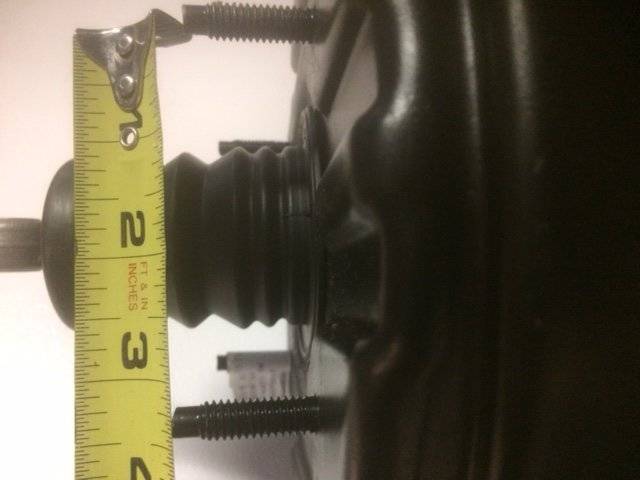

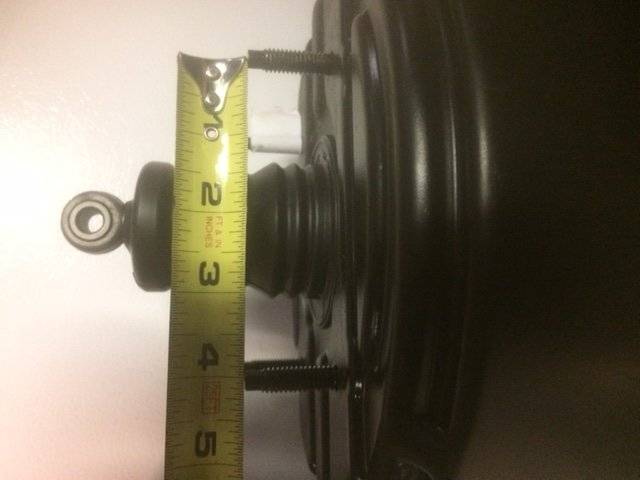

    4th &5th PJ firewall measurements
    My PJ unit is in another shop so no side by side comparison (sorry)
    Like many re-pop parts on the market the PJ unit has it's share of difference from an OEM part. Major differences include the way the shell halves are joined together (similar but not the same). Along with the PJ unit having 3 steps on the rear half housing vs original having only one step in the rear half of the housing from the joining point to the firewall mounting location.
    The PJ unit is a good alternative if originality is of no concern in your build. I'll wait and continue to wait for my units from booster dewey.
    6970531-4345613-BoosterHemi.jpg IMG_3084.JPG 20190407_142914.jpg IMG_3044.JPG IMG_3045.JPG

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  15. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    5,254
    Likes Received:
    4185
    Joined:
    Oct 8, 2011
    Location:
    California
    Excellent Barnfind. Thanks for the time spent on clarifying the issues. I will send my old cores to be rebuilt too.

  16. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    2,254
    Likes Received:
    603
    Joined:
    Apr 25, 2016
    Location:
    Brantford, Ontario, Canada
    Excellent info, thanks!

  17. '69FuryIIIConvertible

    '69FuryIIIConvertible Senior Member FCBO Gold Member

    Messages:
    3,411
    Likes Received:
    2272
    Joined:
    Oct 18, 2012
    Location:
    Ajax, Ontario, Canada
    My 70 has the Bendix booster.

    Nick

  18. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    4,110
    Likes Received:
    1029
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    The C-Bodies had dual diaphragm boosters from 68-70 on all models with power disc brakes. In '71 the bendix booster was still standard on police cruisers, tow package equipped vehicles and some of the early production disc brake cars. The larger single diaphragm booster was introduced as a lower cost replacement for the bendix after the production run had started, not sure of the dates.

    Dave

    Last edited: Apr 8, 2019
    • Like Like x 1
  19. jason99

    jason99 Active Member FCBO Gold Member

    Messages:
    348
    Likes Received:
    146
    Joined:
    May 20, 2018
    Location:
    Atlanta, GA
    Thanks. Never mind then.

  20. bnz84

    bnz84 Member

    Messages:
    54
    Likes Received:
    40
    Joined:
    Feb 28, 2011
    Location:
    Finksburg, Maryland
    I had luck with a later model dual - 1975 and up. Part 54-73309 and available and affordable. No rebuild, just buy and install. Bolted up no problem to my originally 318 69 fury. Rod was perfect length for my originally power drum pedals Only had to widen the center hole in the mounting plate that is sandwiched by booster and firewall. Needs more diameter for the rubber boot. Just in case people are looking for options.

    But I do think there might be shifter linkage clearance issues if you have column shift.

    https://www.autozone.com/brakes-and...r/duralast-reman-brake-power-booster/102619_0
