pics of a bad disc swap - how NOT to route the hose!

fury fan

Senior Member
Joined
Mar 30, 2013
Messages
2,495
Reaction score
1,610
Location
Indianapolis

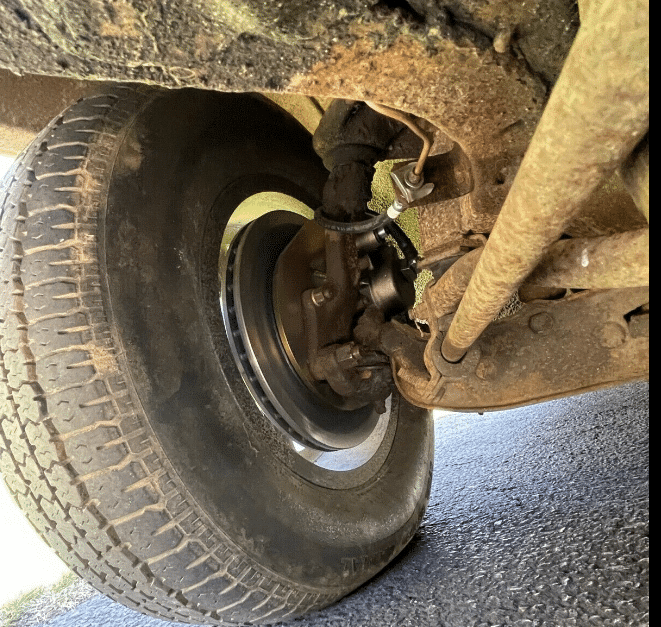

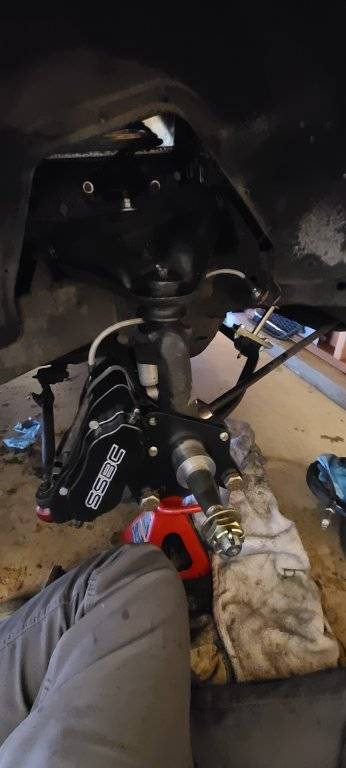

Saw this on a car on ebay.
While the drumbrake booster is a common mistake that prevents full braking in an emergency (which might never be an issue), this brake hose will surely abrade on that spindle and road grime, causing a leak and total loss of braking at the front.
Brake hoses cannot ever rub on any surface.






MetalManiacAZ

Well-Known Member
FCBO Gold Member
Joined
Feb 15, 2021
Messages
721
Reaction score
774
Location
Arizona
Yup, not to mention the drum master cylinder that doesn't have a larger reservoir for additional fluid for the calipers.


3C's & a D?

Senior Member
Joined
Oct 27, 2015
Messages
1,585
Reaction score
1,285
Location
By the tree in Edmonton
Wow, that is really ugly. The proportional valve may help with the wrong booster, however of course, why not use the readily available correct one. The hose routing is absolutely atrocious, how could one think that's right? Looks like a modern banjo fitting on the hose and caliper and that adapter plate also seems to be really close to the disc. To quote another member " try not to die".


Knebel

Senior Member
Joined
Mar 21, 2013
Messages
1,369
Reaction score
497
Location
Beaverton, Oregon
Looks like the sides were reversed and it was installed incorrectly. I dont know about the dustshields... where would one even get those aftermarket? My kits didnt come with them either.

On my jeep the dustshields are very annoying and i constantly have dirt and rocks get caught between them and making crazy sounds when offroading. Anyway... :D


413

Senior Member
Joined
Jan 28, 2019
Messages
1,222
Reaction score
1,306
Location
NW USA
Look a bit closer at the photo. Where are you going to mount those dust shields?

Last edited:

Ross Wooldridge

Senior Member
FCBO Gold Member
Joined
Apr 25, 2016
Messages
4,394
Reaction score
3,647
Location
Scotland, Ontario, Canada
I am not sure - that whole thing gets uglier each time I look at it... however on a properly done 69 through 73 disc brake conversion there's room for the proper backing plates, and all you have to do for the brake hose is to clock the brake hose retainer (at the fitting on the stub frame) 90° and use a 1976 van flex hose and you're good to go.


68PK21 440.6bbl

Old Man with a Hat
Joined
Nov 29, 2017
Messages
7,545
Reaction score
6,849
Location
Siren City
Dust shields are actually available in reproduction...
They aren't really 'Dust Shields' but 'Splash Shields' as in to keep road water from 'splashing' onto the disc rotors 'cuz as we all know water on the brakes reduces the stopping power/distance of brakes 'Wet Brakes'.



There are also instructions on how to install the brake hose. Real simple IMHO.


.
