Power Seats, How do they work?

1970FuryConv

Senior Member
Joined
Aug 8, 2014
Messages
3,643
Reaction score
3,817
Location
Richmond, VA
Okay this is a thread for power seat newcomers, like me. Power seat works fine.
So I took out the 1973 front bench electric seat , mostly to clean and compare the seat vinyl between the front and the back seats. They are badly mismatched.

So that my front seat could rest flat on a table, I took off the power seat mechanism. I began looking at it and got curious. I went to page 5-42 in my factory shop manual.

A 3-Armature permanent magnet reversible motor is coupled through cables to rack and pinion assemblies located in the seat tracks, providing the various seat movements.

So my question is, are the cables off the motor hydraulic like a power steering system?
If not, how do they work? Thanks, Ben





CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
7,254
Reaction score
4,432
As mentioned, "cables" similar to a speedo cable.

The "rack and pinions" are termed "jacks", which actually move the seat at the direction of the motor and cables.

Enjoy!
CBODY67


bnz84

Active Member
Joined
Feb 28, 2011
Messages
478
Reaction score
522
Location
Maryland

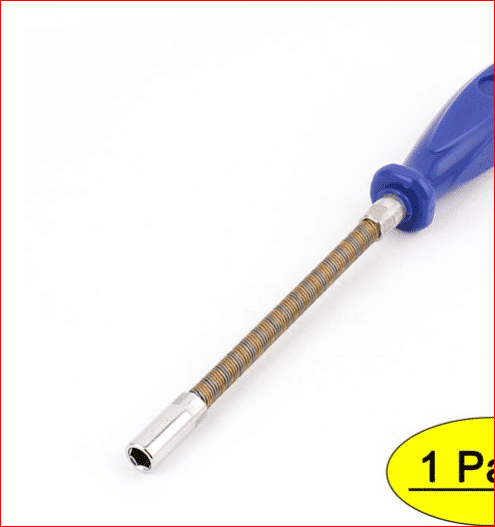

This might help if you zoom in. Flexible wire coil that is pressed into a square shape at each end to fit tight into the holes in the "transmission"





bnz84

Active Member
Joined
Feb 28, 2011
Messages
478
Reaction score
522
Location
Maryland

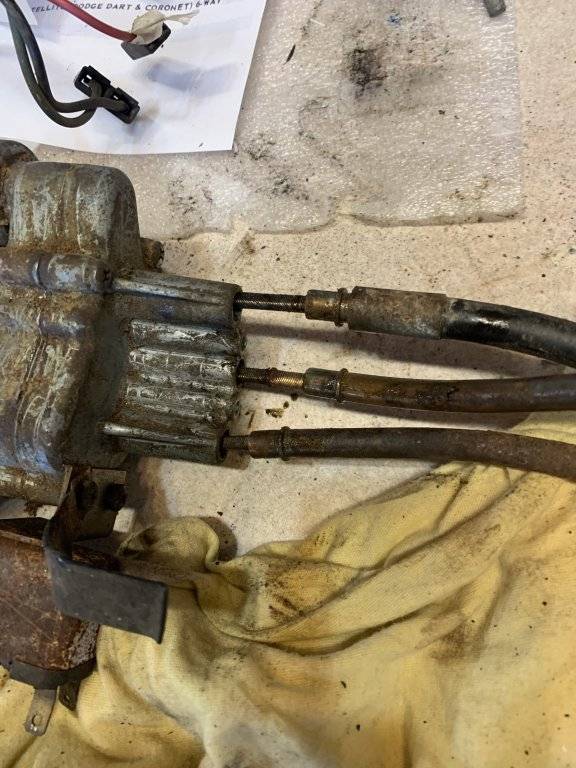

I don't have the same triple motor as you so not sure but for mine they are all press fit with some sort of mechanical bracket that acts as a lock. On the pic above it was a triple locking bracket (not pictured) and on the tracks they were 3 single u shaped brackets per side.
