    I am getting ready to install a OE radio in my 66 Newport. Is removing the ash tray assembly the easiest/only way to install it? Are there any support brackets that need to be used?

    Thanks, NewportTM


  2. 1966newport

    1966newport Well-Known Member

    Messages:
    537
    Likes Received:
    37
    Joined:
    Jan 20, 2012
    my guess is the a/c ducts will be an issue

  3. NewportTM

    NewportTM Member

    Messages:
    165
    Likes Received:
    19
    Joined:
    May 6, 2012
    Location:
    Central California
    Did the original radio use a support on the back of it, or was it held in place by the nuts on the control knobs. If it did use a support (which I feel it did) where did it connect under the dash.

  4. tallhair

    tallhair Rufus "Mod Hair" Firefly Staff Member

    Messages:
    9,044
    Likes Received:
    2474
    Joined:
    May 12, 2013
    Location:
    Mascoutah, Illinois
    Don't know for C bodies as it's been about 30 years since I pulled a AM 8 track out of a 68 Polara but b bodies have a arm with a slot attached to the dash back there. There's threaded bolt on the back of the radio which slides into the slot and you screw the nut down on the threaded bolt coming out of the back or back side of the radio. In the front behind the faceplate there's a couple holes in the dash frame. You screw two small radio bolts into the face of the radio body. Install faceplate and done.

    i see your dash is of the knob variety so probably the correct radio is held in by a nut on the the knob post with the nut on the outside of the dash.

    The back probably has a threaded post coming out the back or back side area.

    good luck :)

    A/C ducts will probably be in the way but hopefully not or you can contort to get around them or take them off temporarily.

    update:

    here's some crappy photo's of a B body thumbwheel which is probably very similar to yours except i seem to recall C body radios came to a point in the front vs being flat across the face other wise are extremely similar. Also some of another style radio knob style as opposed to thumb dial

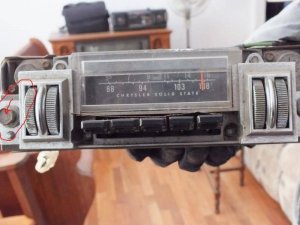

    First one is 68/69 B body style thumb wheel AM/FM front note red circle on the left ... there one on the right too out of the pic those bolts go through the dash and into the radio in this style

    radio pic b body front.jpg

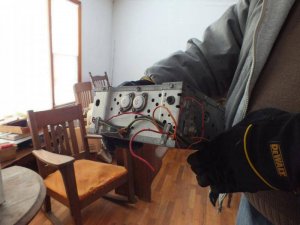

    I'm not positive but I think this is the back of that top radio note the bolt sticking out side toward back .. some are on the back some on the back side

    Radio pic back.jpg

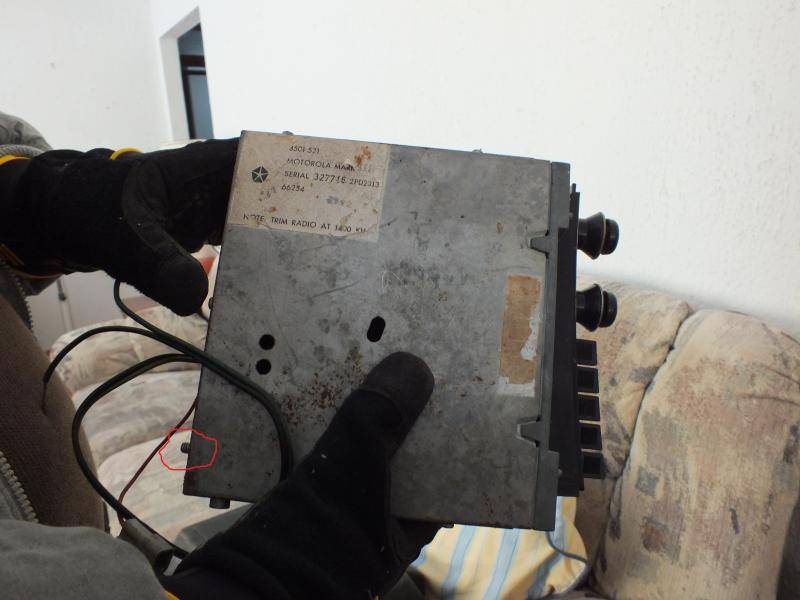

    this is the 71 and up B and I think maybe 70 and up C body style ?? not sure exactly what but has knobs instead of thumb wheel see the bolt coming out the back

    radio pic diff style back.jpg

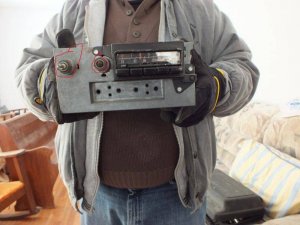

    front of 71 and up B ?? and I think maybe 70 and up C body style ?? .. control knob studs to through dash frame and nuts tighten up and hold it fast

    radio pics 71 and up c body front.jpg

    I did this real quick and dirty so If i made any errors or omissions I'm certain someone will come and along and point out if I missed or misstated something. Especially what the knob style radios actually are

    Good luck mopar brother :)

    radio pic b body front.jpg

    Radio pic back.jpg

    radio pic diff style back.jpg

    radio pics 71 and up c body front.jpg

    Last edited: Jun 1, 2013
  5. NewportTM

    NewportTM Member

    Messages:
    165
    Likes Received:
    19
    Joined:
    May 6, 2012
    Location:
    Central California
    Thanks for the help. I found the bracket mount and will be posting an after picture soon. Fortunately the a/c ducting slides right off. Easy install once you remove the ash tray.

  6. tallhair

    tallhair Rufus "Mod Hair" Firefly Staff Member

    Messages:
    9,044
    Likes Received:
    2474
    Joined:
    May 12, 2013
    Location:
    Mascoutah, Illinois
    You are welcome

  7. NewportTM

    NewportTM Member

    Messages:
    165
    Likes Received:
    19
    Joined:
    May 6, 2012
    Location:
    Central California
    Installation complete.


  8. tallhair

    tallhair Rufus "Mod Hair" Firefly Staff Member

    Messages:
    9,044
    Likes Received:
    2474
    Joined:
    May 12, 2013
    Location:
    Mascoutah, Illinois
    Sweet .. nice looking setup
